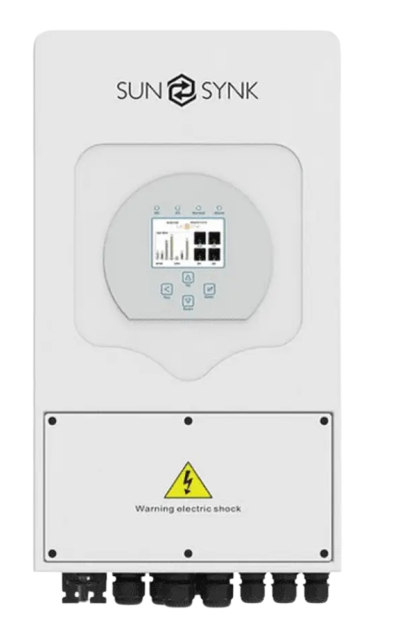

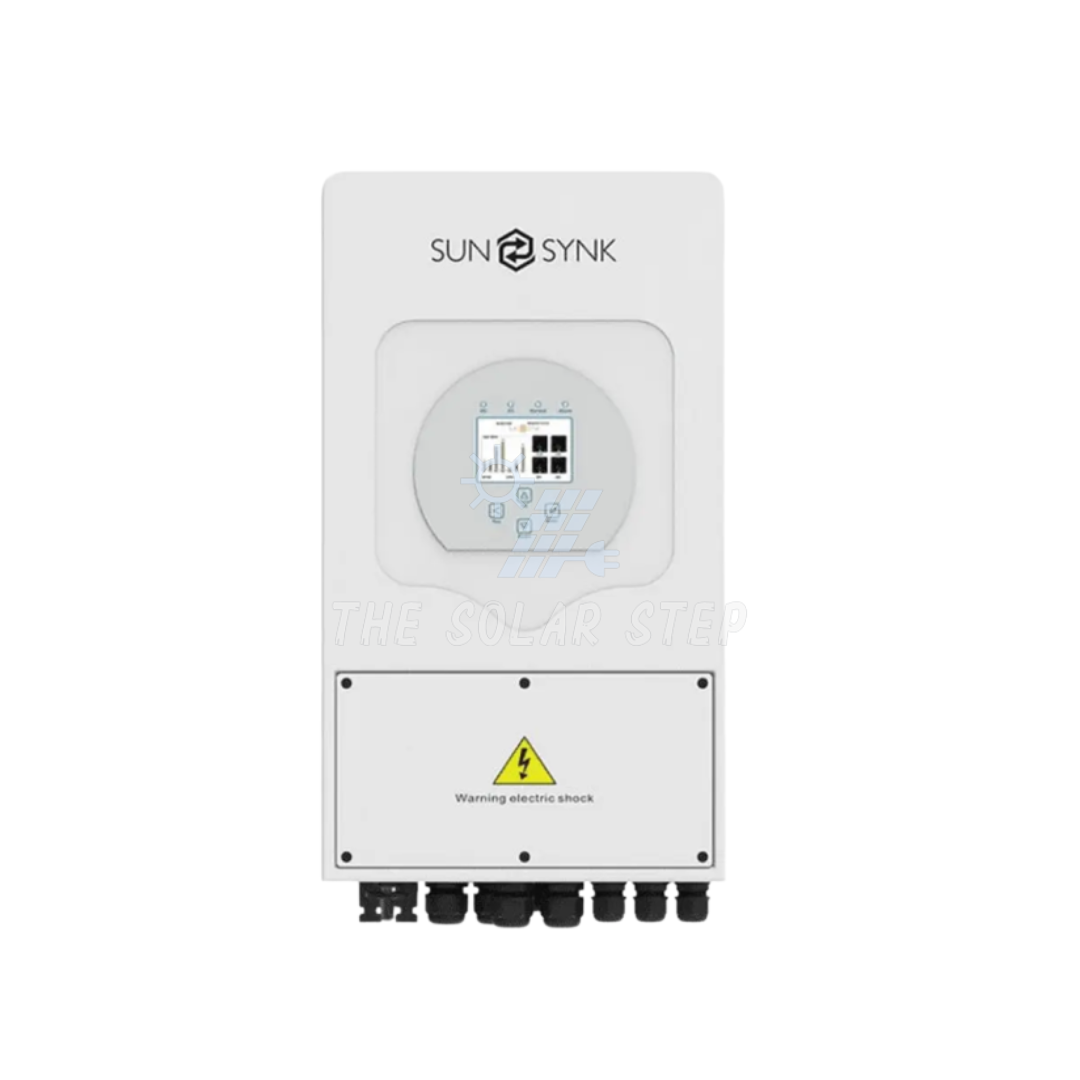

SUNSYNK 8.8KW Hybrid Inverter + WIFI DONGLE

SYK-SSHI002 SunSynk Hybrid Inverter 8.8kW + Dongle-SG01LP1

Sunsynk 8.8kW Solar Hybrid Inverter (Off-Grid / Hybrid / Parity etc)

The Sunsynk Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.

Sunsynk Inverters have multiple apllications and it is recommended to view the video to have a much better idea of the application possibilities.

FEATURES:

• 220V single phase, pure sine wave inverter
• Self-consumption & feed-in to the grid
• Auto re-start while AC is recovering
• Programmable supply priority for battery or grid
• Programmable multiple operation modes; on-grid / off-grid & UPS
• Configurable battery charging – current / voltage based on applications by LCD setting
• Configurable AC / solar / generator charger priority by LCD settinCompatible with mains voltage or generator power
• Overload / over-temperature / short-circuit protection
• Smart battery charger designer optimised battery protection
• Limit-function installed to prevent excess power overflow to grid
• Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers
• Smart settable 3-stage MPPT charging for optimised battery performance
• Time of use function
• Smart load function

SPECIFICATIONS:

• Max PV Power: 10400W
• Rated DC Power: 8000W
• Max DC Voltage: 500V
• MPPT Voltage Range: 125~425V
• Starting Voltage: 150V
• MPPT Input Lines: 2+2
• Battery Type: Lead-Acid or Li-ion Battery
• Battery Rated Voltage: 48V
• Rated AC/DC & Reserve Power: 8800W
• Max AC Power: 8000W
• Peak Power (Off-Grid): 1.5 Times Rated Power,10s
• AC Output Range: 230Vac
• Off-Grid Output: 45~55H/55~65Hz 180~270Vac 230Vac ±2%
• Communication with BMS: RS485; CANBUS
• Protection Degree: IP65
• Installation Style: Wall-mounted

FINISHING:

Powder coated Cream / Siemens Grey

DIMENTIONS (mm):

• Weight (kg): 32
• Size (Length x Width x Height): 670 x 420 x 233 mm

WARRANTY:

5 Years Manufacturers Warranty

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
