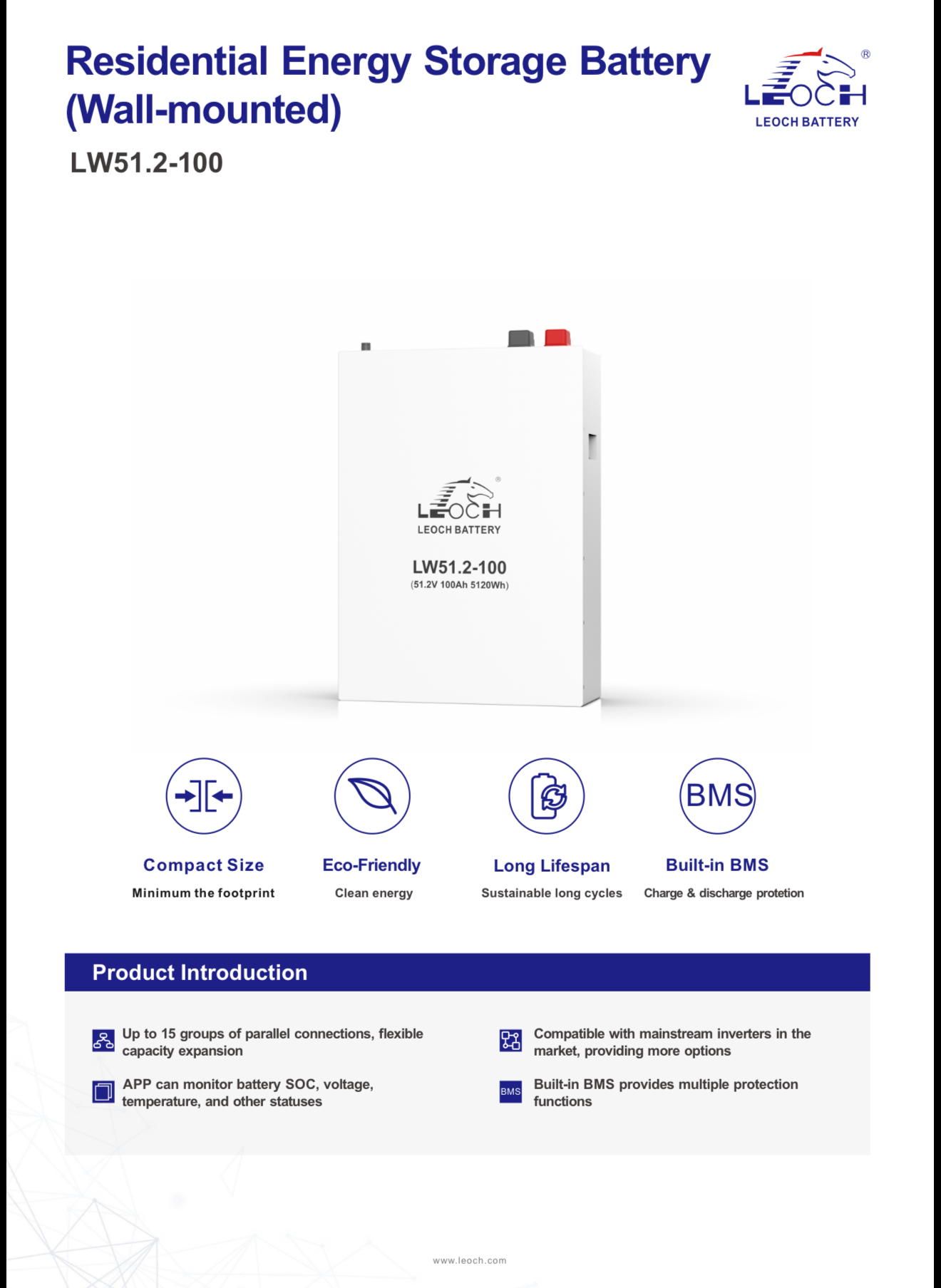

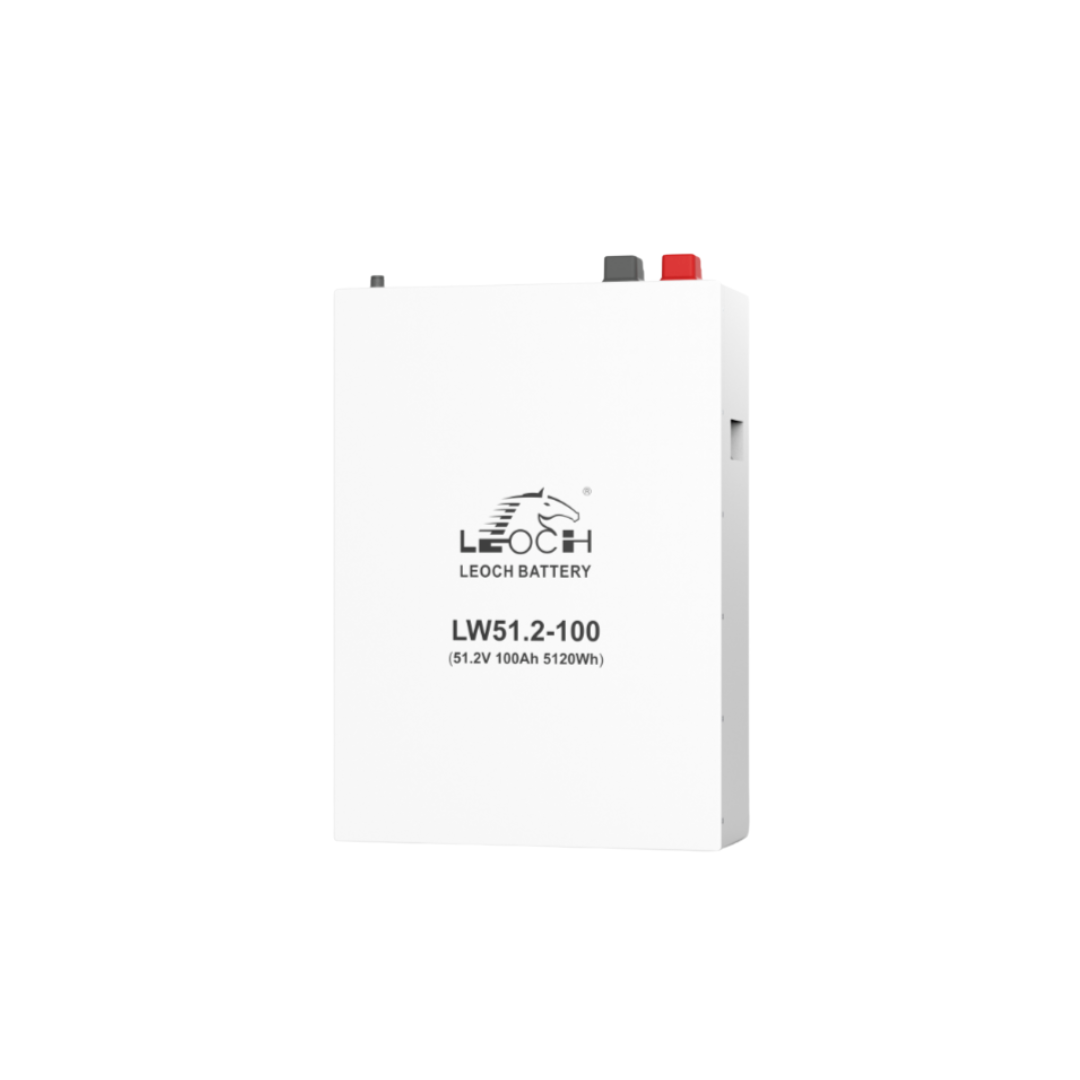

Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery (LW51.2-100)
Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery (LW51.2-100)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 1 left
Couldn't load pickup availability
Title:
Leoch LW51.2-100 5.12kWh 51.2V 100Ah Wall Battery
Description:
The Leoch LW51.2-100 is a wall-mounted residential energy storage battery built for dependable backup and daily cycling in hybrid and off-grid systems. With 5.12kWh of usable energy storage at 51.2V, it supports parallel expansion, multiple communication protocols, and app-based monitoring via Bluetooth and WiFi.

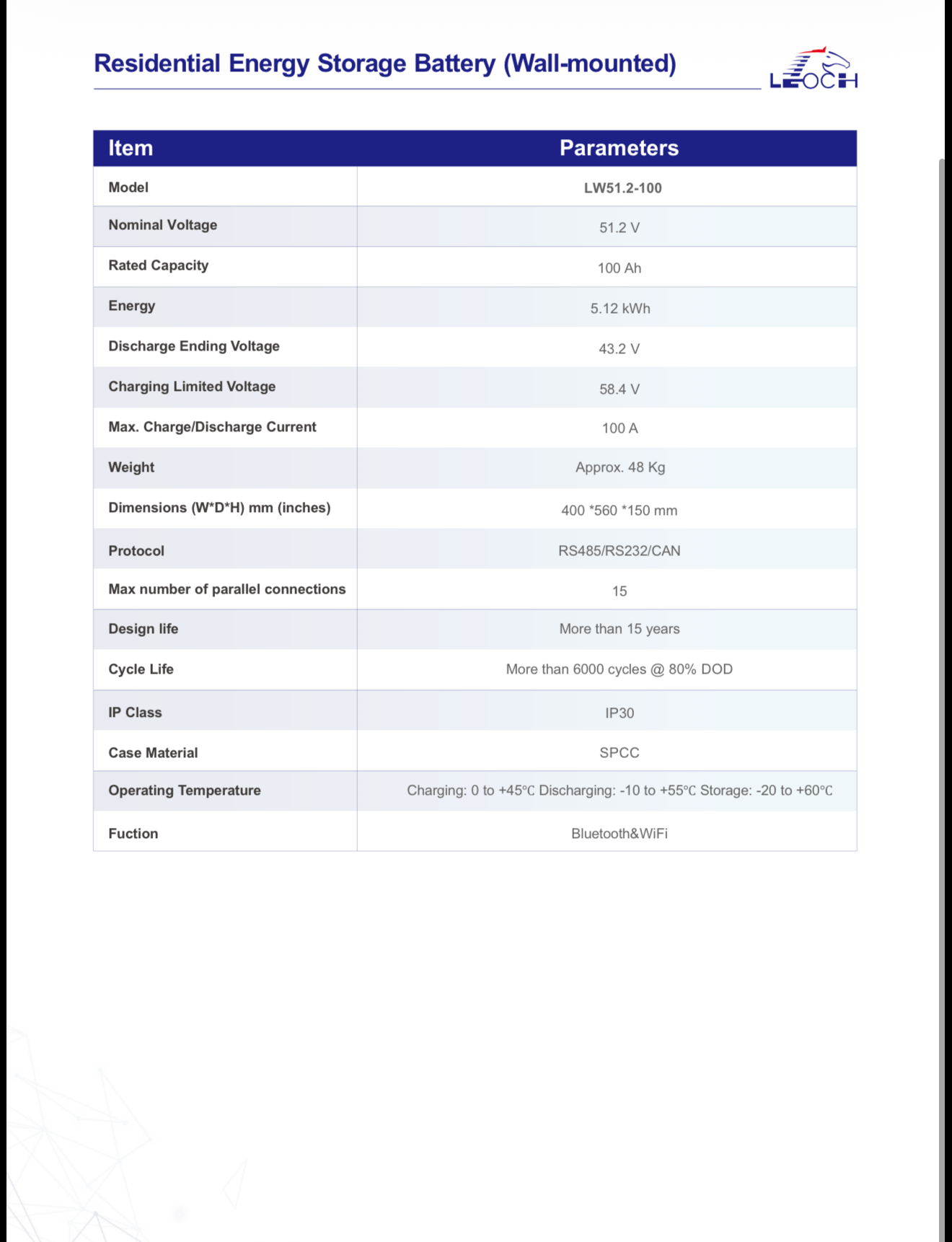

Model and Electrical Ratings
Model: LW51.2-100
Nominal voltage: 51.2 V
Rated capacity: 100 Ah
Energy: 5.12 kWh
Discharge ending voltage: 43.2 V
Charging limited voltage: 58.4 V
Max charge/discharge current: 100 A
Connectivity and Expansion
Protocol: RS485, RS232, CAN
Max number of parallel connections: 15
Function: Bluetooth and WiFi
Lifetime and Protection
Design life: more than 15 years
Cycle life: more than 6000 cycles at 80% DOD
IP class: IP30
Case material: SPCC
Physical Specifications
Weight: approx. 48 kg
Dimensions (W x D x H): 400 x 560 x 150 mm
Temperature Ranges
Charging: 0°C to +45°C
Discharging: -10°C to +55°C
Storage: -20°C to +60°C
Warranty
5 YEAR WARRANTY
Installation Requirements
Installation should be completed by a qualified electrician and aligned with SANS 10142 requirements, with a valid COC issued for the installation where applicable
Ensure correct battery communication settings are used for the chosen inverter and protocol
