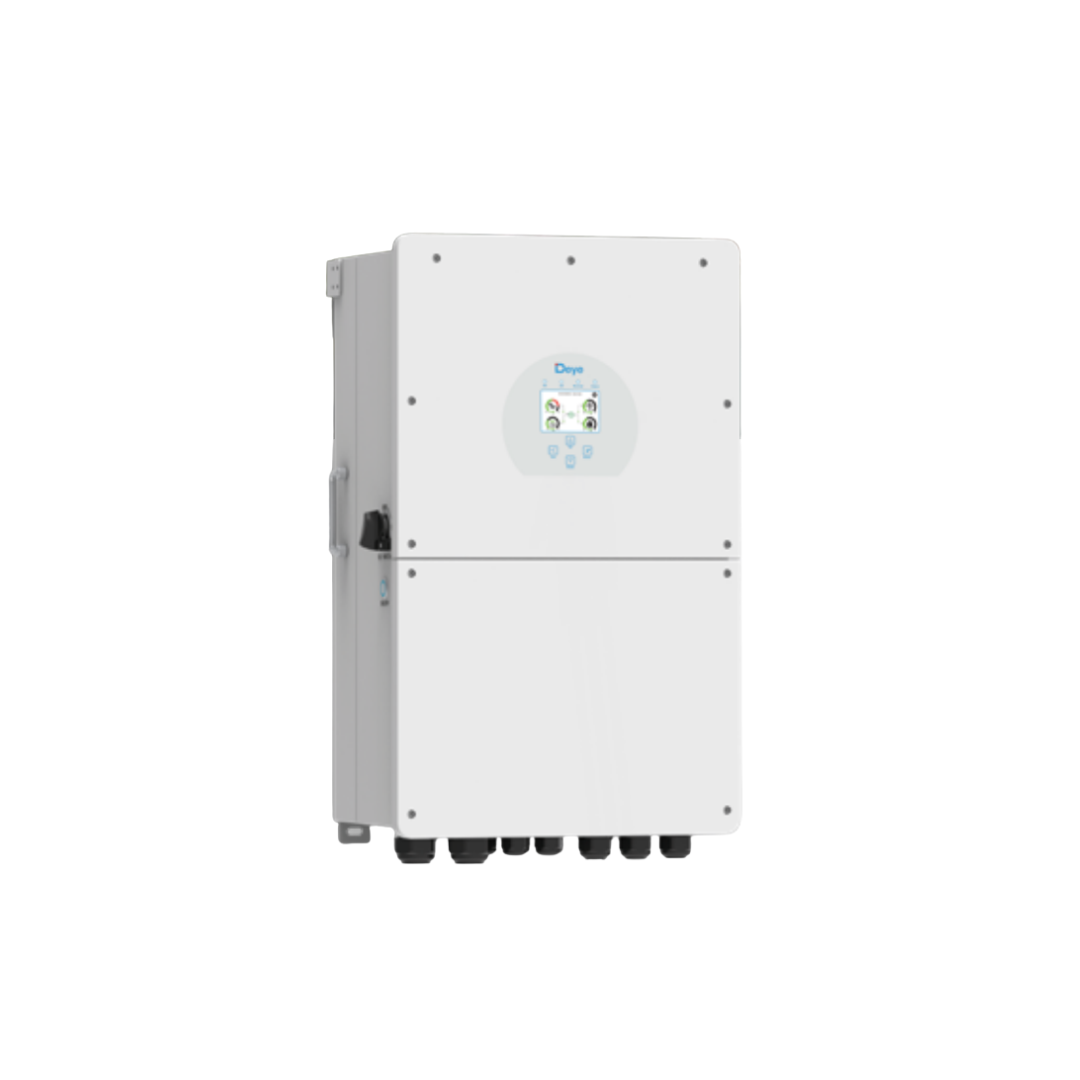

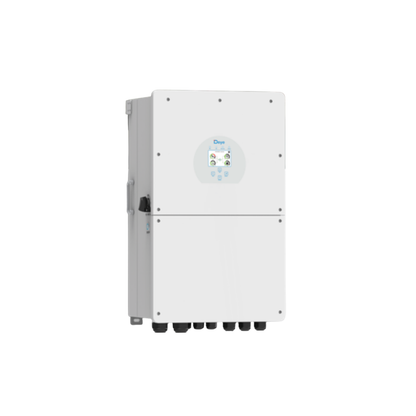

12KW Deye Single-Phase 48V Hybrid Inverter (SUN-12K-SG01LP1-EU)
12KW Deye Single-Phase 48V Hybrid Inverter (SUN-12K-SG01LP1-EU)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability
Title:
Deye 12kW Single-Phase Hybrid Inverter – IP65, High-Current, Smart Energy Control
Description
High-Capacity Hybrid Inverter for Advanced Energy Management
The Deye 12kW Single-Phase Hybrid Inverter is engineered for large residential and small commercial solar systems that require robust power delivery, flexible operating modes, and intelligent energy control. By combining solar generation, battery storage, and grid interaction, this inverter enables efficient self-consumption while maintaining reliable backup during grid interruptions.
Hybrid Operation and System Flexibility
Supports on-grid, off-grid, and hybrid operating modes
Enables AC coupling, making it suitable for retrofitting existing solar systems
Allows up to 16 units in parallel for scalable on-grid or off-grid installations
Compatible with multiple batteries connected in parallel
Power Output and Load Handling
Delivers 12kW AC output for high-demand single-phase applications
Maximum AC output power of 13.2kW for short-duration load peaks
Designed to handle demanding household and business loads efficiently
Battery Integration and Energy Storage
Supports 48V battery systems, compatible with lead-acid and lithium-ion batteries
Wide battery voltage range of 40–60V
Self-adaptive BMS communication via CAN and RS485
Maximum charging and discharging current up to 290A
Six configurable time periods for battery charging and discharging
Supports energy storage from diesel generators
Solar Input and MPPT Performance
Maximum DC PV input power of 19.2kW
Dual MPPT architecture (3/2 MPPT configuration) with two strings per MPPT
MPPT start-up voltage of 125V with a wide operating window
PV input current rated at 26A + 26A + 26A, ensuring stable solar harvesting
Smart three-stage MPPT charging improves battery performance and system efficiency
Smart Energy Control and Monitoring
Color touch LCD display with IP65 protection for clear visibility and durability
Supports WiFi monitoring for real-time performance tracking and remote access
Programmable supply priority between battery and grid
Configurable AC, solar, and generator charging priorities via LCD
Integrated time-of-use and smart-load functions for advanced energy scheduling
Enables self-consumption and controlled feed-in to the grid
Protection, Cooling and Reliability
IP65-rated enclosure suitable for indoor or outdoor installation
Protection against overload, over-temperature, and short-circuit conditions
Intelligent battery charger design enhances battery lifespan
Power limiting function prevents excess export to the grid
Automatic restart when AC supply is restored

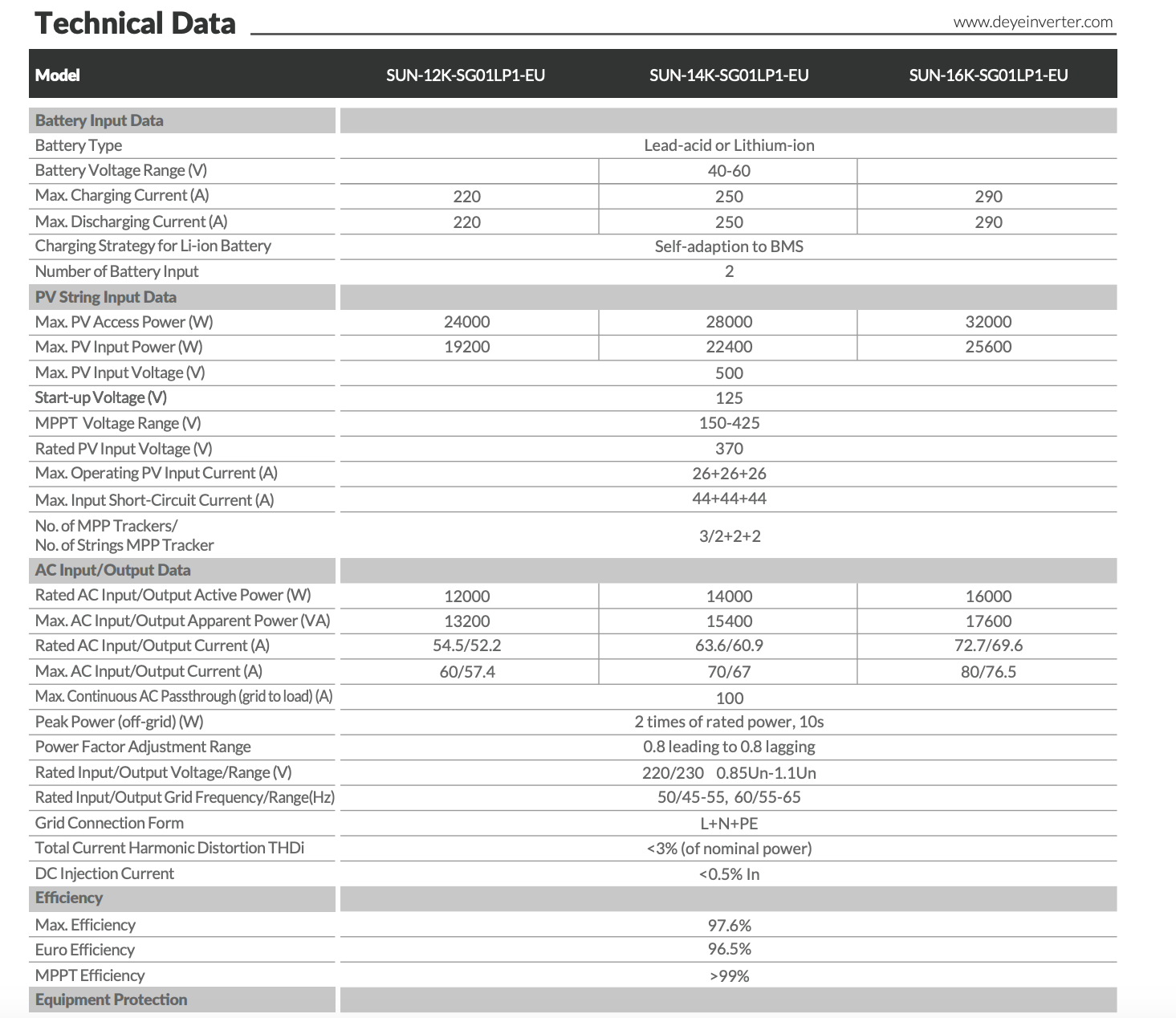

Technical Specifications
| Specification | Details |
|---|---|
| Grid Type | Single Phase |
| AC Output & UPS Power | 12,000 W |
| Max AC Output Power | 13,200 W |
| Max Efficiency | 97.6% |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60 V |
| Max Charge / Discharge Current | Up to 290 A |
| Charging Strategy | Self-adaption to BMS |
| Max PV Input Power | 19,200 W |
| Max PV Input Voltage | 500 V |
| Rated PV Voltage | 370 V |
| Start-up Voltage | 125 V |
| MPPT Configuration | 3 / 2 MPPT |
| PV Input Current | 26A + 26A + 26A |
| Communication | CAN / RS485 |
| Monitoring | WiFi |
| Protection Rating | IP65 |
| Weight | 52 kg |
| Dimensions | 76.3 × 46.4 × 28.2 cm |
Installation and Warranty Conditions
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) must be issued for the solar or backup installation. The installation must comply with SANS 10142 and all related standards. Warranty claims submitted without installation photos, a valid COC, and proof of professional installation may be rejected and rendered null and void.
