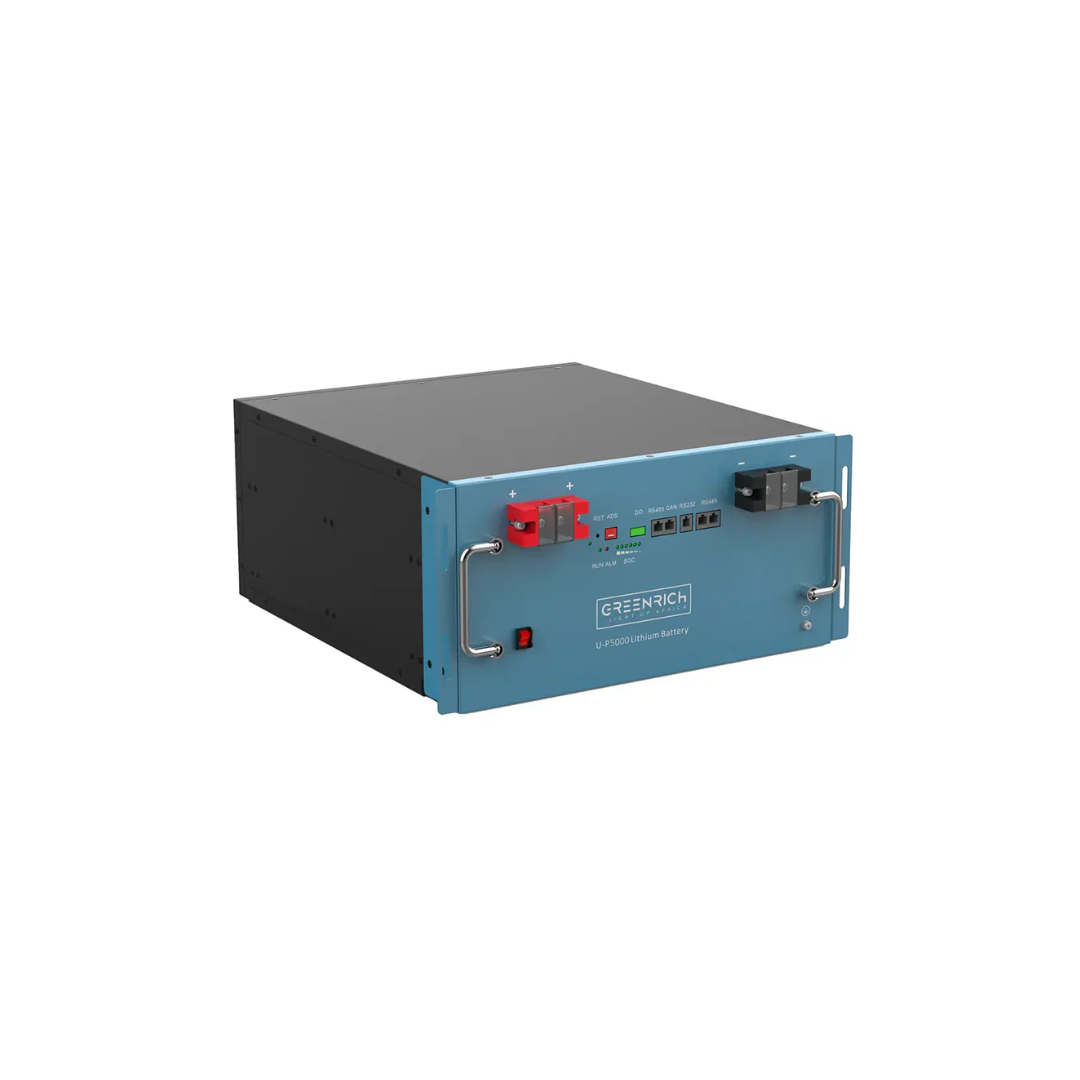

Greenrich 5kWh UP5000 1.5C (7500w/4960Wh) Lithium-iron Battery

Greenrich UP5000 5kWh Lithium-Iron Battery – High Power & Long Life

The Greenrich UP5000 5kWh Lithium-Iron Battery is a high-performance energy storage solution, ideal for residential and commercial solar applications. Engineered for efficiency, durability, and safety, this 7.5kW peak output battery offers over 6000 cycles at 90% Depth of Discharge (DOD), ensuring long-term reliability. With advanced battery management, multiple communication interfaces, and comprehensive temperature and voltage protection, it delivers stable and uninterrupted power for solar backup systems.

Key Features & Benefits:

Reliable & Long-Lasting Performance

• 5kWh nominal capacity, with 7.5kW peak output for handling high-demand appliances.
• 6000+ cycles at 90% DOD, ensuring a lifespan of over 10 years.
• Optimized charging and discharging for extended battery life.

Advanced Protection & Safety

• Overvoltage & undervoltage protection to prevent battery damage.
• Short-circuit protection for enhanced safety.
• Low & high temperature protection ensures operation in extreme conditions.
• Charge & discharge overcurrent protection for stable performance.

Smart Energy Management

• Dormancy function for energy conservation.
• Seamless communication with inverters via RS485, CAN, and RS232 interfaces.
• High-efficiency charging and discharging for better power utilization.

Easy Integration & Expandability

• Compatible with major solar inverters for flexible system integration.
• Compact & space-saving design, ideal for both home and commercial installations.

Technical Specifications:

• Model: Greenrich UP5000
• Nominal Capacity: 5kWh
• Rated Output Power: 7.5kW Peak
• Usable Capacity: 4.96kWh
• Cycle Life: 6000+ cycles @ 90% DOD
• Recommended Charge/Discharge Current: 43A (0.5C @ 25°C)
• Protection Features:
  • Overvoltage & Undervoltage Protection
  • Short-Circuit Protection
  • Charge & Discharge Overcurrent Protection
  • Temperature Protection (High & Low)
• Communication Interfaces: RS485 / CAN / RS232
• Size: 512 × 442 × 222.6 mm
• Weight: 51kg

What’s in the Box?

1 × Greenrich UP5000 5.2kWh Lithium-Ion Battery
1 × User Manual
1 × 3.5mm Inverter to Battery Communication Cable

Warranty & Installation Requirements:

• 10-Year Warranty for long-term reliability.
• Installation must be performed by a qualified electrical wireman or Master Electrician registered with the Department of Labour.
• A valid Electrical Certificate of Compliance (COC) must be issued upon installation.
• The system must comply with SANS 10142 regulations.
• Warranty Claims Require:
  • Installation photos
  • A valid COC
  • Proof of installation by a qualified professional
• Failure to meet these requirements may void the warranty.
