Dyness DL5.0C PRO 5.12kWh LiFePO₄ Lithium Battery Module
Dyness DL5.0C PRO 5.12kWh LiFePO₄ Lithium Battery Module
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
14 in stock
Couldn't load pickup availability
Dyness DL5.0C Pro 5.12kWh LiFePO₄ Battery Module – Expandable, Long-Life Energy Storage
Description:
High-Performance Lithium Battery System
The Dyness DL5.0C Pro offers a reliable and efficient 5.12kWh LiFePO₄ energy storage solution, ideal for both residential and commercial solar setups. Designed for long life and seamless scalability, this compact battery delivers consistent power for hybrid and off-grid systems.
Key Features
Energy Capacity and Design
Nominal battery energy of 5.12kWh (51.2V, 100Ah) ensures dependable backup power.
Compact, wall-mountable module with a space-saving design (488 × 515 × 150mm).
Lightweight structure at 46kg for easy installation and handling.
Durability and Protection
Built with LiFePO₄ chemistry for enhanced safety and long service life.
Offers ≥6000 cycles at high depth of discharge, maintaining optimal performance over years.
Rated IP20, providing protection against dust and ensuring stable indoor performance.
Modular and Scalable System
Supports parallel expansion of up to 50 units, allowing flexible system growth.
Fully compatible with leading inverter brands, including Deye, Sunsynk, Growatt, and LuxPower.
Smart Energy Integration
Delivers stable power supply for on-grid, off-grid, and hybrid solar systems.
Ideal for residential backup, commercial power optimization, and renewable energy storage.

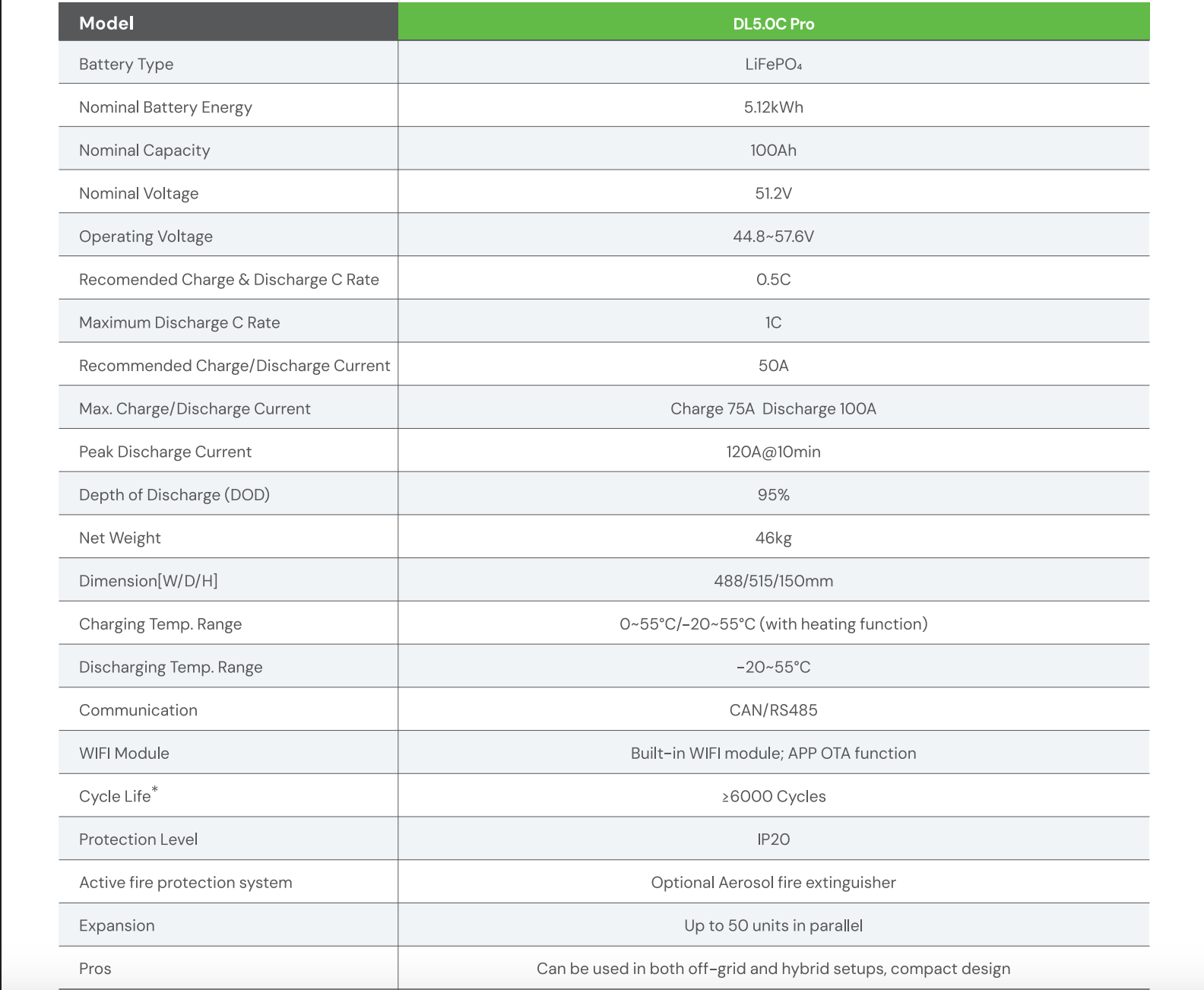

Technical Specifications
| Specification | Details |
|---|---|
| Model | DL5.0C Pro |
| Battery Type | LiFePO₄ |
| Nominal Energy | 5.12 kWh |
| Nominal Voltage | 51.2 V |
| Capacity | 100 Ah |
| Cycle Life | ≥6000 Cycles |
| Protection Level | IP20 |
| Dimensions (W × D × H) | 488 × 515 × 150 mm |
| Net Weight | 46 kg |
| Expansion Capability | Up to 50 units in parallel |
Installation and Warranty
All Dyness batteries must be installed by a qualified electrician or registered wireman in accordance with SANS 10142 standards.
A valid Certificate of Compliance (COC) and installation photos are required for warranty claims.
Warranty: 10 years (subject to approved installation and correct system configuration).
