Megatron 460W Mono BiFacial Solar Panel 1500V 25A SF-M16/144460
Description:
The Megatron 460W mono solar panel is a high-output PV module designed for residential and commercial solar installations where efficiency, string voltage headroom, and reliable operating performance are required. It offers strong electrical characteristics for modern MPPT inverters and is rated for high system voltage applications.

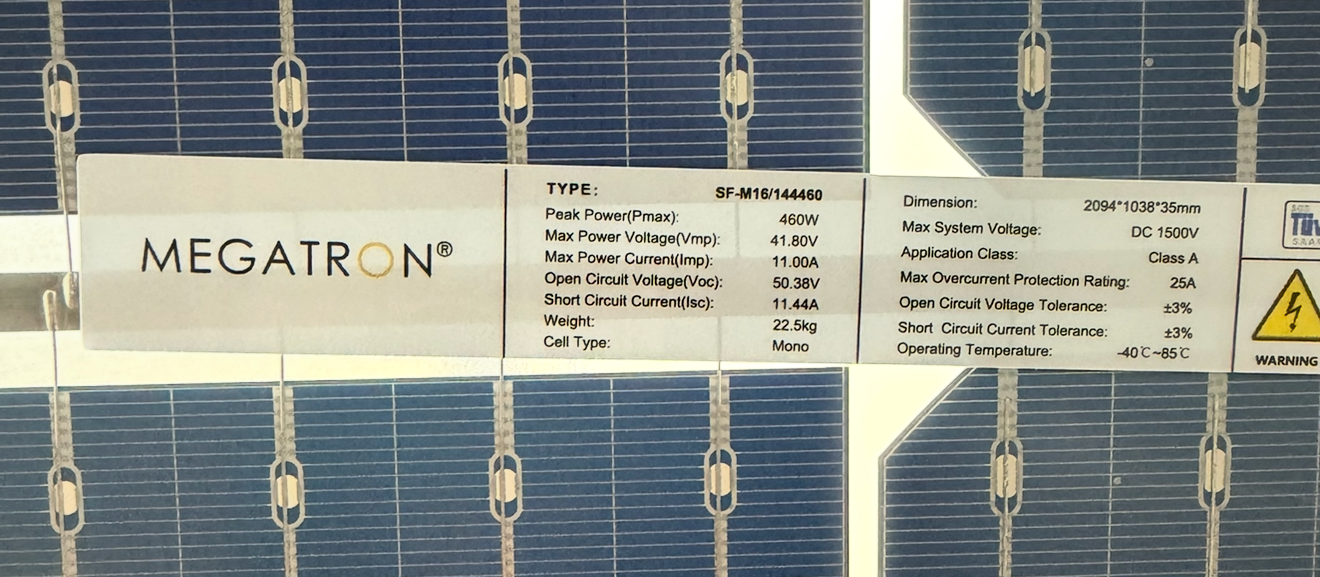

Module Identification
Brand: Megatron
Type: SF-M16/144460
Cell type: Mono
Electrical Performance (STC nameplate values)
Peak power (Pmax): 460W
Max power voltage (Vmp): 41.80V
Max power current (Imp): 11.00A
Open circuit voltage (Voc): 50.38V
Short circuit current (Isc): 11.44A
Open circuit voltage tolerance: ±3%
Short circuit current tolerance: ±3%
System Ratings and Protection
Max system voltage: DC 1500V
Application class: Class A
Max overcurrent protection rating: 25A
Mechanical Specifications
Dimensions: 2094 x 1038 x 35 mm
Weight: 22.5 kg
Environmental Rating
Operating temperature: -40°C to 85°C
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Installation Requirements
Installation should be completed by a qualified installer or electrician in line with applicable standards and site requirements
Confirm PV string design remains within inverter MPPT voltage and current limits before commissioning
