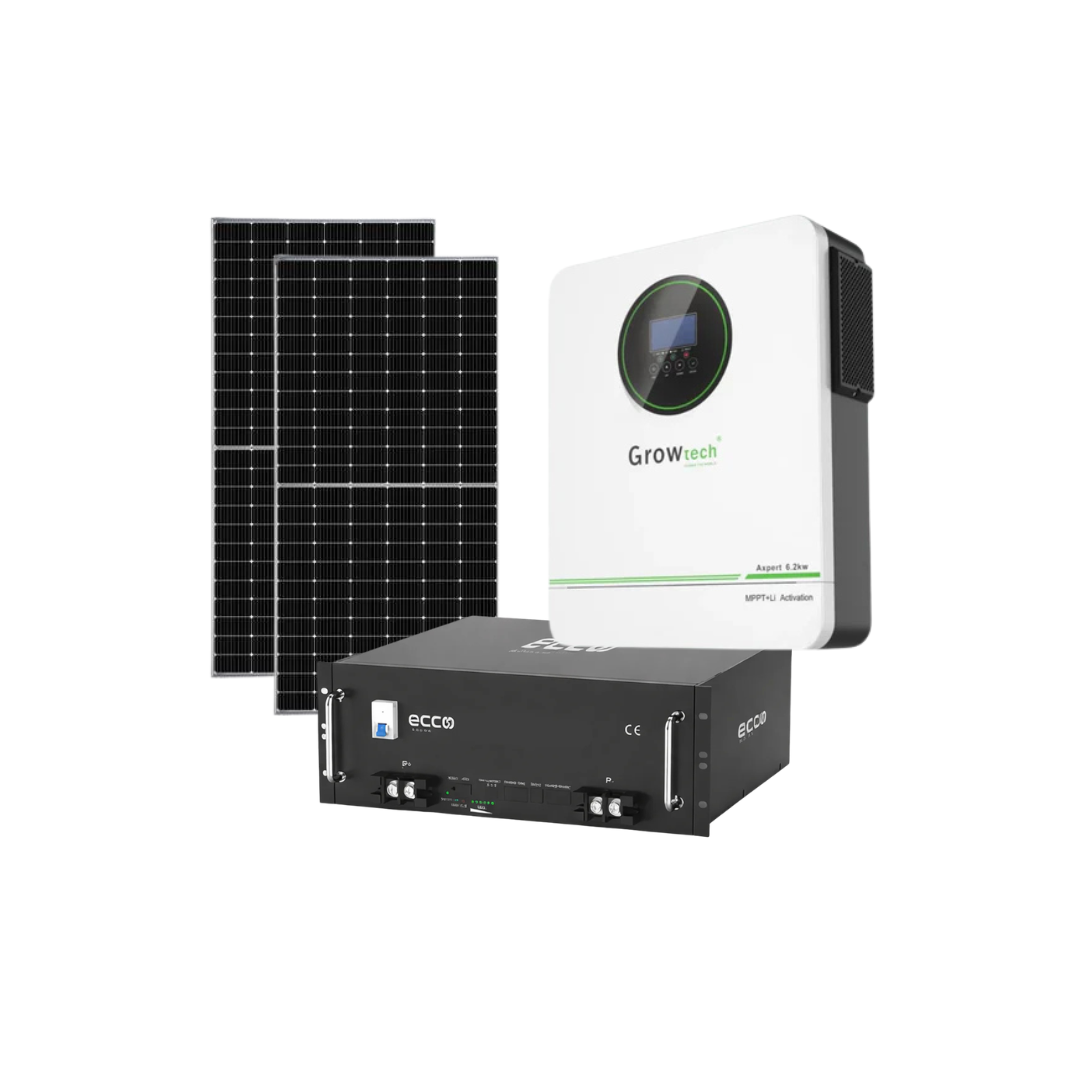

3KVA Growatt 24V Hybrid Inverter + 24V Ecco 2.56kWh Battery + 2x 460W Solar Panels Combo Kit
3KVA Growatt 24V Hybrid Inverter + 24V Ecco 2.56kWh Battery + 2x 460W Solar Panels Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
3KVA Growatt 24V Hybrid Inverter + 24V Ecco 2.56kWh Battery + 2x 460W Solar Panels Combo Kit
Description:
This compact hybrid solar combo is built for load-shedding protection in homes and small offices. It combines the Growatt SPF 3000TL HVM-24 24V hybrid inverter with the Ecco LR24100 25.6V 100Ah 2.56kWh lithium battery and two Tier 1 460W panels, giving you a stable backup platform with efficient MPPT solar charging and monitoring capability via the included WiFi dongle.
Compact Hybrid Solar Kit for Backup Power
Designed for essential circuits during outages and load shedding
Suitable for lighting, WiFi, TVs, security systems, and key plug points
Practical system size for easy installation and future solar expansion
Growatt Hybrid Inverter Performance (SPF 3000TL HVM-24)
Rated power: 3000VA / 3000W for essential loads
Pure sine wave output suitable for sensitive electronics
Battery operation supported
Integrated MPPT charge controller for PV optimisation and battery charging
Configurable power priorities to suit site requirements
Monitoring supported via WiFi dongle (included)
Solar Charging and MPPT Control (Inverter)
Max PV array power: 1500W
MPPT voltage range: 30VDC to 80VDC
Max PV open circuit voltage: 102VDC
Max solar charge current: 50A
Max efficiency: 93%
Ecco Lithium Battery Storage (LR24100)
Nominal voltage: 25.6V
Nominal capacity: 100Ah
Total energy: 2.56 kWh
Operating voltage range: 21.6V to 28.8V
Discharge ending voltage: 21.6V
Charge voltage range: 28.8V nominal, max 29.2V
Standard charge/discharge current: 50A
Max charge/discharge current: 100A
Max continuous output power: 2560W
Max momentary output power: 3200W
Efficiency of charge: 99% (0.5C, 25°C)
Efficiency of discharge: 98% (1C)
Protection rating: IP54
Cycle life: >5000 cycles at 0.5C and 80% DOD at 25°C
Battery cables not included
What’s Included
1 x Growatt SPF 3000TL HVM-24 24V 3kW hybrid inverter
1 x WiFi monitoring dongle
1 x Ecco LR24100 25.6V 100Ah 2.56kWh lithium battery with BMS
2 x 460W Tier 1 mono solar panels (10-year warranty)
Warranty and Installation Requirements
Inverter warranty: 2 years
Battery warranty: 5 years
Solar panel warranty: 10 years
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician registered with the Department of Labour
A valid Certificate of Compliance (COC) must be issued upon installation, and the system must comply fully with SANS 10142
Warranty claims submitted without installation photos, a valid COC, and proof of professional installation may be rejected and rendered null and void
