3.5KVA Ecco 24V MPPT Hybrid Inverter + 2.56kWh Ecco Lithium Battery + 3x 460W Solar Panels Combo
3.5KVA Ecco 24V MPPT Hybrid Inverter + 2.56kWh Ecco Lithium Battery + 3x 460W Solar Panels Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Out of stock
Couldn't load pickup availability

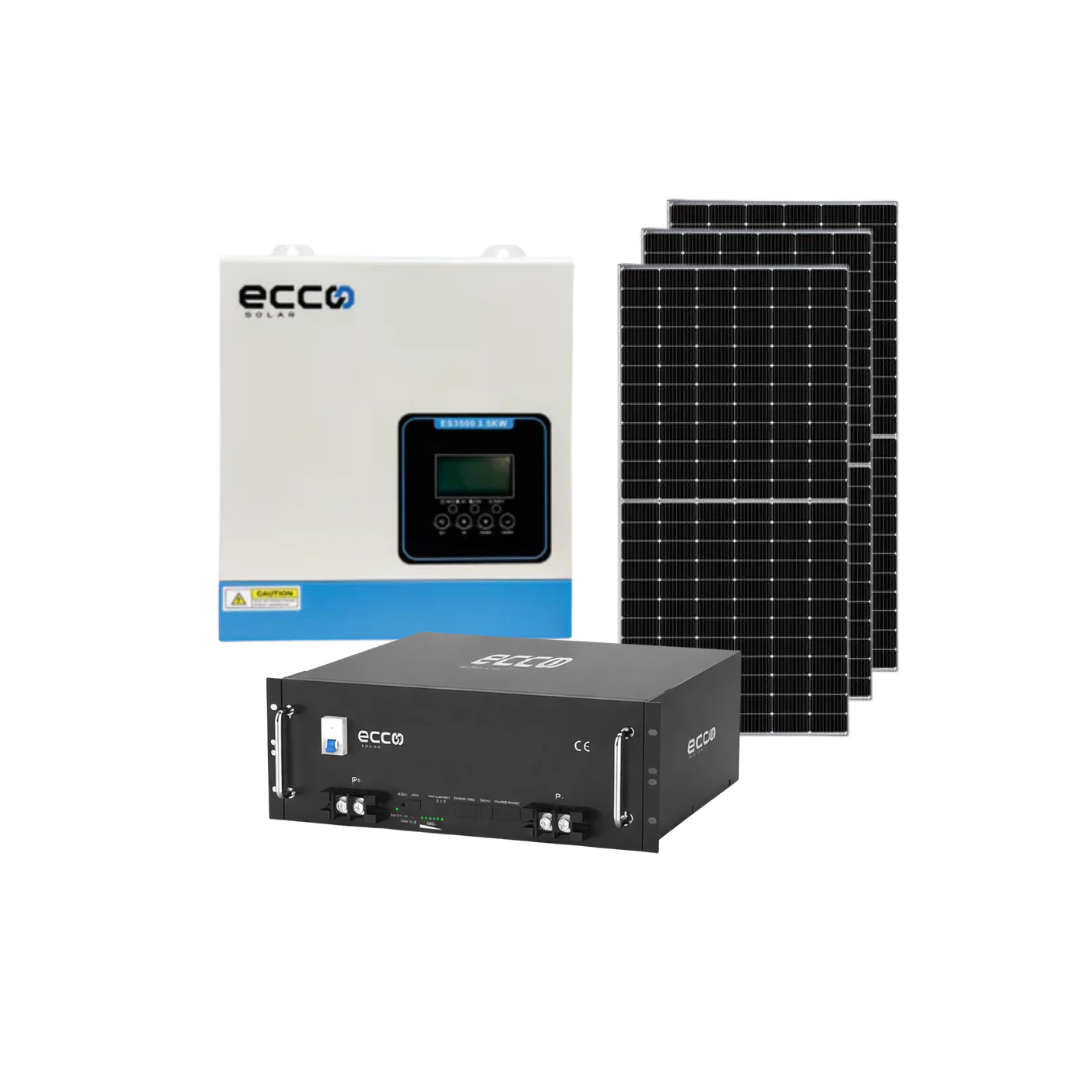

Ecco 3.5KVA 24V Hybrid Inverter + 2.56kWh Lithium Battery + 3x 460W Solar Panels
Description:
This Ecco hybrid solar combo kit is a practical 24V solution for backup power and small solar installations. It combines a 3.5kVA pure sine wave hybrid inverter with a 2.56kWh LiFePO4 lithium battery and three high-watt mono solar panels, giving you a complete base system that can be monitored with an optional WiFi dongle.
Combo Includes
1x Ecco LR24100 25.6V 100Ah 2.56kWh lithium battery with BMS
1x Ecco 24V 3.5kVA 3500W hybrid inverter pure sine wave with 100A MPPT (ES3500)
3x 460W Solar mono panels
Optional add-on: WiFi dongle available
Hybrid Inverter Specifications (Ecco ES3500)
Inverter Mode
Rated power: 3500VA / 3500W
Nominal voltage: 24V
AC Charger Mode
AC input: 230VAC, 50/60Hz
Max charge current: 60A
Max charger current (AC + PV): 100A
AC output: 230VAC
Solar Charger Mode
Max PV array power: 4000W
Minimum solar voltage: 30VDC
Max solar voltage (Voc): 500VDC
Max MPPT charge current: 100A
Battery Specifications (Ecco LR24100)
Nominal voltage: 25.6V
Nominal capacity: 100Ah
Total energy: 2.56 kWh
Operating voltage range: 21.6V to 28.8V
Discharge ending voltage: 21.6V
Charge voltage range: 28.8V nominal, max 29.2V
Standard charge/discharge current: 50A
Max charge/discharge current: 100A
Max continuous output power: 2560W
Max momentary output power: 3200W
Efficiency of charge: 99% (0.5C, 25°C)
Efficiency of discharge: 98% (1C)
Protection rating: IP54
Cycle life: >5000 cycles at 0.5C and 80% DOD at 25°C
Battery cables not included
Warranty
Battery warranty: 5 years
Inverter warranty: 5-year repair warranty
Solar panel warranty: 12-year product workmanship warranty
Delivery Note for Panels
Please note courier for solar panels are at your own risk
Warranty and Installation Requirements
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour
A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system
The installation must be compliant with SANS 10142 and all its parts
Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman or master electrician installing the unit, can be rejected and will render the warranty claim null and void
