The Solar Step

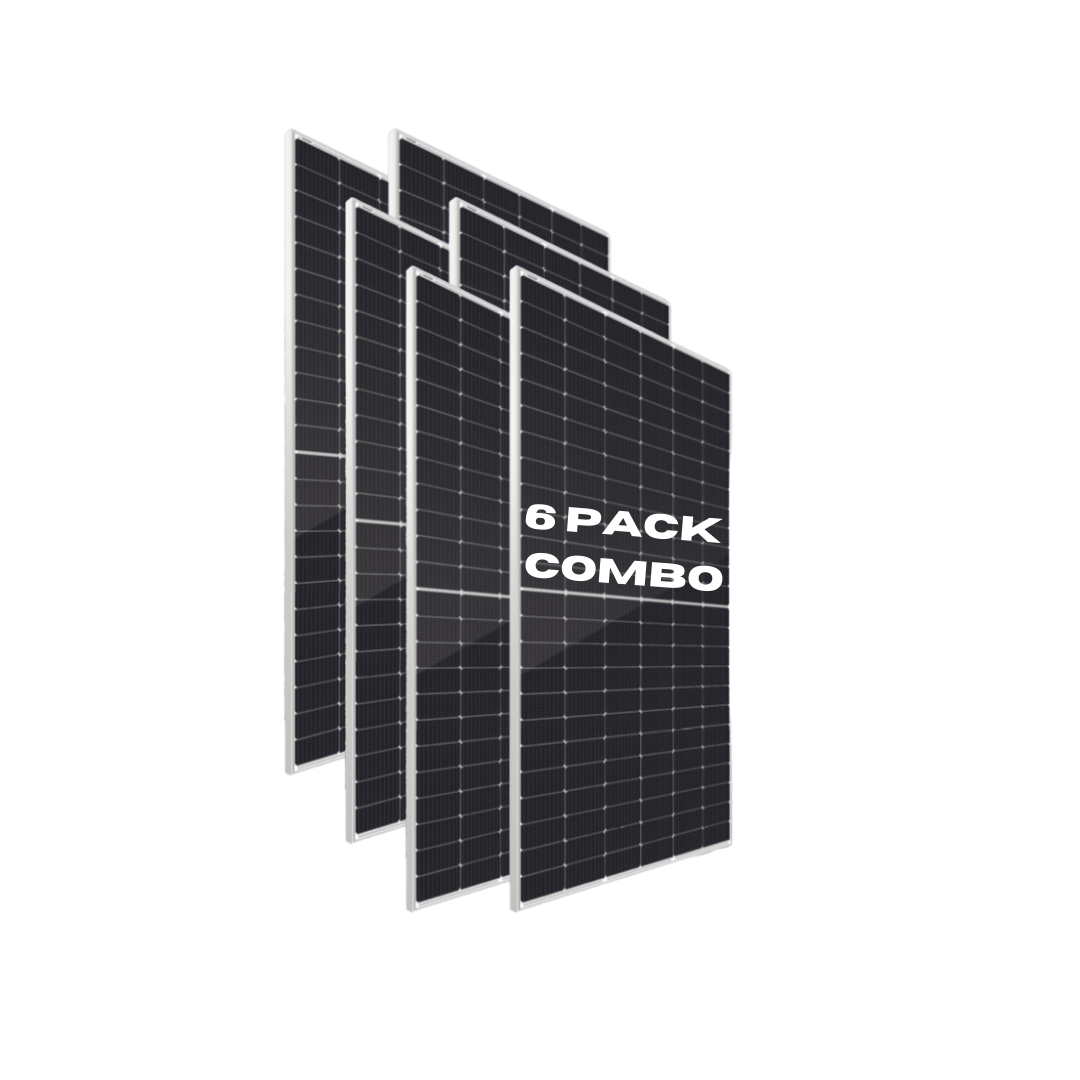

HAITAI 545W Mono Crystal TIER 1 Solar Panel (HTM545MH5-72) 6 PACK COMBO

HAITAI 545W Mono Crystal TIER 1 Solar Panel (HTM545MH5-72) 6 PACK COMBO

Regular price R 10,300.00
Regular price Sale price R 10,300.00
Sale Sold out
Shipping calculated at checkout.

Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.

Low stock: 6 left

HAITAI 545W Mono Crystal TIER 1 Solar Panel (HTM545MH5-72) 6 PACK COMBO

PLEASE NOTE : SOLAR PANELS ARE COURIERED AT OWN RISK

The Haitai 535W-555W Tier 1 Mono Solar Panel delivers exceptional efficiency and high power output, with module efficiencies ranging from 20.71% to 21.48%. Perfect for residential and commercial installations, these panels maximize energy production with a wide MPPT voltage range of 120V–450V. Built to withstand extreme temperatures (-40°C to +85°C) and harsh weather, the Haitai solar panels feature high transmittance glass, reinforced aluminum frames, and IP68-rated junction boxes for unmatched durability. Upgrade your solar system with top-quality performance, reliable protection, and long-term efficiency.

Haitai 545W Tier 1 Mono Solar Panel – High Efficiency & Durability

Description:

  • High Efficiency: Haitai solar panels offer efficiency ratings from 20.71% to 21.48%, making them a top choice for maximizing energy production from limited roof space.
  • High Power Output: Available in power outputs ranging from 535W to 555W, perfect for residential and commercial solar installations looking to maximize their energy generation.
  • Durability & Weather Resistance: Designed to perform in extreme temperatures from -40°C to +85°C, ensuring reliable operation in a wide range of climates.
  • Advanced Solar Technology: Featuring mono cells with a 144-cell configuration (6x24), these panels provide a stable and efficient energy output.
  • Strong and Durable: The 3.2mm high transmittance glass ensures maximum light capture, while the reinforced aluminum frame and anti-aging film backsheet offer long-term durability and protection.
  • Module Dimensions: With a size of 2278×1134×30mm and a weight of 28.0kg, these panels offer a compact solution without compromising on performance.
  • High Voltage Compatibility: Suitable for systems with a maximum system voltage of 1000V or 1500V, making them compatible with a range of inverter systems for both residential and commercial solar installations.
  • Protection & Reliability: The panel's junction box is rated IP68 for protection against dust and water, ensuring optimal performance in all weather conditions.
  • Customizable Wiring: The panel comes with MC4 compatible connectors and customizable wire lengths, giving flexibility during installation.

Specifications:

  • Model Number :(HTM545MH5-72)
  • Maximum Power (Pmax/W): 545W
  • Open Circuit Voltage (Voc/V): 49.68V
  • Short Circuit Current (Isc/A): 13.71A
  • Voltage at Maximum Power (Vmp/V): 41.18V
  • Current at Maximum Power (Imp/A): 13.24A
  • Module Efficiency: 21.10%
  • Operating Temperature: -40°C to +85°C
  • Maximum System Voltage: 1000/1500V
  • Cell Type: 182×91mm Mono
  • Cell Orientation: 144(6x24)
  • Module Dimensions: 2278×1134×30mm
  • Weight: 28.0kg
  • Glass: 3.2mm high transmittance, reinforced glass
  • Backsheet: Anti-aging film
  • Frame Material: Anodized aluminum alloy
  • Junction Box Protection Class: IP68
  • Cable: 4.0mm², positive pole: 200mm, negative pole: 250mm
  • Connector: MC4 compatible connector

Warranty:

  • 25-Year Performance Warranty
  • 10-Year Product Warranty

Installation Requirements:

  • Installation must be performed by a qualified electrical wireman or master electrician.
  • The installation must comply with SANS 10142 standards, and a valid Certificate of Compliance (COC) is required for warranty activation.
