545W CANADIAN MONO PERC Solar Panel (CS6W-545MS)
545W CANADIAN MONO PERC Solar Panel (CS6W-545MS)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Out of stock
Couldn't load pickup availability
Description

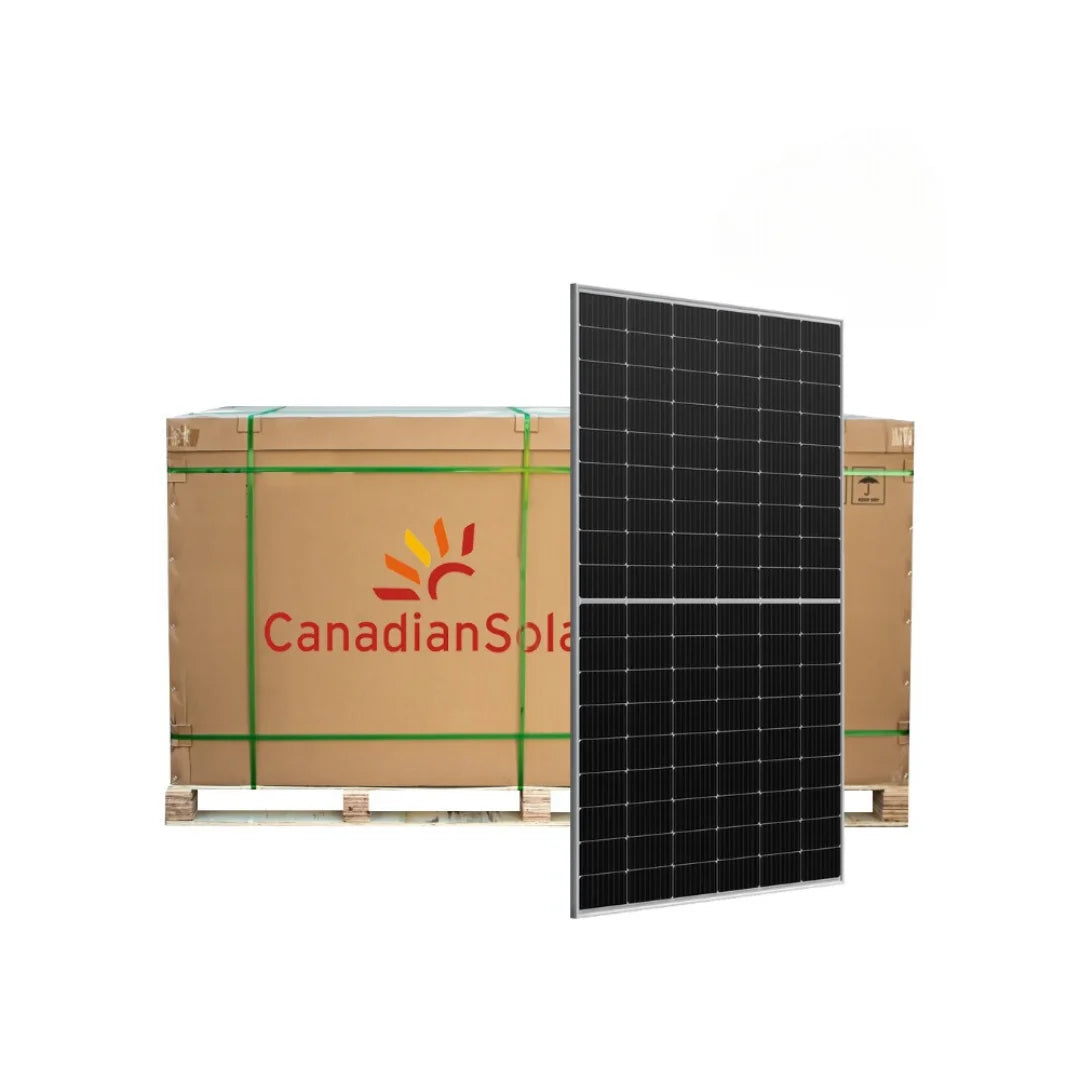

545W Canadian Solar HiKU6 High power MONO PERC module with T6 connectors.

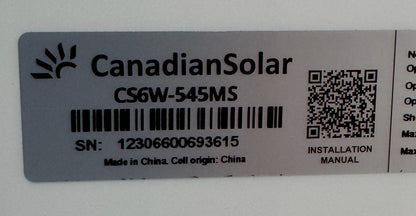

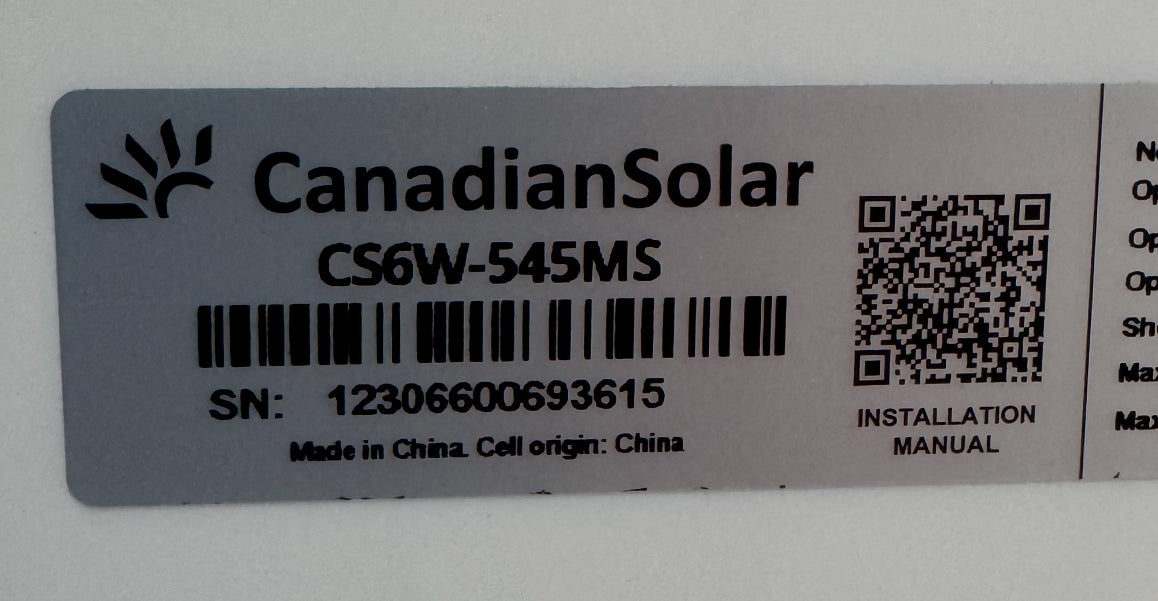

CS6W-545MS 545W Canadian
Frame thickness for this module has improved from 35mm to 30mm
*The picture is only for reference purposes and may differ from the actual product. Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
More benefits of this module range:
- Module efficiency up to 21.3 %
- Up to 4.5 % lower LCOE
- Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
- Compatible with mainstream trackers, cost effective product for utility power plant
- Better shading tolerance
- Minimizes micro-crack impacts
- Heavy snow load up to 5400Pa and increased wind load up to 2400Pa
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Clarity will not be held liable for any product malfunctions as a result of incorrectly installed systems.

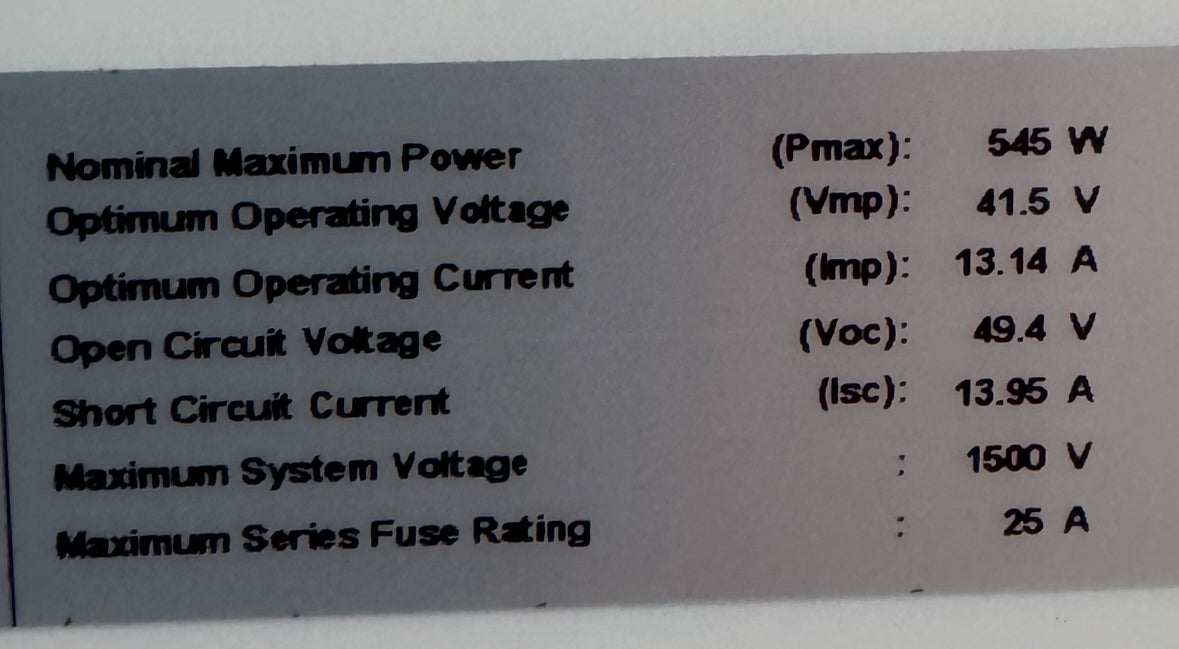

Technical Specifications
Cell: Mono.
Rated Maximum Power (Pmax) [W]: 545.
Open Circuit Voltage (Voc) [V]: 49.4.
Maximum Power Voltage (Vmp) [V]: 41.5.
Short Circuit Current (Isc) [A]: 13.95.
Maximum Power Current (Imp) [A]: 13.14.
Module Efficiency [%]: 21.3.
What’s in the box
1x Solar Panel CS6W-545MS 545W Canadian mono crystal
