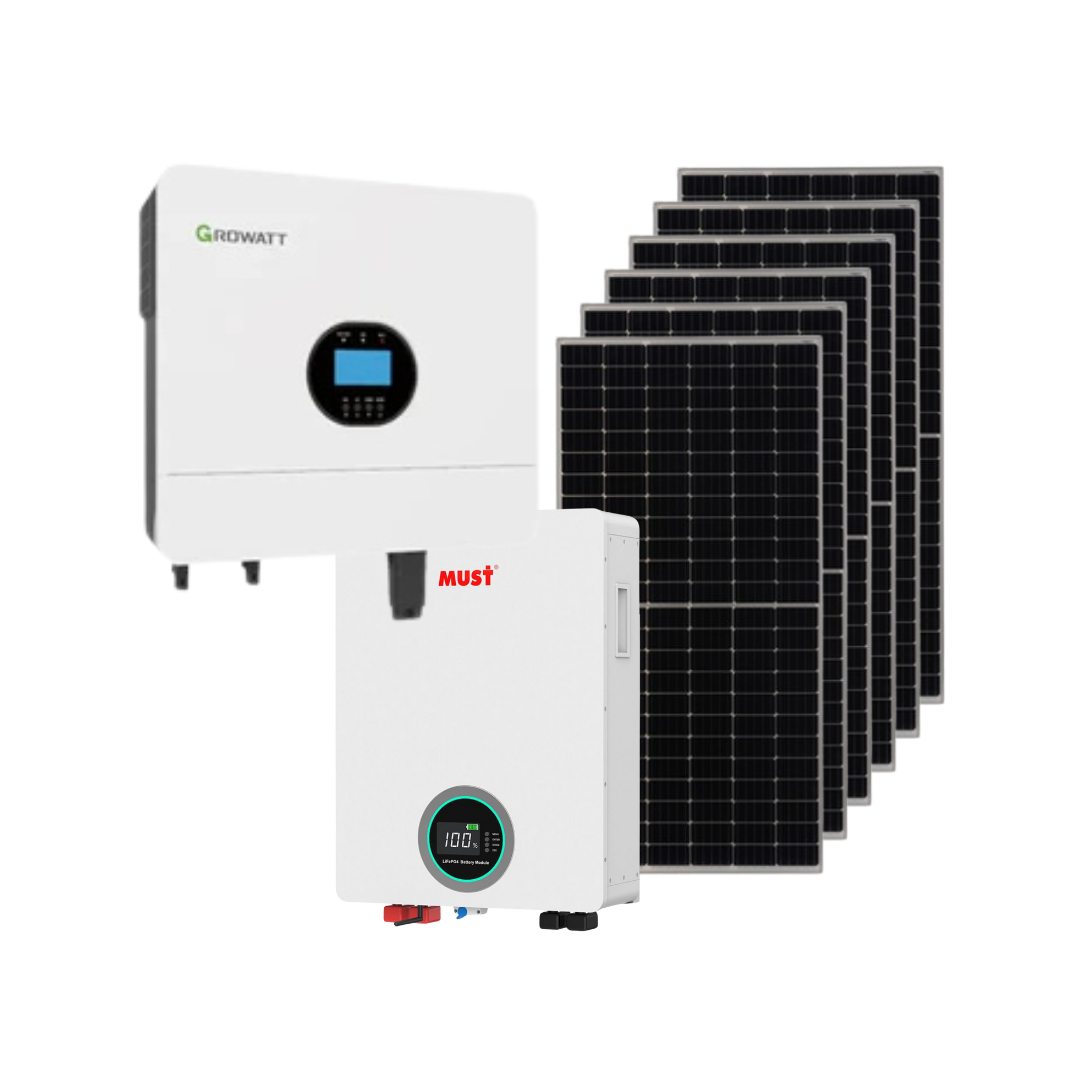

6KW Off-Grid Growatt Hybrid Inverter MPPT 100A + 1x 5.12 KWH MUST 100AH Lithium Batteries + 6x 545W TIER 1 Mono Crystal Solar Panels Off Grid Combo
6KW Off-Grid Growatt Hybrid Inverter MPPT 100A + 1x 5.12 KWH MUST 100AH Lithium Batteries + 6x 545W TIER 1 Mono Crystal Solar Panels Off Grid Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
6KW Off-Grid Growatt Hybrid Inverter MPPT 100A + 1x 5.12 KWH MUST 100AH Lithium Batteries + 6x 545W Canadian TIER 1 Mono Crystal Solar Panels Off Grid Combo
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Description:
Powerful & Versatile Performance
- 6KVA / 6000W rated power with robust hybrid functionality.
- 48V DC battery system compatible with Lithium, Lead-Acid, and Gel batteries.
- Pure sine wave output ensures stable power delivery for sensitive electronics.
- Supports parallel operation with up to 6 units, enabling system expansion.
- Fast 10ms transfer time ensures smooth switching between power sources.
Advanced Solar Charging Capabilities
- Maximum PV array power: 8000W for high-efficiency solar conversion.
- Wide MPPT voltage range (120VDC - 450VDC) for optimal solar performance.
- Dual MPPT trackers with a 16A input per tracker, ensuring maximum solar utilization.
- 100A solar charging current supports efficient battery charging.
Smart AC Charging & Input Flexibility
- 80A AC charger for fast battery recharging.
-
230V AC input voltage with flexible ranges:
- 170-280V (for computers & sensitive electronics).
- 90-280V (for general home appliances).
Ideal Applications
- Residential and commercial solar installations.
- Backup power for homes, offices, and essential equipment.
- Off-grid solar systems with high-efficiency battery storage.
- Load shedding solutions for uninterrupted power supply.
Must 5.12kWh LiFePO₄ 51.2V Battery – Wall-Mount, Stackable, WiFi BMS
Description:
The Must LP1600 5.12kWh Lithium Battery delivers a safe, scalable, and intelligent energy storage solution for modern solar systems. Built with LiFePO₄ (Lithium Iron Phosphate) technology, this 51.2V 100Ah battery is designed for wall, rack, or stacked mounting, offering versatile installation options for both residential and light commercial applications.
Whether you need a compact backup power unit or a multi-unit energy bank, the LP1600 is engineered for flexibility, longevity, and seamless inverter integration.
Key Features:
Flexible Mounting Options
-3-in-1 Design: Wall-mounted, rack-mounted, or stacked (up to 5 units)
-Supports up to 40 batteries in parallel for scalable energy storage systems
-Vertical installation required for higher capacity variants (not applicable to LP1600)
Reliable Energy Storage
-Nominal Capacity: 100Ah
-Total Energy: 5.12kWh
-Nominal Voltage: 51.2V
-Recommended Charging Voltage: 58.4V
-Max Continuous Power Output: 100A
Smart Monitoring & Integration
-Built-in WiFi-enabled Smart BMS for remote access and diagnostics
-Local LCD display for on-site monitoring
-Compatible with leading inverter brands via RS485 / CAN communication
Safety & Longevity
-Utilizes LiFePO₄ cells for maximum safety and thermal stability
-Designed for >4000 cycles at 80% DoD
-Fully certified: UN38.3, CE, IEC62619, RoHS
-Integrated battery protections for overvoltage, current, and temperature control
Compact and Efficient
-Package Dimensions: 442mm × 625.5mm × 177mm
-Weight: 45kg
-Operating Temp: Charge (0°C–55°C) / Discharge (-20°C–55°C)
Benefits of the Must LP1600 5.12kWh Battery:
Space-Saving Design
Wall-mountable and stackable for compact solar rooms or garages.
Smart Battery Management
Monitor performance, state of charge, and system alerts via WiFi or on-screen display.
Expandable Energy Bank
Add up to 40 units for total capacity over 200kWh with parallel support.
Reliable Chemistry
Lithium iron phosphate (LiFePO₄) ensures longer life and enhanced safety over AGM or gel batteries.
Broad Inverter Compatibility
Seamlessly integrates with leading inverters like Growatt, LuxPower, Deye, and more.
Warranty & Installation Requirements
5-Year Manufacturer Warranty on BATTERY
2-Year Manufacturer Warranty on INVERTER
15-Year Product warranty on Solar Panels
Installation must be done by a registered wireman or master electrician
A valid Certificate of Compliance (COC) must be issued
The system must comply with SANS 10142 regulations
Warranty claims will be rejected if installation is non-compliant or lacks proof
