5KVA GROWATT MPPT Inverter + SVOLT 5.43kWh Lithium Battery + 4x 580W Mono Crystal Solar Panels
5KVA GROWATT MPPT Inverter + SVOLT 5.43kWh Lithium Battery + 4x 580W Mono Crystal Solar Panels
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 10 left
Couldn't load pickup availability
5KVA GROWATT MPPT Inverter + SVOLT 5.43kWh Lithium Battery + 4x 580W Mono crystal Solar Panels

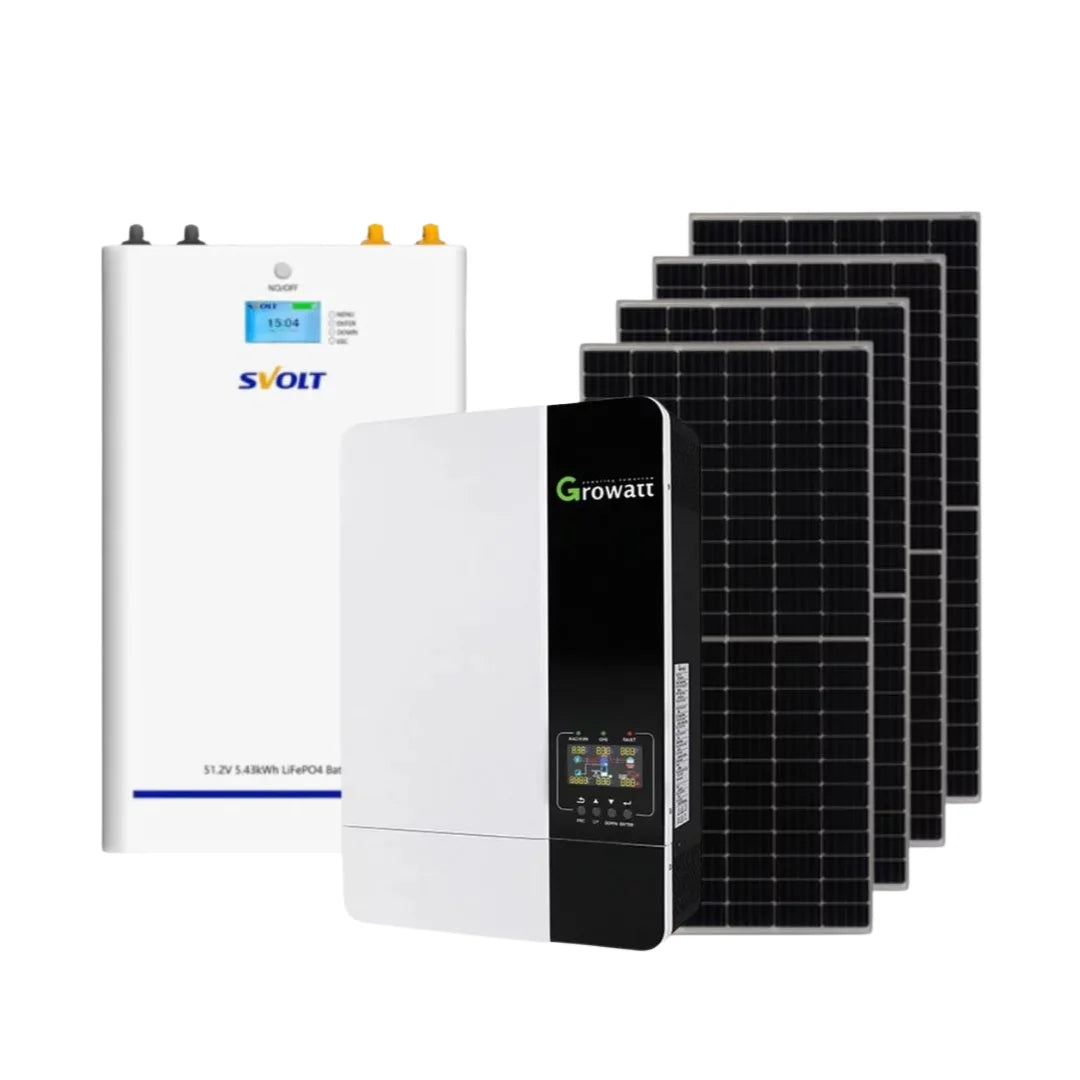

PLEASE NOTE THAT THE COMBO INCLUDES ONLY WHAT’S SEEN ON THE PICTURE.
INVERTER SPECIFICATIONS:
GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.
Functions
Integrated MPPT charger controller.
Equalization charging function.
Use with Batteries or without.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Inverter Output [AC]
Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC ± 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms – 20ms.
Solar Charger
Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC – 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.
AC Charger
AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
Protection degree: IP20.
Height: 330 x 485 x 135mm.
Weight: 12 kg
Key Features
Intelligent Off-Grid & Hybrid modes
PV and AC Power can power loads simultaneously
2 x MPPTs with a wide input voltage range.
BMS communication to most leading brands of Batteries (See List)
Free monitoring via the app and remote upgrades.
Single or unbalanced three phase
Parallel up to 10 units.
Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What’s in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Specifications:
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
| Energy | 5.43kWh |
| Installation Type | Wall Mounted |
| Battery Type-Chemistry | LiFePO4 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 106Ah |
| Dimensions(LxWxH) | 510*475*160mm |
| Weight（Approx.） | 45.6KGS |
| Terminal Type | Fast Plug In & Plug Out |
| Case Material | SPCC |
| BMS Build-in | Yes |
| Internal Resistance | <25mΩ |
| Efficiency – Round Trip | >97% |
| Self Discharge Per Month | <3% |
| Max Parallel Connectors | 16Pcs |
| Series Connections | Not Allowed |
| Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
| Discharge Temperature | -20°C to 70°C |
| Charge Temperature | -5°C to 65°C |
| Storage Temperature | 0°C to 30°C |
| Bluetooth(App) | Optional |
| LCD Screen | Yes |
| Heating Function | Optional |
| Operating Voltage Range | 43.2V-57.6V |
| Recommend Charge Voltage | 56.0V±0.2V |
| Max Charge Voltage | 58.4V±0.2V |
| Recommend Charge Current | 50A |
| Max Continuous Charge Current | 100A |
| Recommend Discharge Voltage | 44.8V±0.2V |
| Max Discharging Voltage | 43.2V±0.2V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A（100ms） |
Size:
550 x 520 x 220
50.71kg
What's In the Box:
- 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
Please Note: Solar panels are couriered at your own risk.
Combo includes:
1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (5 Years Warranty)
1x SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (5 Years Warranty)
Battery cables and brackets included
4x Mono crystal solar panels 580W
