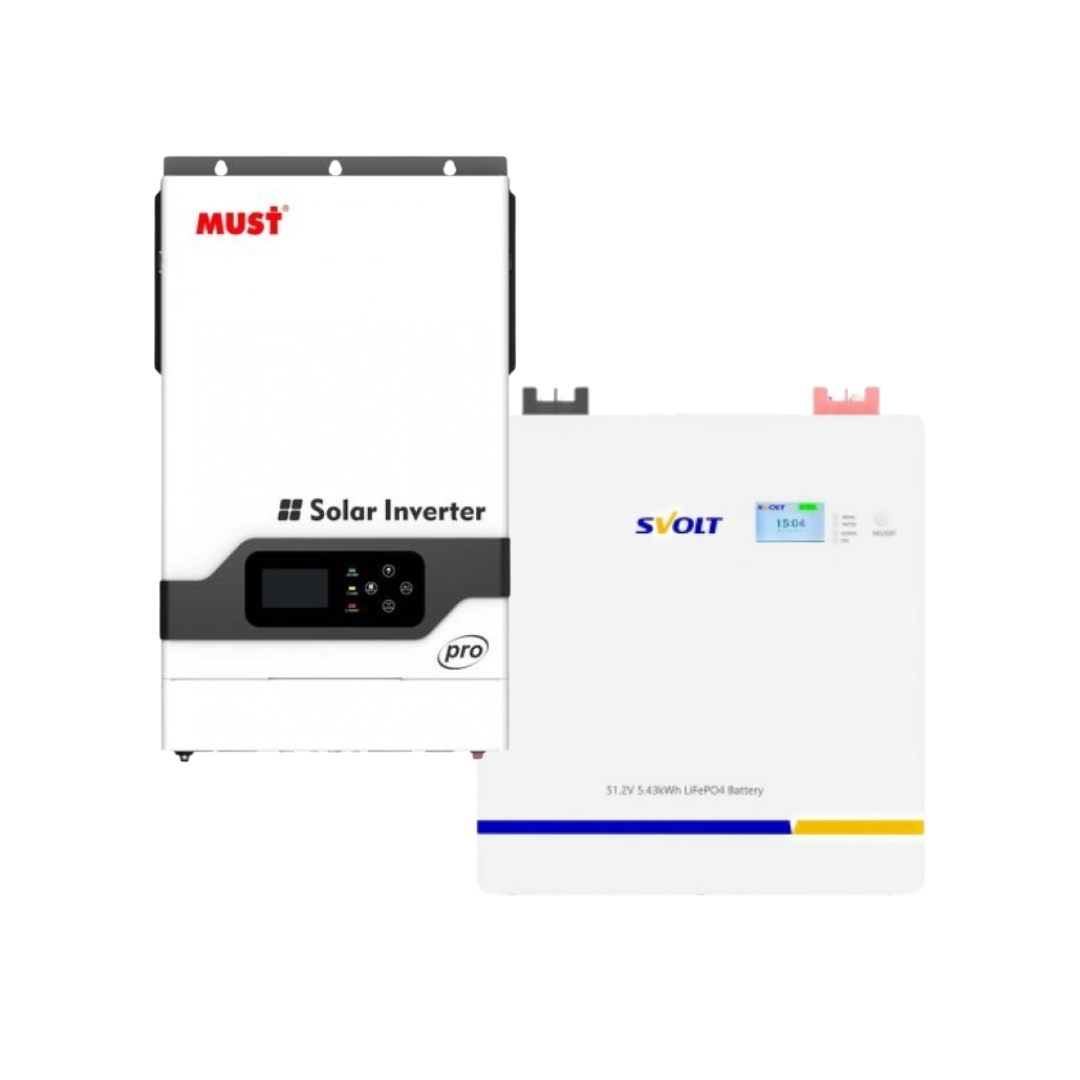

5.2KVA / 5000W MUST Hybrid MPPT Inverter Combo + 5.43kWh SVOLT Lithium Battery
5.2KVA / 5000W MUST Hybrid MPPT Inverter Combo + 5.43kWh SVOLT Lithium Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Share
Hybrid Inverter 48V 5.2KVA / 5000W 100A MPPT Solar Inverter -MUST
You can choose which priority you want to charge your loads / battery whether it Solar or Grid or both
The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which can help you make full use of solar energy.
This inverter can provide power to the loads without a battery
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (Purchase WIFI Dongle Separately)
Specifications:
- Rated Power 5200VA/5200W
- Input Voltage 230 VAC
- Frequency Range 50 Hz/60 Hz (Auto sensing)
Output
- AC Voltage Regulation (Batt. Mode) 230VAC 5 %
- Surge Power 10400W
- Efficiency (Peak) 93 %
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure sine wave
Battery & AC Charger
- Battery Voltage 48 VDC
- Floating Charge Voltage 54.8 VDC
- Overcharge Protection 60 VDC
- Maximum Charge Current 80 A
Solar Charger
- Maximum PV Array Open Circuit Voltage 450 VDC
- Maximum Charging Current 80A
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Energy | 5.43kWh |
Installation Type | Wall Mounted |
Battery Type-Chemistry | LiFePO4 |
Norminal Voltage | 51.2V |
Norminal Capacity | 106Ah |
Dimensions(LxWxH) | 510*475*160mm |
Weight(Approx.) | 45.6KGS |
Terminal Type | Fast Plug In & Plug Out |
Case Material | SPCC |
BMS Build-in | Yes |
Internal Resistance | <25mΩ |
Efficiency – Round Trip | >97% |
Self Discharge Per Month | <3% |
Max Parallel Connectors | 16Pcs |
Series Connections | Not Allowed |
Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
Discharge Temperature | -20°C to 70°C |
Charge Temperature | -5°C to 65°C |
Storage Temperature | 0°C to 30°C |
Bluetooth(App) | Optional |
LCD Screen | Yes |
Heating Function | Optional |
Operating Voltage Range | 43.2V-57.6V |
Recommend Charge Voltage | 56.0V±0.2V |
Max Charge Voltage | 58.4V±0.2V |
Recommend Charge Current | 50A |
Max Continuous Charge Current | 100A |
Recommend Discharge Voltage | 44.8V±0.2V |
Max Discharging Voltage | 43.2V±0.2V |
Max Continuous Discharge Current | 100A |
Peak Discharge Current | 150A(100ms) |
Size:
550 x 520 x 220
50.71kg
What's In the Box:
- 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
COMBO INCLUDES
- 1x SVOLT 48V 106Ah 5.43kWh A-Grade Wall Mount Lithium Battery
(5 Years Warranty) - 1x Hybrid Inverter 48V 5.2KVA / 5000W 100A MPPT Solar Inverter -MUS (1 Year Warranty)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
