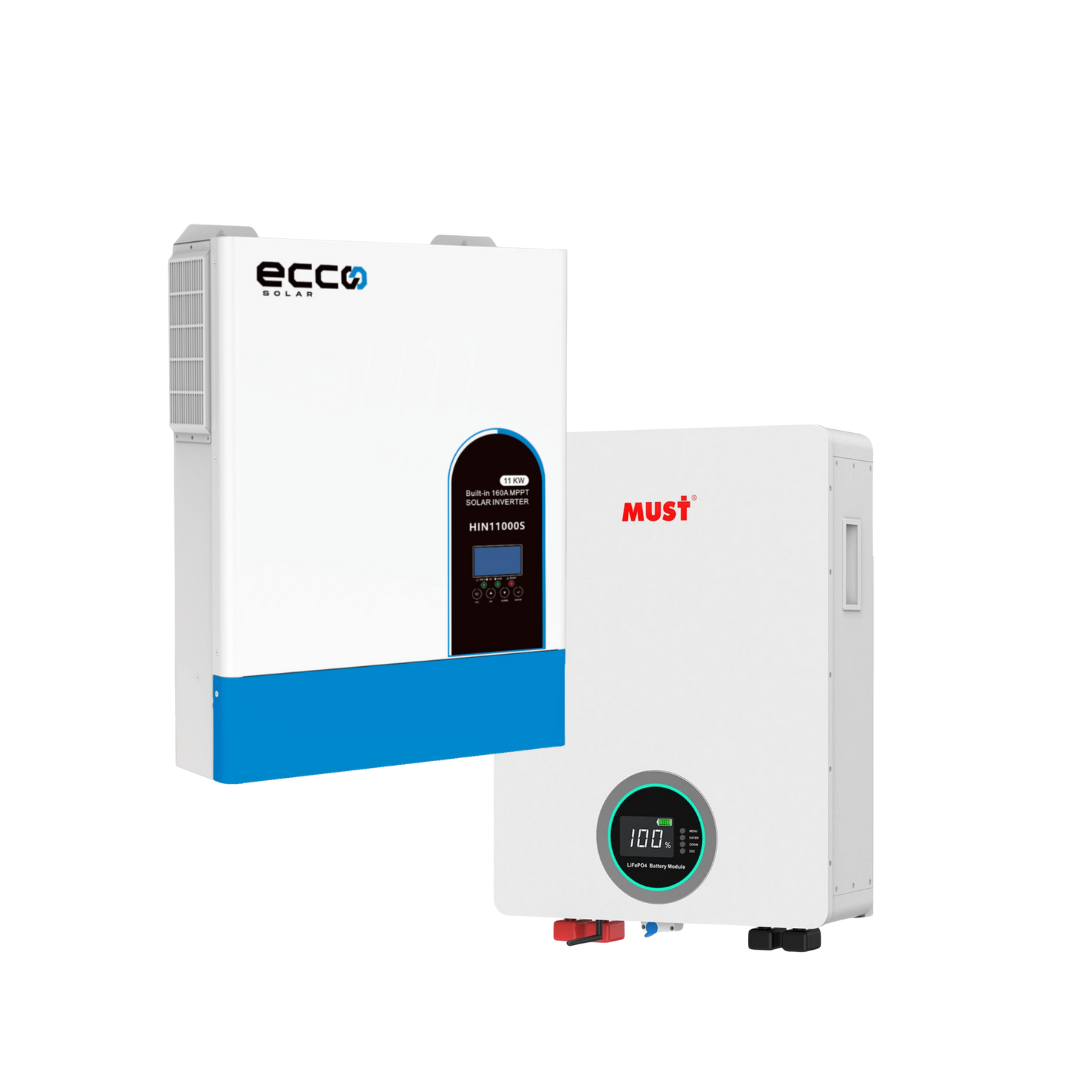

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 1x 5.12kWh MUST WIFI Lithium Battery ( Wall Mount )
11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave + 1x 5.12kWh MUST WIFI Lithium Battery ( Wall Mount )
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability
Package Includes
-1x 11KVA ECCO HYBRID INVERTER 48V
-1x MUST 5.12KWH LITHIUM BATTERY 51.2V
-5 YEAR WARRANTY
Inverter Specifications (HIN11000S)
Type: 11KVA / 11000W Ecco MPPT Hybrid Inverter (Pure Sine Wave)
Key Features:
- Built-in 2 MPPT
- Lithium battery activation via PV or Utility
- Compatible with LiFePO4 battery via RS485
- Power factor: 1.0
- Max PV Input: 500Vdc
- Built-in MPPT 160A
- Can operate without a battery
- Detachable dust cover for harsh environments
- WiFi remote monitoring (optional)
- Supports multiple output priority modes: SUB, SBU, SUF
- EQ function optimizes battery performance and extends lifespan
Technical Specifications:
- Capacity: 11KVA / 11KW
- Max PV Input Power: 11KW
- Parallel Capability: No
- Lithium Battery Activation: Yes (via PV or Utility)
- Lithium Battery Communication: Yes (RS485)
Input:
- Nominal Voltage: 230VAC
-
Acceptable Voltage Range:
- 170-280VAC (for personal computers)
- 90-280VAC (for home appliances)
- Frequency: 50/60 Hz (Auto Sensing)
Output:
- Nominal Voltage: 220/230/240VAC
- Surge Power: 2200VA
- Frequency: 50/60 Hz
- Waveform: Pure Sine Wave
-
Transfer Time:
- 10ms (for computers)
- 20ms (for home appliances)
- Peak Efficiency: 94%
- Overload Protection: 5s @ 140% Load
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
Solar & AC Charging:
- Solar Charger Type: MPPT
- Max PV Array Power: 5500W × 2
- Max PV Open Circuit Voltage: 500VDC
- MPPT Voltage Range: 60VDC - 500VDC
- Max Solar Input Current: 18A × 2
- Max Solar Charge Current: 160A
- Max AC Charge Current: 120A
- Max Charge Current: 160A
Physical & Communication:
- Dimensions (mm): 540 × 415 × 122
- Net Weight: 15kg
- Communication Interface: RS232 / RS485 / Dry Contact
- Display: LCD
Must 5.12kWh LiFePO₄ 51.2V Battery – Wall-Mount, Stackable, WiFi BMS
Description:
The Must LP1600 5.12kWh Lithium Battery delivers a safe, scalable, and intelligent energy storage solution for modern solar systems. Built with LiFePO₄ (Lithium Iron Phosphate) technology, this 51.2V 100Ah battery is designed for wall, rack, or stacked mounting, offering versatile installation options for both residential and light commercial applications.
Whether you need a compact backup power unit or a multi-unit energy bank, the LP1600 is engineered for flexibility, longevity, and seamless inverter integration.
Key Features:
Flexible Mounting Options
-3-in-1 Design: Wall-mounted, rack-mounted, or stacked (up to 5 units)
-Supports up to 40 batteries in parallel for scalable energy storage systems
-Vertical installation required for higher capacity variants (not applicable to LP1600)
Reliable Energy Storage
-Nominal Capacity: 100Ah
-Total Energy: 5.12kWh
-Nominal Voltage: 51.2V
-Recommended Charging Voltage: 58.4V
-Max Continuous Power Output: 100A
Smart Monitoring & Integration
-Built-in WiFi-enabled Smart BMS for remote access and diagnostics
-Local LCD display for on-site monitoring
-Compatible with leading inverter brands via RS485 / CAN communication
Safety & Longevity
-Utilizes LiFePO₄ cells for maximum safety and thermal stability
-Designed for >4000 cycles at 80% DoD
-Fully certified: UN38.3, CE, IEC62619, RoHS
-Integrated battery protections for overvoltage, current, and temperature control
Compact and Efficient
-Package Dimensions: 442mm × 625.5mm × 177mm
-Weight: 45kg
-Operating Temp: Charge (0°C–55°C) / Discharge (-20°C–55°C)
Benefits of the Must LP1600 5.12kWh Battery:
Space-Saving Design
Wall-mountable and stackable for compact solar rooms or garages.
Smart Battery Management
Monitor performance, state of charge, and system alerts via WiFi or on-screen display.
Expandable Energy Bank
Add up to 40 units for total capacity over 200kWh with parallel support.
Reliable Chemistry
Lithium iron phosphate (LiFePO₄) ensures longer life and enhanced safety over AGM or gel batteries.
Broad Inverter Compatibility
Seamlessly integrates with leading inverters like Growatt, LuxPower, Deye, and more.
Warranty & Installation Requirements
5-Year Manufacturer Warranty
Installation must be done by a registered wireman or master electrician
A valid Certificate of Compliance (COC) must be issued
The system must comply with SANS 10142 regulations
Warranty claims may be rejected if installation is non-compliant or lacks proof
