The Solar Step

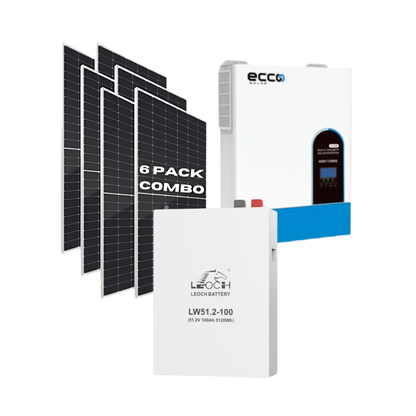

11KVA / 11000W Ecco MPPT Hybrid Inverter + 1x Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery + 6x 460W Tier 1 Solar Panel Combo Kit
11KVA / 11000W Ecco MPPT Hybrid Inverter + 1x Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery + 6x 460W Tier 1 Solar Panel Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
19 in stock
Couldn't load pickup availability
11KVA / 11000W Ecco MPPT Hybrid Inverter + 5.12kWh Leoch Lithium Battery Combo
Power your home or business with the 11KVA / 11000W Ecco MPPT Hybrid Inverter paired with 1x Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery (LW51.2-100) + 6x 460W TIER 1 Mono Crystal Solar Panels. This reliable solar and backup power solution is ideal for managing essential and larger loads while offering efficient energy storage for load shedding, backup power, and everyday solar use. The hybrid inverter supports flexible operation for residential and commercial solar systems, while the Leoch LiFePO4 lithium battery provides dependable performance, long cycle life, and safe wall-mounted energy storage.
Combo includes
1x 11KVA / 11000W Ecco MPPT Hybrid Inverter +
1x Leoch 5.12kWh 51.2V 100Ah Wall Mount Lithium Battery +
6x 460W Tier 1 Solar Panel Combo Kit
11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave
The 11KVA / 11000W Ecco MPPT Hybrid Inverter offers a reliable, high-performance energy solution with pure sine wave output and built-in 2 MPPT for efficient solar energy management. Featuring lithium battery activation via PV or utility, it supports LiFePO4 batteries and offers advanced power features including a 94% peak efficiency rate, overload protection, and remote Wi-Fi monitoring. Designed for both residential and commercial use, this inverter is perfect for off-grid and backup power applications, with a wide voltage range, quick transfer times, and robust durability for harsh environments.
- Built-in 2 MPPT
- Lithium Battery Activation Function: Activated by PV or Utility
- Compatible with LiFePO4 Battery via RS485 communication
- Pure Sine Wave Output
- Power Factor: 1.0
- Maximum PV Input: 500Vdc
- Built-in MPPT: 160A
- Capable of Working Without Battery
- Detachable Dust Cover: Designed for harsh environments
- Optional Wi-Fi Remote Monitoring
- Supports Multiple Output Priorities: SUB, SBU, SUF
- EQ Function: Optimizes battery performance and extends lifecycle
Specifications:
- Model: HIN11000S
- Capacity: 11KVA / 11KW
- Maximum PV Input Power: 11KW
- Parallel Capability: Not available
- Lithium Battery Activation: Yes (by PV or Utility)
- Lithium Battery Communication: Yes (RS485)
Input:
- Nominal Voltage: 230VAC
-
Acceptable Voltage Range:
- 170-280VAC (For Personal Computer)
- 90-280VAC (For Home Appliances)
- Frequency: 50/60 Hz (Auto Sensing)
Output:
- Nominal Voltage: 220/230/240VAC
- Surge Power: 2200VA
- Frequency: 50/60 Hz
- Waveform: Pure Sine Wave
-
Transfer Time:
- 10ms (For Computers)
- 20ms (For Home Appliances)
- Peak Efficiency: 94%
- Overload Protection: 5s @ 140% load
Battery:
- Battery Voltage: 48V
- Maximum Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
Solar Charger & AC Charger:
- Solar Charger Type: MPPT
- Max. PV Array Power: 5500W * 2
- Max. PV Array Open Circuit Voltage: 500VDC
- PV Array MPPT Voltage Range: 60VDC - 500VDC
- Max. Solar Input Current: 18A * 2
- Max. Solar Charge Current: 160A
- Max. AC Charge Current: 120A
- Max. Charge Current: 160A
Physical:
- Dimensions (D x W x H): 540mm x 415mm x 122mm
- Net Weight: 15kg
- Communication Interface: RS232 / RS485 / Dry Contact
- LCD: Available
Battery Description:
The Leoch LW51.2-100 is a wall-mounted residential energy storage battery built for dependable backup and daily cycling in hybrid and off-grid systems. With 5.12kWh of usable energy storage at 51.2V, it supports parallel expansion, multiple communication protocols, and app-based monitoring via Bluetooth and WiFi.
Model and Electrical Ratings
Model: LW51.2-100
Nominal voltage: 51.2 V
Rated capacity: 100 Ah
Energy: 5.12 kWh
Discharge ending voltage: 43.2 V
Charging limited voltage: 58.4 V
Max charge/discharge current: 100 A
Connectivity and Expansion
Protocol: RS485, RS232, CAN
Max number of parallel connections: 15
Function: Bluetooth and WiFi
Lifetime and Protection
Design life: more than 15 years
Cycle life: more than 6000 cycles at 80% DOD
IP class: IP30
Case material: SPCC
Physical Specifications
Weight: approx. 48 kg
Dimensions (W x D x H): 400 x 560 x 150 mm
Temperature Ranges
Charging: 0°C to +45°C
Discharging: -10°C to +55°C
Storage: -20°C to +60°C
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Installation & Warranty
-Standard 5-Year Warranty (Inverter & Battery)
-Must be installed by a qualified wireman or master electrician, registered with the Department of Labour
-A valid COC (Certificate of Compliance) is required
-Installation must fully comply with SANS 10142 regulations
-Non-compliant installations may void the warranty
