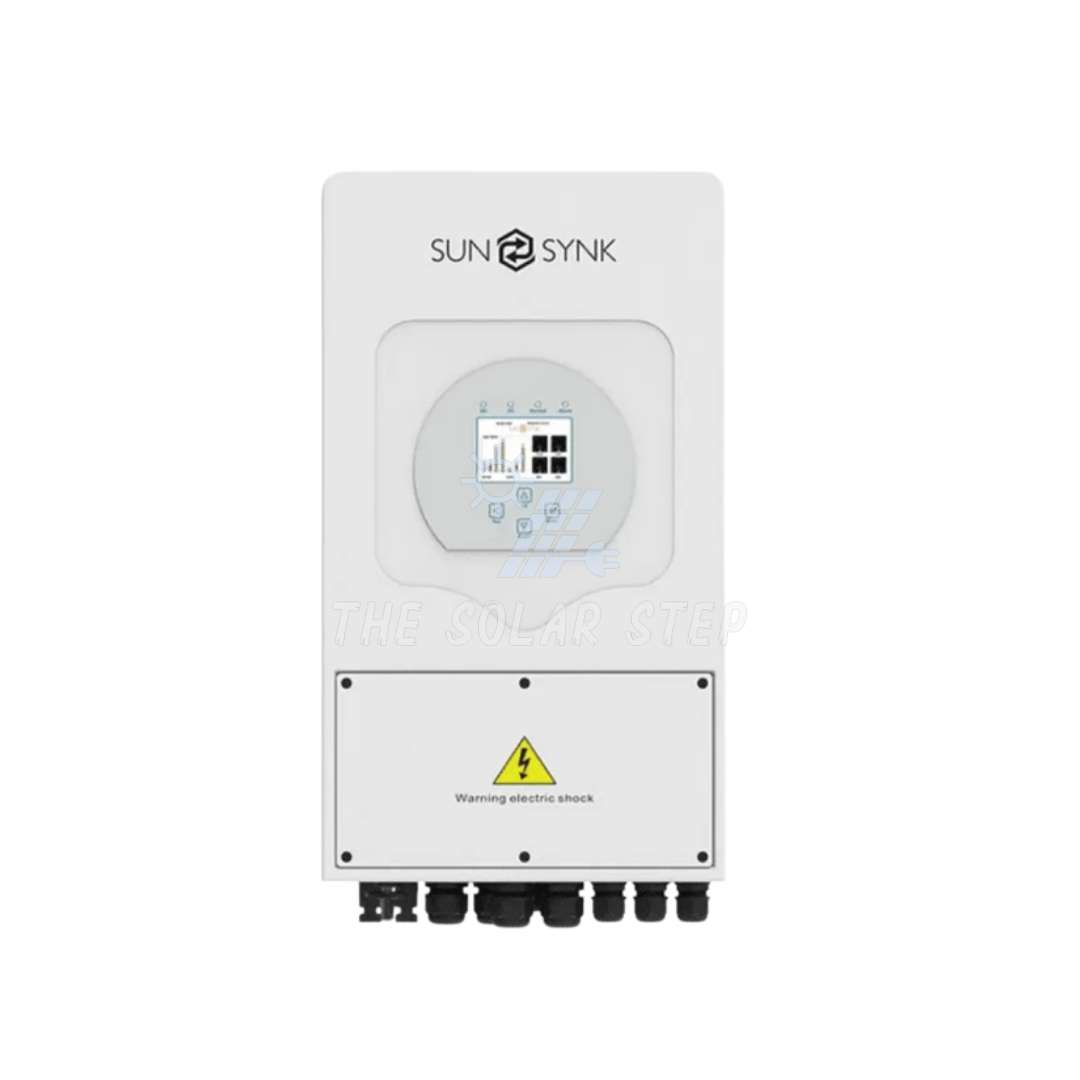

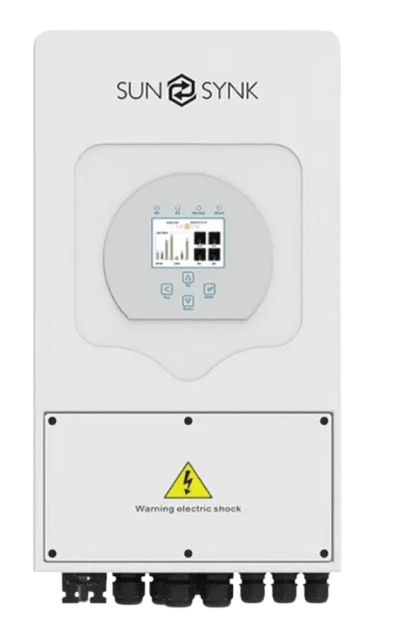

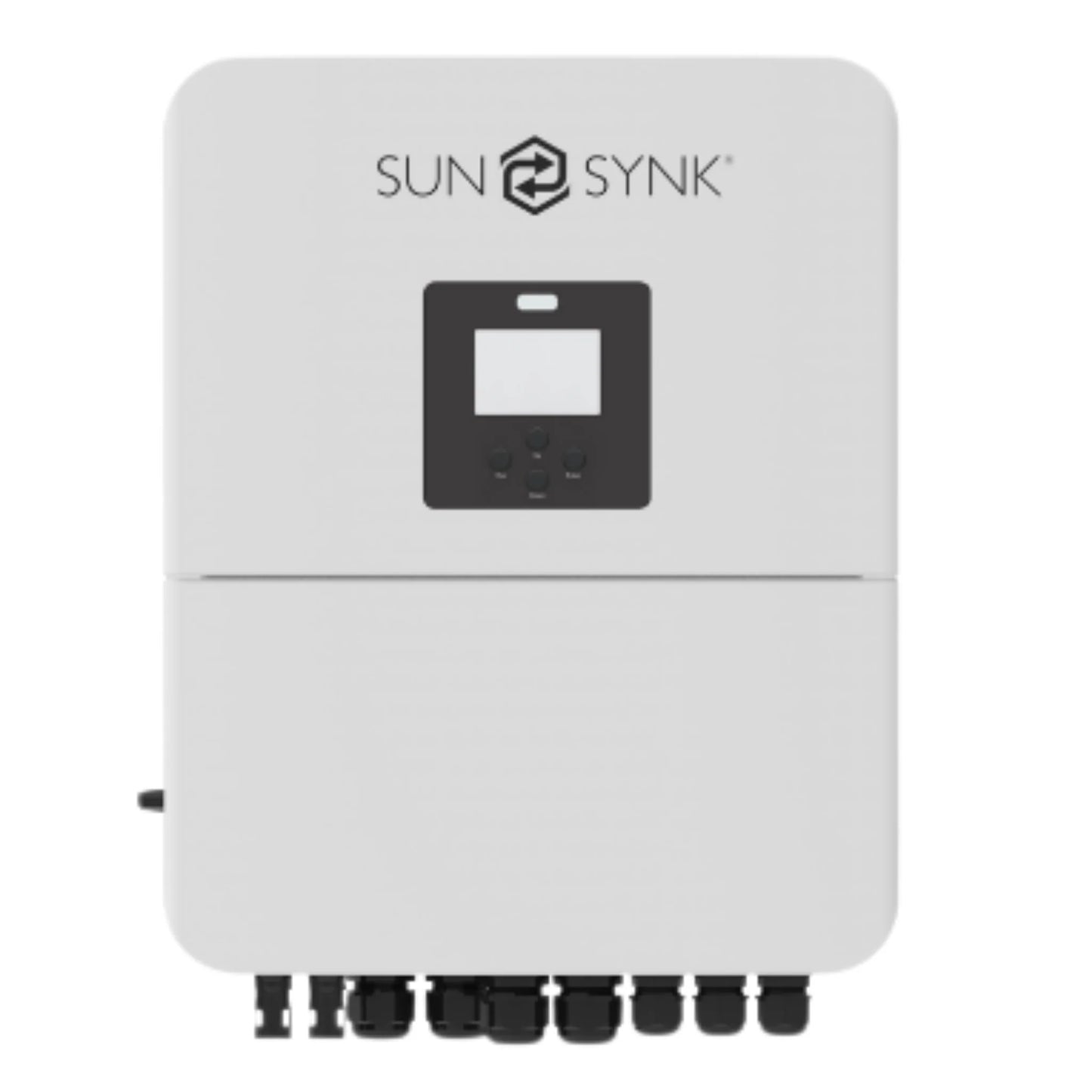

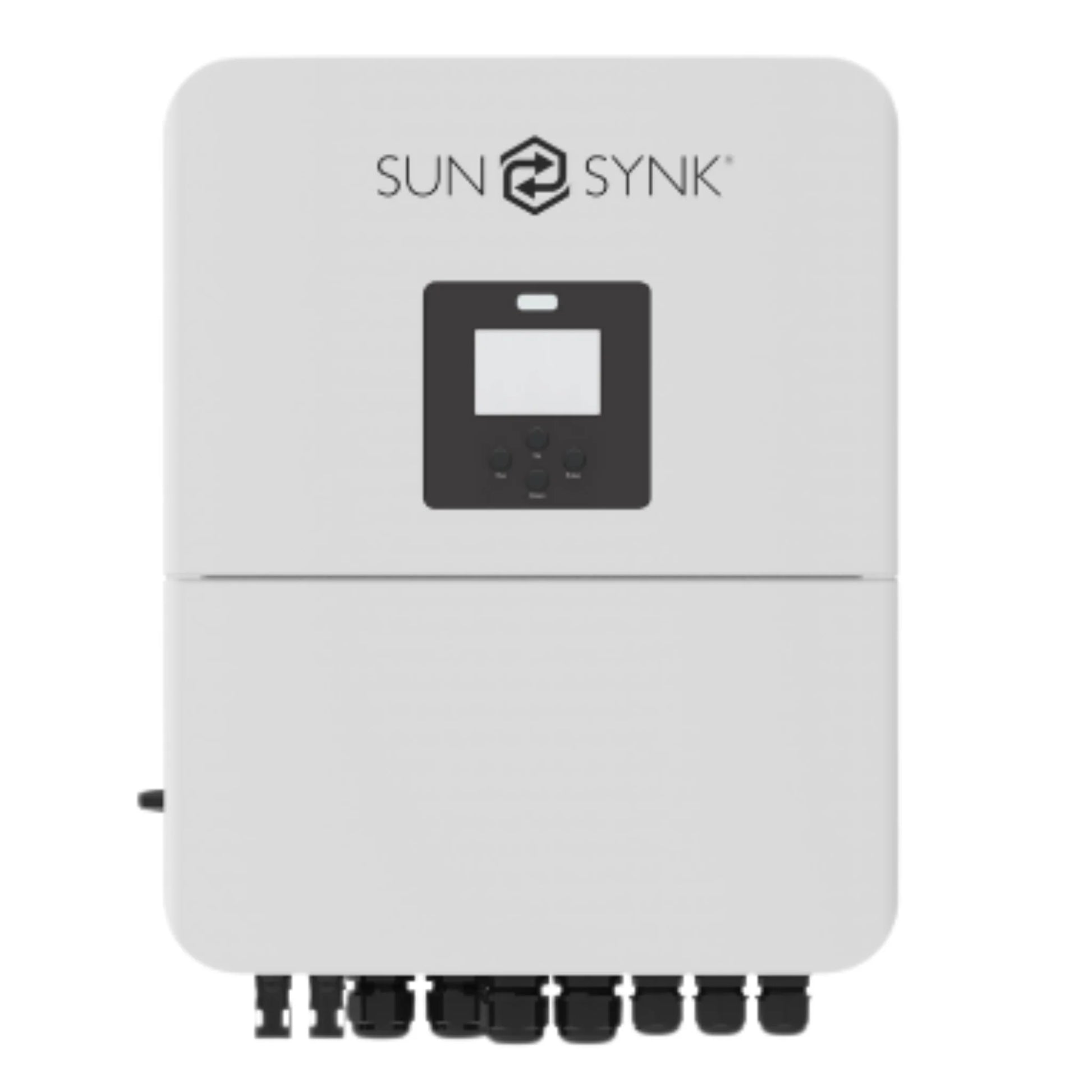

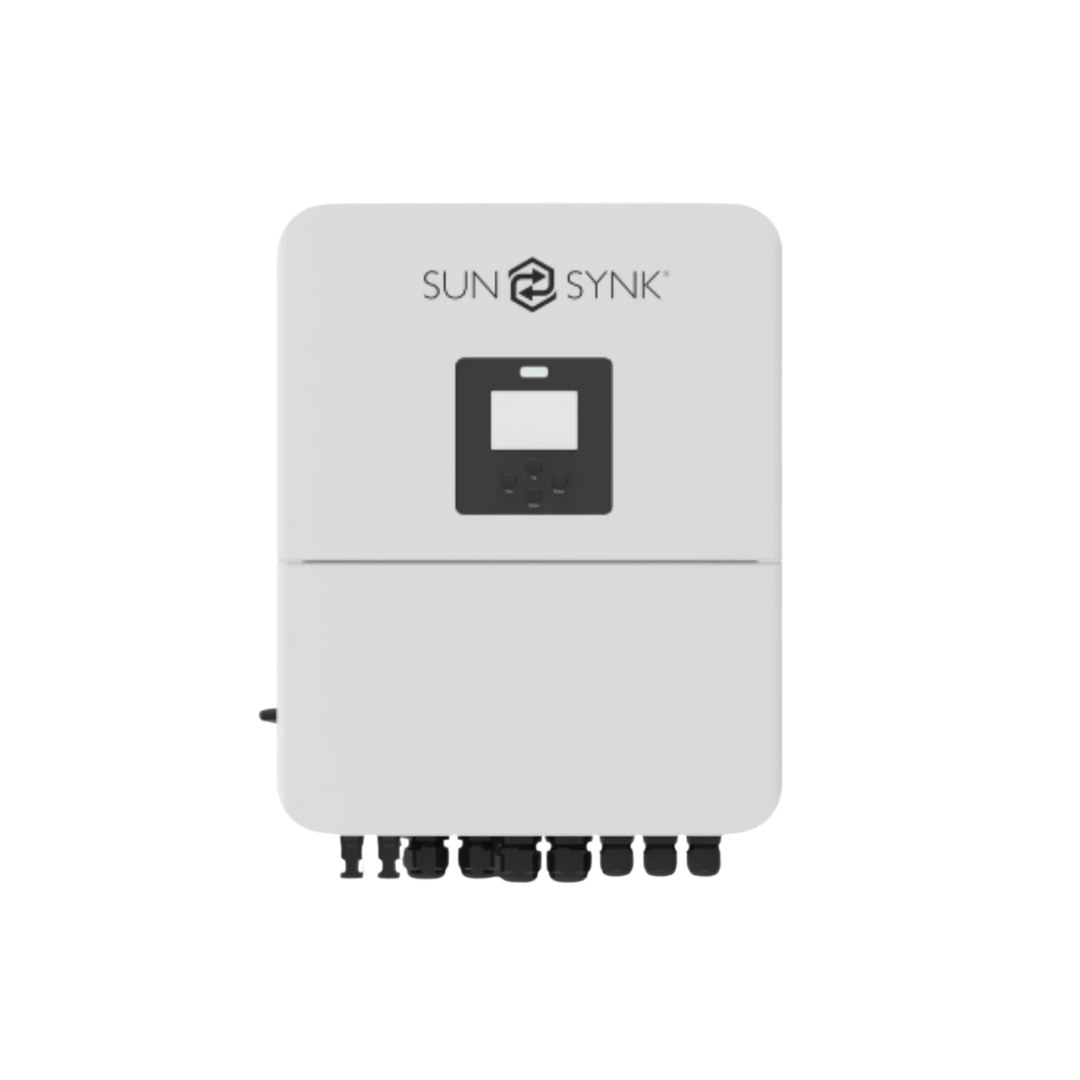

SUNSYNK 5.5KW Hybrid Inverter + WIFI DONGLE (SYK-SG04LP1-5KW-L)

Sunsynk 5.5kW Hybrid Inverter + Wifi Dongle SYK-SG04LP1-5KW-L

SUNSUNK 5KW HYBRID INVERTER

 Higher yields.

• Improve the self-consumption ratio by up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT designs, Max. the efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with lithium-ion battery and lead acid battery.
• Web browser and mobile App monitoring are supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection, etc.
• Support store energy from DG when needed, and ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor use.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, the fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 16 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

• Max. PV Access Power : 10000W
  Max. PV Input Power  : 8000W
  Max. PV Input Voltage : 500V
  Start-up Voltage : 125V
  PV Input Voltage Range : 125~500V
  MPPT Voltage Range : 150~425V
  Full Load MPPT Voltage Range  : 300~425V
  Max. Operating PV Input Current : 18Ad.c + 18Ad.c
  No. of MPPT/No. of Strings per MPPT : 2/1+1

AC Output Data

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power(off-grid): 2 times of rated power, 10 S.
• AC Output Rated Current(A): 21.7.4A
• Max.AC Current(A): 25A
• Max Continuous AC Pass-through(A): 35A.
• Output Frequency and Voltage: 50Hz; 240Vac,
• Grid Type: THD<3%(Linear load<1.5%).
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 X 330 X 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
