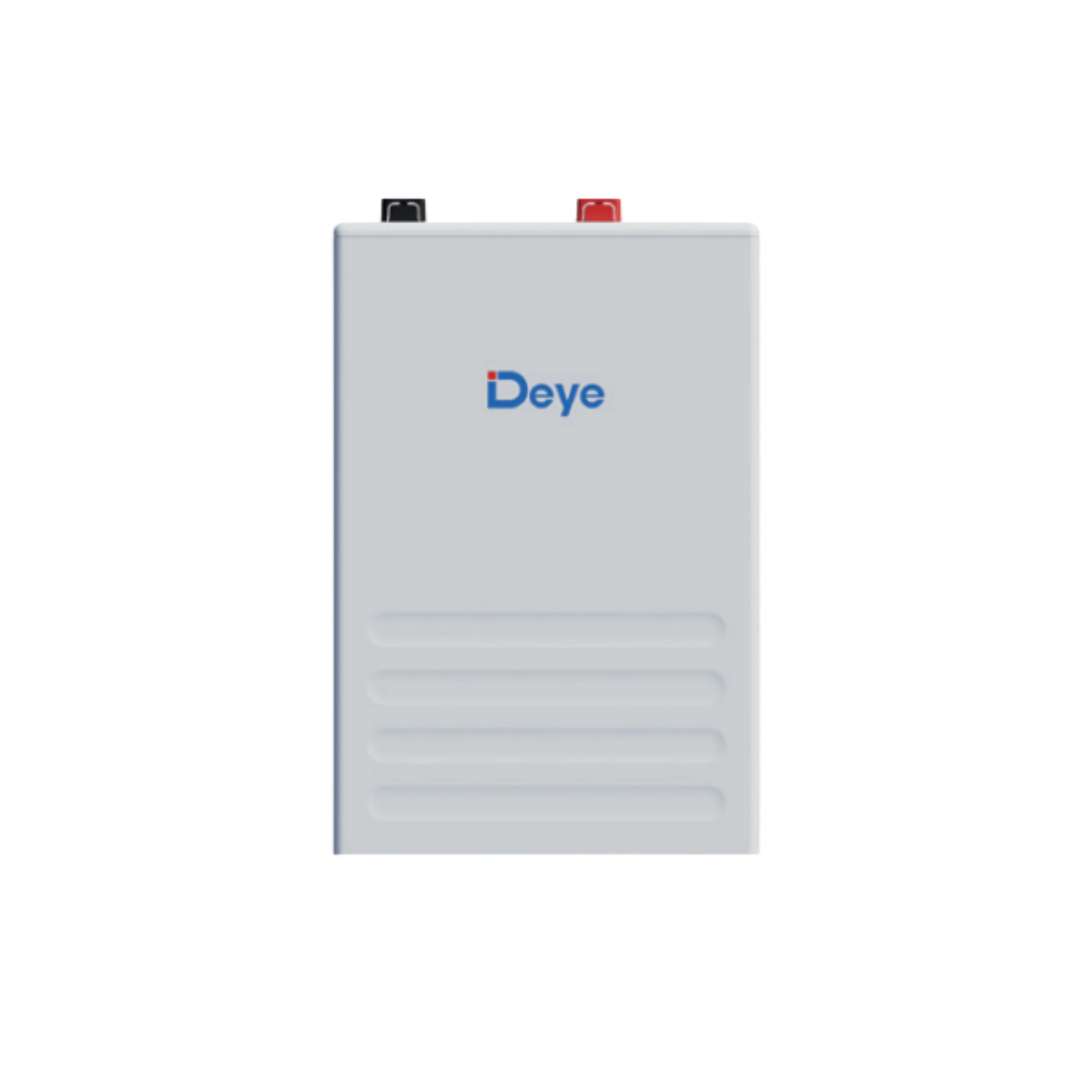

SE-F5 Plus Deye 5.12kWh 51.2V 100Ah LiFePO₄ Battery
SE-F5 Plus Deye 5.12kWh 51.2V 100Ah LiFePO₄ Battery
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 8 left
Couldn't load pickup availability
Deye SE-F5 Plus 5.12kWh 51.2V 100Ah LiFePO₄ Battery – 6000+ Cycles, CAN/RS485, 10 Year Warranty
ONLINE DEAL ONLY-This item can be ordered online and collected in-store if needed.
Product Description
The Deye SE-F5 Plus 5.12kWh battery is a premium 51.2V 100Ah LiFePO₄ energy storage solution built for reliable daily cycling in residential and light commercial systems. Featuring an advanced Battery Management System (BMS) with active fuse protection, efficient power electronics designed to reduce losses, and smart monitoring via Bluetooth/app support, the SE-F5 Plus is ideal for backup power and solar self-consumption.
Its modular design allows you to scale your storage as your needs grow — with support for up to 32 units in parallel, making it a strong option for homeowners, offices, and small businesses wanting flexible expansion without sacrificing safety and performance.
Key Features
Premium LiFePO₄ chemistry for safety, stability, and long service life
Advanced BMS with active fuse protection for improved safety and protection
High performance rates: up to 1C charge and 1.2C discharge capability
Parallel expansion up to 32 units for scalable storage capacity
Smart monitoring: local & remote monitoring via Bluetooth + app
Efficient integrated PACK design to reduce line loss and improve output
Flexible installation: wall-mount, floor-mount, or stack-mount options
Designed for tough conditions: operating range -20°C to 55°C with natural cooling

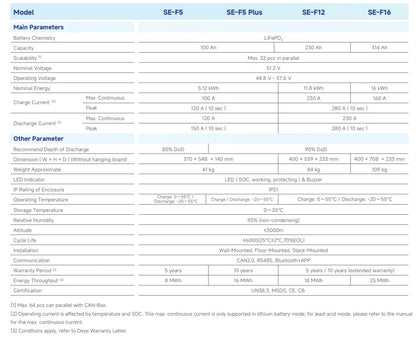

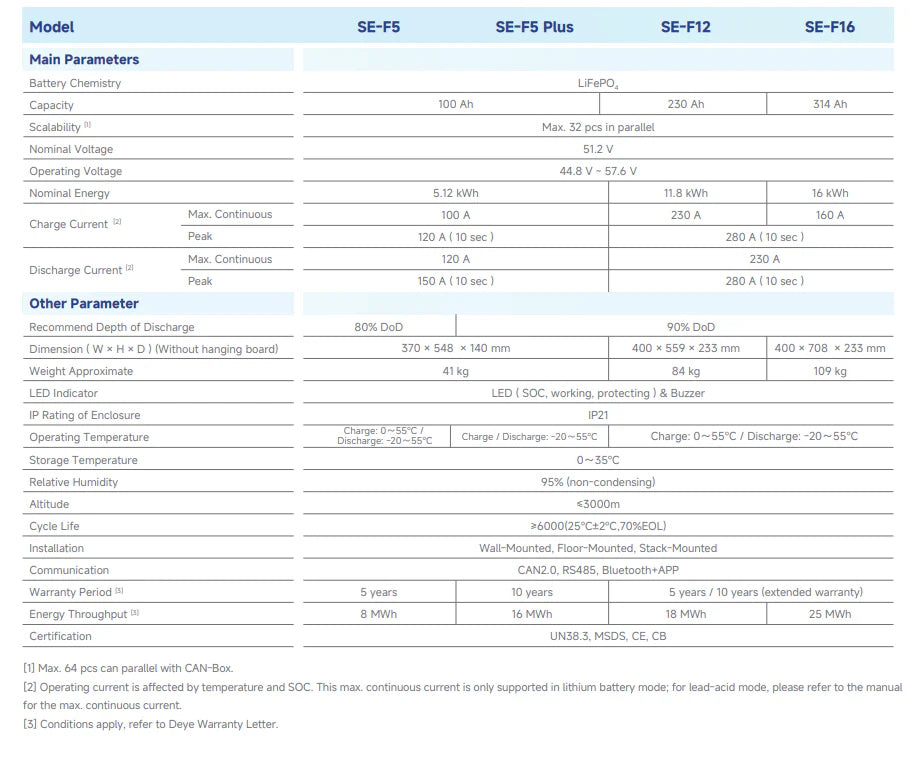

Technical Specifications
Model: SE-F5 Plus
Battery Chemistry: LiFePO₄
Nominal Capacity: 100 Ah
Nominal Voltage: 51.2 V
Operating Voltage Range: 44.8 V – 57.6 V
Nominal Energy: 5.12 kWh
Operating Temperature: -20°C to 55°C
Storage Temperature: 0°C to 35°C
Scalability: Max. 32 units in parallel
Max Charge Current: 100 A (continuous), 120 A (peak, 10s)
Max Discharge Current: 120 A (continuous), 150 A (peak, 10s)
Recommended DoD: 80%
Communication: CAN2.0, RS485
IP Rating: IP20
Relative Humidity: 95%
Cycle Life: ≥6000 cycles
Dimensions (W×H×D): 370 × 548 × 140 mm
Weight: ±41 kg
Warranty: 10 Years
