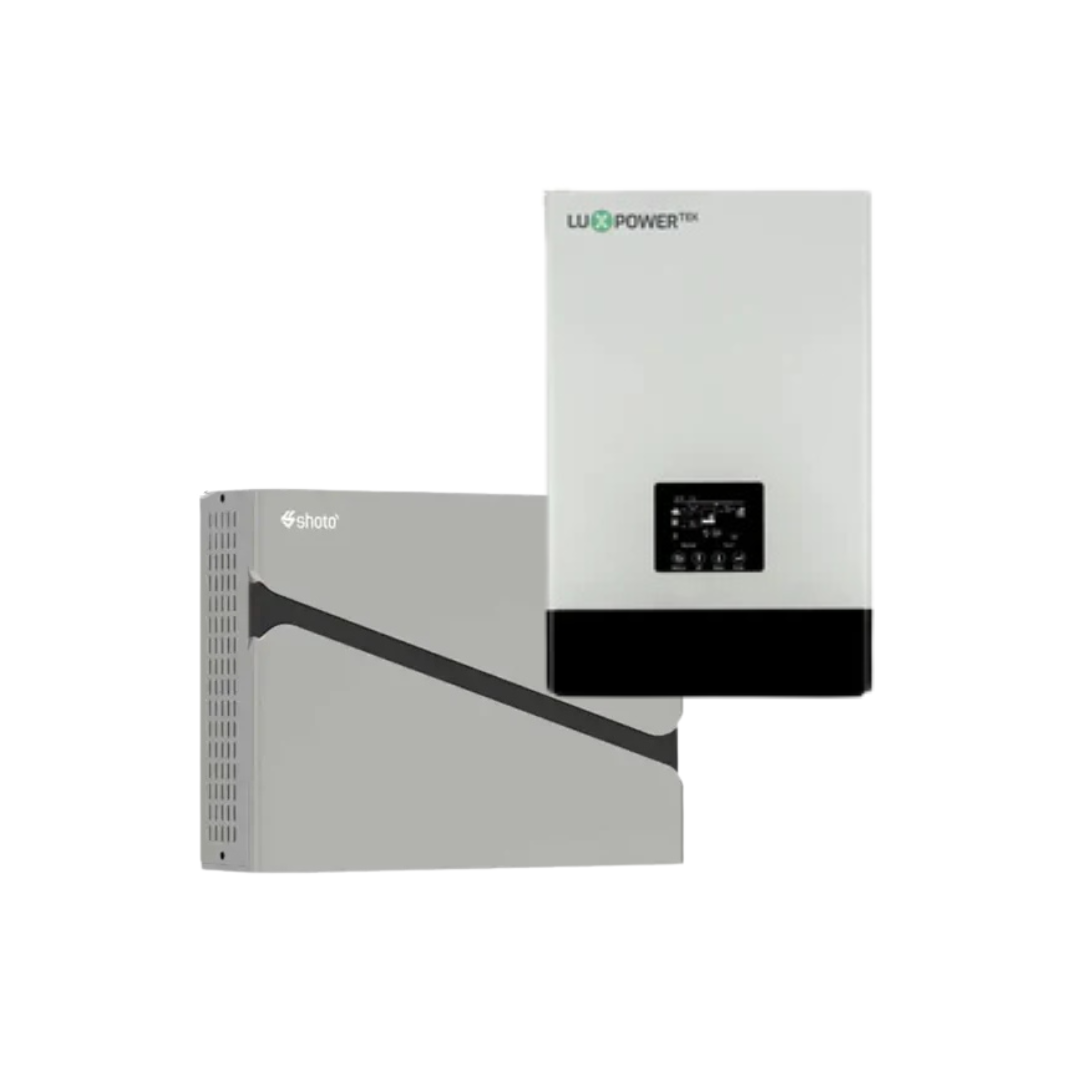

Luxpower 5KVA MPPT Hybrid Inverter + Shoto 5.12kwh Lithium Load Shedding Combo
Luxpower 5KVA MPPT Hybrid Inverter + Shoto 5.12kwh Lithium Load Shedding Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 7 left
Couldn't load pickup availability
Title:
Luxpower 5kVA Hybrid Inverter & Shoto 5.12kWh LiFePO₄ Combo
Description:
Take control of load shedding and power interruptions with the Luxpower 5kVA Hybrid Inverter and Shoto 5.12kWh Lithium Battery Combo Kit. This complete solution combines high-efficiency energy storage with a robust hybrid inverter to deliver reliable, scalable, and safe backup power for your home or small business.
Luxpower SNA5000 Inverter Specifications
Rated Output Power: 5000W / 5000VA
Battery Voltage: 48VDC nominal
Waveform: Pure sine wave with 10ms switch-over
Parallel Ready: Expandable with multiple units
Output Voltage: 230/240V standard, split-phase 220/110V option
Frequency: 50/60Hz
Surge Power: 10,000VA
Solar Input:
Max PV Power: 3200W
2 MPPT trackers with >98% efficiency
Max PV Open Circuit Voltage: 480VDC
MPPT Range: 100–385VDC
Max Solar Charge Current: 100A
Max Input Current: 13A per MPPT
Connectivity: Built-in Wi-Fi dongle included
Warranty: 2 years
Shoto HP10-Box5 Pro Battery Specifications
Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 48V
Capacity: 100Ah
Energy Storage: 5.12kWh
Cycle Life: >6000 cycles at 80% DoD
Charge Voltage: Max 54V
Discharge Cut-Off Voltage: 42V
Max Charge/Discharge Current: 100A (recommended 50A)
Round-Trip Efficiency: >95%
Protocols: RS485 & CAN communication supported
Scalability: Parallel and series expansion ready
Operating Temp: -20°C to 55°C
Warranty: 10 years
What’s Included in the Combo
1 × Luxpower SNA5000 5kW Inverter with Wi-Fi dongle
1 × Shoto 5.12kWh HP10-Box5 Pro Lithium Battery
Battery cables and brackets
User manual
Applications
Home backup during load shedding
Small business power continuity
Off-grid solar solutions
Expandable systems for growing energy needs
Warranty & Installation Requirements
The inverter carries a 2-year warranty and the battery a 10-year warranty.
All equipment must be installed by a qualified wireman or master electrician registered with the Department of Labour, and must comply with SANS 10142 regulations. A valid Certificate of Compliance (COC), installation photographs, and proof of professional installation are required for all warranty claims. Failure to comply may void warranty coverage.
