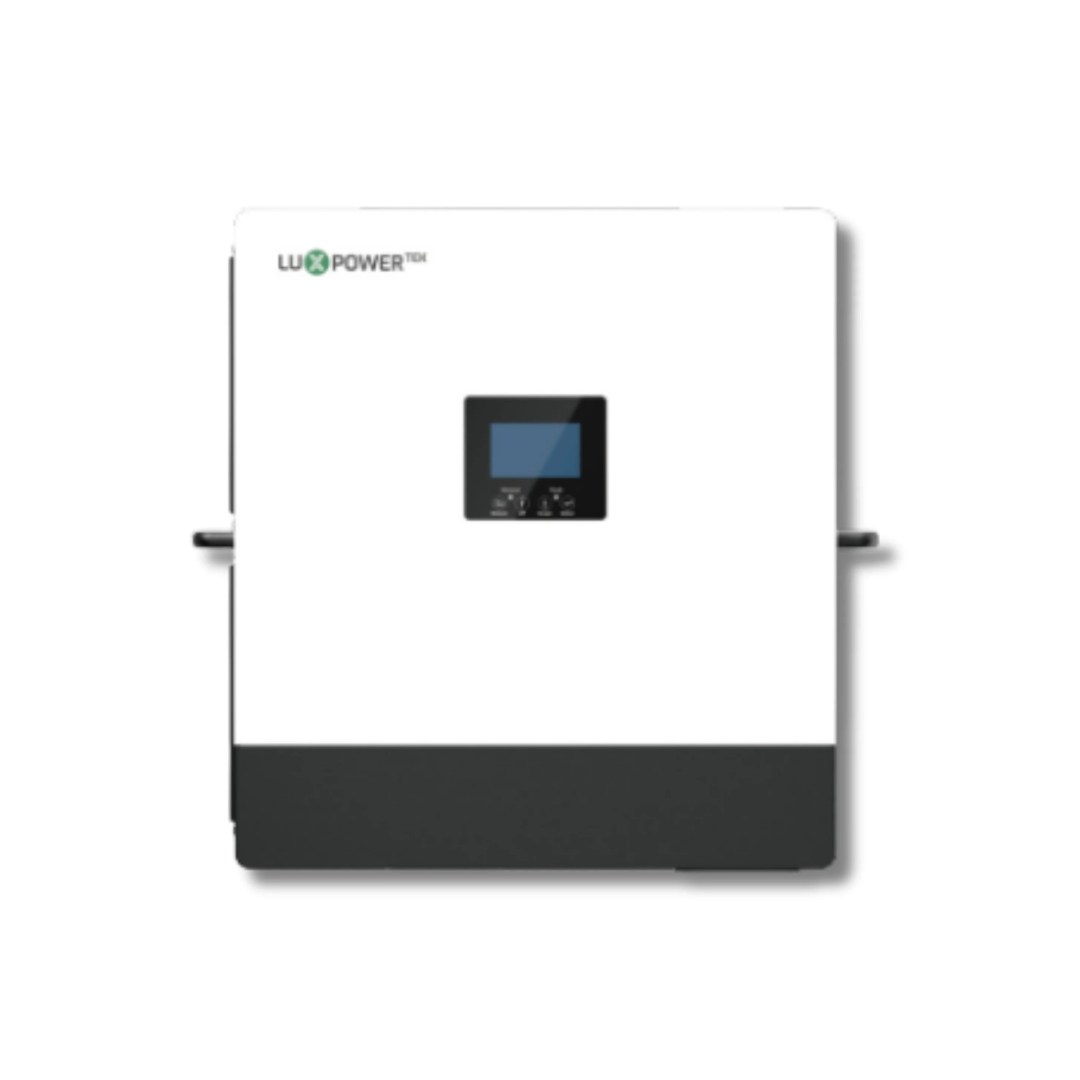

Luxpower 14kW Single-Phase Eco Hybrid Inverter SNA2-EU-LT-14K | 48V Solar Inverter
Product Description
The Luxpower 14kW Single-Phase Eco Hybrid Inverter SNA2-EU-LT-14K is a powerful and efficient hybrid inverter designed for larger residential, commercial, and backup solar installations. With a strong 14kW output, high PV input capacity, 48V/51.2V battery compatibility, and advanced hybrid working modes, this inverter is ideal for customers who need a reliable solar and battery storage solution.
This inverter supports up to 24kW of PV input power with 2 independent MPPTs, allowing flexible solar panel configuration and improved energy production across different roof layouts. It also supports a maximum charging and discharging current of 250A, helping deliver strong battery backup performance when paired with the correct lithium or lead-acid battery bank.
The Luxpower SNA2-EU-LT-14K is built with a lighter, compact design for easier installation and supports up to 16 units in parallel for on-grid and off-grid applications. With intelligent operating modes, it can help reduce energy costs, improve solar self-consumption, and deliver a quicker return on investment.
It also includes a separate generator port for auto start-stop, working with an existing grid-tied system, and smart load management, making it a flexible inverter option for modern solar installations.
Key Features
14kW single-phase eco hybrid inverter
Max. PV input power of 24kW
2 independent MPPT inputs
Compatible with lithium-ion and lead-acid batteries
Rated battery voltage: 48V / 51.2V
Max. charging and discharging current of 250A
Supports up to 16 units in parallel
Suitable for on-grid and off-grid operation
Lite design for easier installation
Supports hybrid working modes
Intelligent operating mode to help lower energy costs
Separate generator port
Generator auto start-stop support
Can work with existing grid-tied systems
Smart load management support
Compact wall-mounted design
Benefits
Suitable for larger homes and businesses with higher power demand
Allows a large solar array for improved daytime generation
Supports strong battery backup performance
Flexible PV design with dual MPPT inputs
Can be expanded by paralleling multiple units
Helps improve self-consumption and reduce grid reliance
Generator integration adds extra backup flexibility
Easier installation thanks to compact and lightweight design
Ideal Applications
The Luxpower 14kW SNA2-EU-LT-14K is ideal for:
Large residential solar systems
High-consumption households
Small businesses and offices
Backup power systems
Off-grid and grid-assisted installations
Solar systems with battery storage
Generator-assisted backup setups
Sites requiring future expansion
Existing grid-tied solar system upgrades

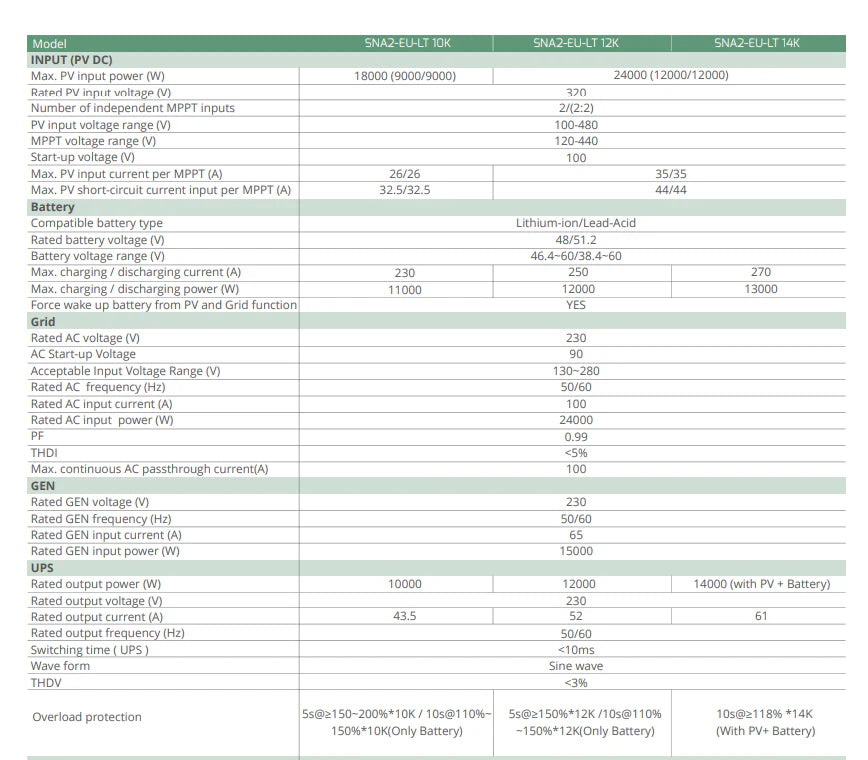

Technical Specifications
Input, PV DC
| Specification | Details |
|---|---|
| Max. PV Input Power | 24,000W, 12,000W / 12,000W |
| Rated PV Input Voltage | 320V |
| Number of Independent MPPT Inputs | 2 / 2:2 |
| PV Input Voltage Range | 100V – 480V |
Grid Data
| Specification | Details |
|---|---|
| Rated AC Voltage | 230V |
| AC Start-up Voltage | 90V |
| Acceptable Input Voltage Range | 130V – 280V |
Battery Data
| Specification | Details |
|---|---|
| Compatible Battery Type | Lithium-ion / Lead-Acid |
| Rated Battery Voltage | 48V / 51.2V |
| Battery Voltage Range | 46.4V – 60V / 38.4V – 60V |
| Max. Charging / Discharging Current | 250A |

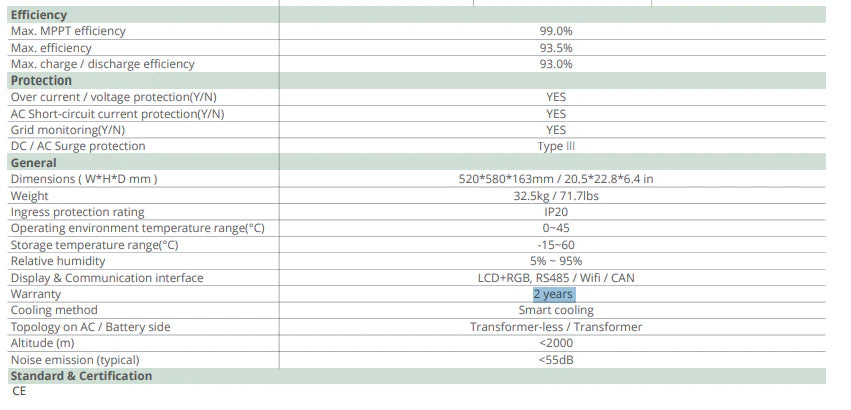

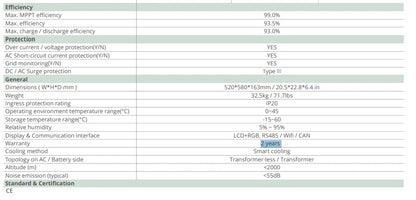

General Specifications
| Specification | Details |
|---|---|
| Brand | Luxpower |
| Model | SNA2-EU-LT-14K |
| Inverter Type | Single-Phase Eco Hybrid Inverter |
| Rated Power | 14kW |
| Max. Parallel Units | Up to 16 units |
| Hybrid Working Modes | Supported |
| Generator Port | Separate Gen Port |
| Dimensions | 520 × 580 × 163mm |
| Dimensions, Inches | 20.5 × 22.8 × 6.4 in |
| Weight | 32.5kg / 71.7lbs |
| Warranty | 2 Years |
Warranty
2-year warranty
Important Warranty & Installation Notice
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with valid registration through the Department of Labour.
A valid Electrical Certificate of Compliance, COC, must be issued once installed, specific to the backup or solar system installation. The installation must comply with SANS 10142 and all applicable parts.
Any warranty claim submitted without the following may be rejected and may render the warranty claim null and void:
Installation photos
Valid COC
Proof that the unit was installed by a qualified wireman or Master electrician
