JoJo 1000L Water Backup & Filtration Combo – 0.55kW

NO SHIPPING - LOCAL DELIVERY AVAILABLE (GAUTENG)

ARRANGE FOR IN STORE COLLECTION.

JoJo 1000L Water Backup & Filtration Combo – 0.55kW

A complete household water storage, pressure boosting and filtration solution designed for homes that need reliable backup water with improved filtration. Ideal for supplying water for 1-3 bedroom houses.

This combo combines a space-saving 1000L Slimline water tank with a 0.75kW centrifugal booster pump, pump protection accessories, connection components and a 2-stage whole-house 20-inch filtration housing.

The system is designed to store water, automatically supply pressurised water to the property and provide whole-house filtration before the water reaches your taps.

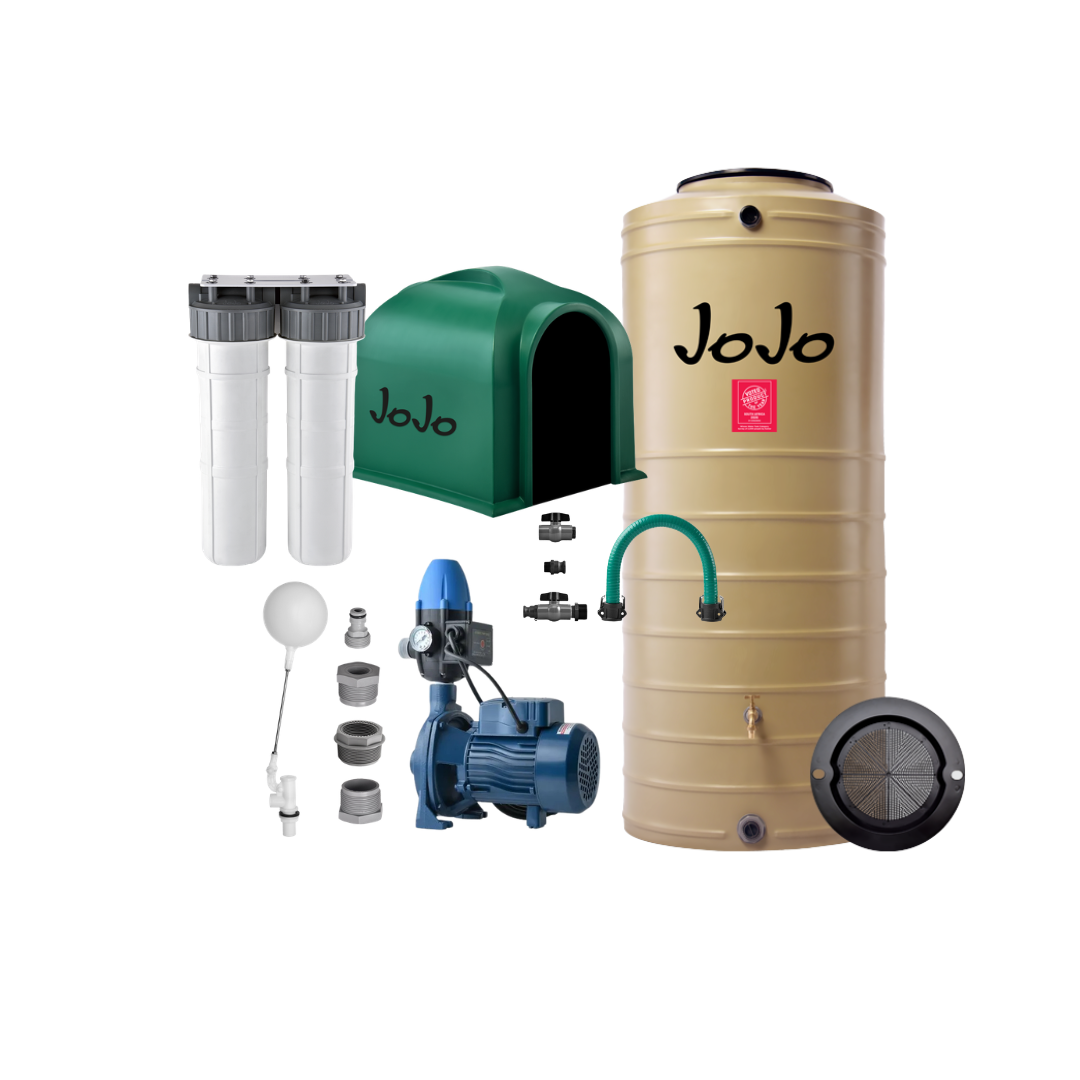

Combo Includes

• 1 x 1000L Slimline Standard Water Storage Tank
• 1 x 0.55kW Centrifugal Booster Pump
• 1 x Pump Cover
• 1 x Float Kit
• 1 x Suction Kit
• 1 x 2-Stage Whole-House 20 Inch Filter Casing

Important: Filter cartridges are not supplied standard with the 2-stage filter housing and must be purchased separately according to the required filtration application.

1000L Slimline Water Storage Tank

The 1000 litre Slimline tank provides practical water storage while using less floor space than many traditional round tanks. It can be used as a household buffer tank or as part of a rainwater harvesting system.

Additional Slimline tanks can also be connected together when greater storage capacity is required.

Tank Features

• 1000 litre storage capacity
• Suitable for buffer storage and rainwater harvesting
• Manufactured from high-quality virgin LLDPE
• UV-stabilised exterior for outdoor durability
• BPA-free, food-grade internal layer
• Black inner lining helps prevent algae growth
• Reinforced polymer thickness in high-stress areas
• Slim, space-efficient dimensions
• Modern streamlined design
• Multiple tanks can be linked together to increase capacity
• Additional 20mm connection suitable for a tap
• Brass tap included
• Plastic filter screen beneath the lid helps prevent larger debris such as leaves and twigs from entering the tank
• 20mm fitting and 40mm outlet supplied with thumb plugs when the connections are not being used
• 10-year tank warranty

0.75kW Centrifugal Booster Pump

The 0.55kW centrifugal booster pump is suited to installations requiring strong household water flow and automatic pressure control.

Its flow control system automatically activates the pump when pressure drops and switches the pump off when water flow stops.

Pump Performance

1 YEAR WARRANTY

Best efficiency pressure range 1.6 to 2.4 bar

Best efficiency flow range 40 to 80 lt/min

Energy-efficient

Easy to operate

Automatic start/stop

Dry running protection

Over-current protection

Minimal maintenance required

Pre-wired with a 3-point plug

Brass impeller

Stainless steel shaft

Pump Installation Requirements

For suitable pump performance and reliability:

• Recommended suction piping is HDPE or helical-coil reinforced flexible hose with a minimum diameter of 25mm or 1 inch
• Recommended discharge piping is copper, HDPE or other SABS-approved piping with a recommended size of 22mm or 3/4 inch
• The pump must be correctly earthed
• No unnecessary strain should be placed on the electrical cable
• Power must be disconnected before maintenance is performed
• The pump is intended for clean water only
• Water containing mud, suspended particles or solids may damage the pump and can affect warranty coverage
• Extending the electrical cable can affect the factory warranty
• An approved extension plug adaptor should be used when additional cable reach is required
• The pump should be installed in a ventilated and protected location
• It should be protected against direct sunlight, rain and irrigation spray
• The included pump cover provides additional protection for the unit

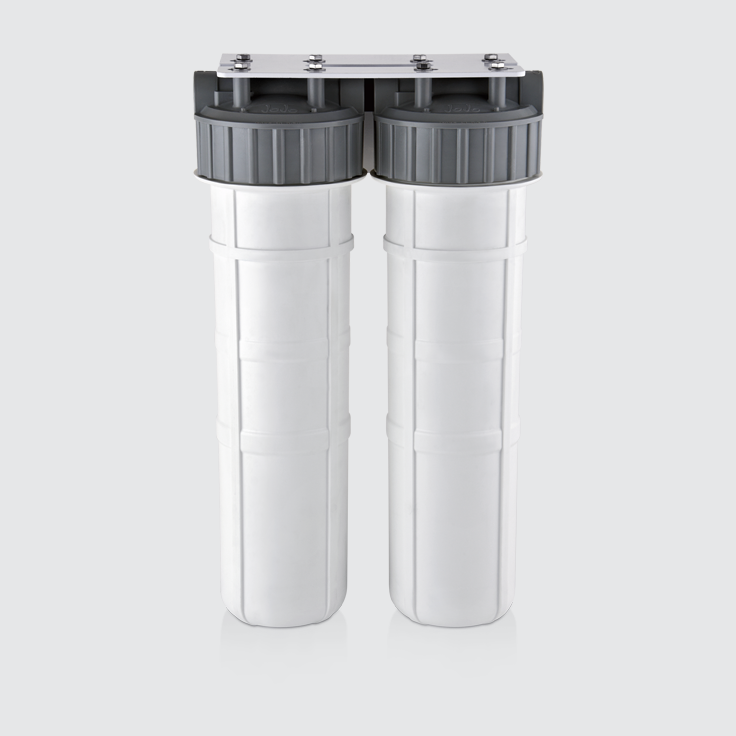

2-Stage Whole-House 20 Inch Filter Housing

The 2-stage filtration housing connects to the main water supply line and allows filtered water to be supplied throughout the property.

Its dual-cartridge configuration allows different filter cartridges to be selected according to the quality of the incoming water and the required filtration level.

PLEASE NOTE THAT FILTER CASING DOES NOT INCLUDE CARTRIDGE , IT HAS TO BE PURCHASED SEPARATELY

Filtration Features

• Two-stage cartridge filtration system
• Designed to filter incoming household water
• Suitable for water used for drinking, bathing, washing and irrigation
• Cartridge combinations can be customised for different water conditions
• Filter cartridges can be replaced quickly when required
• UV-resistant filter housing
• Designed to withstand operating pressures of up to 8 bar
• Modular design allows additional filtration stages to be added
• An additional 1-stage 20 inch housing can be connected where more advanced filtration is required
• 1-year warranty covering qualifying manufacturing faults and defects on consumable components

Important: The filter housing does not include filtration cartridges. The appropriate 20-inch cartridges must be selected and purchased separately based on the water source and desired filtration result.

Ideal Applications

This complete water backup and filtration package is suitable for:

• Residential water backup systems
• Municipal water interruption backup
• Household pressure boosting
• Rainwater harvesting systems
• Properties experiencing inconsistent municipal pressure
• Homes requiring whole-house filtration
• Residential installations where space is limited

Warranty Information

The 1000L Slimline tank carries a 10-year warranty subject to the manufacturer's warranty conditions.

The centrifugal booster pump carries a 1-year warranty. The pump must be correctly installed and used for clean water applications. Damage caused by contaminated water, incorrect installation, unsuitable operating conditions or unauthorised electrical cable modifications may fall outside of warranty coverage.

The 2-stage filtration housing carries a 1-year warranty, with consumable components covered only where applicable for manufacturing faults or defects.

All components should be installed according to the manufacturer's installation and operating requirements.
