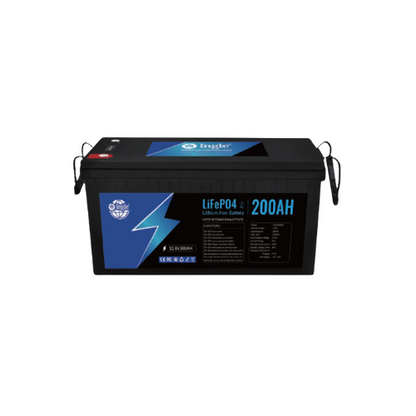

Ingle Lithium Battery 12.8V 200AH 2.56kWh
Ingle Lithium Battery 12.8V 200AH 2.56kWh
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 7 left
Couldn't load pickup availability
Product Description
The Ingle 12.8V 200Ah 2.56kWh LiFePO₄ Lithium Battery is a compact and efficient 12V lithium battery module designed as a replacement option for traditional lead-acid, AGM, and gel batteries. With a rated capacity of 2.56kWh, this battery is suitable for backup power systems, small solar setups, camping power solutions, UPS applications, and general 12V energy storage use.
Built with LiFePO₄ battery technology, the Ingle 12V 200Ah battery offers improved cycle life, lighter weight, and better usable energy compared to many conventional lead-acid batteries. It supports a discharge current of 150A and can be connected in series and parallel, with support for up to 4 series and 4 parallel configurations, depending on the system requirements and correct installation setup.
This battery is wall mountable, compact in size, and offers up to 4000 cycles at 50% depth of discharge, making it a practical choice for customers needing dependable energy storage in indoor or protected environments.
Please note: This battery is not recommended for outdoor or water-based applications. It contains internal circuit boards that may be damaged by water exposure, which can affect performance and safety.
Key Features
12.8V 200Ah LiFePO₄ lithium battery
2.56kWh rated capacity
Suitable replacement for lead-acid, AGM, and gel batteries
Wall-mountable 12V battery module
Lightweight design at approximately 16.35kg
Supports series and parallel connection
Up to 4 series and 4 parallel configuration
150A discharge current
4000 cycles at 50% Depth of Discharge, DOD
Compact size for easy installation
Ideal for indoor backup and 12V energy storage systems
24-month warranty
Benefits
Longer cycle life than many traditional lead-acid batteries
Lighter and easier to handle compared to heavy lead-acid options
Better usable energy for backup and solar applications
Can be expanded with series and parallel connections
Suitable for small inverter systems, camping, UPS backup, and 12V power setups
Low-maintenance lithium battery solution
Compact footprint for neat indoor installations
Ideal Applications
The Ingle 12.8V 200Ah Lithium Battery is ideal for:
12V backup power systems
Small solar energy storage setups
UPS battery replacement
Camping and portable power systems
Caravan and off-grid power applications, when installed in a dry protected area
Gate motors and security backup systems
Lighting backup systems
Low-voltage energy storage
Replacing lead-acid, AGM, or gel batteries

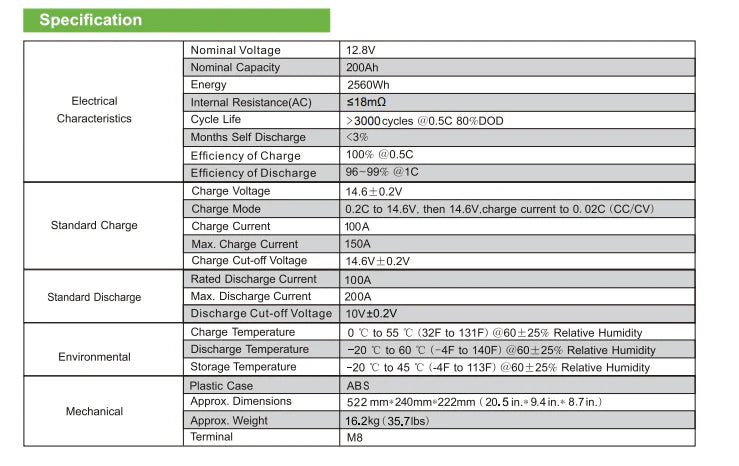

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingle |
| Product Type | Wall-Mountable 12V 200Ah LiFePO₄ Single Battery Module |
| Battery Chemistry | LiFePO₄ Lithium |
| Rated Capacity | 2.56kWh |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10V |
| Discharge Current | 150A |
| Charging Working Temperature | 0°C – 45°C |
| Series & Parallel Support | Yes |
| Maximum Configuration | 4 Series / 4 Parallel |
| Cycle Life | 4000 cycles at 50% DOD |
| Dimensions | 522 × 240 × 222mm |
| Weight | Approximately 16.35kg |
| Warranty | 24 Months |
Important Usage Notice
This battery is not recommended for outdoor or water-based applications.
The battery contains internal circuit boards that may be susceptible to water damage. Exposure to moisture or water can affect battery performance, safety, and warranty validity. Install only in a dry, protected, and suitable environment.
Warranty
24-month warranty
Warranty terms may depend on supplier policy, correct installation, compatible system setup, and proper battery use.
