INGLE 25.6V 200AH 5.12kWh Lithium Battery (LiFeP04)

Description:
The 25.6V 200Ah Lithium Iron Phosphate (LiFePO₄) battery module delivers reliable power storage in a durable wall-mounted format. Designed for advanced energy systems, this 5.12kWh battery is ideal for residential, solar backup, and hybrid storage applications. Supporting both series and parallel configurations (up to 4S4P), it offers excellent scalability and installation flexibility.

Built to outperform traditional battery technologies, this unit provides up to 4000 cycles at 50% Depth of Discharge, extending system longevity while reducing replacement costs. Housed in a robust casing and weighing approximately 27.8kg, it delivers powerful, maintenance-free performance with minimal space requirements.

Key Features:

• Stable Voltage Platform: 25.6V nominal with 29.2V charge cut-off

• Extended Cycle Life: Up to 4000 cycles at 50% Depth of Discharge

• High Energy Output: 5.12kWh storage capacity per module

• Wall Mountable Design: Efficient use of vertical space for clean installs

• Expandable System: Supports 4 series and 4 parallel connections

• Durable Construction: Engineered for long-term stability and safety

• Maintenance-Free: No acid, fume emissions, or fluid level checks required

• 24-Month Warranty: Backed by manufacturer protection for peace of mind

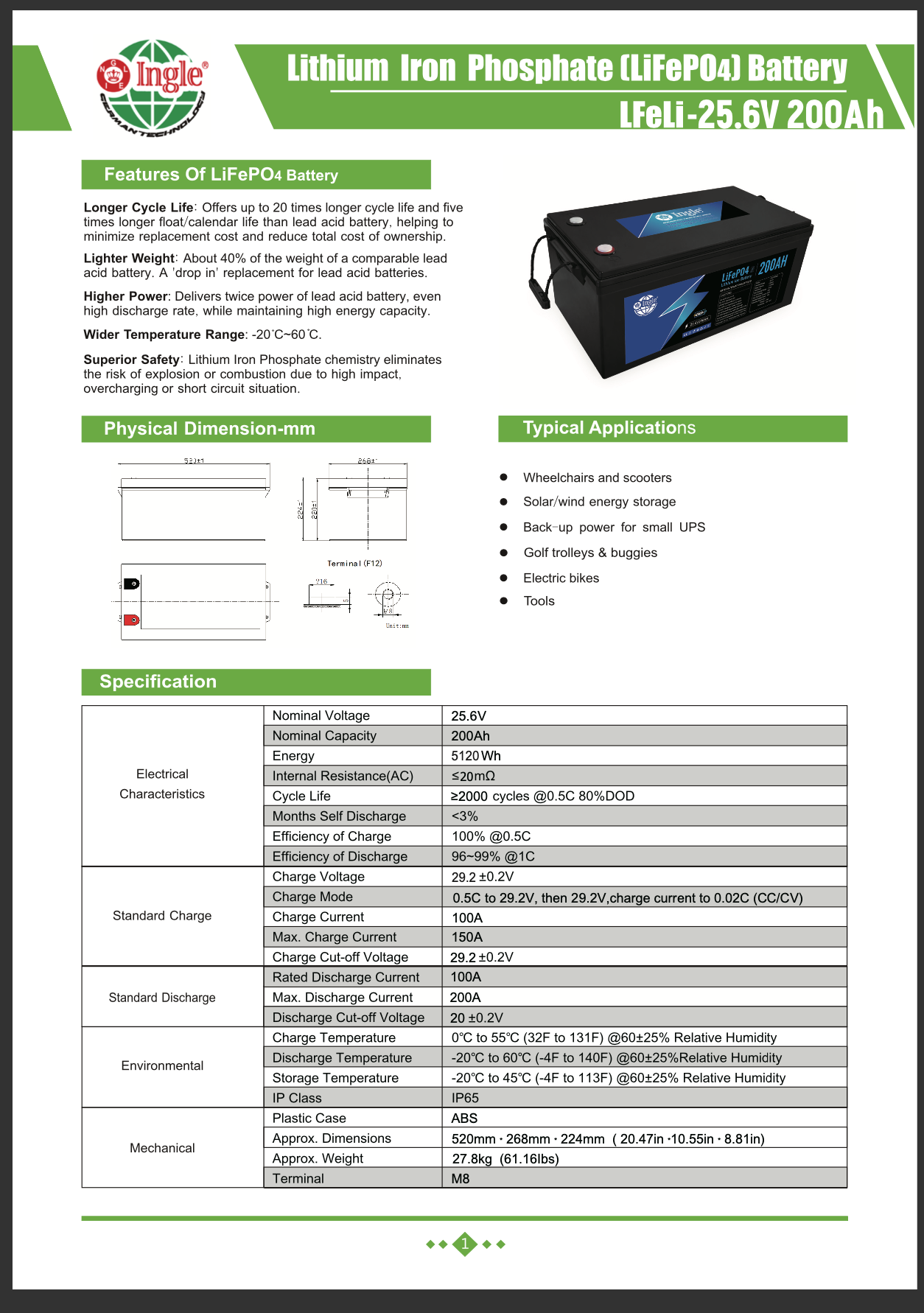

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Voltage: 25.6V

• Rated Capacity: 200Ah

• Energy Output: 5.12kWh

• Charge Cut-Off Voltage: 29.2V

• Cycle Life: 4000+ (at 50% DOD)

• Installation Type: Wall-mountable

• Scalability: Up to 4S4P configuration

• Dimensions (mm): 522 x 240 x 222

• Weight: ~27.8kg

What’s in the Box:

• 1 x 25.6V 200Ah Wall-Mount LiFePO₄ Battery Module

Installation Requirements & Warranty Terms:

• Professional Installation Required: Must be installed by a qualified electrical wireman or master electrician registered with the Department of Labour.

• Compliance Required: Installation must meet SANS 10142 standards, and a valid Certificate of Compliance (COC) is mandatory.

• Warranty Conditions: Claims must include installation photos, a valid COC, and proof of qualified installer.

• Warranty Duration: 24-month limited warranty from date of purchase.
