DC don't exceed 450V and 12A AC don't exceed 240V
The Solar Step
HZ Solar AC/DC Submersible Pump 220m + 9x Jinko 555W Tier 1 Solar Panels – 6.8m³/h / 220m Head / Off-Grid Water Solution
HZ Solar AC/DC Submersible Pump 220m + 9x Jinko 555W Tier 1 Solar Panels – 6.8m³/h / 220m Head / Off-Grid Water Solution
Regular price
R 21,277.00
Regular price
Sale price
R 21,277.00
Unit price
per
Shipping calculated at checkout.
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
HZ Solar AC/DC Submersible Pump 220m + 9x Jinko 555W Tier 1 Solar Panels – 6.8m³/h / 220m Head / Off-Grid Water Solution
All-in-One Solar Water Pumping Solution
This HZ Solar Submersible Pump Combo delivers high flow and efficiency for deep wells and boreholes, powered by 9 x Jinko 555W Tier 1 solar panels. Built for farms, rural homes, and off-grid communities, the system provides a max flow rate of 6,800 L/h with a pumping depth of up to 220m.
ONLINE ONLY - PRE ARRANGE FOR IN STORE COLLECTION

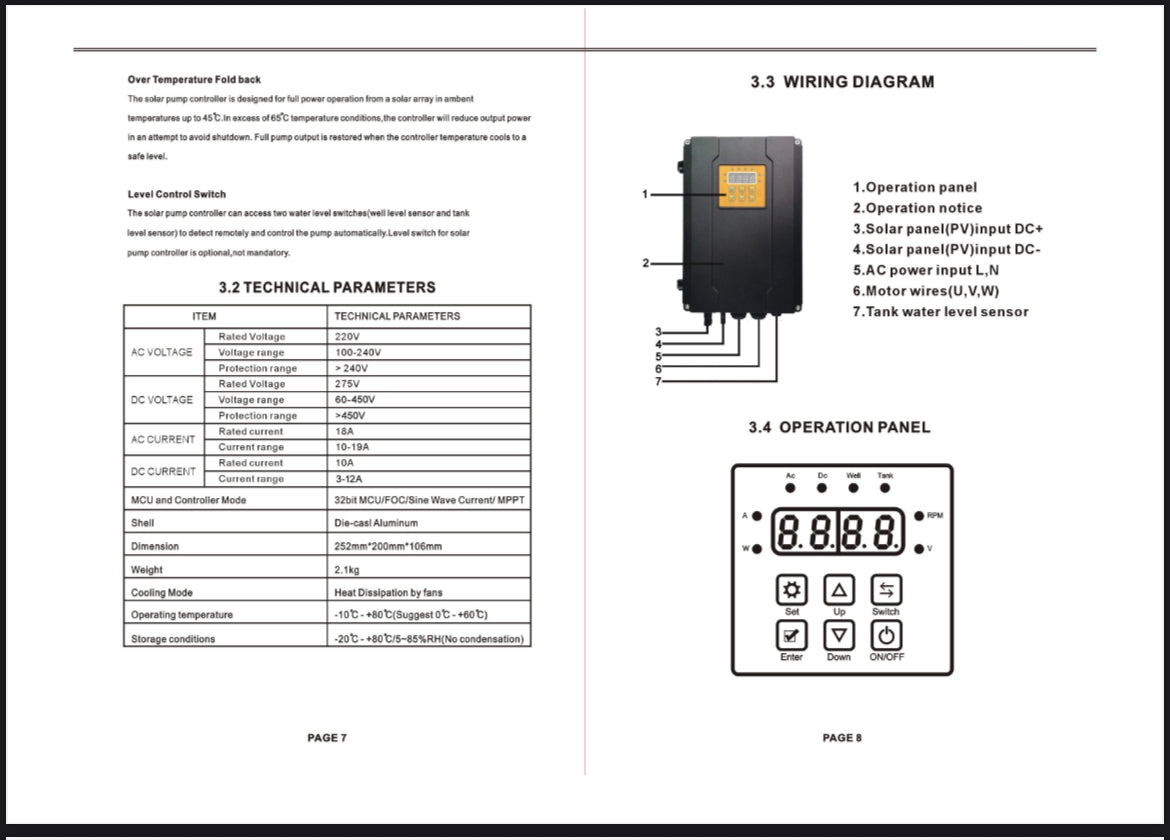

Dual Power Input – AC/DC Operation
This model can run on both solar panels (DC) and mains/grid power (AC), giving you flexibility and reliable performance all year round. Use solar power during the day to save on energy costs, and switch to AC when sunlight is insufficient.
DC Input: Do not exceed 450V / 12A.
AC Input: Do not exceed 240V.
Operates directly from solar panels during the day to reduce energy costs.
Switches to grid power when solar energy is insufficient, ensuring uninterrupted performance.

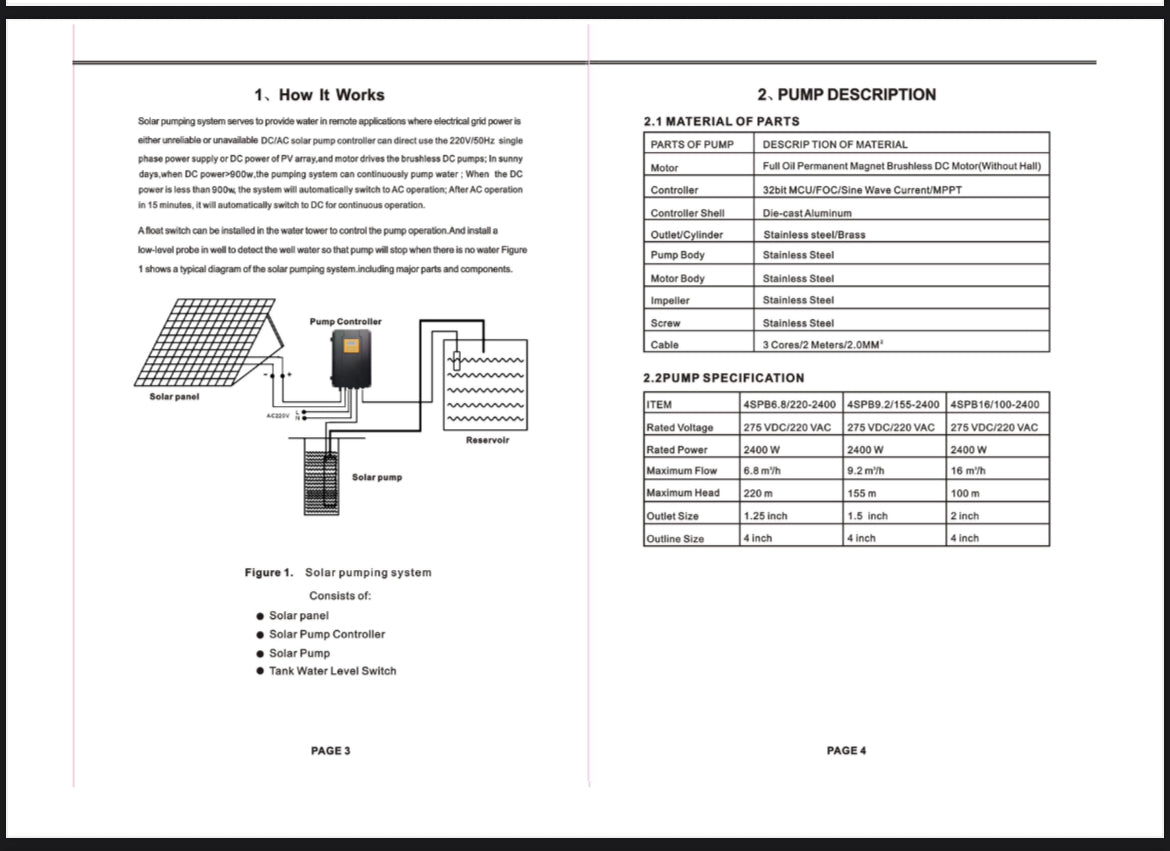

Pump Specifications
Model: 4SPB6.8-220-AC/DC-2400
Max flow: 6.8m³/h (6,800 L/h)
Max head (depth): 220m (recommended ≤155m)
Rugged submersible design for continuous operation

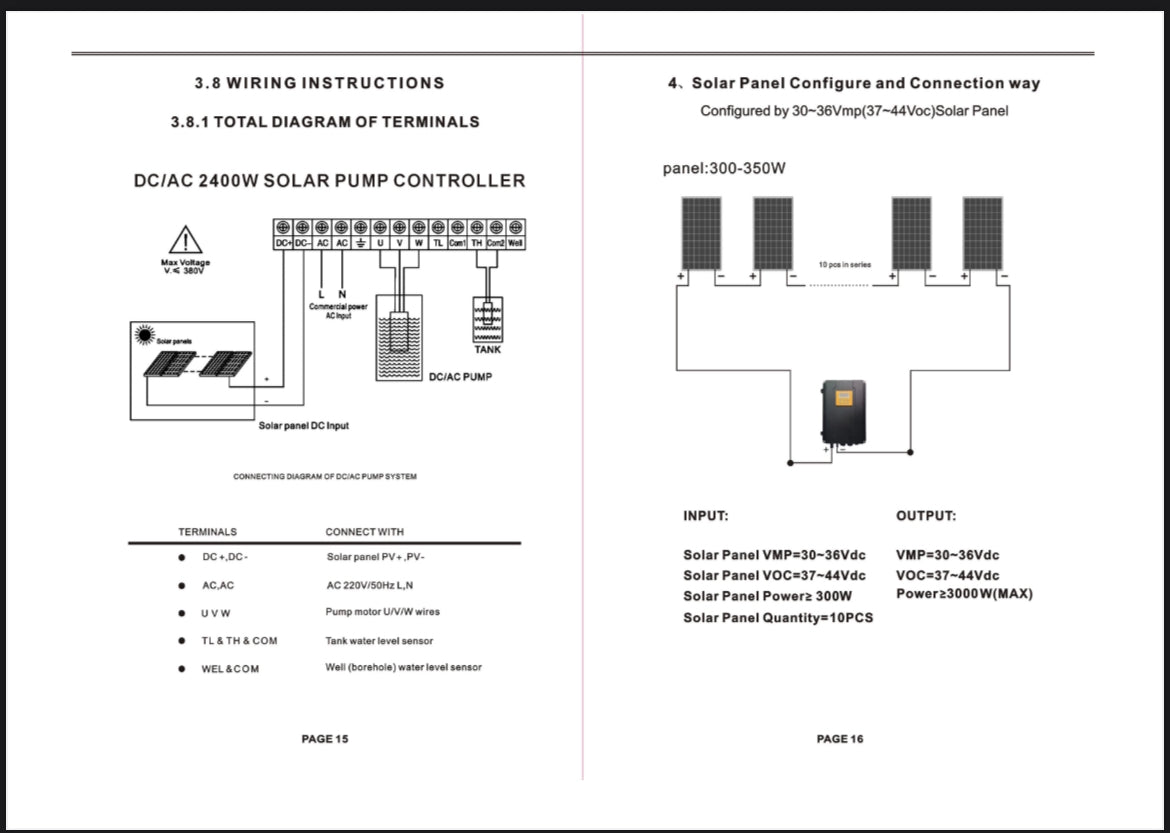

Flexible string wiring:
Series – voltage summed, current constant
Parallel – voltage constant, current summed

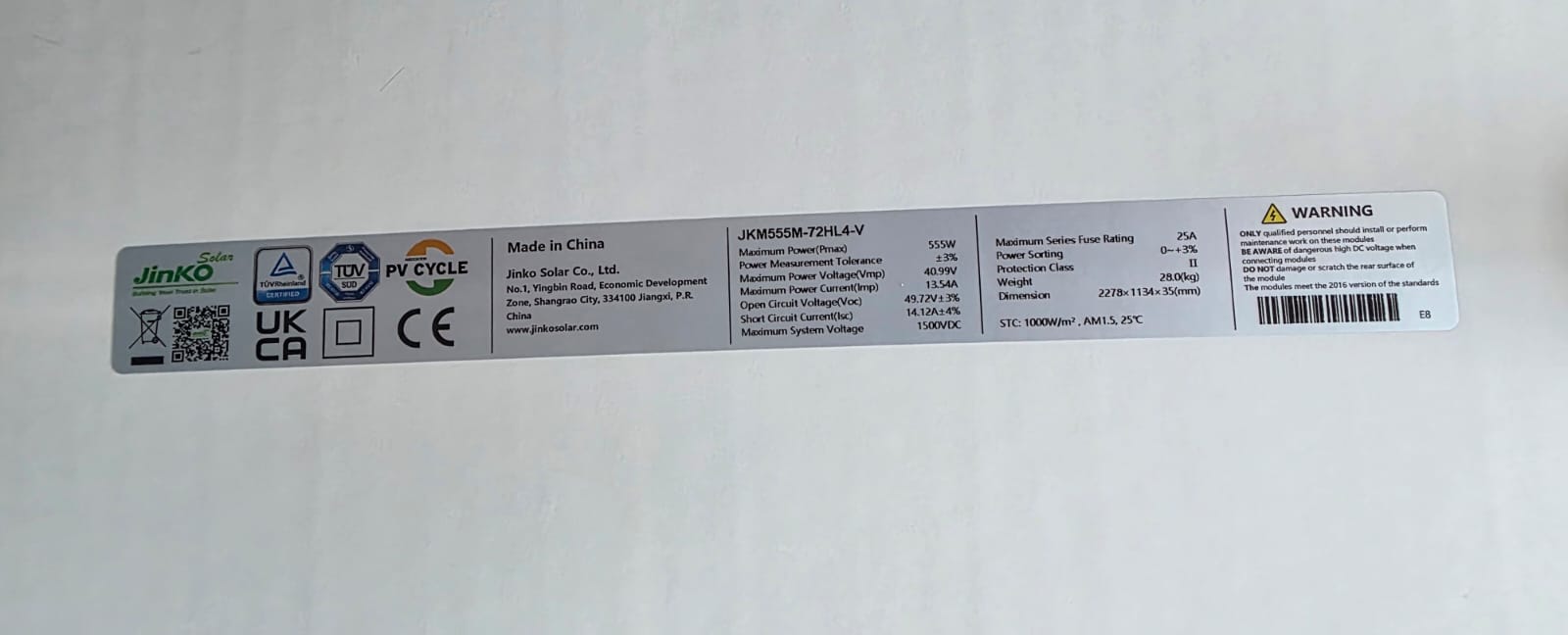

Solar Panel Specifications
9 × Jinko 555W Monocrystalline Tier 1 panels
Efficiency: High-output Tier 1 bankable modules
Per panel rating: 38.9V / 9.26A
Total capacity: ~5kW array
Applications
Agricultural irrigation & crop watering
Livestock water supply
Rural community water projects
Off-grid homes, lodges, and smallholdings

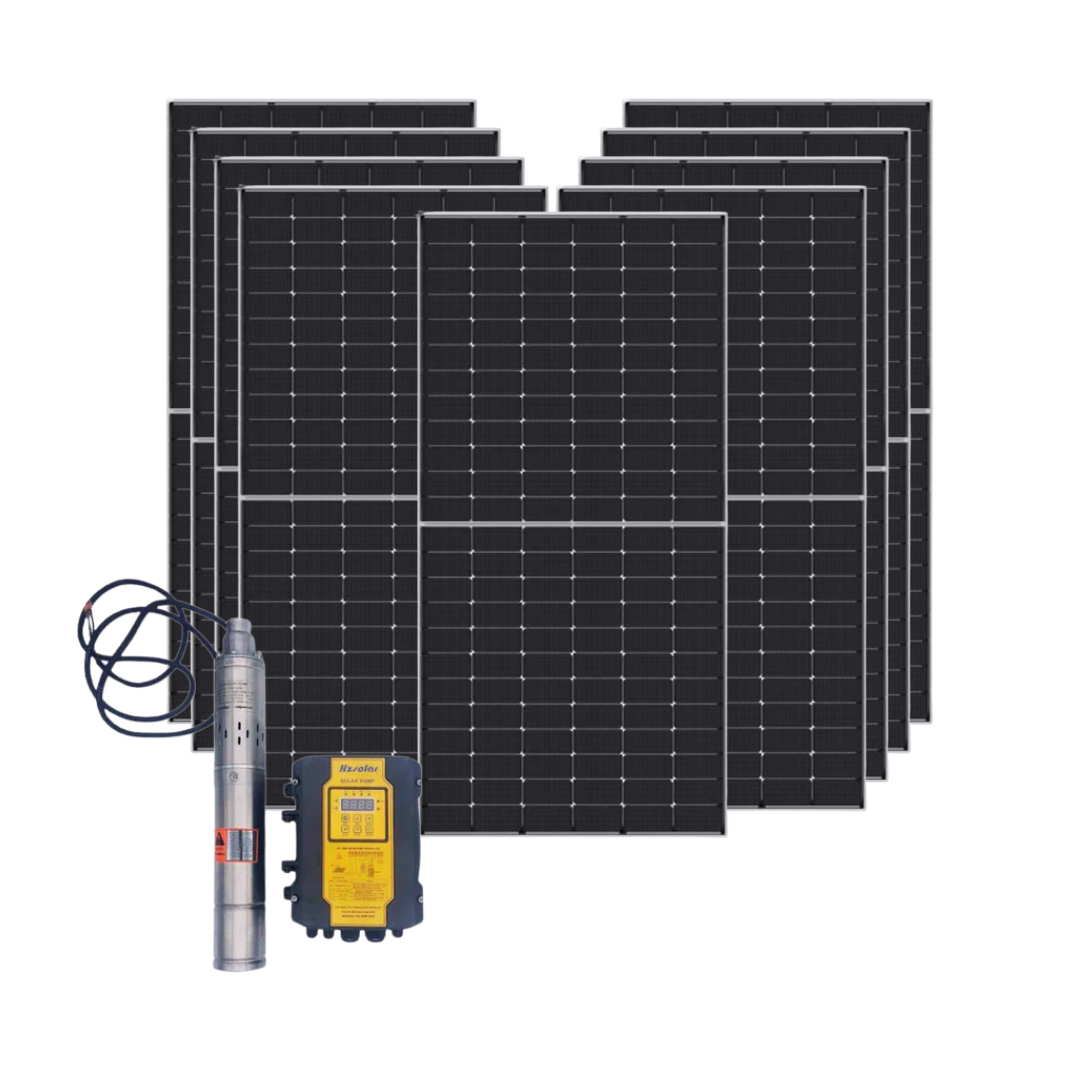

Combo Includes :
9x 555W Jinko Mono Crystal Solar Panels
1x HZ Solar Wate Pump 220m AC/DC
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK !! IF DAMAGES OCCURE WE WON'T BE HELD RESPONSIBLE
Why This Combo?
Complete package: Pump + solar panels = ready-to-install
Energy savings with solar-powered pumping
AC/DC flexibility with built-in protections
Tier 1 Jinko panels guarantee long-term reliability
