HZ Solar AC/DC Submersible Pump 155m + 9x Jinko 555W Tier 1 Solar Panels – 9.2m³/h / 155m Head / Off-Grid Water Solution

HZ Solar AC/DC Submersible Pump 155m + 9x Jinko 555W Tier 1 Solar Panels – 9.2m³/h / 155m Head / Off-Grid Water Solution

Regular price R 20,990.00
Regular price Sale price R 20,990.00
Sale Sold out
Shipping calculated at checkout.

Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.

Low stock: 5 left

HZ Solar AC/DC Submersible Pump 155m + 9x Jinko 555W Tier 1 Solar Panels – 9.2m³/h / 155m Head / Off-Grid Water Solution

All-in-One Solar Water Pumping Solution

This HZ Solar Submersible Pump Combo delivers high flow and efficiency for deep wells and boreholes, powered by 9 x Jinko 555W Tier 1 solar panels. Built for farms, rural homes, and off-grid communities, the system provides a max flow rate of 9,200 L/h with a pumping depth of up to 155m.

ONLINE ONLY - PRE ARRANGE FOR IN STORE COLLECTION

Dual Power Input – AC/DC Operation

This model can run on both solar panels (DC) and mains/grid power (AC), giving you flexibility and reliable performance all year round. Use solar power during the day to save on energy costs, and switch to AC when sunlight is insufficient.

DC Input: Do not exceed 450V / 12A.

AC Input: Do not exceed 240V.

Operates directly from solar panels during the day to reduce energy costs.

Switches to grid power when solar energy is insufficient, ensuring uninterrupted performance.

Pump Specifications

Model: 4SPB6.8-155-AC/DC-2400

Max flow: 9.2m³/h (9,200 L/h)

Max head (depth): 155m (recommended ≤110m)

Rugged submersible design for continuous operation

Flexible string wiring:

Series – voltage summed, current constant

Parallel – voltage constant, current summed

DC don't exceed 450V and 12A AC don't exceed 240V

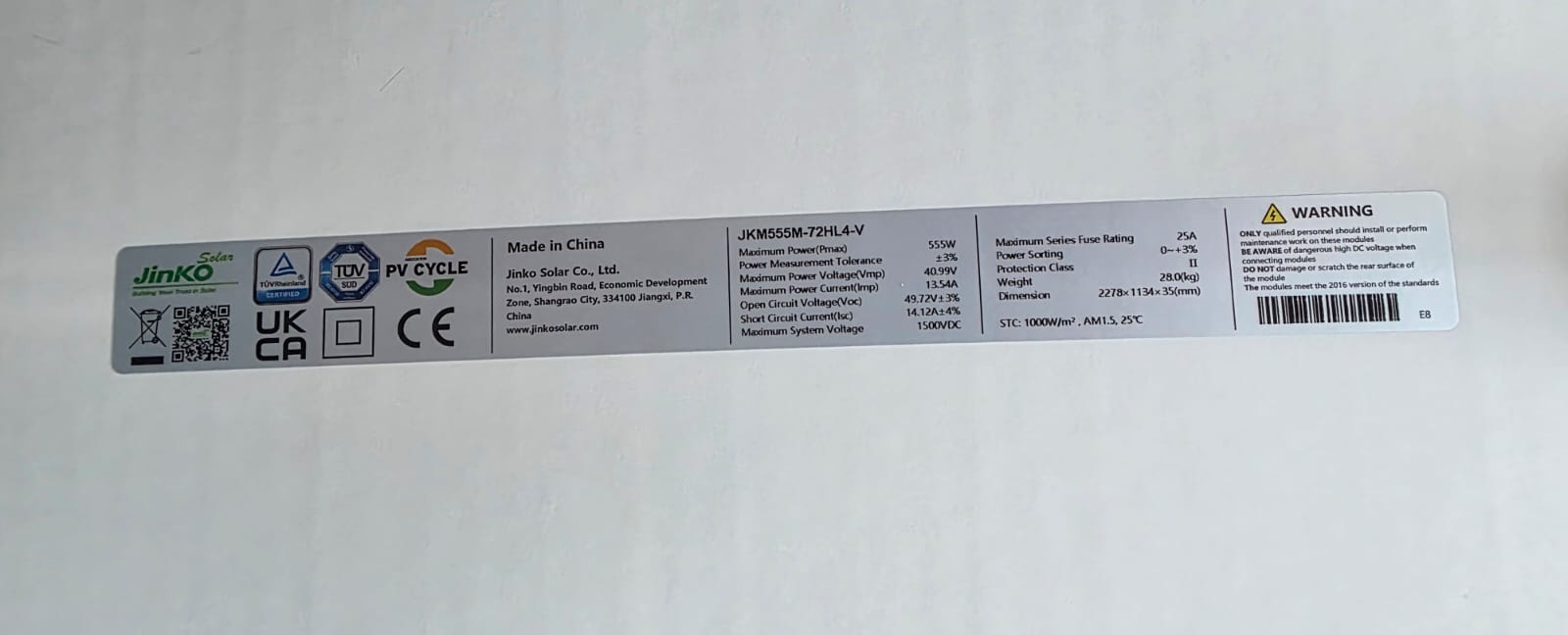

Solar Panel Specifications

9 × Jinko 555W Monocrystalline Tier 1 panels

Efficiency: High-output Tier 1 bankable modules

Per panel rating: 38.9V / 9.26A

Applications

Agricultural irrigation & crop watering

Livestock water supply

Rural community water projects

Off-grid homes, lodges, and smallholdings

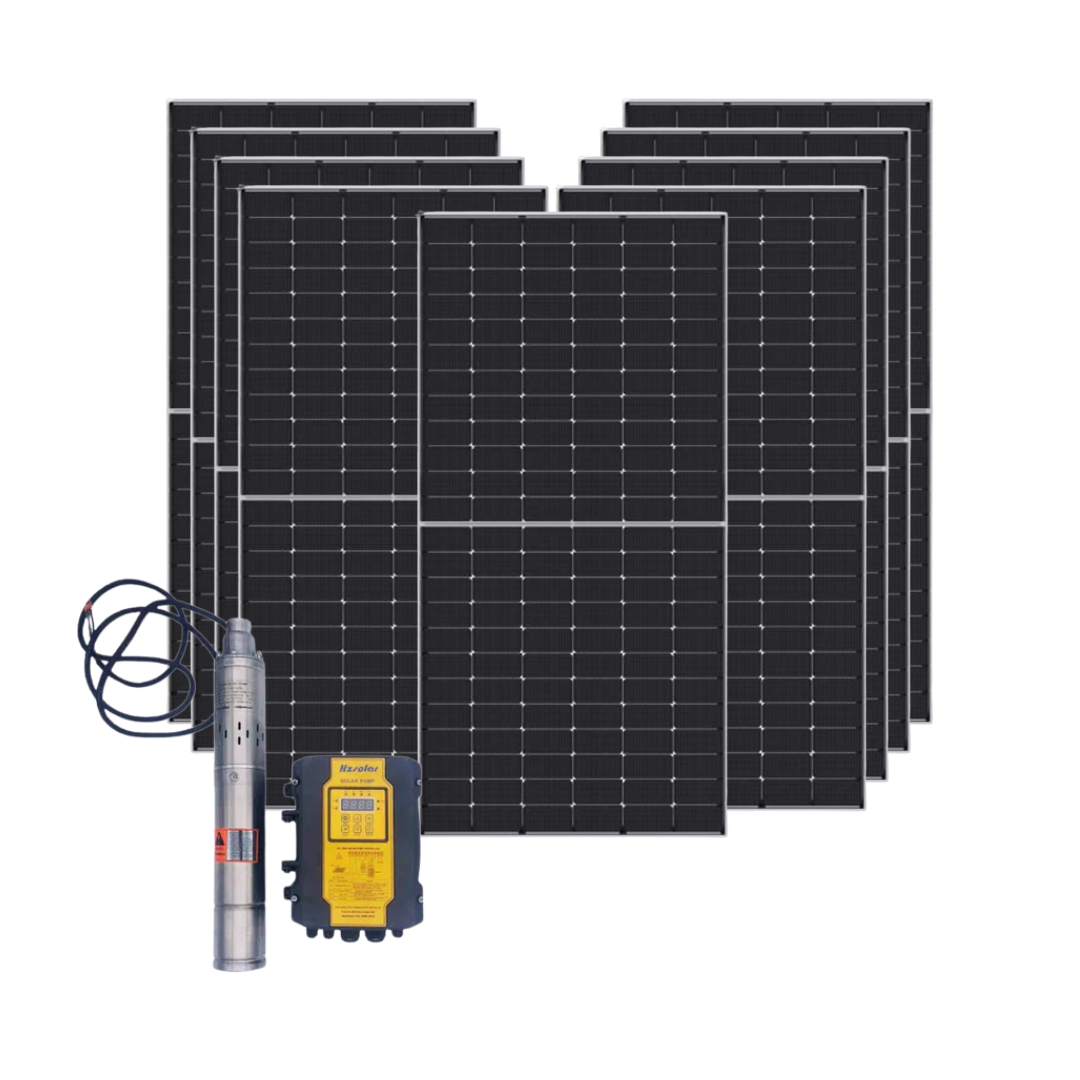

Combo Includes :

9x 555W Jinko Mono Crystal Solar Panels

1x HZ Solar Wate Pump 155m AC/DC

PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK !! IF DAMAGES OCCURE WE WON'T BE HELD RESPONSIBLE

Why This Combo?

Complete package: Pump + solar panels = ready-to-install

Energy savings with solar-powered pumping

AC/DC flexibility with built-in protections

Tier 1 Jinko panels guarantee long-term reliability
