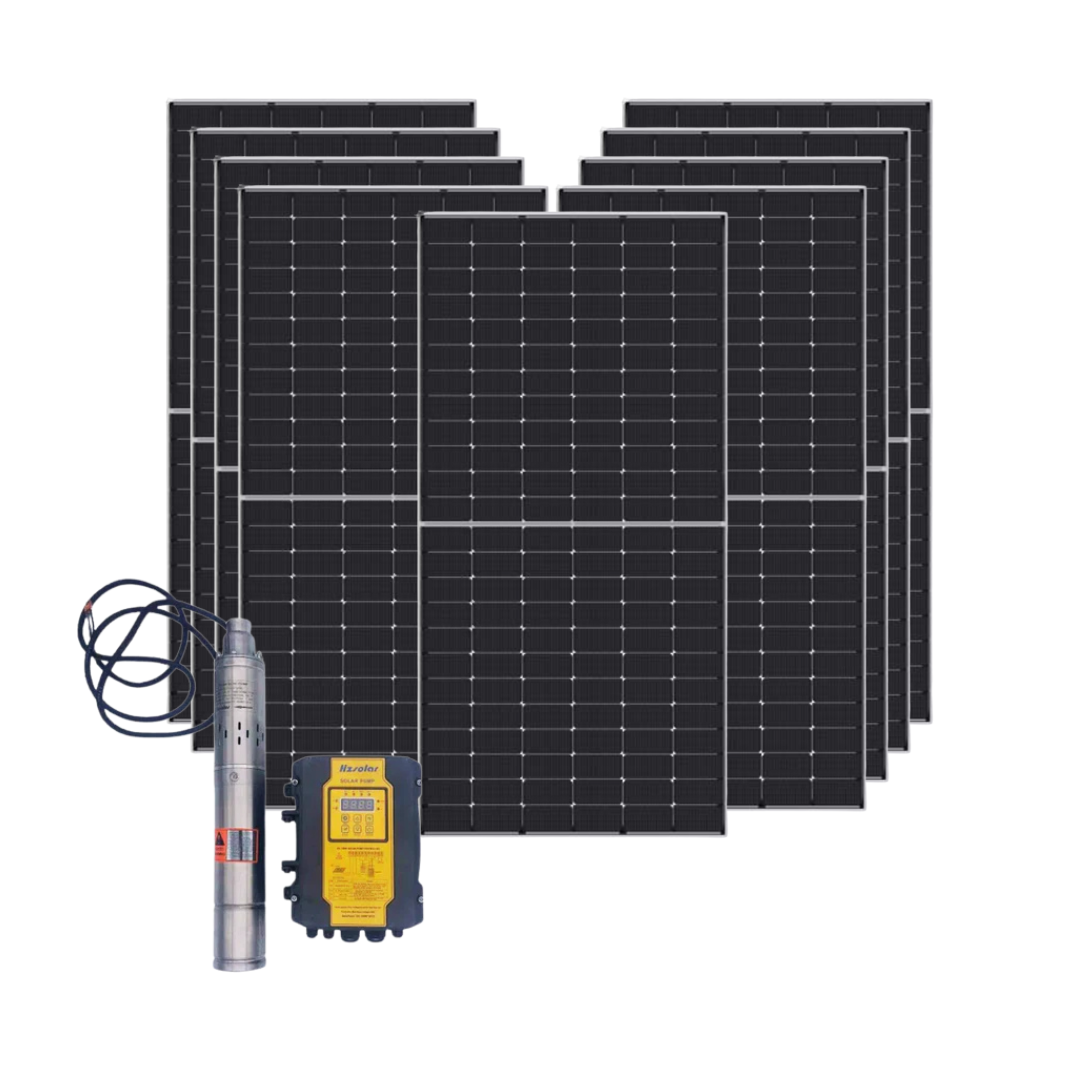

HZ Solar AC/DC Submersible Pump 100m + 6x 460W Solar Panels – 16m³/h / 100m Head / Off-Grid Water Solution

All-in-One Solar Water Pumping Solution

This HZ Solar Submersible Pump Combo delivers high flow and efficiency for deep wells and boreholes, powered by 6 x 460W solar panels. Built for farms, rural homes, and off-grid communities, the system provides a max flow rate of 16,000 L/h with a pumping depth of up to 100m.

ONLINE ONLY - PRE ARRANGE FOR IN STORE COLLECTION

Dual Power Input – AC/DC Operation

This model can run on both solar panels (DC) and mains/grid power (AC), giving you flexibility and reliable performance all year round. Use solar power during the day to save on energy costs, and switch to AC when sunlight is insufficient.

DC Input: Do not exceed 450V / 12A.

AC Input: Do not exceed 240V.

Operates directly from solar panels during the day to reduce energy costs.

Switches to grid power when solar energy is insufficient, ensuring uninterrupted performance.

Pump Specifications

Model: 4SPB6.8-100-AC/DC-2400

Max flow: 16m³/h (16,000 L/h)

Max head (depth): 100m (recommended ≤70m)

Rugged submersible design for continuous operation

Flexible string wiring:

Series – voltage summed, current constant

Parallel – voltage constant, current summed

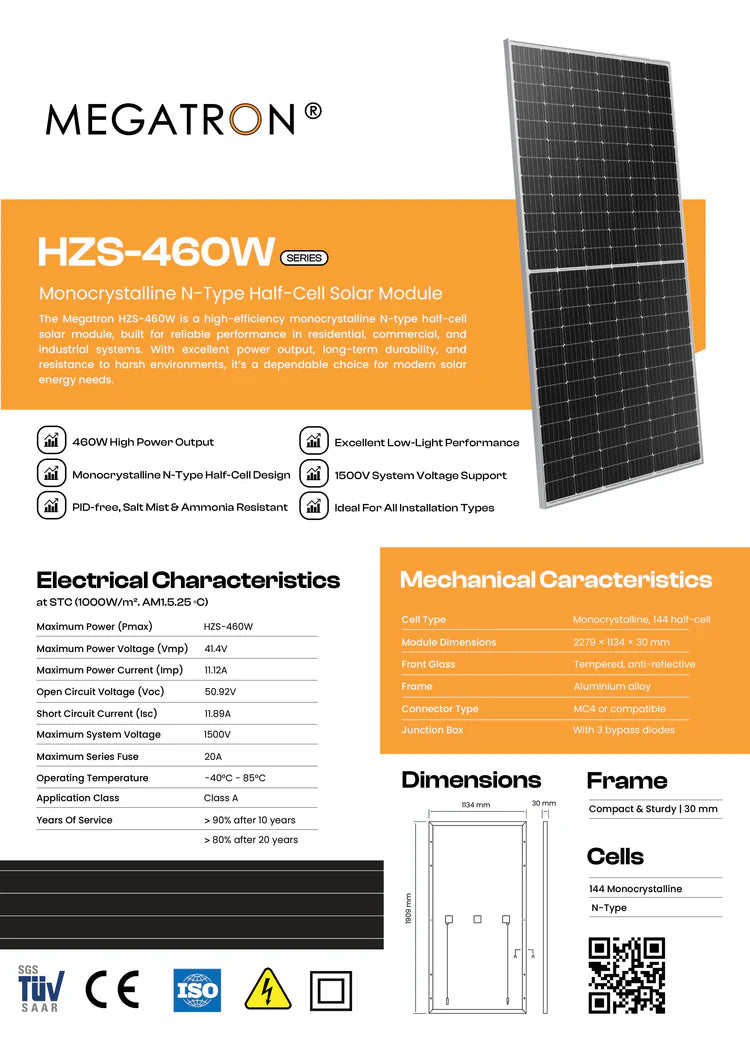

Solar Panel Specifications

6 × 460W Monocrystalline solar panels

Efficiency: High-output Tier 1 bankable modules

Per panel rating: 38.9V / 9.26A

Applications

Agricultural irrigation & crop watering

Livestock water supply

Rural community water projects

Off-grid homes, lodges, and smallholdings

Combo Includes :

6x 460W Mono Crystal Solar Panels

1x HZ Solar Wate Pump 100m AC/DC

PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK !! IF DAMAGES OCCURE WE WON'T BE HELD RESPONSIBLE

Why This Combo?

Complete package: Pump + solar panels = ready-to-install

Energy savings with solar-powered pumping

AC/DC flexibility with built-in protections
