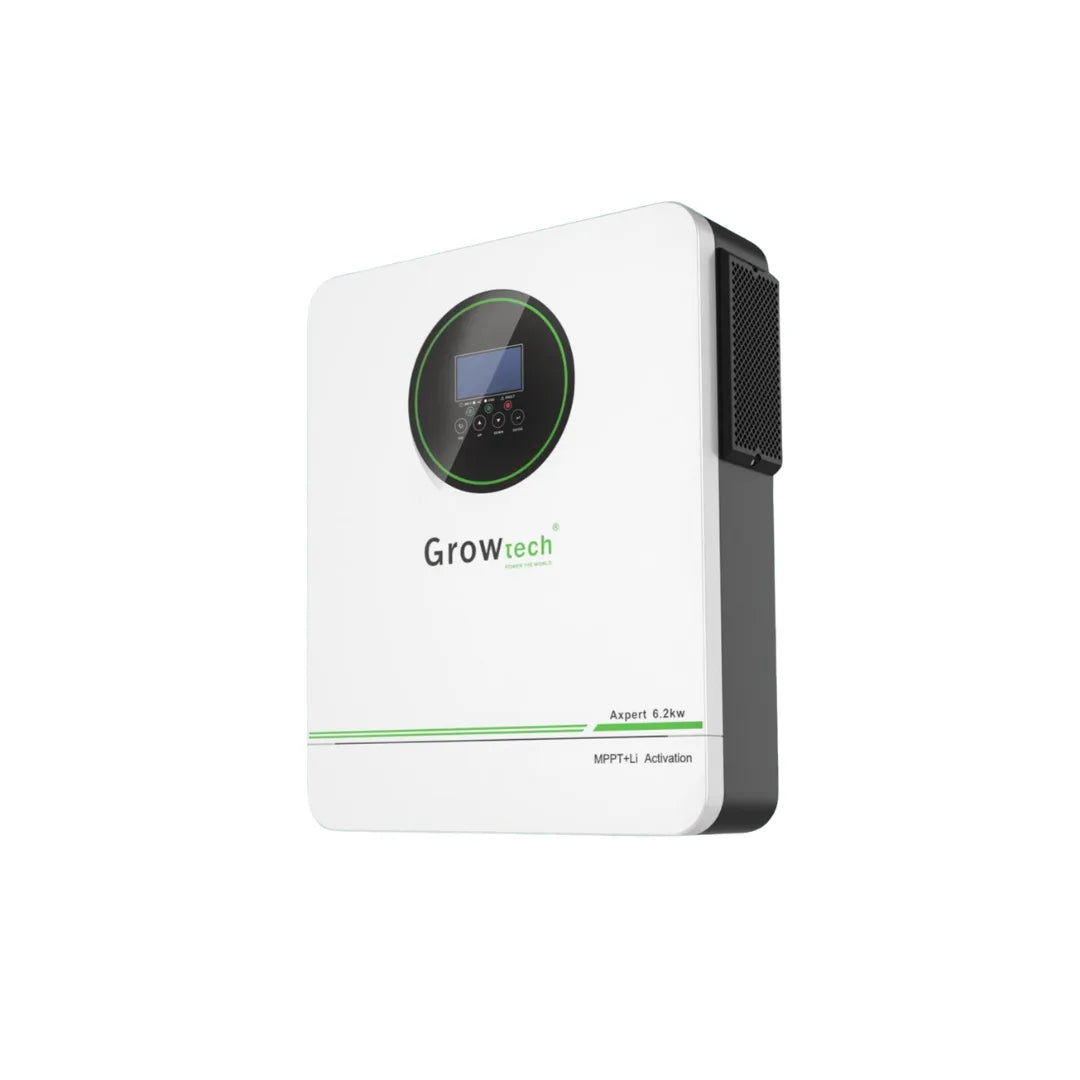

GroWtech Axpert 6.2kW Inverter – High-Performance MPPT Solar Solution

Description:

The GroWtech Axpert 6.2kW Pure Sine Wave Inverter is a powerful and efficient energy solution built for residential and small commercial applications. With MPPT solar charging, seamless battery integration, and high power conversion efficiency, this inverter provides stable and uninterrupted power for both grid-tied and off-grid systems. Whether used as a primary power source or a backup solution for load-shedding, it ensures reliable energy management with a compact, lightweight design for easy installation.

Key Features & Benefits:

Optimized Power & Performance

• Rated Output: 6.2KVA / 6.2KW for consistent energy supply
• Surge Capacity: 12,400VA to handle high startup loads
• Pure Sine Wave Output: Stable power for sensitive electronic devices
• Fast Transfer Time:
  • 10ms for uninterrupted power to personal computers
  • 20ms for home appliances

Smart Battery Integration & Management

• Battery Voltage: 48VDC for efficient energy storage
• Lithium Battery Communication: Supports RS485 monitoring for real-time battery management
• Advanced Charging Control: CC/CV charging method to prolong battery life
• Overcharge Protection: Automatically cuts off at 63VDC to prevent battery damage

High-Efficiency Solar & AC Charging

• MPPT Solar Charger: Extracts maximum power from solar panels
• Maximum PV Input Power: 6,500W for high solar energy capture
• MPPT Voltage Range: 60VDC – 500VDC for flexible solar configurations
• Solar Input Current: Up to 27A
• Solar Charging Capacity: 120A
• AC Charging Capacity: 80A
• Total Charging Capacity (PV + AC): 120A

Enhanced Safety & Energy Efficiency

• Peak Conversion Efficiency:
  • 96% (Solar to Inverter)
  • 93% (Battery to Inverter)
• Overload Protection:
  • 5s at ≥140% load
  • 10s at 110% – 140% load
• Crest Factor: 3:1 for superior load handling
• Power Factor Range: 0.6 – 1 (Inductive or Capacitive)

Compact, Lightweight & User-Friendly Design

• Physical Dimensions: 438 × 295 × 105 mm
• Lightweight Construction: Just 9kg, simplifying installation
• Built-in Communication Ports: RS232 + RS485 for system integration
• Wide Operating Temperature Range: -10°C to 50°C, ensuring durability in various environments

Installation & Warranty Details

• Installation must be performed by a qualified electrician
• Compliance with SANS 10142 electrical standards is required
• Warranty claims must include installation photos, a valid COC (Certificate of Compliance), and proof of installation by a qualified professional
