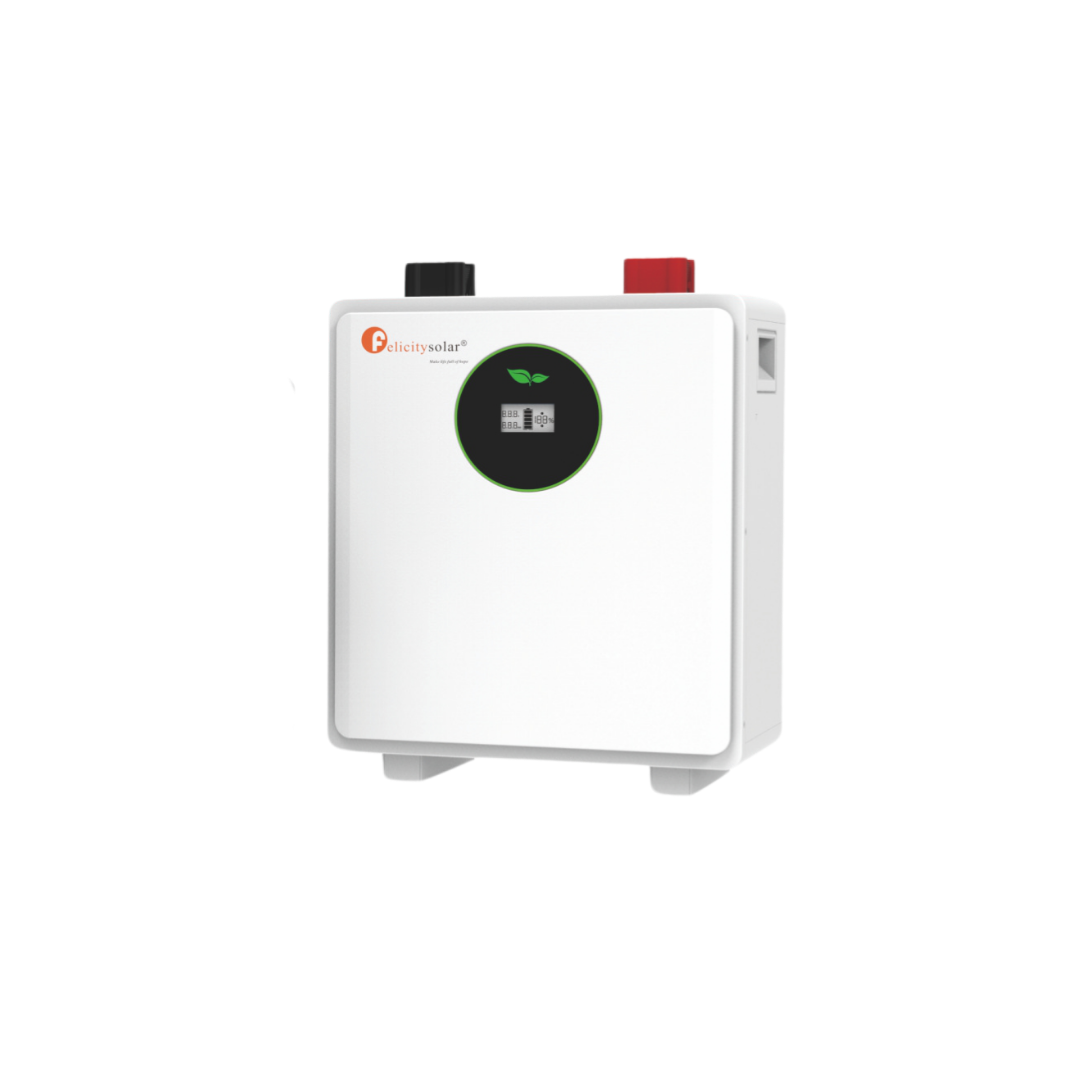

2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack
2.56kWh Felicity 100AH LiFePO₄ 25.6V (Low-Voltage) Battery Pack
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
The Felicitysolar 25.6V Low-Voltage LiFePO₄ Battery Pack is designed for reliable solar energy storage, backup power, and low-voltage inverter systems. Built with safe lithium iron phosphate battery technology, this range offers long cycle life, flexible installation, smart monitoring, and scalable storage for home, office, and small commercial applications.
The WG2 series includes multiple battery capacity options, ranging from 2.56kWh to 7.5kWh, making it suitable for both compact backup systems and larger expandable solar storage setups. With support for up to 15 units in parallel, users can increase storage capacity as their power needs grow.
Featuring RS485 / CAN communication, built-in smart BMS protection, Wi-Fi / Bluetooth monitoring, and wall-mounted or floor-mounted installation, this battery range is a practical choice for hybrid and off-grid solar systems.

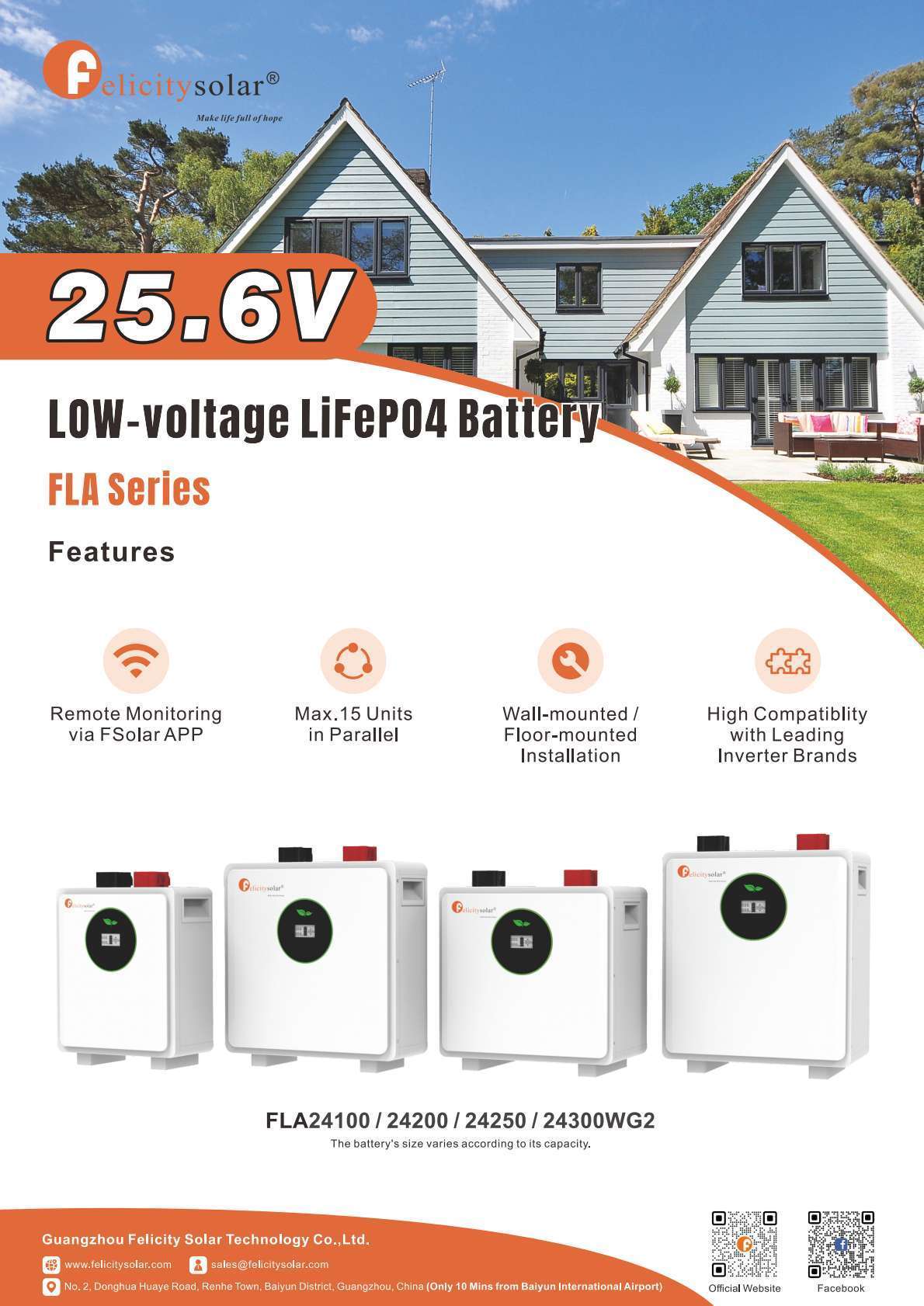

Key Features
25.6V Low-Voltage Battery System
Designed for compatible 24V inverter and solar energy storage systems.
LiFePO₄ Battery Technology
Lithium iron phosphate chemistry provides improved safety, stable performance, and a longer service life.
Multiple Capacity Options
Available in 2.56kWh, 5kWh, 6.4kWh, and 7.5kWh models to suit different backup and solar storage requirements.
Expandable up to 15 Units in Parallel
The battery system can be expanded for larger energy storage needs, with total capacity depending on the selected model.
Built-In Wi-Fi / Bluetooth Monitoring
Allows real-time monitoring of battery performance and system status.
Compatible with Leading Inverter Brands
RS485 and CAN communication support improves integration with compatible hybrid and off-grid inverter systems.
Smart BMS Protection
The built-in Battery Management System helps protect the battery against electrical and temperature-related risks.
Flexible Installation
Can be installed wall-mounted or floor-mounted, making it suitable for different system layouts.
Long Cycle Life
Designed for more than 6,000 cycles, making it suitable for daily solar and backup power use.
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4V – 28.8V
Max Continuous Charge / Discharge Current: 100A
Peak Charge / Discharge Current: 200A for 15 seconds
Max Charge / Discharge Power: 2,500W
Parallel Expansion: Up to 15 units
Maximum Storage Capacity: 38.4kWh
Product Weight: 23kg
Package Weight: 27kg
Product Dimensions: 325 × 400 × 180mm
Package Dimensions: 462 × 417 × 252mm

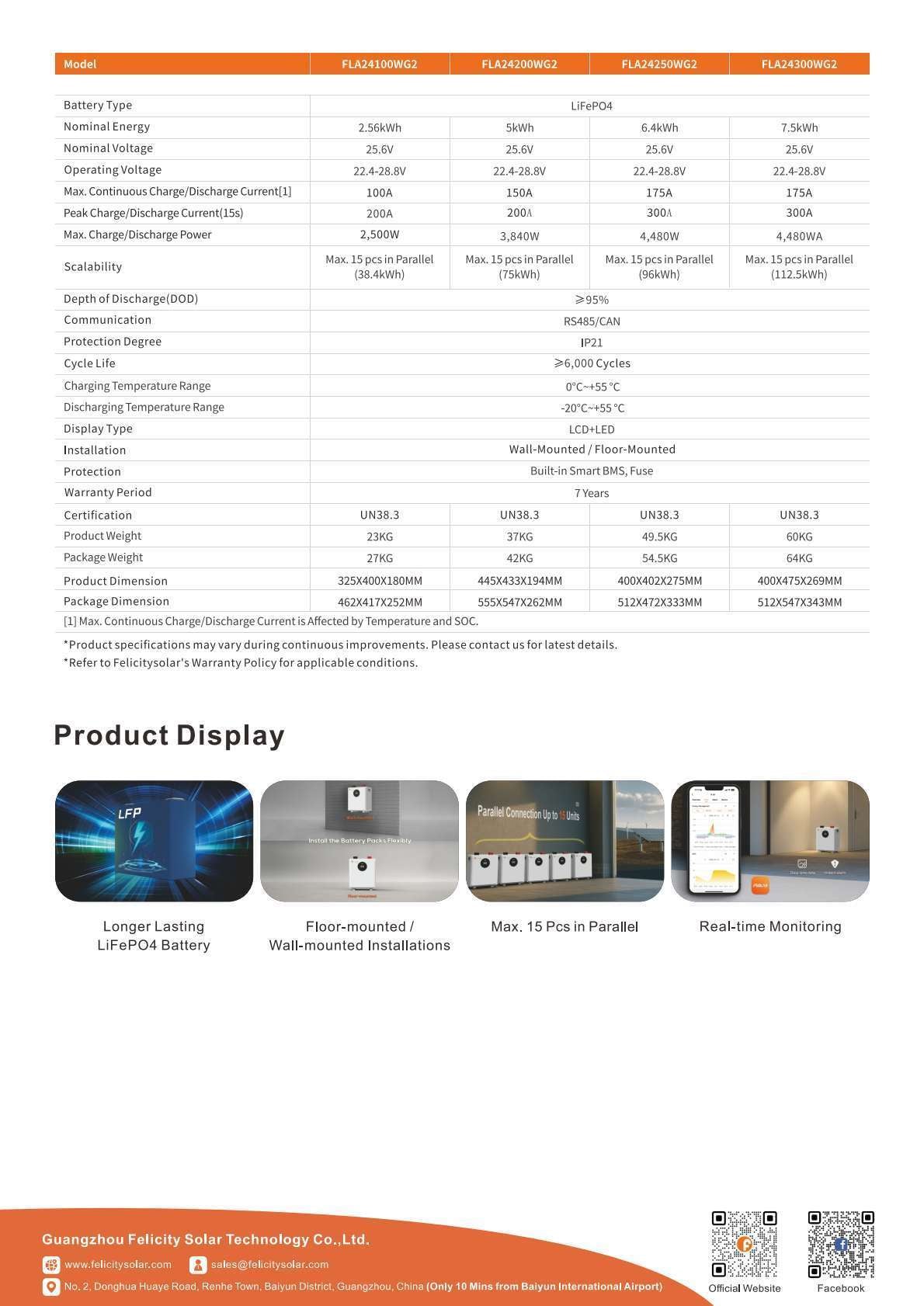

General Specifications
Battery Type: LiFePO₄
Nominal Voltage: 25.6V
Operating Voltage Range: 22.4V – 28.8V
Depth of Discharge: ≥95%
Communication: RS485 / CAN
Protection Degree: IP21
Cycle Life: ≥6,000 cycles
Charging Temperature Range: 0°C to 55°C
Discharging Temperature Range: -20°C to 55°C
Display Type: LCD + LED
Installation: Wall-mounted or floor-mounted
Protection: Built-in smart BMS and fuse
Warranty Period: 7 Years
Certification: UN38.3
Suitable Applications
The Felicitysolar 25.6V WG2 LiFePO₄ Battery Pack range is suitable for:
Solar energy storage systems
24V inverter systems
Home backup power
Office backup systems
Off-grid solar installations
Hybrid solar systems
Small commercial backup systems
Expandable lithium battery storage setups
Warranty & Installation Notice
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician with valid registration through the Department of Labour. A valid Electrical Certificate of Compliance (COC) must be issued once installed and must be specific to the backup or solar system installation.
The installation must comply with SANS 10142 and all applicable regulations. Any warranty claim submitted without installation photos, a valid COC, and proof that the unit was installed by a qualified wireman or Master Electrician may be rejected and can render the warranty claim null and void.
