ECCO 3.5KVA / 3500W 100A MPPT Hybrid Inverter 24V + SVOLT 2.71kWh 100Ah Lithium Battery + 3x 460W Mono Solar Panels Back Up Power Kit
ECCO 3.5KVA / 3500W 100A MPPT Hybrid Inverter 24V + SVOLT 2.71kWh 100Ah Lithium Battery + 3x 460W Mono Solar Panels Back Up Power Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability
ECCO 3.5KVA / 3500W 100A MPPT Hybrid Inverter 24V + SVOLT 2.71kWh 100Ah Lithium Battery + 3x 460W Mono Solar Panels
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK

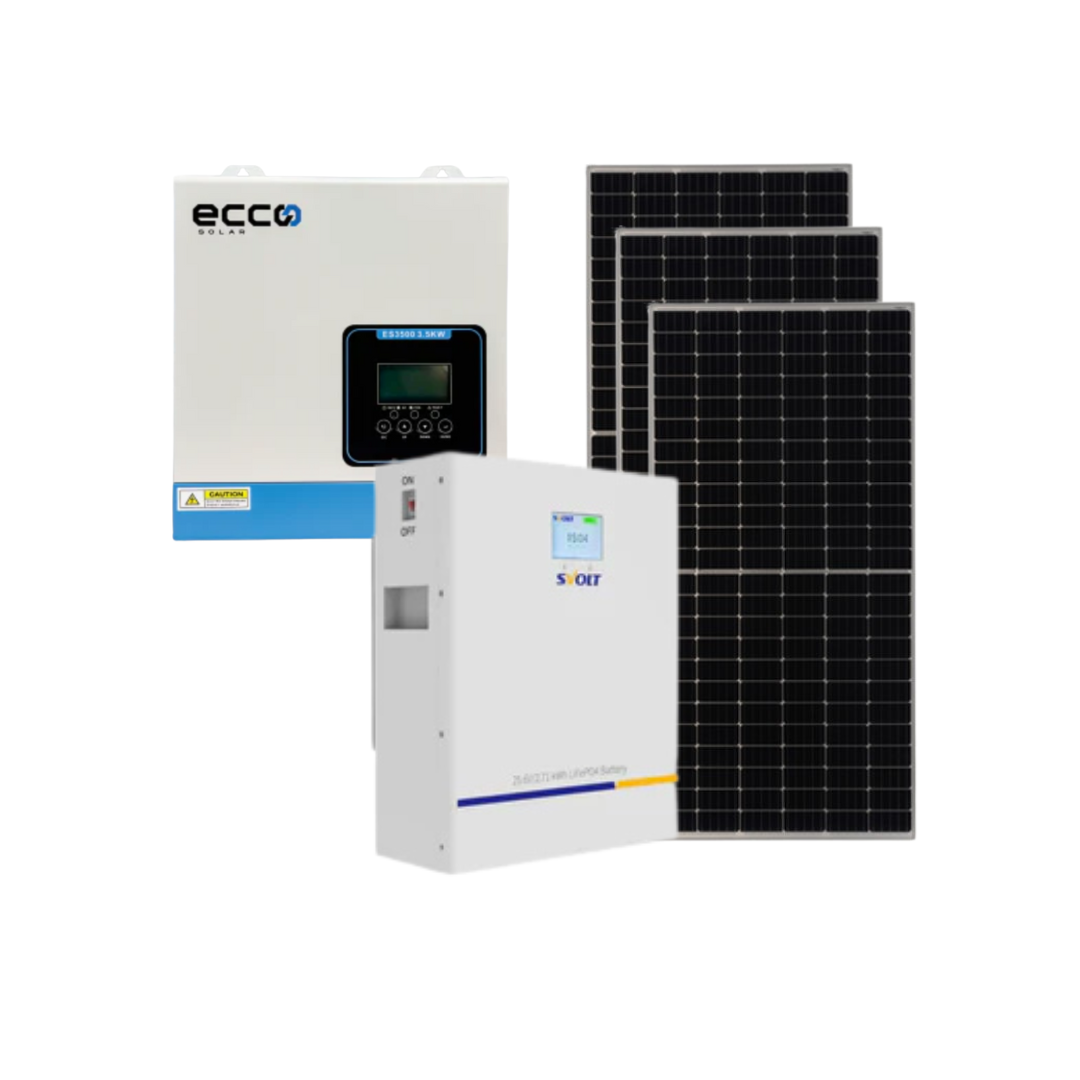

Package Includes
1x 3.5KVA ES3500 ECCO HYBRID INVERTER 24V
1x 24V SVOLT LITHIUM BATTERY 2.71KWH 100AH
3x 460W MONO CRYSTAL SOLAR PANELS
Efficient and Versatile Hybrid Inverter for Solar Power Solutions
The Ecco 3.5KVA 3500W Hybrid Inverter is designed for reliable energy conversion, seamlessly integrating solar, battery, and grid power. This pure sine wave inverter ensures stable and efficient power output, making it ideal for homes, small businesses, and off-grid installations. With an integrated 100A MPPT solar charge controller, this inverter optimizes energy harvesting and supports multiple output priority modes for flexible power management.
Inverter Description:
The Ecco ES3500 Hybrid Inverter is a compact yet powerful 3.5kVA (3500W) pure sine wave inverter, built for reliable home and small-office energy backup solutions. With integrated MPPT solar charging (100A), dual charging from AC and PV, and optional WiFi connectivity, this inverter ensures uninterrupted power during load-shedding while maximizing solar energy utilization.
Its lightweight design and robust safety protections make it an excellent choice for households, small businesses, or entry-level solar installations.
Key Features:
Pure Sine Wave Power
Rated Power: 3500VA / 3500W
Nominal System Voltage: 24VDC
Delivers clean, stable power for sensitive electronics
Smart AC Charger
AC Input: 230VAC (50/60Hz)
Max AC Charging Current: 60A
Combined AC + PV Charging Current: Up to 100A
AC Output: 230VAC
Solar Charger (MPPT)
Max PV Input Power: 4000W
Solar Voltage Range: 30VDC – 500VDC (VOC max)
MPPT Operating Range: 120VDC – 450VDC
Max MPPT Charging Current: 100A
Compact & Lightweight
Dimensions: 359 × 295 × 100 mm
Net Weight: 7kg
Easy to install and integrate into existing systems
Optional WiFi Monitoring
Compatible with WiFi dongle for app-based and remote system monitoring
Track system performance, charging, and load usage in real-time
Benefits of the Ecco ES3500 Hybrid Inverter:
Reliable Backup Power
Provides 3.5kVA continuous pure sine wave output, suitable for essential loads like TVs, routers, lights, and small appliances.
Flexible Charging Options
Combines solar + AC charging up to 100A for faster, more efficient battery management.
Solar Ready
Supports up to 4000W of solar PV input for off-grid and hybrid functionality.
Compact & Lightweight
At only 7kg, it’s easy to install in homes or small businesses.
Smart Monitoring
Add a WiFi dongle to remotely view and control system performance from anywhere.
High-Performance A-Grade Lithium Battery for Solar & Backup Power
The SVOLT 2.71kWh 24V 106Ah Lithium Battery is a high-capacity, energy-efficient solution for solar power storage, UPS systems, and backup energy applications. Manufactured by SVOLT, a global leader in lithium battery technology and part of the Haval Group, this battery utilizes A-Grade lithium iron phosphate (LiFePO4) cells, ensuring exceptional reliability, longevity, and performance.
With a cycle life exceeding 6000 cycles, this wall-mounted battery is designed for residential, commercial, and industrial applications, including solar energy storage, renewable energy integration, telecommunications, medical equipment, and electric vehicles.
Technical Specifications:
Battery Specifications:
- Model Number : CNN2511 (XEA25A)
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Storage: 2.71kWh
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
- Installation Type: Wall-Mounted
- Energy Density: High-performance A-Grade cells
- Case Material: SPCC
- BMS Built-in: No (Requires External BMS)
Charge & Discharge Specifications:
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4V ± 0.20V
- Max Discharge Voltage: 21.6V ± 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Cycle Life (0.2C, 25°C @ 80% DoD): >6000 Cycles
Physical Specifications:
- Dimensions: 470mm × 350mm × 155mm
- Weight: 28kg
- Terminal Type: Fast Plug-In & Plug-Out
What’s in the Box?
1 × SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery
1 × Red (Positive) Battery Cable
1 × Black (Negative) Battery Cable
1 × User Manual
Warranty & Installation Requirements
5-Year Repair Warranty (BATTERY & INVERTER)
12 YEAR PRODUCT WARRANTY - SOLAR PANELS
Installation must be performed by a qualified wireman or master electrician
A valid Certificate of Compliance (COC) is required upon installation
The system must comply with SANS 10142 standards
Warranty claims will be denied if installation proof and compliance documents are not provided
