Ecco 2.56kWh 25.6V 100Ah Lithium Battery – Wall-Mount ELV24100
Ecco 2.56kWh 25.6V 100Ah Lithium Battery – Wall-Mount ELV24100
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
13 in stock
Couldn't load pickup availability
Title:
Ecco 2.56kWh 25.6V 100Ah Lithium Battery – Wall-Mount ELV24100
Description:
Compact Residential Energy Storage Solution

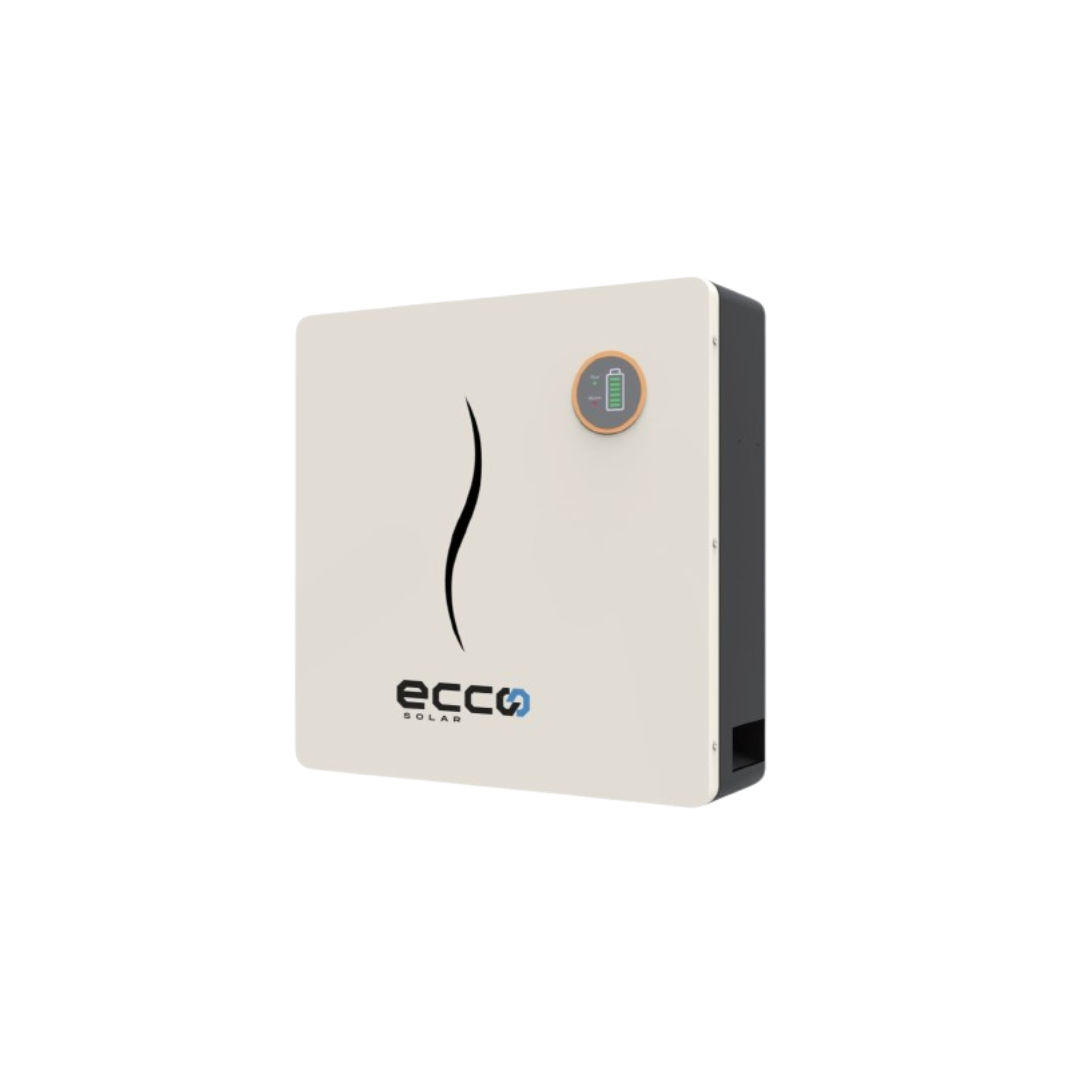

The Ecco ELV24100 is a 25.6V 100Ah lithium iron phosphate (LiFePO₄) battery designed for home and small commercial backup power applications. Delivering a total energy capacity of 2.56kWh, this wall-mounted unit is an excellent choice for modular or low-voltage storage systems paired with compatible hybrid inverters.
Advanced Battery Management System (BMS)
Intelligent BMS monitors voltage, current, and temperature in real-time.
Balances individual cells to extend battery lifespan and maintain consistent performance.
Provides multiple layers of protection against overcharge, over-discharge, overcurrent, and temperature variations.
Automatically manages charging, discharging, and balancing states for system stability.
Scalable Parallel Capability
Connect up to 15 units in parallel to increase total storage capacity.
For loads above 5kW, a minimum of two batteries in parallel is recommended.
Communication synchronization between master and slave batteries ensures safe, efficient operation.
Durable & Space-Saving Design
Compact wall-mounted structure for easy installation and reduced footprint.
IP20 enclosure suitable for indoor installations.
Includes wall bracket, cables, and inspection report in packaging.

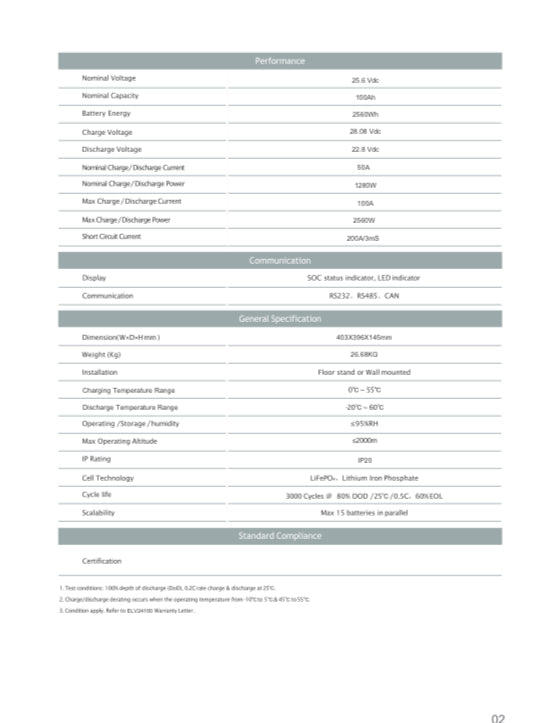

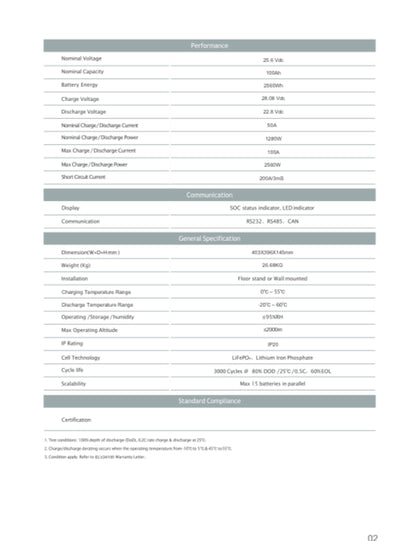

Technical Specifications
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Total Energy: 2.56kWh
Charge Voltage: 28.08V
Discharge Cutoff Voltage: 22.8V
Continuous Charge/Discharge Current: 50A / 100A
Instantaneous Peak Current: 200A (3ms)
Dimensions (mm): 403 × 396 × 145
Weight: 26.68kg
Protection Rating: IP20
Temperature Range: Charging 0°C~45°C / Discharging -20°C~60°C
Warranty & Installation Requirements
This product includes a 5-year limited warranty.
Installation must be performed by a qualified electrical wireman or Master Electrician registered with the Department of Labour. A Certificate of Compliance (COC) specific to the backup or solar system must be issued upon installation. Systems must meet SANS 10142 standards.
Warranty claims without installation photos, COC, or proof of qualified installation may be rejected.
