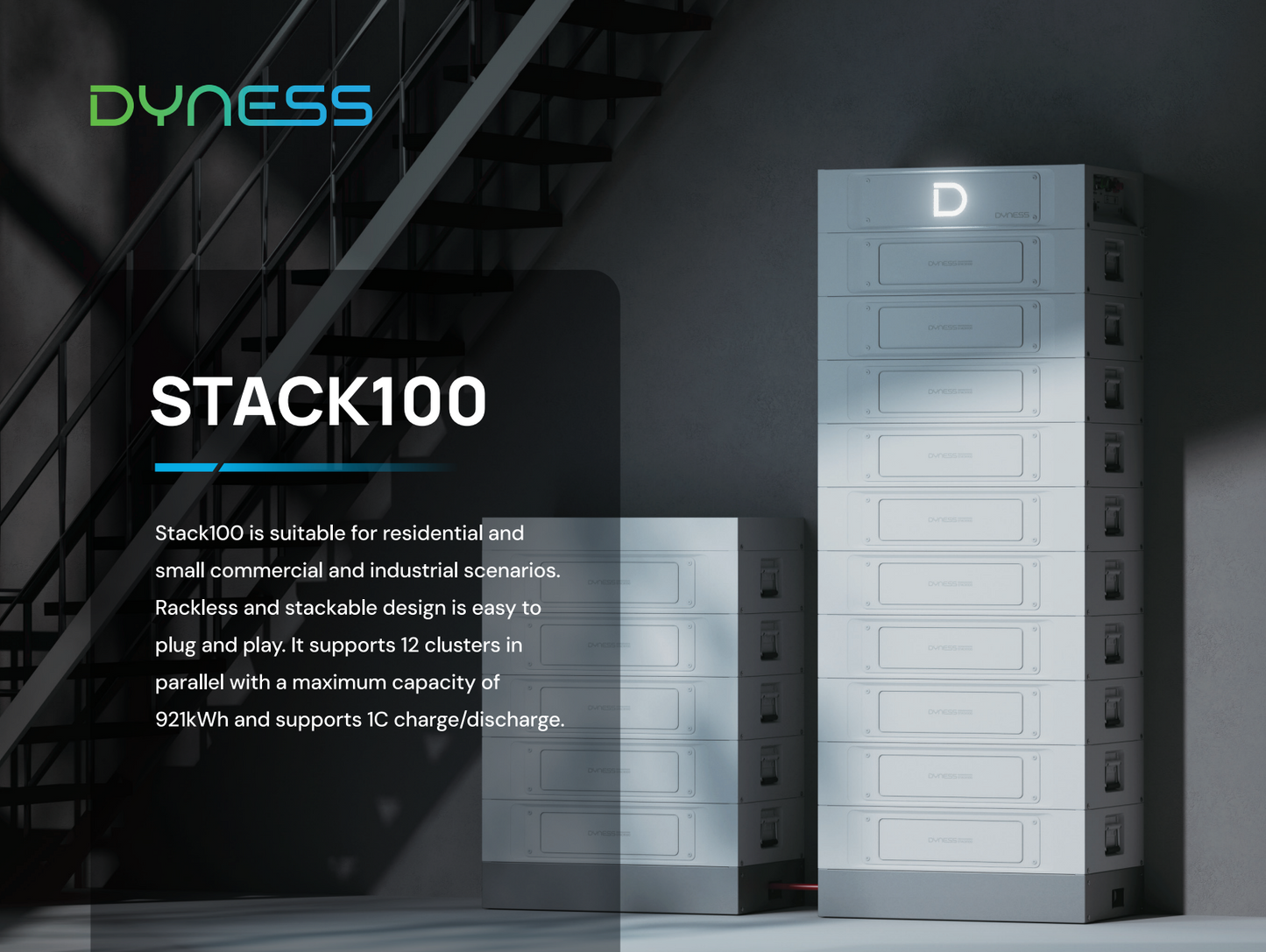

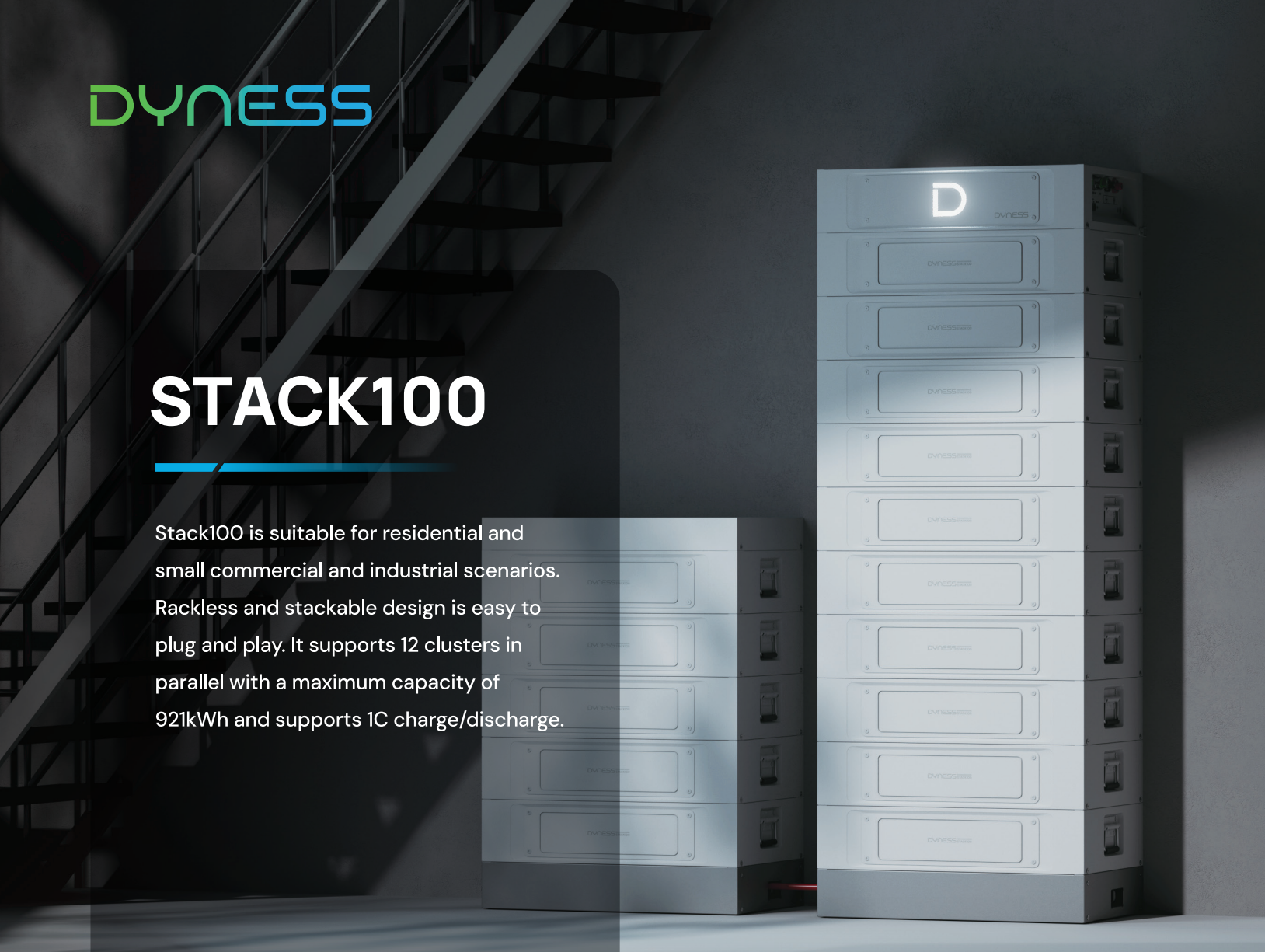

Dyness 40kWh Stack100 HV Battery Kit 8x S51100 + BDU Control Box
Dyness 40kWh Stack100 HV Battery Kit 8x S51100 + BDU Control Box
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability

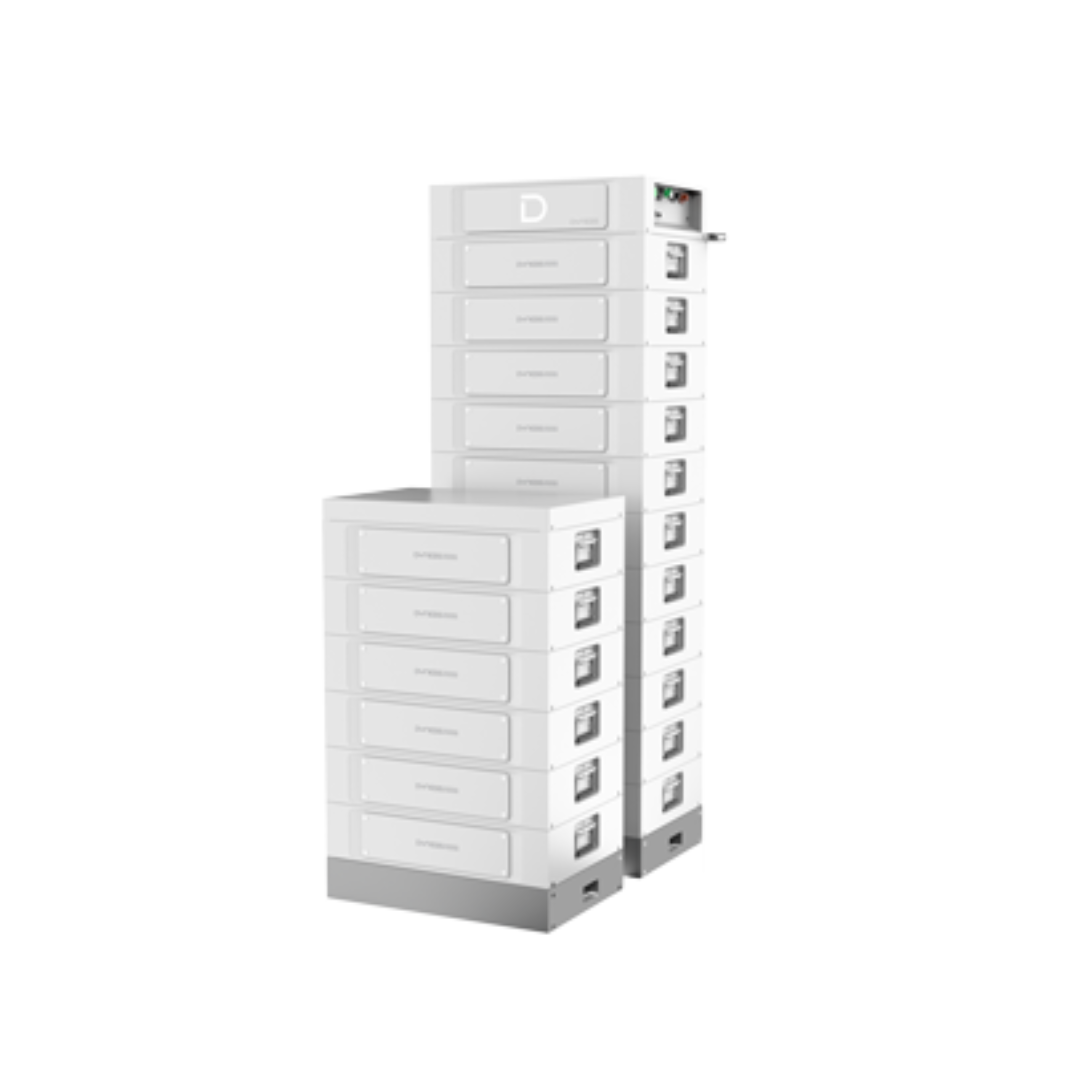

Dyness 20kWh Stack100 HV Battery Kit 4x S51100 + BDU Control Box
Description:
The Dyness STACK100 is a high-voltage modular energy storage solution built for residential and commercial and industrial (C&I) applications. This 20kWh kit uses stackable LiFePO₄ battery modules with a dedicated control unit (BDU), delivering a scalable storage platform with fast installation, strong safety features, and long cycle performance.
Online Deal Only , Can be ordered for in-store collection if needed !
What’s Included in the 20kWh Kit
8 x Dyness S51100 stackable batteries
1 x Dyness BDU (control box)
System Design and Applications
Modular design intended for residential and C&I energy storage use
LiFePO4 battery technology selected for safety and long service life
Expansion and Scalability
Parallel expansion support: up to 12 clusters in parallel
Stated capacity range: 15kWh to 921kWh
Safety and Protection
Intelligent fire extinguishing system with reaction within 5 seconds
Performance Capability
1C rate capability stated for scenarios such as grid frequency regulation and charging stations, with cost-saving potential
Installation and Commissioning
Zero wiring concept stated for the stack design
Rackless free stacking with plug-and-play connection
Reference installation time: one cluster installation in 30 minutes
Operating Temperature
Automatic self-heating option stated
Operating temperature range: -20°C to 55°C (optional)

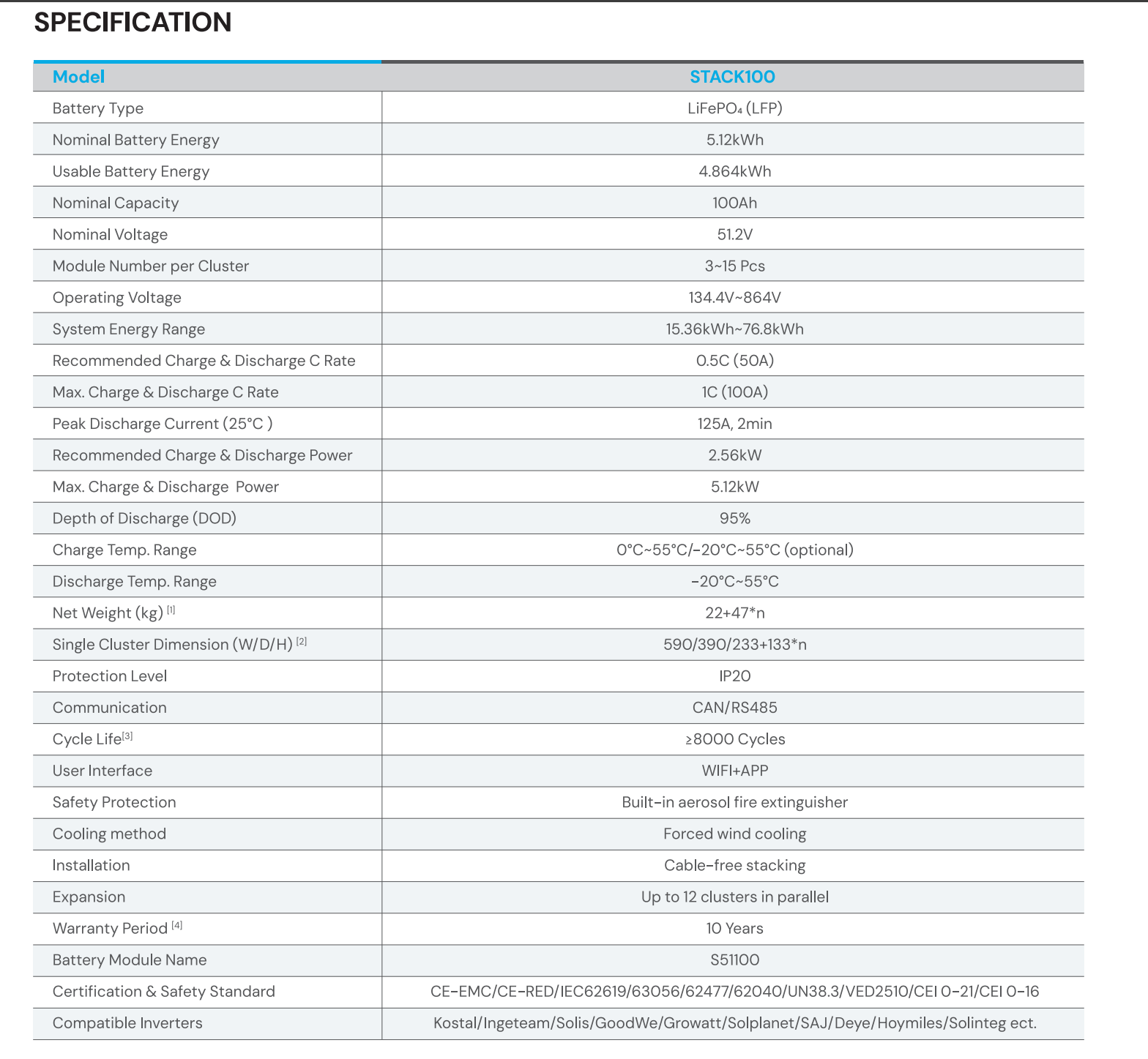

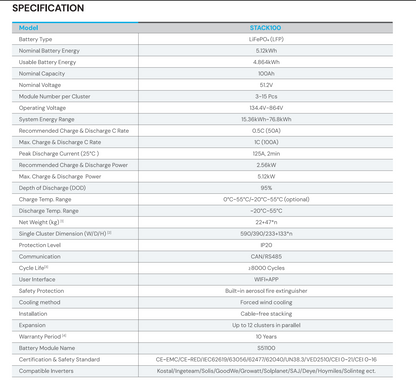

Technical Specifications
Product model: STACK100
Battery module type: LiFePO4
Module voltage and capacity: 51.2V / 100Ah
System energy range: 15.36kWh to 76.8kWh
Cycle life: ≥8000 cycles / 10 years
Single module weight: 47 kg
Max single cluster dimension: 591 x 390 x 1700 mm
Warranty
10 years
Installation Requirements
Installation should be completed by a qualified electrician or approved installer and configured to system requirements and applicable standards
Confirm inverter compatibility and high-voltage battery communication settings during commissioning
