Deye 5KVA MPPT Hybrid Inverter + WIFI + 1x Dyness 5.12kWh Version2 Lithium Battery Back Up Combo
Deye 5KVA MPPT Hybrid Inverter + WIFI + 1x Dyness 5.12kWh Version2 Lithium Battery Back Up Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
11 in stock
Couldn't load pickup availability
Deye 5KVA MPPT Hybrid Inverter + WIFI + 1x Dyness 5.12kWh Version2 Lithium Battery Back Up Combo
Description:

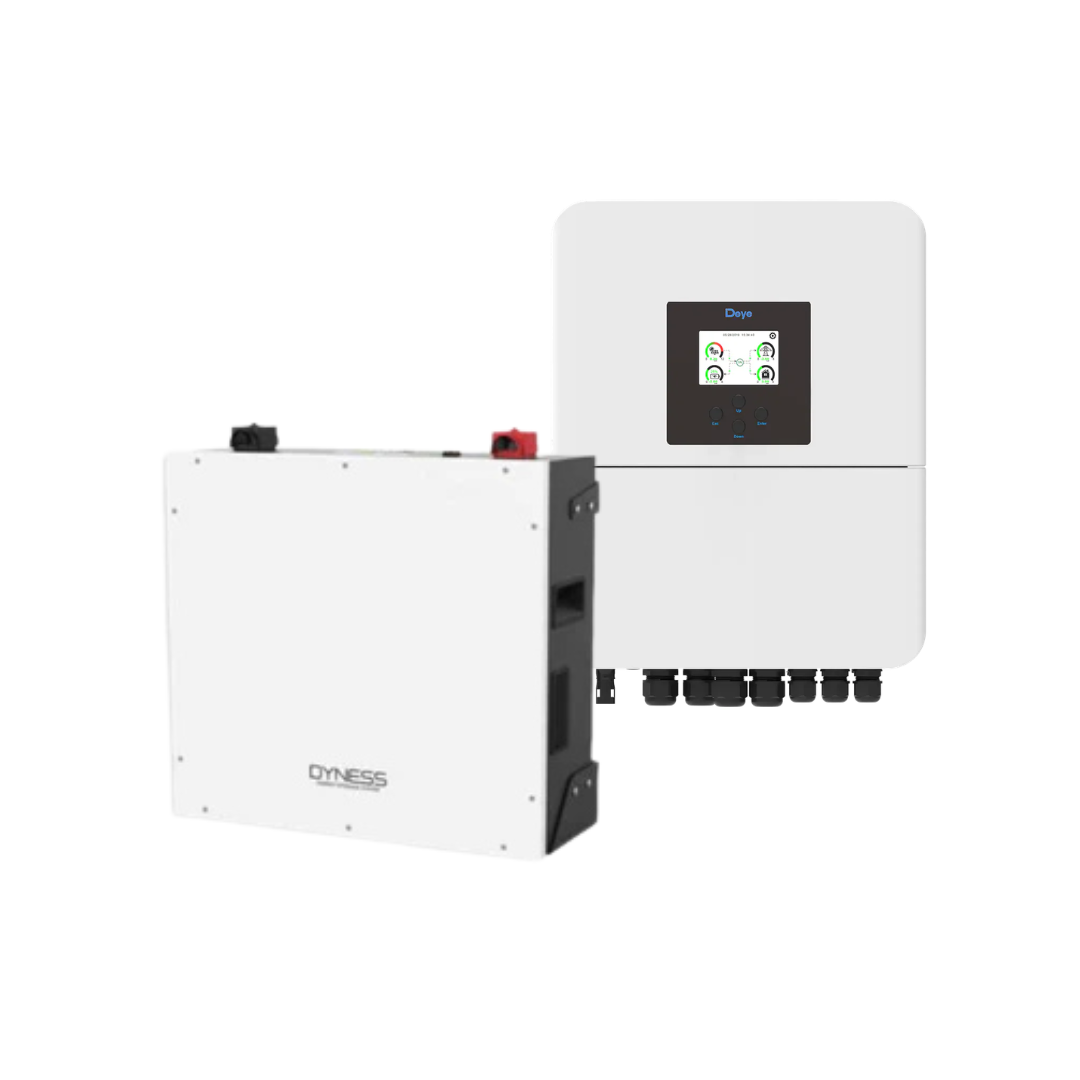

This backup power combo kit is built around the Deye 5kW single-phase hybrid inverter and the Dyness DL5.0C 5.12kWh LiFePO4 battery. It is designed for load shedding protection, with smart scheduling, strong PV input capability, and app-based monitoring via the included WiFi dongle.
What’s Included
1x Deye 5kW Hybrid Inverter including WiFi dongle
1x Dyness Lithium Battery DL5.0C 5.12kWh 51.2V Version 2
Battery cables and brackets included
Inverter Specifications (Deye SUN-5K-SG04LP1-EU-SM2)
Hybrid inverter suitable for grid-tied and off-grid operation
Supports parallel operation up to 16 units for on-grid and off-grid setups
Supports multiple batteries in parallel
Colour touch LCD for local control and system visibility
IP65 protection degree
AC coupling capability to retrofit an existing solar system
Maximum charging and discharging current capability stated at 140A
Six programmable time periods for battery charging and discharging
Supports storing energy from a diesel generator
Battery Interface and Charging (Inverter)
Battery type support: lead-acid or lithium-ion
Battery voltage range: 40V to 60V
Maximum charging current: 120A
Maximum discharging current: 120A
Li-ion charging strategy: self-adaption to BMS
PV String Input Data (Inverter)
Max PV access power: 10000W
Max PV input power: 8000W
Max PV input voltage: 500V
Start-up voltage: 125V
MPPT voltage range: 150V to 425V
Rated PV input voltage: 370V
Max input short-circuit current: 27A + 27A
Max operating PV input current: 18A + 18A
MPPT configuration: 2 MPPT trackers, 1 string per tracker (2/1+1)
Mechanical (Inverter)
Height: 470 mm
Width: 376 mm
Depth: 241.5 mm
Weight: 19 kg
Battery Overview (Dyness DL5.0C)
The Dyness DL5.0C is an LFP battery module aimed at residential and small commercial storage. It supports remote update and app monitoring, offers multiple installation methods, and scales from 5.12kWh up to 256kWh (maximum 50 modules in parallel) for flexible system growth.
Battery Specifications (Dyness DL5.0C 5.12kWh 51.2V Version 2)
Battery type: LiFePO4
Nominal battery energy: 5.12 kWh
Nominal capacity: 100Ah
Nominal voltage: 51.2V
Operating voltage: 44.8V to 57.6V
Recommended charge and discharge C rate: 0.5C
Maximum discharge C rate: 1C
Recommended charge/discharge current: 50A
Max continuous charge current: 75A
Max continuous discharge current: 100A
Peak power charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions (W x D x H): 558 x 545 x 150 mm
Charging temperature range: 0°C to 55°C
Discharging temperature range: -20°C to 55°C
Communication: CAN, RS485, RS232
Cycle life: ≥6000 cycles
Protection level: IP20
Expansion: up to 50 units in parallel
Stated advantage: can be used in both off-grid and hybrid setups, compact design
Certification and safety standard: UN38.3, CE-EMC, IEC62619, CEI-021 all undergoing
Cycle life test reference: 0.2C charging/discharging at 25°C, 95% DOD
Warranty
Inverter warranty: 5 years
Battery warranty: 7 years
Installation Requirements
Installation should be completed by a qualified electrician and configured to the applicable requirements of SANS 10142, with a valid COC issued for the installation where applicable
