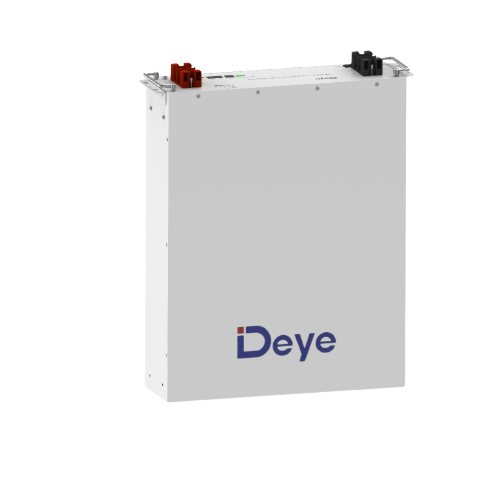

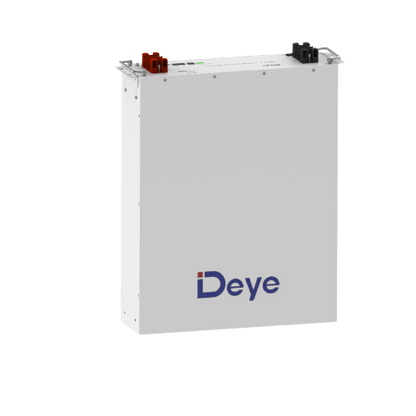

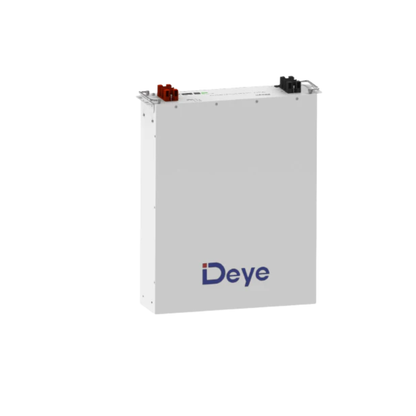

DEYE 5.32kWh LV (Low Voltage) 104AH Lithium Battery SE-G5.3

DEYE 5.32kWh LV (Low Voltage) 104AH Lithium Battery SE-G5.3

ONLY 1 BATTERY INCLUDED, PICTURE IS JUST FOR DISPLAY

Warehouse stock — confirm availability before collection.

Description:

The SE-G5.3 is a modular lithium iron phosphate (LiFePO₄) battery engineered for durability, safety, and scalable energy storage. Designed for residential and commercial systems, this low-voltage battery features intelligent monitoring, long cycle life, and versatile mounting options.

Engineered for Safety and Longevity

-Built with cobalt-free LiFePO₄ cells for thermal stability and non-toxic operation

-Safe low-voltage design ensures reliable performance across a variety of environments

-Cycle life exceeds 6000 cycles at 90% DoD, providing long-term energy storage value

High Performance Energy Delivery

-Supports continuous 1C charging and discharging rates

-5.32 kWh total energy, with 4.79 kWh usable capacity

-90% recommended Depth of Discharge (DoD)

-Peak discharge current of 150A for 2 minutes at 25°C

Built-In Intelligence and Protection

-Integrated BMS actively monitors voltage, current, and temperature

-IP20 protection rating with natural convection cooling

-Wide operating temperature range: -20°C to 55°C

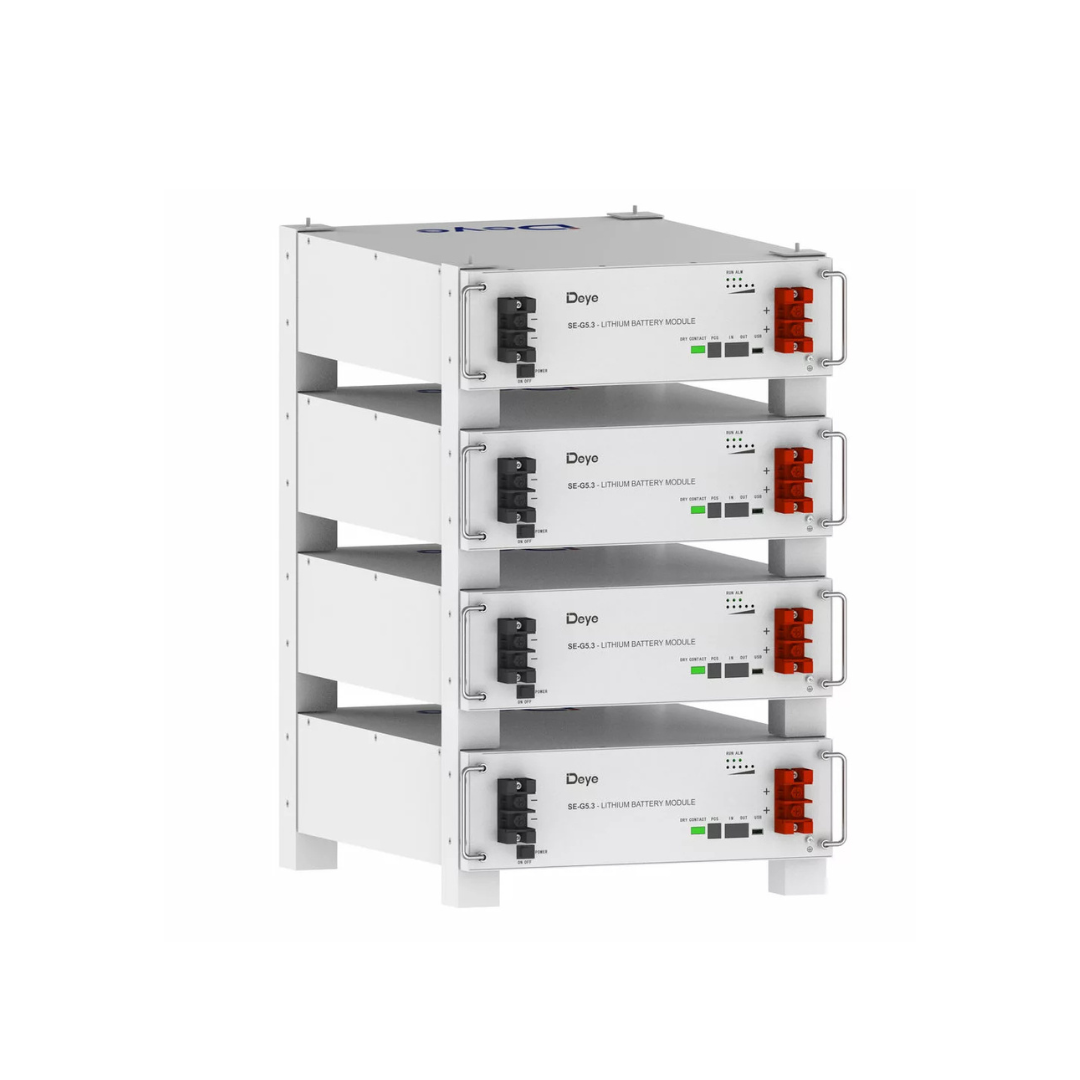

Modular and Scalable

-Expandable up to 64 units in parallel (32 without external configuration)

-Auto-balancing function between modules with different SOC levels

-Ideal for self-consumption optimization in home and business energy systems

Convenience and Smart Control

-Automatic networking and IP addressing — no DIP switch configuration required

-Supports Deye platform for remote firmware updates and monitoring

-Also supports firmware upgrade via USB drive

Eco-Conscious Design

-Constructed with pollution-free, environmentally safe materials

-Compact 19-inch 3U design conserves space without compromising capacity

Mounting Flexibility

-Compatible with standard 19” server racks (depth ≥ 600mm)

-Also supports floor-mounted or wall-mounted installation via wall brackets

Technical Specifications

-Chemistry: Lithium Iron Phosphate (LiFePO₄)

-Nominal Voltage: 51.2V

-Operating Voltage: 43.2–57.6V

-Capacity: 104Ah

-Energy: 5.32kWh (Total), 4.79kWh (Usable)

-Dimensions: 440 × 133 × 560 mm

-Weight: 44 kg

-Recommended Current: 50A | Max: 100A | Peak: 150A

-SOC Indicators: 5 LEDs for charge status, 3 LEDs for working, alarm, and protection -states

-Communication: CAN2.0, RS485

-Humidity Range: 5%–95%

-Max Altitude: ≤2000m

-Certifications: UN38.3, CE, IEC62619

Warranty & Installation

-10-year limited warranty (terms and conditions apply)

-Installation by a qualified electrician is required

-Valid COC must be issued upon completion

-Installation must comply with SANS 10142

DATA SHEET

https://flipbook.pagepreserve.com/deye-se-g5-3-user-manual
