18KW Deye 48V Low Voltage Single-Phase Hybrid Inverter (SUN-18K-SG01LP1-EU-AM3-P )
18KW Deye 48V Low Voltage Single-Phase Hybrid Inverter (SUN-18K-SG01LP1-EU-AM3-P )
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 4 left
Couldn't load pickup availability

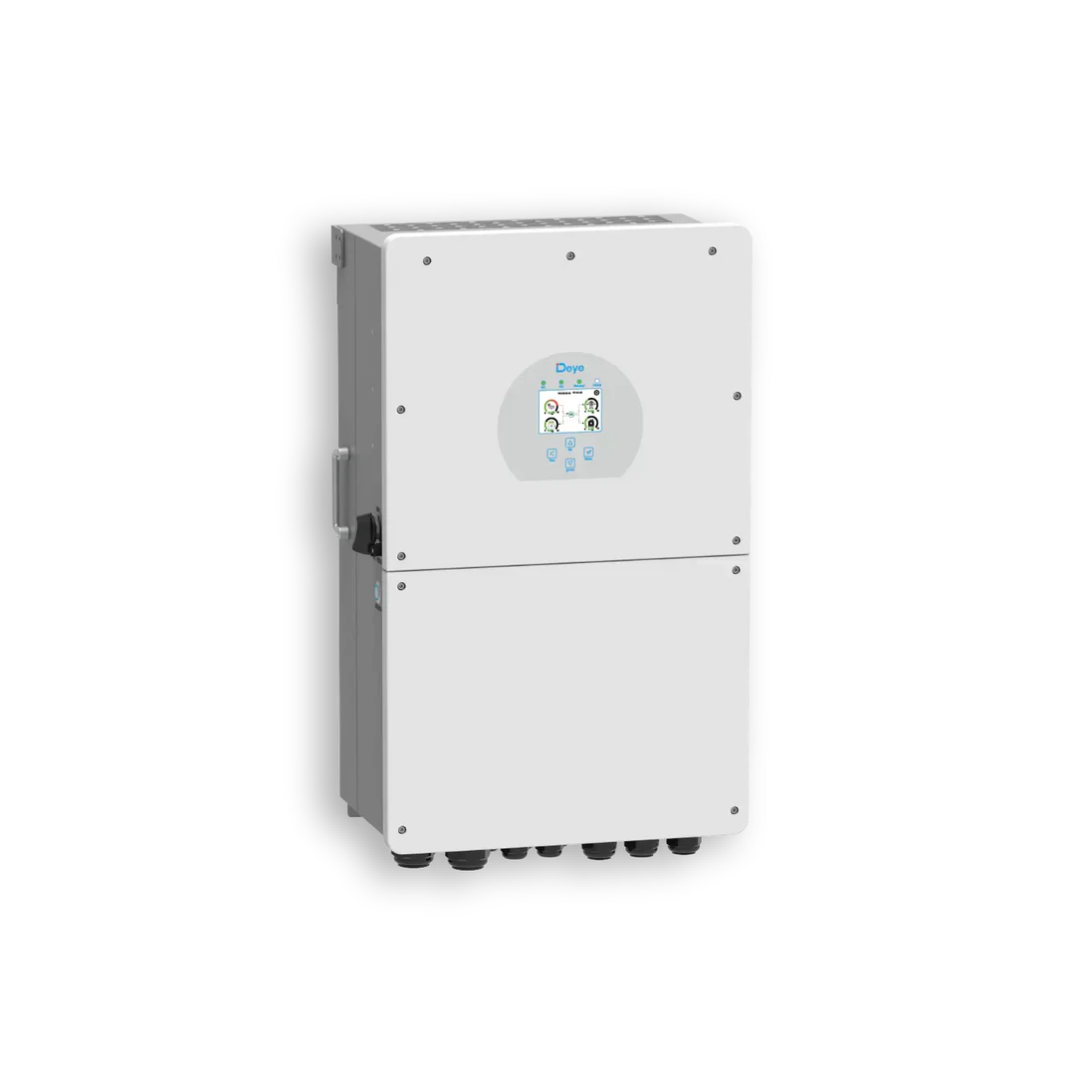

Deye 18kW Single-Phase Hybrid Inverter SUN-18K-SG01LP1-EU-AM3-P | 48V Low Voltage Solar Inverter
Product Description
The Deye 18kW Single-Phase Hybrid Inverter SUN-18K-SG01LP1-EU-AM3-P is a high-performance hybrid inverter designed for larger residential, commercial, and small industrial solar systems. With a powerful 18kW AC output, advanced hybrid energy management, strong battery charge/discharge capability, and flexible PV input design, this inverter is ideal for customers needing reliable solar, battery, grid, and generator integration.
This inverter combines solar PV generation, battery storage, grid supply, and backup power into one intelligent system. It helps improve solar self-consumption by prioritising solar energy first, battery storage second, and grid power when needed. With programmable battery charging and discharging time periods, users can also optimise energy usage around peak and off-peak electricity times.
The Deye 18kW single-phase inverter supports up to 16 units in parallel for on-grid and off-grid operation, making it a scalable option for larger installations or future expansion. It also supports energy storage from a diesel generator, making it practical for rural properties, farms, businesses, and sites with unreliable grid power.
Key Features
18kW single-phase hybrid inverter
48V low-voltage battery support
Suitable for lithium-ion and lead-acid batteries
Max. 16 units parallel for on-grid and off-grid operation
Max. charging/discharging current up to 350A
6 time periods for battery charging and discharging
Supports storing energy from a diesel generator
Hybrid energy management for PV, battery, grid, and generator use
3 MPPT trackers for flexible solar array design
Max. PV access power up to 36,000W
Colourful touch LCD display
IP65 protection rating
Wi-Fi, Bluetooth, GPRS, 4G, and optional LAN monitoring
RS485 / RS232 / CAN communication
Intelligent air cooling
UPS-style backup switching for essential loads
Suitable for large homes, businesses, rural sites, and backup power systems
Benefits
Handles larger household and business loads
Helps maximize solar self-consumption
Allows battery charging and discharging schedules
Supports peak shaving and load shifting when correctly configured
Can work with generator inputs for hybrid backup applications
Strong battery interface supports reliable backup power
Flexible PV string design with multiple MPPTs
Scalable system design for future expansion
IP65-rated design suitable for demanding installation environments
Ideal Applications
The Deye 18kW Single-Phase Hybrid Inverter is ideal for:
Large residential solar systems
High-consumption households
Guesthouses, lodges, and estates
Retail shops and offices
Small commercial facilities
Rural and off-grid sites
Solar + battery backup systems
Generator-assisted hybrid systems
Installations requiring future expansion
Sites with unreliable grid supply
Technical Specifications
Battery Input Data
| Specification | Details |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40V – 60V |
| Max. Charging Current | 350A |
| Max. Discharging Current | 350A |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Inputs | 2 |
PV String Input Data
| Specification | Details |
|---|---|
| Max. PV Access Power | 36,000W |
| Max. PV Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150V – 370V |
| Rated PV Input Voltage | 370V |
| Max. Operating PV Input Current | 36A + 36A + 36A |
| Max. Input Short-Circuit Current | 54A + 54A + 54A |
| No. of MPP Trackers / Strings per MPP Tracker | 3 / 2+2+2 |
AC Input / Output Data
| Specification | Details |
|---|---|
| Rated AC Input / Output Active Power | 18,000W |
| Max. AC Input / Output Apparent Power | 19,800VA |
| Grid Connection Form | L + N + PE |
| Phase | Single Phase |
Efficiency & Performance
| Specification | Details |
|---|---|
| Max. Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | 99% |
| Parallel Capability | Up to 16 units |
General Specifications
| Specification | Details |
|---|---|
| Product | Deye 18kW Single-Phase Hybrid Inverter |
| Model | SUN-18K-SG01LP1-EU-AM3-P |
| Inverter Type | Hybrid Inverter |
| Communication Interface | RS485 / RS232 / CAN |
| Monitor Mode | GPRS / Wi-Fi / Bluetooth / 4G / LAN optional |
| Operating Temperature Range | -40°C to +60°C, derating above 45°C |
| Permissible Ambient Humidity | 0 – 100% |
| Permissible Altitude | 3000m |
| Noise | Less than 55dB |
| Ingress Protection Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II DC / OVC III AC |
| Cooling | Intelligent Air Cooling |
| Warranty | 5 Years / 10 Years |
Standards & Compliance
| Specification | Details |
|---|---|
| Grid Regulation | IEC 61727, IEC 62116, AS 4777.2, NRS 097 |
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Warranty
- 5-year / 10-year warranty
- Warranty period may depend on the final installation site, supplier policy, and correct installation requirements.
Important Warranty & Installation Notice
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with valid registration through the Department of Labour.
A valid Electrical Certificate of Compliance, COC, must be issued once installed, specific to the backup or solar system installation. The installation must comply with SANS 10142 and all applicable parts.
Any warranty claim submitted without the following may be rejected and may render the warranty claim null and void:
Installation photos
Valid COC
Proof that the unit was installed by a qualified wireman or Master electrician
