15KW Deye Three-Phase 48V Hybrid Inverter (SG05LP3-EU-SM2)
15KW Deye Three-Phase 48V Hybrid Inverter (SG05LP3-EU-SM2)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 6 left
Couldn't load pickup availability

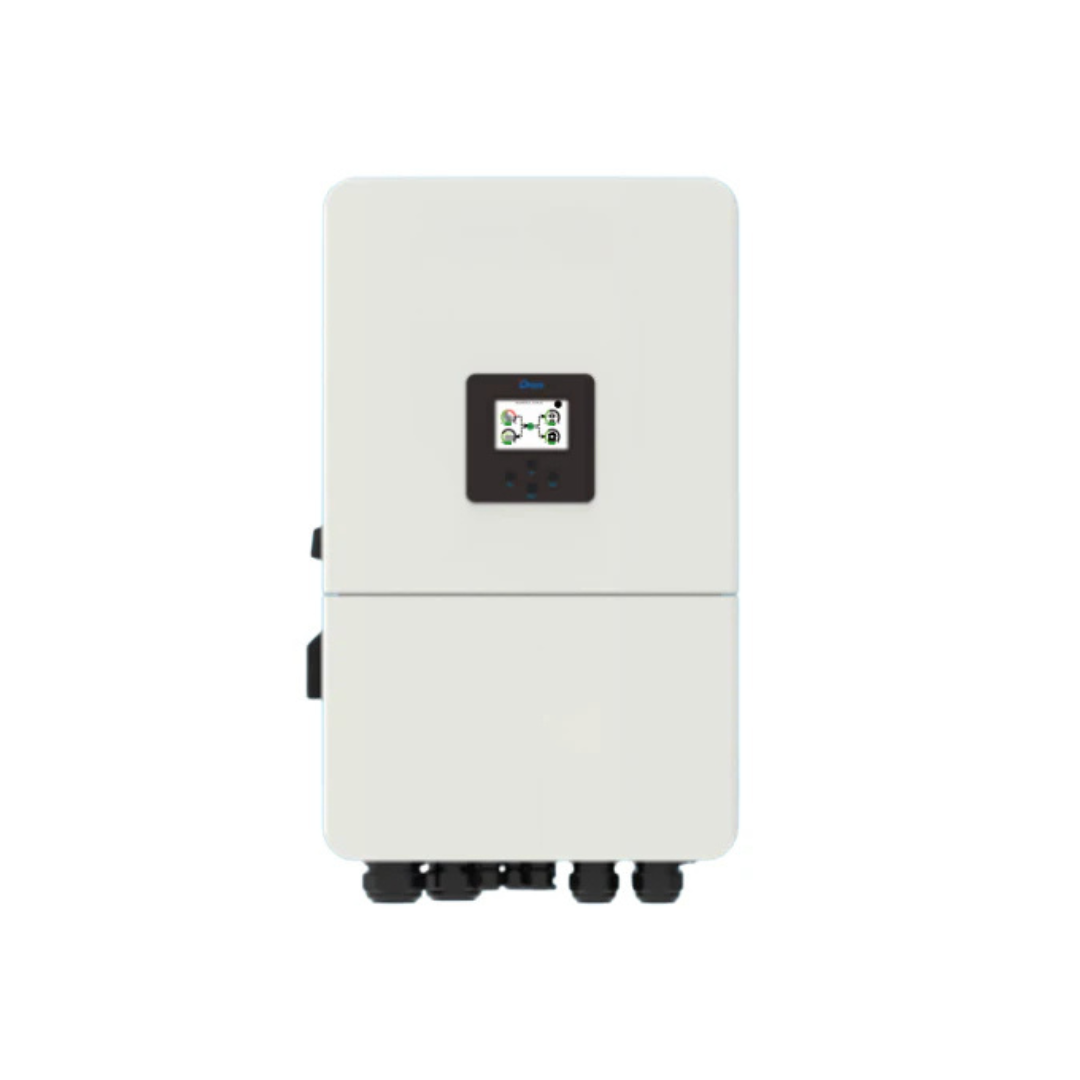

Deye 15kW Three-Phase Hybrid Inverter SG05LP3-EU-SM2 | 48V Low Voltage Solar Inverter
Product Description
The Deye 15kW Three-Phase Hybrid Inverter SG05LP3-EU-SM2 is a powerful 48V low-voltage hybrid inverter designed for larger residential, commercial, agricultural, and light industrial solar systems. With three-phase output, high PV input capacity, strong battery charging and discharging capability, and advanced energy management features, this inverter is ideal for customers who need a reliable solar and backup power solution.
This model supports 100% unbalanced output, with a maximum output of up to 50% rated power per phase, making it practical for sites where loads are not evenly spread across all three phases. It can also be used to retrofit existing solar systems through AC coupling, making it a flexible option for upgrading older installations.
The Deye 15kW three-phase inverter supports up to 10 units in parallel for both on-grid and off-grid operation, while also allowing multiple batteries to be connected in parallel. With support for lithium-ion and lead-acid batteries, a 48V low-voltage battery design, and self-adaptive BMS communication for lithium batteries, it offers a smart and expandable power solution.
This inverter also features 6 programmable time periods for battery charging and discharging, giving users better control over energy usage, grid charging, solar storage, and backup power. It can also support storing energy from a diesel generator, making it suitable for demanding backup and off-grid applications.
Key Features
15kW three-phase hybrid inverter
48V low-voltage battery design
Suitable for lithium-ion and lead-acid batteries
100% unbalanced output
Maximum output up to 50% rated power per phase
AC coupling support for retrofitting existing solar systems
Up to 10 units can be connected in parallel
Supports on-grid and off-grid operation
Supports multiple batteries in parallel
High battery charge and discharge current
6 time periods for battery charging and discharging
Supports energy storage from a diesel generator
Self-adaptive lithium battery charging strategy via BMS
Transformer isolation design
Ideal for large residential, commercial, agricultural, and backup power systems
Technical Specifications
Battery Input Data
| Specification | Details |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40V – 60V |
| Max. Charging Current | 280A |
| Max. Discharging Current | 280A |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
PV String Input Data
| Specification | Details |
|---|---|
| Max. PV Access Power | 30000W |
| Max. PV Input Power | 24000W |
| Max. PV Input Voltage | 800V |
| Start-up Voltage | 160V |
| MPPT Voltage Range | 160V – 650V |
| Rated PV Input Voltage | 550V |
| Max. Operating PV Input Current | 36A + 36A |
| Max. Input Short-Circuit Current | 54A + 54A |
| No. of MPP Trackers / Strings per MPP Tracker | 2 / 2+2 |
General Specifications
| Specification | Details |
|---|---|
| Model | SG05LP3-EU-SM2 |
| Rated Power | 15kW |
| Phase Type | Three Phase |
| Battery Voltage | 48V Low Voltage |
| Dimensions | 456 × 750 × 268.5mm, excluding connectors and brackets |
| Weight | 51.9kg |
| Parallel Capability | Max. 10 units |
| Application | On-grid, off-grid, hybrid, backup and commercial solar systems |
Warranty
5-year / 10-year warranty
Important Warranty & Installation Notice
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with valid registration through the Department of Labour.
A valid Electrical Certificate of Compliance (COC) must be issued once installed, specific to the backup or solar system installation. The installation must comply with SANS 10142 and all applicable parts.
Any warranty claim submitted without the following may be rejected and may render the warranty claim null and void:
Installation photos
Valid COC
Proof that the unit was installed by a qualified wireman or Master electrician
