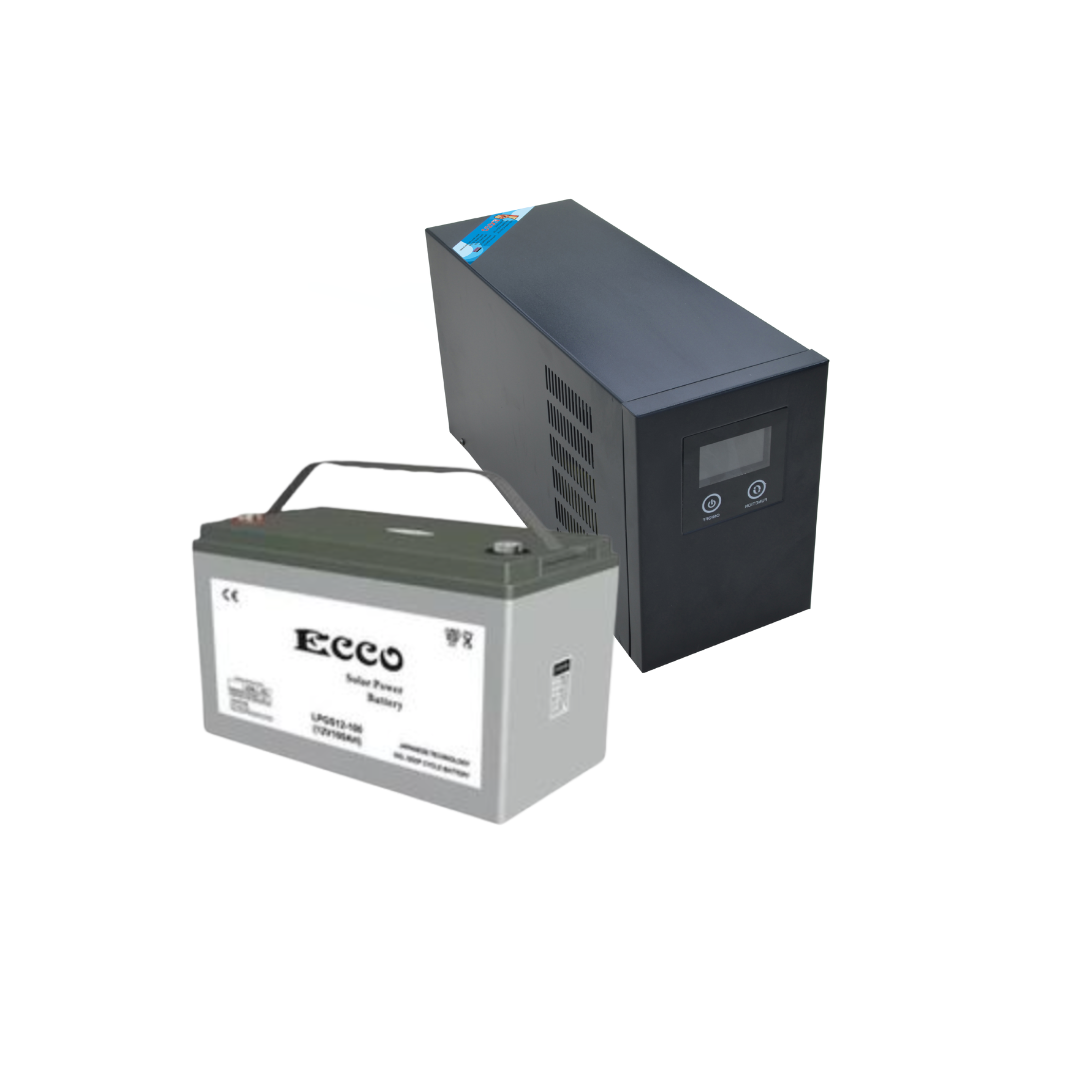

2000W 12V ECCO Pure Sine Wave Inverter UPS + 1x 100AH Deep Cycle Gel Battery

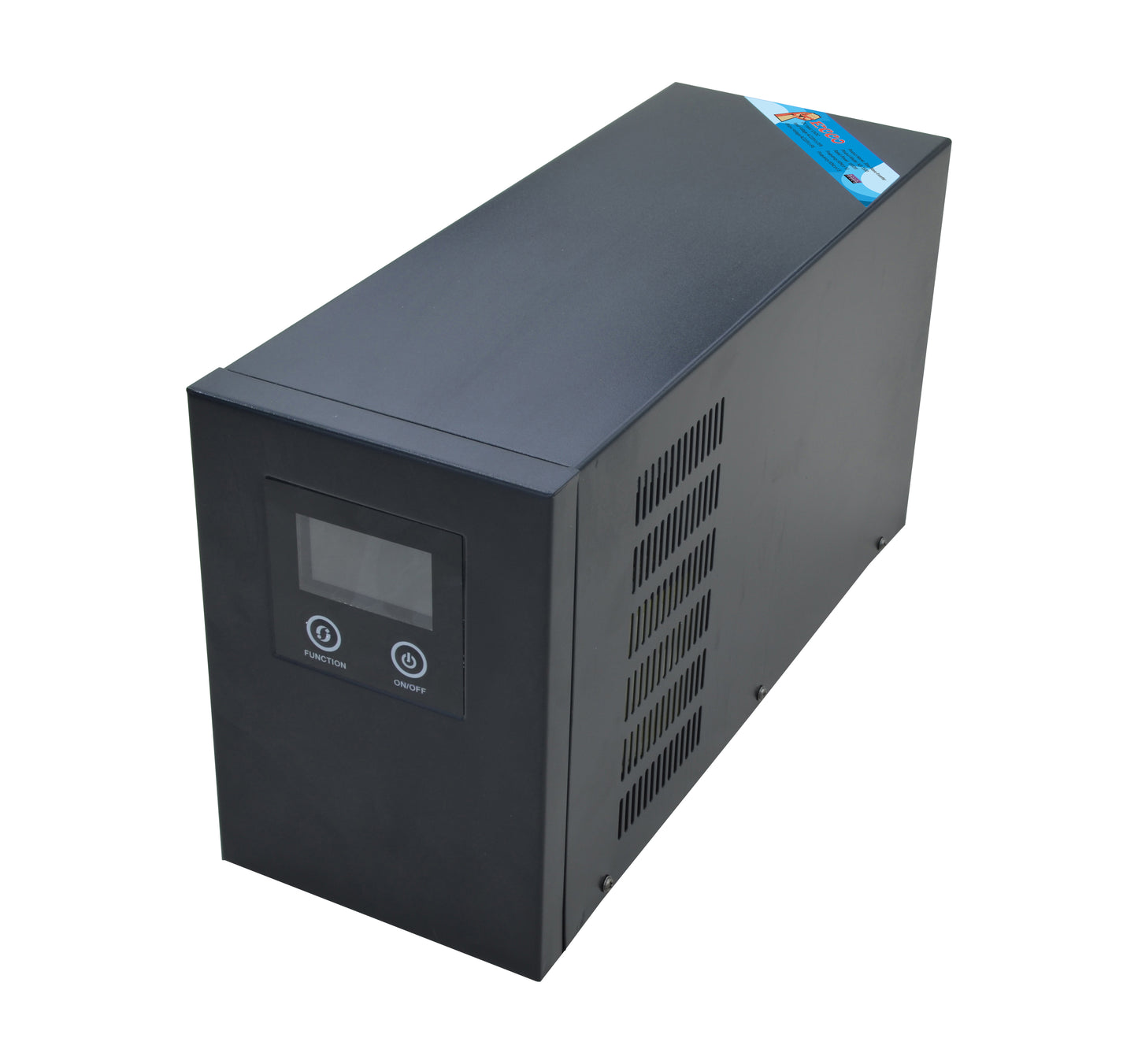

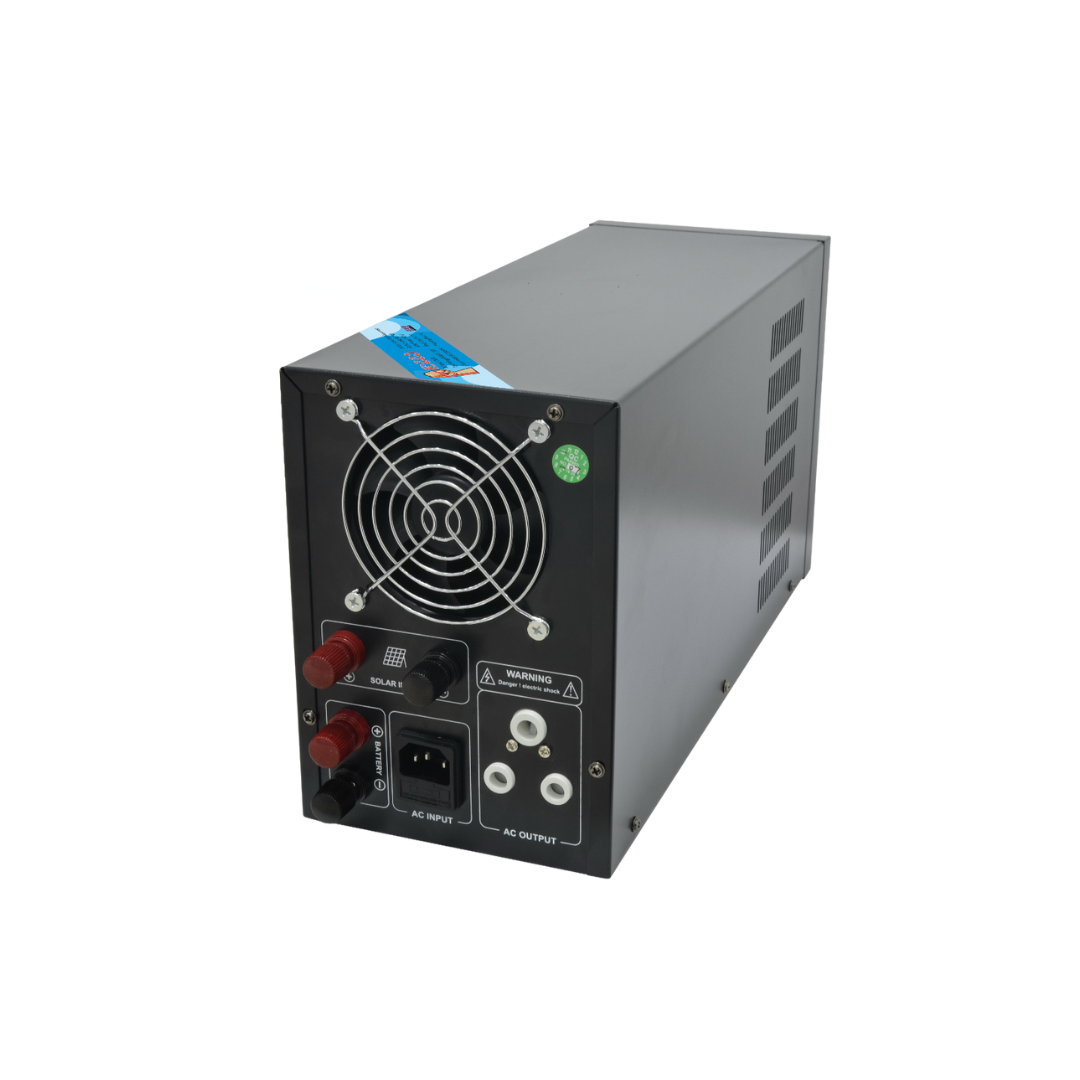

Ecco 2000W Pure Sine Wave Solar Inverter UPS – 12V DC, 220V AC Output

Description:

Efficient and Reliable Power Backup Solution

The Ecco 2000W Pure Sine Wave Solar Inverter UPS is designed for backup power, emergency supply, and solar energy systems. This versatile hybrid inverter converts 12V DC into a stable 220V AC output, making it ideal for home, office, and small backup applications. With its built-in UPS functionality and dual charging capability (mains and optional solar), it ensures uninterrupted power for essential devices.

Key Features:

• Pure Sine Wave Output – Delivers smooth, stable power suitable for sensitive electronics.
• 2000W Continuous Power – Supports TVs, computers, lights, and household appliances.
• UPS Functionality – Switches seamlessly with ~4ms transfer time for uninterrupted operation.
• Battery Charging Options:
  • Built-in 15A Battery Charger – Charges 12V batteries from 220V mains power.
  • Optional Solar Charging – Compatible with a solar charge controller for off-grid power.
• Multi-Mode Operation:
  • Battery First Mode – Prioritizes battery use.
  • AC First Mode – Uses mains power before switching to battery backup.
  • Energy-Saving Mode – Optimizes power consumption when loads are low.
• Intelligent Cooling System – Temperature-controlled fan reduces noise and extends lifespan.
• Advanced Safety Protections:
  • Overload protection – Warning and automatic shutdown.
  • Short circuit protection – Immediate shutdown with alarm.
  • High/low voltage detection – Auto-shutdown to protect connected devices.
  • Reverse polarity protection – Prevents damage from incorrect wiring.

Technical Specifications:

Model: NS-2000
Rated Power 2000W
Battery Voltage 12VDC
Size(L*W*Hmm) 410*143*210
Package Size(L*W*Hmm) 410 x 200 x 270
N.W.(kg) 11kg
Charging Mode PWM
Charging Current 30A
PV Input Voltage Range 15V-44V
Max PV Input Voltage (At the lowest temperature) 50V
PV Array Maximum Power 420W

Battery Type Gel ,Lead Acid & Lithium

Battery Performance Note:

The inverter’s battery indicator adjusts in small increments, even for a 1% battery level drop. For accurate voltage readings, use a multimeter.

How much battery backup power will I have when the power is off?

If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 4-5 Hours.

Please note :

If it is a Gel/AGM VRLA deep cycle battery it is recommended that you do not discharge the battery to less than 50% of its capacity to ensure long capacity life.

Battery Performance Note:

The inverter’s battery indicator adjusts in small increments, even for a 1% battery level drop. For accurate voltage readings, use a multimeter.

What's Included:

• 1 × Ecco 2000W Pure Sine Wave Inverter UPS
• 1x 12V 100AH Deep cycle Gel Battery
• 1 × Battery Link Cables
• 1 × User Manual

Warranty & Installation Requirements:

• 1-Year Warranty for manufacturing defects.
• GEL BATTERY - 30 DAY REPLACEMENT
• Professional installation required to comply with SANS regulations.
• A valid Certificate of Compliance (COC) is mandatory for warranty claims.
