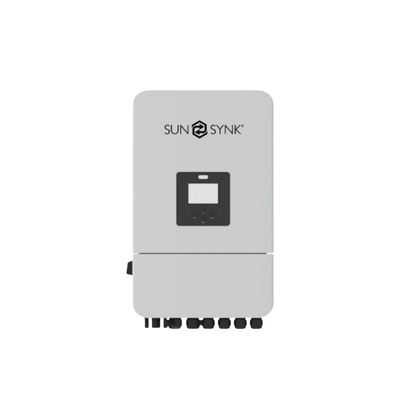

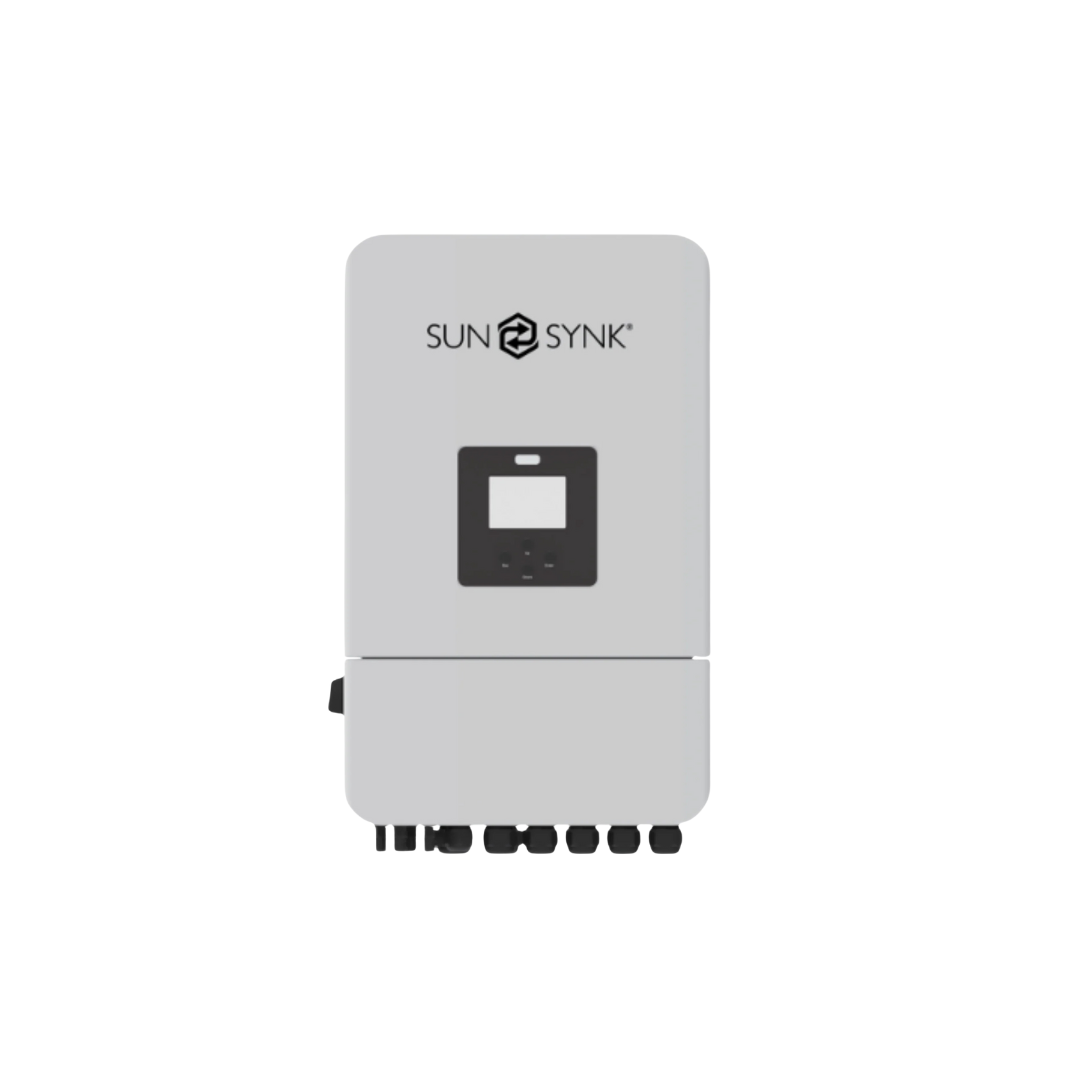

8KW Sunsynk Hybrid Inverter (SG01LP1 EU SM2)

Sunsynk 8kW Hybrid Inverter (SG05LP1 EU SM2) – 48V LV Model with Dual MPPT

ONLINE DEAL ONLY – IN-STORE COLLECTION AVAILABLE ON REQUEST (SAME DAY)

The Sunsynk 8kW Low Voltage Hybrid Inverter (Model: SG01LP1 EU SM2) is a compact, high-efficiency power management solution for residential and commercial energy systems. With support for both lithium and lead-acid batteries, this inverter is engineered for performance, flexibility, and seamless off-grid or backup integration.

Designed to optimize solar self-consumption and ensure backup power during grid failure, this advanced 48V single-phase hybrid inverter features wide PV input voltage range, dual MPPT tracking, and robust surge capacity. Whether paired with a battery for full hybrid operation or used as part of an off-grid setup, this inverter delivers reliable energy autonomy.

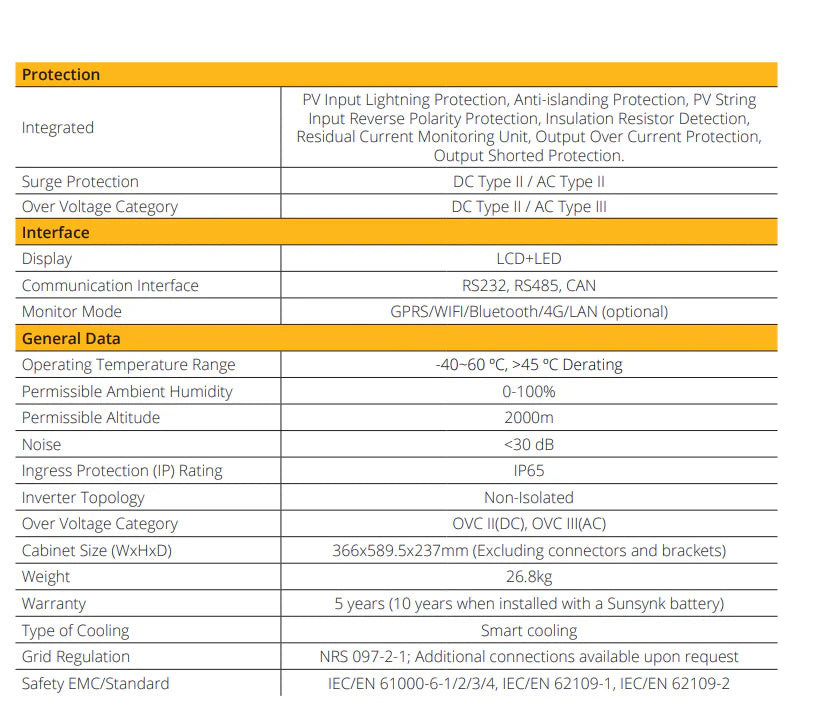

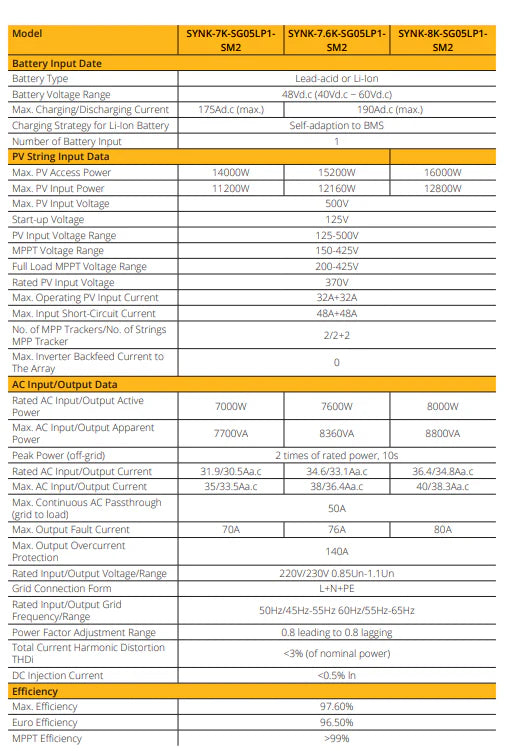

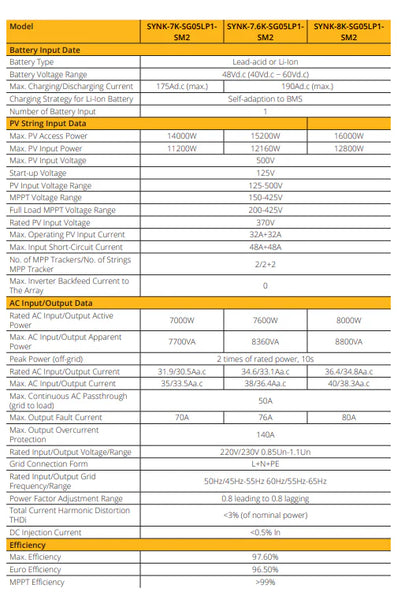

Technical Specifications

Battery Input

Battery Type: Lead-Acid or Li-Ion

Voltage Range: 40VDC ~ 60VDC

Max Charge/Discharge Current: 190A DC

PV Input (Solar)

Max PV Input Power: 12,800W (supports up to 16,000W access power)

PV Voltage Range: 125V ~ 500V

MPPT Voltage Range: 150V – 425V (Full Load: 200V – 425V)

Max PV Input Voltage: 500VDC

Start-Up Voltage: 125V

Operating PV Current: 32A + 32A

MPPTs/Strings: 2 MPPTs with 2 strings each

General

Weight: 26.8kg

Mounting: Wall-Mounted

Monitoring: WiFi/GPRS/LAN (Optional Dongle Required)

Protection: Overload, Over-voltage, Short-circuit, Reverse Polarity, Ground Fault

Cooling: Intelligent Fan Cooling

Operating Temperature: -25°C to 60°C

Certifications: CE, IEC62109, UN38.3

Benefits & Highlights

Unmatched Compatibility – Works with most 48V lithium and lead-acid batteries.

High Charging Current – 190A supports fast battery charging & discharging.

Future-Ready – Supports battery and solar expansion, ideal for growing energy needs.

Dual MPPT Inputs – Optimize multiple solar arrays independently for max performance.

Silent Performer – Smart fan control ensures quiet operation during low loads.

Backup Ready – Seamless power transition during outages with high surge capacity.

Warranty & Compliance

5-Year Standard Warranty

10-Year Warranty Available when paired with a Sunsynk Battery

All inverters must be installed by a qualified wireman or master electrician registered with the Department of Labour.

A valid Certificate of Compliance (COC) must be issued post-installation.

Installations must comply with SANS 10142 regulations.

Warranty claims require: photos, proof of installation, COC, and electrician’s registration.
