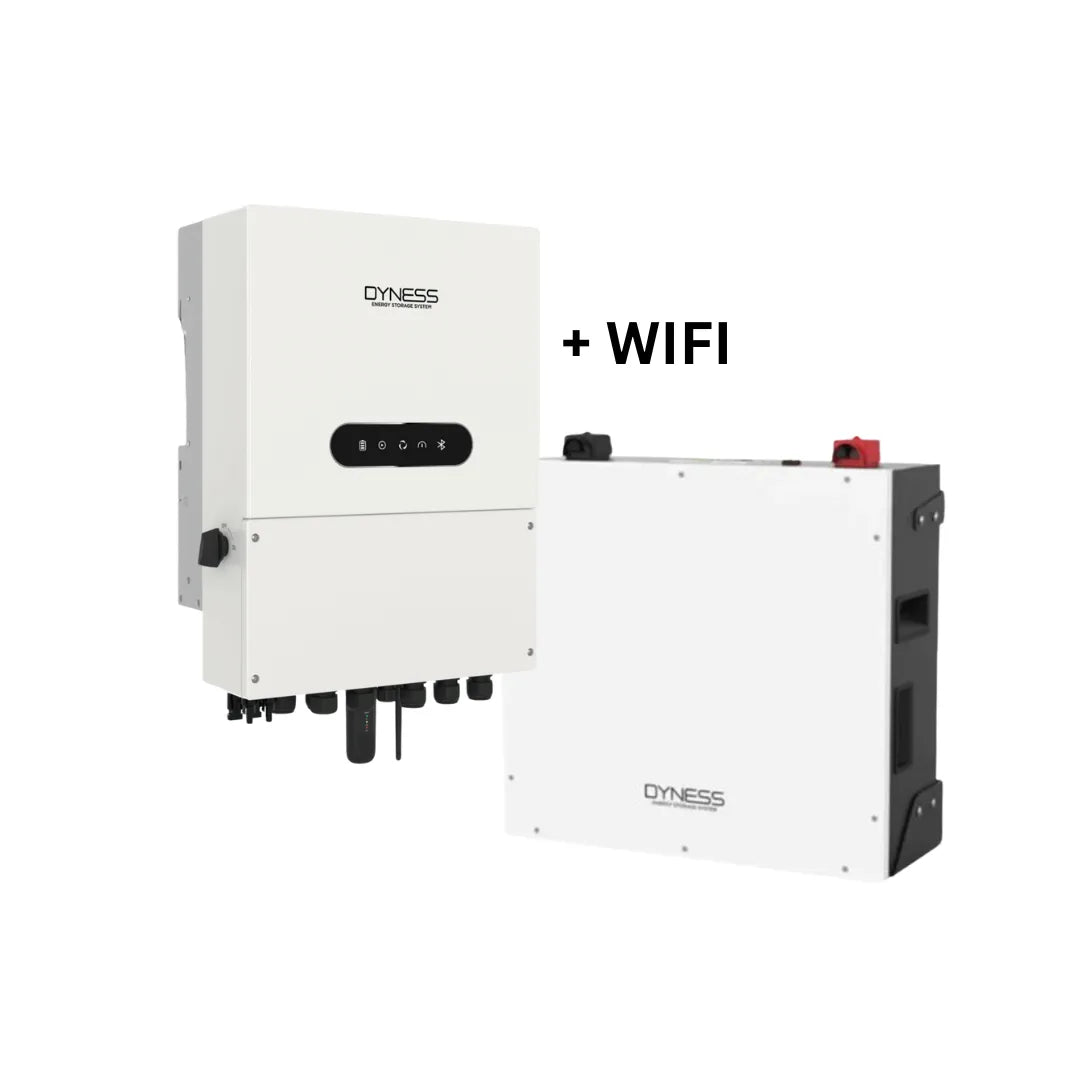

8KVA Dyness Hybrid Inverter (Single Phase) + 5.12kWh Dyness Lithium Ion Battery BX51100
8KVA Dyness Hybrid Inverter (Single Phase) + 5.12kWh Dyness Lithium Ion Battery BX51100
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
8KVA Dyness Hybrid Inverter (Single Phase) + 5.12kWh Dyness Lithium Ion Battery BX51100
Dyness 8KW Single Phase LV Hybrid Inverter + Wifi
The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.
Product Features:
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Automatic UPS switching(<4ms)
- Supports peak shaving control in both “self-use” and “generator” mode
- Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
- 6 customizable charge/discharge time settings
- 10-second 200% surge power backup overload capability
- Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel
Specifications:
-
Input DC (PV side):
- Recommended max. PV power: 12.8 kW
- Max. input voltage: 600 V
- Rated voltage: 300 V
- Start-up voltage: 90 – 520 V
- Max. input current: 32A/20A
- Max. short circuit current: 36A/30A
-
Battery:
- Battery type: Li-ion
- Max. charge/discharge power: 8 kW
- Max. charge/discharge current: 190 A
-
Output AC (Grid side):
- Rated output power: 8 kW
- Max. output current: 40 A
- Max. input current: 50 A
-
General
- Dimensions(W*H*D): 405*560*215 mm
- Weight: 27kg
- Ingress protection: IP66
Battery Specs
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max Continous Charge Current | 75A |
| Max Continous Discharge Current | 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55℃ |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 95% DOD
10 Years Warranty
