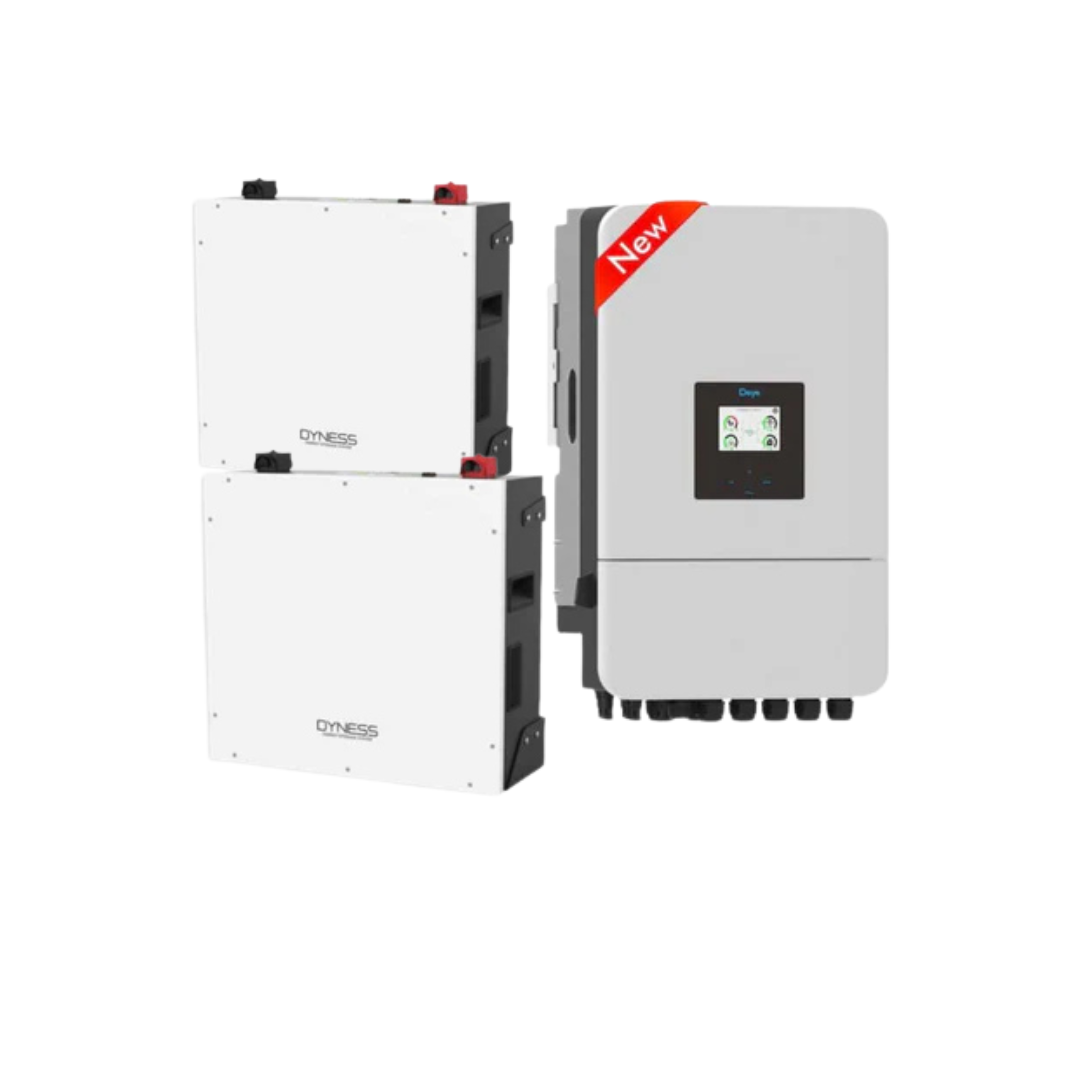

8KVA Deye MPPT Hybrid Inverter + 2x 5.12kWh Dyness Version 2 Lithium Battery Back Up Combo
8KVA Deye MPPT Hybrid Inverter + 2x 5.12kWh Dyness Version 2 Lithium Battery Back Up Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 8 left
Couldn't load pickup availability
8KVA Deye MPPT Hybrid Inverter + 2x 5.12kWh Dyness Version 2 Lithium Battery Back Up Combo
Description:
This hybrid solar kit pairs the Deye 8kW NEW GEN single-phase hybrid inverter with 2x Dyness lithium 5.12kwh storage, built for modern homes and businesses that need a compact, high-output system with smart monitoring and flexible expansion.
What’s Included
1x Deye 8kW Hybrid Inverter including WiFi dongle (SUN-8K-SG05LP1-EU-SM2)
2x Dyness Lithium Battery DL5.0C 5.12kWh 51.2V Version 2
Battery cables and brackets included
Inverter Overview (Deye SUN-8K-SG05P1-EU-SM2)
Single-phase hybrid operation combining solar, battery, and grid power
Compact footprint designed for tighter installation spaces
8kW output suited to medium to large energy requirements
Up to 97.6% conversion efficiency for strong day-to-day performance
WiFi and app-based monitoring for real-time control and system visibility
Inverter Battery Interface and Charging
Battery type support: lead-acid or Li-ion
Battery voltage range: 40V to 60V
Maximum charging current: 190A
Maximum discharging current: 190A
Li-ion charging strategy: self-adaption to BMS
External temperature sensor: optional
Number of battery inputs: 1
Battery Specifications (per included battery spec)
Battery type: LiFePO4
Nominal battery energy: 5.12 kWh
Nominal capacity: 100Ah
Nominal voltage: 51.2V
Operating voltage: 44.8V to 57.6V
Recommended charge and discharge C rate: 0.5C
Maximum discharge C rate: 1C
Recommended charge/discharge current: 50A
Max continuous charge current: 75A
Max continuous discharge current: 100A
Peak power charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions (W x D x H): 558 x 545 x 150 mm
Charging temperature range: 0°C to 55°C
Discharging temperature range: -20°C to 55°C
Communication: CAN, RS485, RS232
Cycle life: ≥6000 cycles
Protection level: IP20
Expansion: up to 50 units in parallel
Test conditions reference: 0.2C charging/discharging at 25°C, 95% DOD
Stated Advantages
Suitable for off-grid and hybrid setups
Compact design for space-conscious installations
Certification and Safety (as provided)
UN38.3, CE-EMC, IEC62619, CEI-021 all undergoing
Warranty
Inverter warranty: 5 years
Battery warranty: 7 years
Installation Requirements
Installation should be completed by a qualified electrician and configured to the applicable requirements of SANS 10142, with a valid COC issued for the installation where applicable
