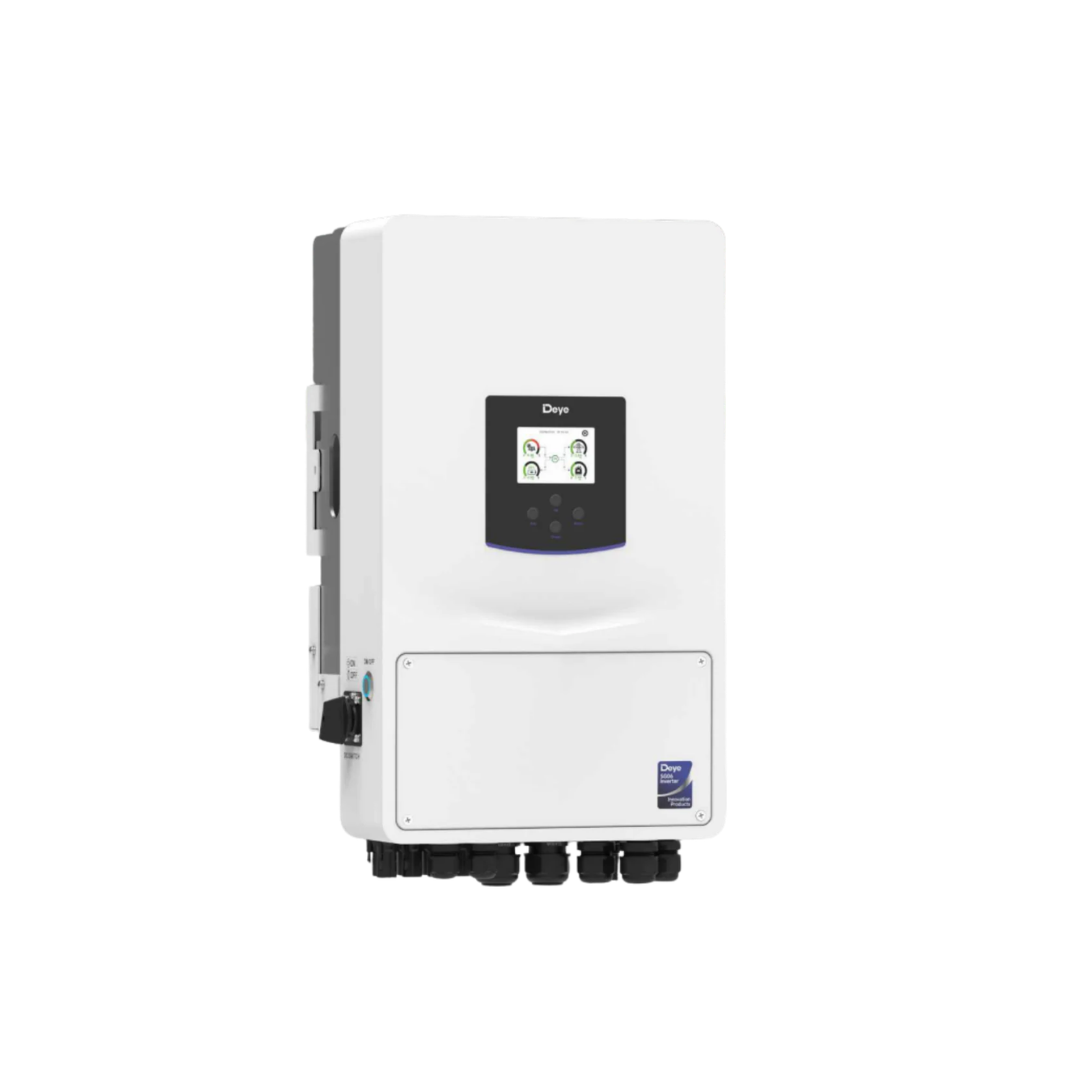

8KVA Deye Hybrid Inverter 48V SUN-8K-SG06LP1-EU-CM3

Product Description:

The Deye SUN-8K-SG06LP1-EU-CM3 8kW Hybrid Inverter is a powerful and flexible solar inverter designed for residential and light commercial energy systems. It is suitable for grid-tied, backup and off-grid applications where reliable solar power management, battery storage and intelligent load control are required.

This model features a colourful touch LCD display, IP65 protection, AC coupling support and the ability to connect up to 16 compatible units in parallel. It is well suited for customers who want a scalable inverter solution that can be expanded as their energy needs grow.

With a maximum charging and discharging current of 250A, the inverter is designed to work efficiently with compatible low-voltage battery systems. It also supports multiple batteries in parallel, making it suitable for larger storage configurations when correctly designed and installed.

The inverter includes six programmable time periods for battery charging and discharging, allowing users to manage energy use according to solar production, grid availability, time-of-use requirements or backup needs. It can also support storing energy from a diesel generator, making it a practical option for areas with unreliable grid supply.

Key Features:

8kW hybrid inverter for solar and backup applications
Model: SUN-8K-SG06LP1-EU-CM3
Colourful touch LCD display
IP65 protection degree
AC coupling support for retrofitting existing solar systems
Maximum charging and discharging current of 250A
Supports up to 16 units in parallel
Suitable for on-grid and off-grid operation
Supports multiple batteries in parallel
Six time periods for battery charging and discharging
Supports storing energy from a diesel generator
Suitable for residential and light commercial solar systems
Scalable design for larger energy storage installations

Colourful Touch LCD:

The Deye 8kW inverter includes a colourful touch LCD screen for easy system viewing and operation. The display helps users and installers monitor system performance, settings and energy flow more conveniently.

IP65 Protection:

The IP65 protection rating helps protect the inverter against dust and water ingress when installed in a suitable environment according to the manufacturer’s guidelines. This makes the unit suitable for a wider range of installation locations compared to standard indoor-only inverter designs.

AC Coupling for Existing Solar Systems:

The AC coupling function allows the inverter to be used when retrofitting or expanding certain existing solar installations. This can be useful when adding battery backup to an existing solar system, provided that the full system design is compatible and correctly configured.

Parallel Operation:

The Deye SUN-8K-SG06LP1-EU-CM3 supports up to 16 compatible units in parallel for both on-grid and off-grid operation.

This allows the inverter system to be expanded for larger homes, farms or light commercial applications where more inverter capacity is required.

Battery Support and Charging:

The inverter supports multiple compatible batteries in parallel and provides a maximum charging and discharging current of 250A. This allows strong battery performance when paired with the correct battery bank and proper system design.

Battery performance will depend on:

Battery brand and model
Battery voltage and capacity
Battery management system compatibility
Charge and discharge limits
Installer configuration
System load requirements

Smart Battery Scheduling:

With six programmable time periods for battery charging and discharging, the inverter gives users more control over when the battery is charged or used.

This feature can help with:

Solar self-consumption
Backup reserve management
Generator charging
Grid charging control
Time-of-use energy planning
Reducing unnecessary grid usage

Diesel Generator Energy Storage:

The inverter supports storing energy from a diesel generator. This can be useful for remote locations, farms, backup power systems and areas where the grid supply is unstable.

When using a generator, the inverter, generator and battery system must be correctly matched and configured by a qualified installer.

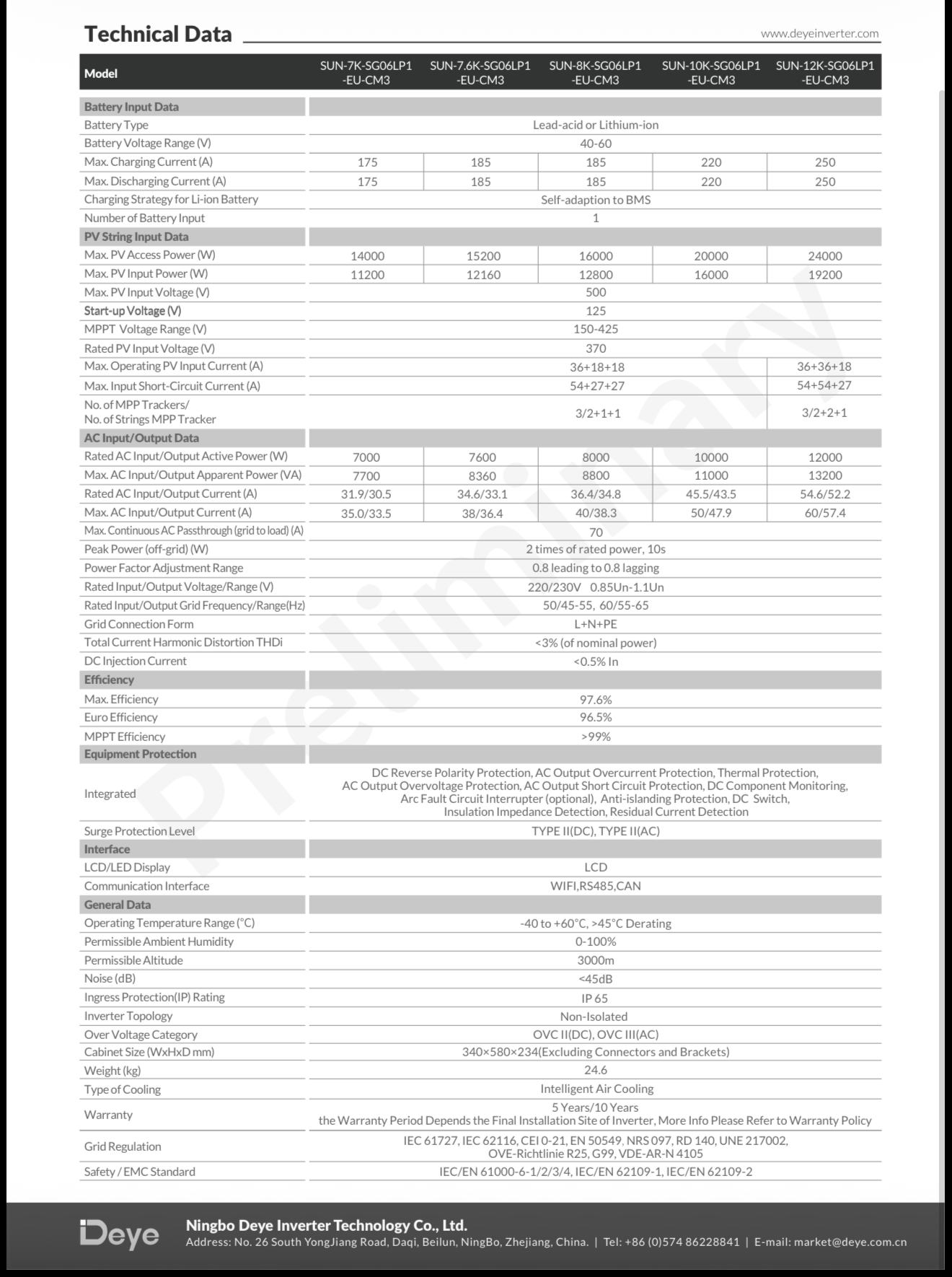

Specifications:

Brand: Deye
Model: SUN-8K-SG06LP1-EU-CM3
Product type: Hybrid solar inverter
Rated power: 8kW
Display: Colourful touch LCD
Protection degree: IP65
AC coupling: Supported
Parallel operation: Up to 16 units
Operation type: On-grid and off-grid
Battery parallel support: Yes
Maximum charging/discharging current: 250A
Battery charging/discharging schedule: 6 time periods
Diesel generator energy storage: Supported
Weight: 24.6kg
Dimensions: 420mm x 670mm x 233mm

Dimensions and Weight:

Width: 420mm
Height: 670mm
Depth: 233mm
Weight: 24.6kg

Recommended Applications:

Residential solar backup systems
Hybrid solar installations
Off-grid power systems
Grid-tied solar systems with battery storage
Light commercial solar systems
Farm and rural power applications
Solar system retrofits using AC coupling
Generator-supported backup systems
Scalable inverter installations

Important System Design Notice:

The inverter must be matched with compatible batteries, solar panels, protection equipment and electrical wiring. The final system size should be based on the customer’s load requirements, battery capacity, backup time, solar panel configuration and installation environment.

For off-grid applications, the installer must ensure that the inverter capacity, battery bank, PV array and generator support are correctly designed for the connected appliances.

Warranty and Installation Requirements:

All inverters and batteries must be installed by a qualified electrical wireman or master electrician with valid registration through the Department of Employment and Labour.

A valid electrical Certificate of Compliance must be issued once the installation has been completed. The COC must be specific to the installed backup or solar system. The installation must comply with SANS 10142 and all relevant parts, manufacturer guidelines and electrical regulations.
