The Solar Step

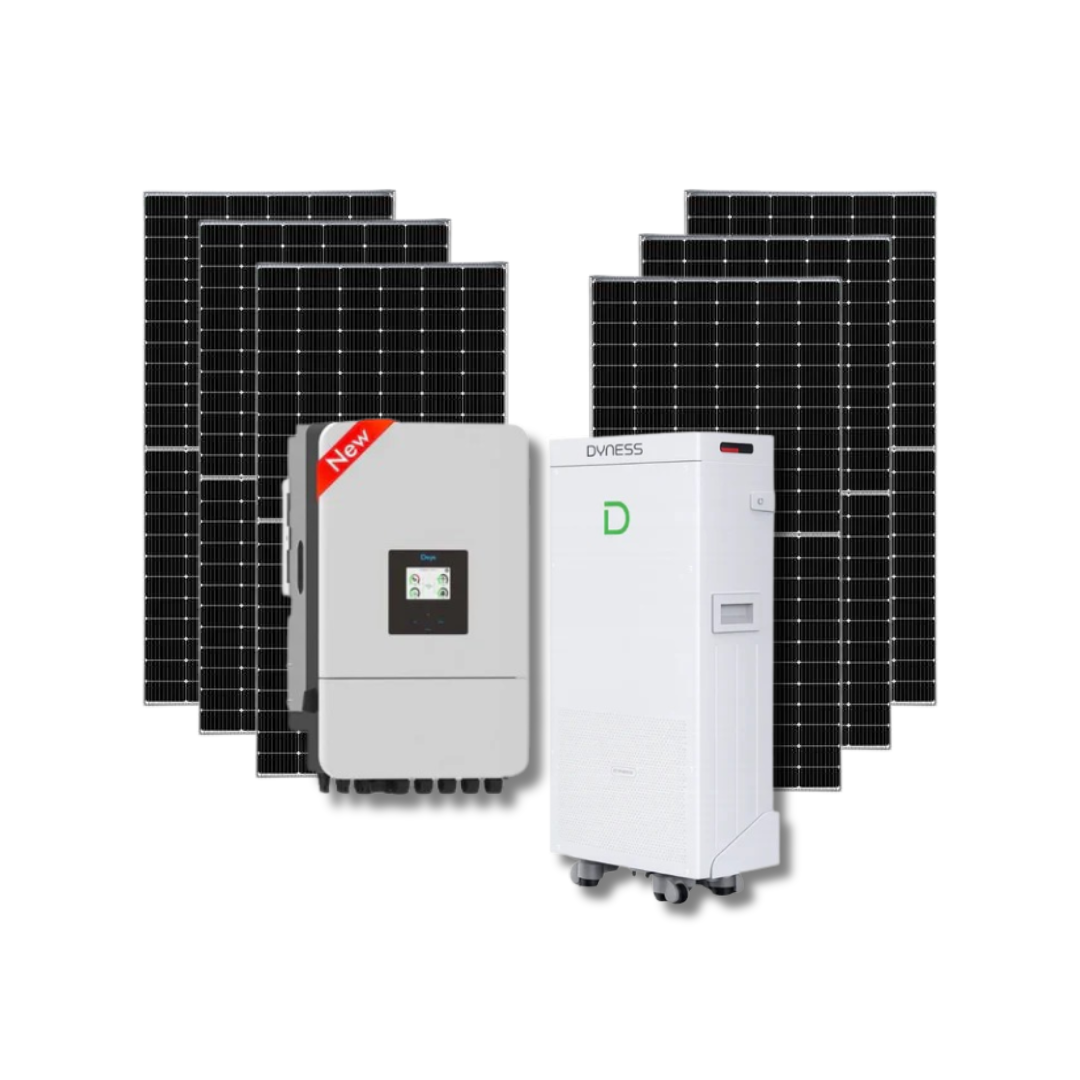

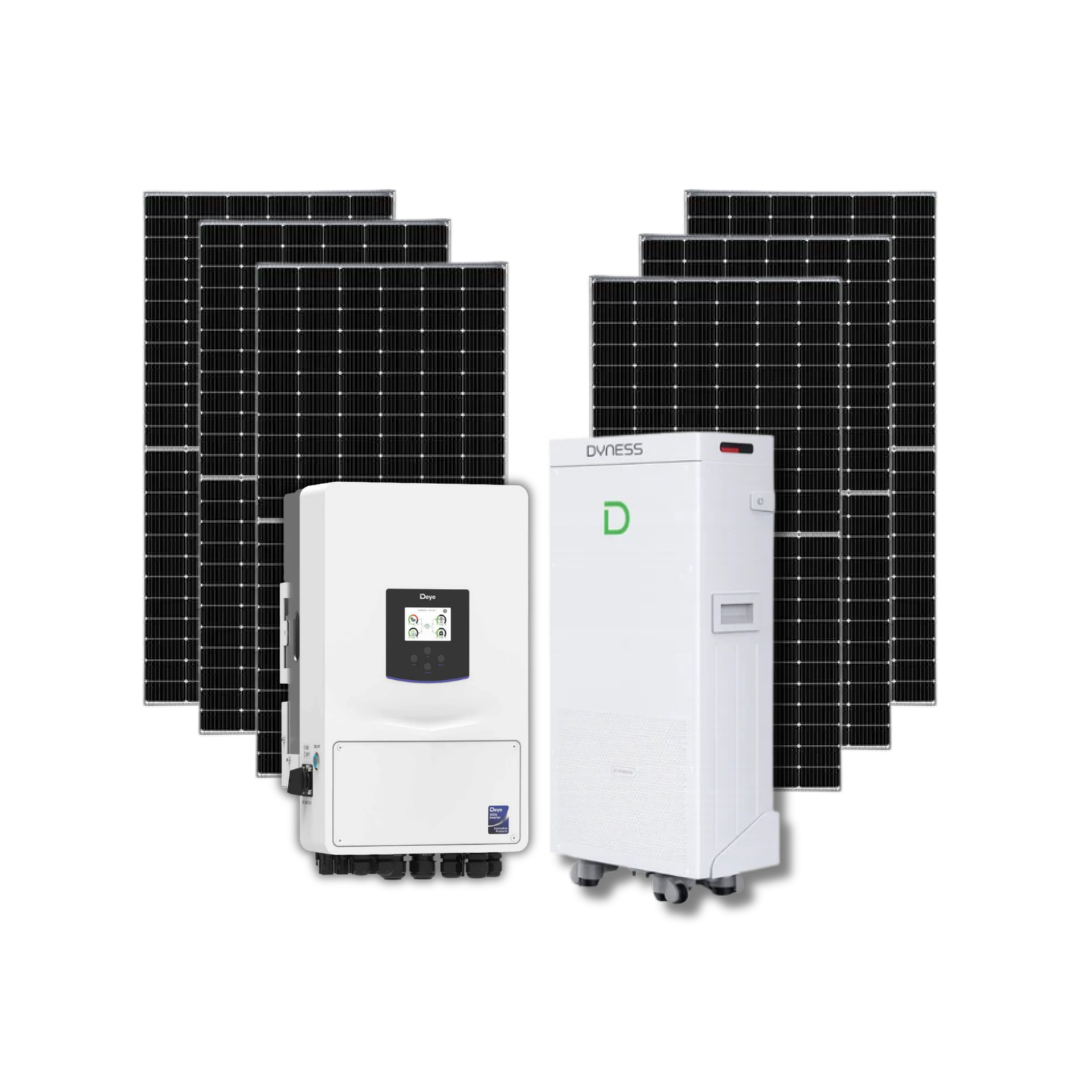

8KVA Deye Hybrid Inverter + 16.07kWh Dyness PowerBrick Max Battery + 6x 550W Tier 1 Solar Panel Backup Combo
8KVA Deye Hybrid Inverter + 16.07kWh Dyness PowerBrick Max Battery + 6x 550W Tier 1 Solar Panel Backup Combo
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
Description
This powerful hybrid solar backup combo combines an 8kW Deye Hybrid Inverter, a high-capacity 16.07kWh Dyness PowerBrick Max Lithium Battery, and 6 × 550W Megatron Tier 1 Solar Panels.
It is suitable for larger homes, farms, guesthouses and small businesses that require strong inverter performance, extended battery backup and intelligent management of solar, battery and grid power.
The Dyness battery provides approximately 15.27kWh of usable energy, while the six solar panels provide a combined solar capacity of 3.3kW.
What’s Included
1 × Deye 8kW Hybrid Inverter with WiFi
1 × Dyness PowerBrick Max 16.076kWh Lithium Battery
6 × Megatron 550W Tier 1 Solar Panels
Deye 8kW Hybrid Inverter
8,000W rated output
Maximum output of 8,800W
Supports solar, battery and grid power
Dual MPPT solar inputs
Maximum supported PV input of 10,400W
Battery voltage range of 40V to 60V
Maximum charge and discharge current of 190A
Fast backup changeover of less than 5 milliseconds
WiFi and app-based remote monitoring
Programmable charging and discharging schedules
Supports lithium-ion and lead-acid batteries
Zero-export functionality
Expandable up to 16 inverters in parallel
IP65 protection rating
RS485 and CAN communication
5-year repair warranty

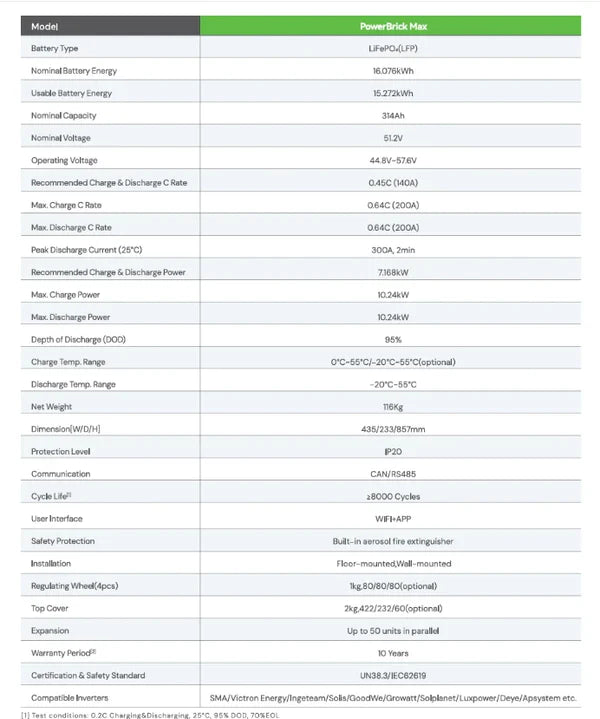

Dyness PowerBrick Max Battery
16.076kWh nominal battery capacity
Approximately 15.272kWh usable energy
51.2V / 314Ah LiFePO₄ battery
95% depth of discharge
Cycle life of 8,000 cycles or more
Recommended charge and discharge current of 140A
Maximum continuous charge and discharge current of 200A
Maximum charge and discharge power of 10.24kW
Peak discharge current of 300A for two minutes
Built-in aerosol fire extinguisher
WiFi and app monitoring
CAN and RS485 communication
Floor-mounted or wall-mounted installation
Expandable up to 50 batteries in parallel
10-year warranty

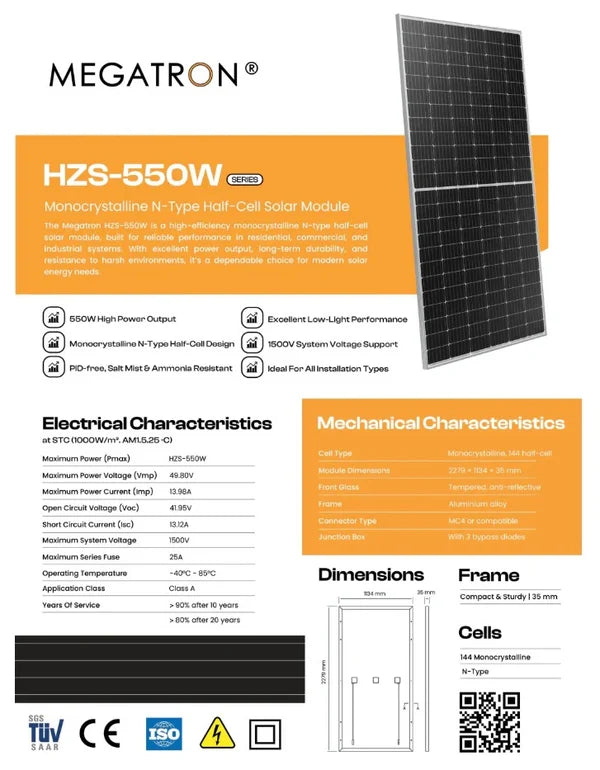

Megatron 550W Tier 1 Solar Panels
550W output per panel
Six panels included
Total PV capacity of 3.3kW
High-efficiency monocrystalline PERC technology
Approximately 21% module efficiency
144 half-cell design
Strong performance in low-light conditions
Tempered glass and reinforced aluminium frame
IP68-rated junction box
Suitable for residential, commercial and agricultural installations
Ideal Applications
This combo is suitable for:
Medium to large homes
Load-shedding backup
Farms and rural properties
Guesthouses and lodges
Home offices
Small businesses
Fridges, freezers, lights, TVs and computers
Selected pumps and air conditioners
Systems requiring extended battery runtime
Future solar panel or battery expansion
Important System Information
The included six panels provide 3.3kW of solar capacity, which is lower than the inverter’s maximum PV input. Additional solar panels may be added later, provided the inverter’s MPPT voltage, current and total PV input limits are followed.
Actual backup time will depend on the appliances being used and their combined power consumption. High-consumption appliances such as geysers, electric stoves, ovens, kettles, air conditioners and pumps should be managed carefully.
Mounting equipment, protection equipment, electrical cabling and installation are not included unless specifically stated in the quotation.
Warranty
Inverter warranty: 5 years
Battery warranty: 10 years
Solar Panels : 10 Year Product Warranty
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK
Installation Requirements
Installation should be completed by a qualified electrician and configured to the applicable requirements of SANS 10142, with a valid COC issued for the installation where applicable
