The Solar Step

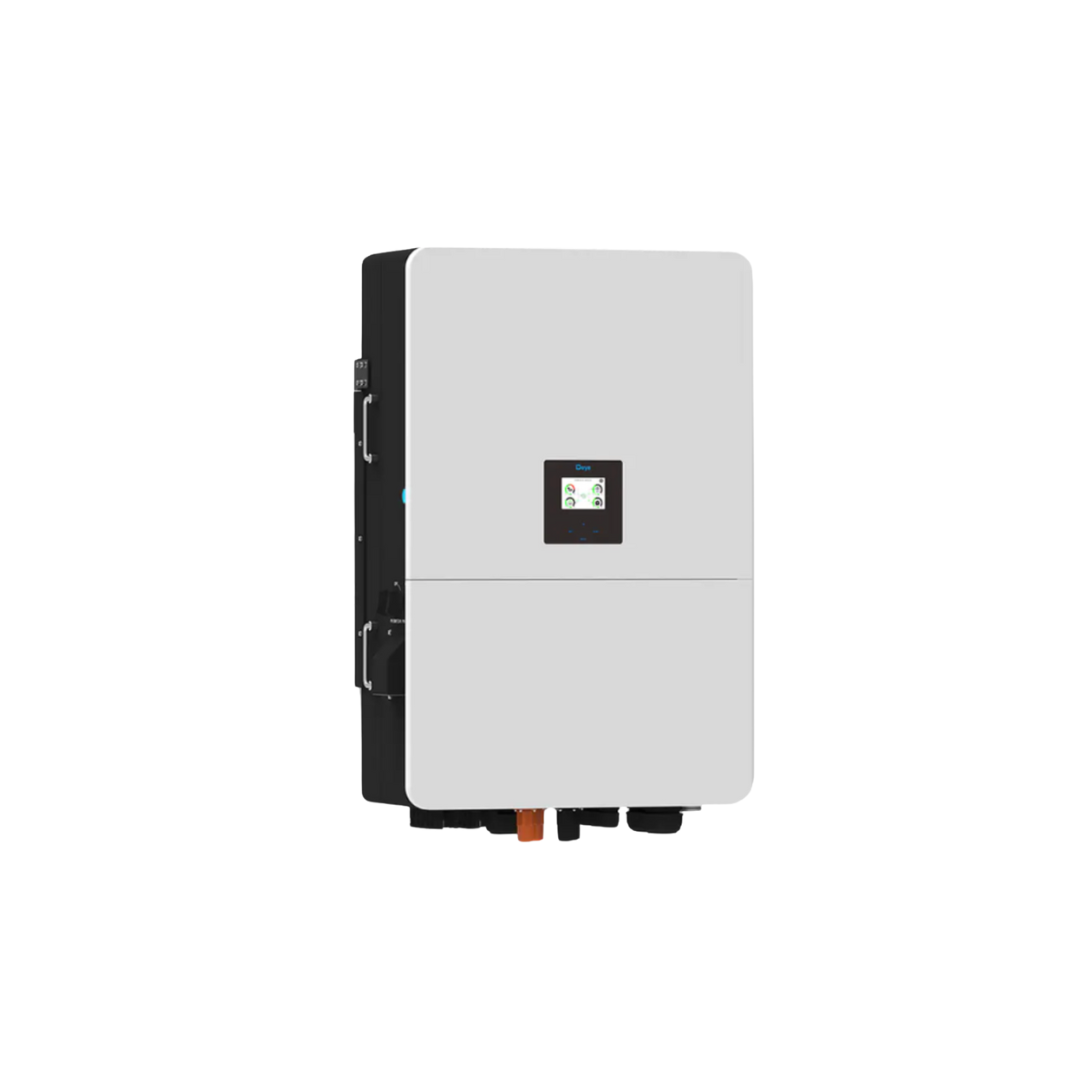

80KW Deye 3-Phase Hybrid High-Voltage Inverter
80KW Deye 3-Phase Hybrid High-Voltage Inverter
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
Title:
Deye 80kW 3-Phase Hybrid High-Voltage Inverter – 6 MPPT, IP65 Rated
Description
Commercial-Grade Hybrid Power Platform
The Deye 80kW High-Voltage 3-Phase Hybrid Inverter is engineered for demanding commercial and industrial solar applications. Designed to support large PV arrays and high-voltage lithium battery banks, this inverter delivers advanced energy control, grid interaction, and backup functionality in a single, robust solution.
Online deal only. Unit can be ordered for in-store collection if required.
Performance and Efficiency
Delivers a rated AC output of 80kW, suitable for high-load three-phase systems.
Achieves up to 97.6% maximum efficiency, ensuring minimal conversion losses.
Provides 1.5× peak off-grid power for 10 seconds, supporting high start-up loads.
High-Voltage Battery Compatibility
Designed for high-voltage lithium-ion batteries with a voltage range from 160V to 1000V.
Dual charging and discharging channels rated at 80A + 80A for balanced battery performance.
Intelligent self-adaptive BMS communication, enabling safe and optimized battery operation.
Advanced PV Input Architecture
Equipped with six independent MPPTs, each supporting two PV strings.
Supports up to 128kW maximum PV input power with a 1000V DC input limit.
Wide MPPT voltage range (150V – 850V) improves energy harvesting across varying conditions.
Smart Energy Management
Integrated Energy Management System (EMS) for load prioritization and scheduling.
Supports peak shaving and load shifting, reducing demand charges and time-of-use costs.
Seamless operation across on-grid, hybrid, and off-grid configurations.
Monitoring and Communication
Built-in communication interfaces: RS485, RS232, and CAN.
Monitoring options include Wi-Fi, Bluetooth, GPRS, 4G, and LAN (optional).
Enables real-time system monitoring, diagnostics, and remote management.
Protection and Environmental Design
IP65-rated enclosure allows for indoor or outdoor installation.
Intelligent air-cooling system ensures stable operation in harsh environments.
Operating temperature range from -40°C to +60°C (derating above 45°C).
Comprehensive protection against over-voltage, short circuit, reverse polarity, and overheating.
Typical Applications
Commercial and industrial solar installations
Energy storage systems with load management
Grid-tied systems with backup power capability
Microgrids and remote or unstable grid locations
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SUN-80K-SG02HP3-EU-EM6 |
| Inverter Type | Hybrid, Non-isolated |
| AC Rated Power | 80,000 W |
| Max Apparent Power | 88,000 VA |
| Battery Type | Lithium-ion (High Voltage) |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge / Discharge Current | 80A + 80A |
| MPPT Quantity | 6 (2 strings per MPPT) |
| Max PV Input Power | 128,000 W |
| Max PV Input Voltage | 1000 V |
| Rated PV Voltage | 650 V |
| Protection Rating | IP65 |
| Cooling | Intelligent air cooling |
| Warranty | 5 / 10 years |
| Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2 |
Installation and Warranty Conditions
Installation must be completed by a qualified electrician or registered wireman in compliance with SANS 10142. A valid Certificate of Compliance (COC) and installation documentation are required for warranty validation. Warranty duration is subject to correct installation and system configuration.
