6KW Sunsynk Lynks Hybrid inverter + 6x 545W TIER 1 Solar Panels + 5.12kWh 1C Dyness Lithium Battery

6KW Sunsynk Lynks Hybrid inverter + 6x 545W TIER 1 Solar Panels + 5.12kWh 1C Dyness Lithium Battery

Sunsynk 6kW Hybrid Inverter – High-Efficiency Single-Phase Power

MANUAL - click here

DATA SHEET - click here

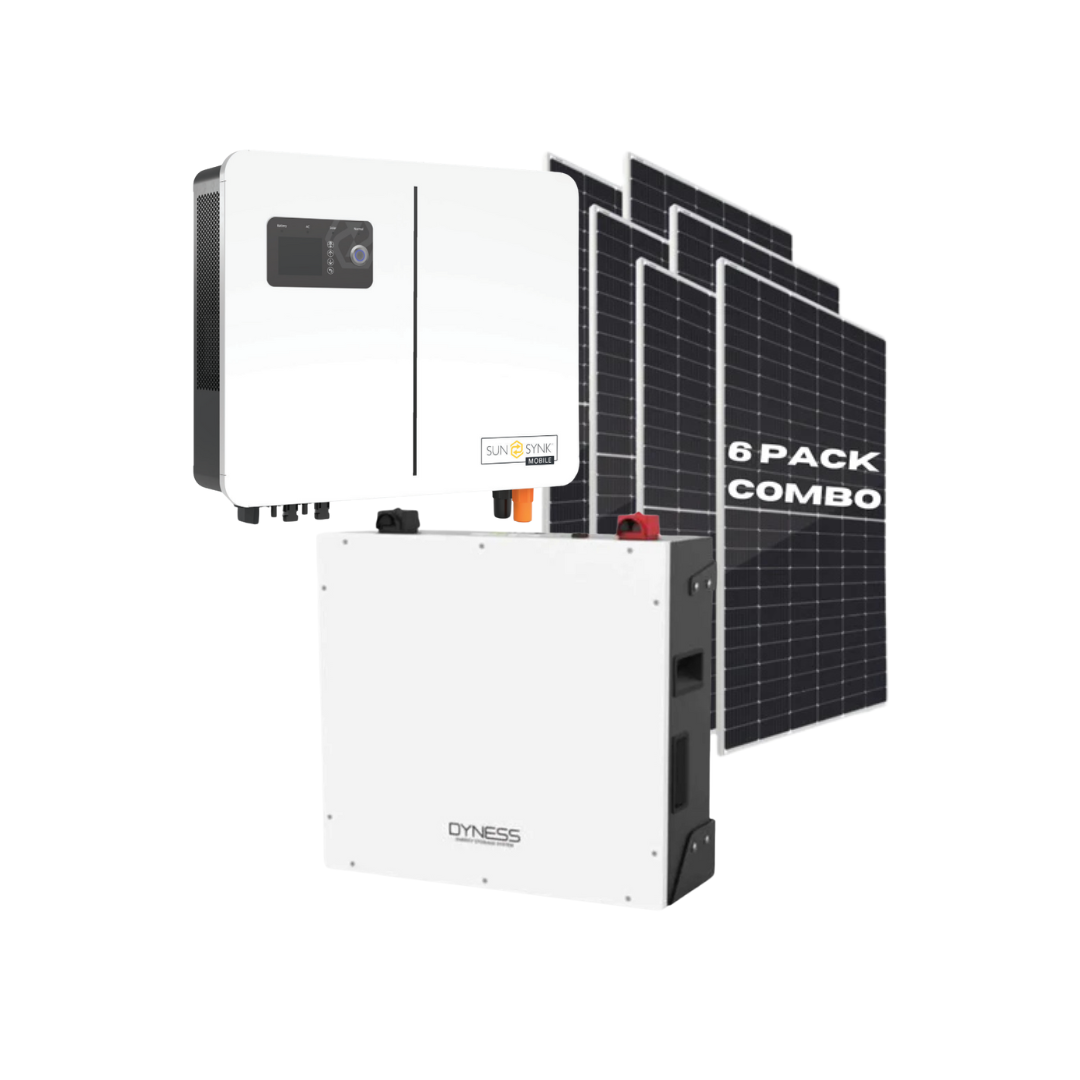

This all-in-one solar package includes everything you need to start saving on electricity and reduce reliance on the grid:

• 6kW Sunsynk Lynks Hybrid Inverter – Smart inverter that manages solar, battery, and grid power efficiently.

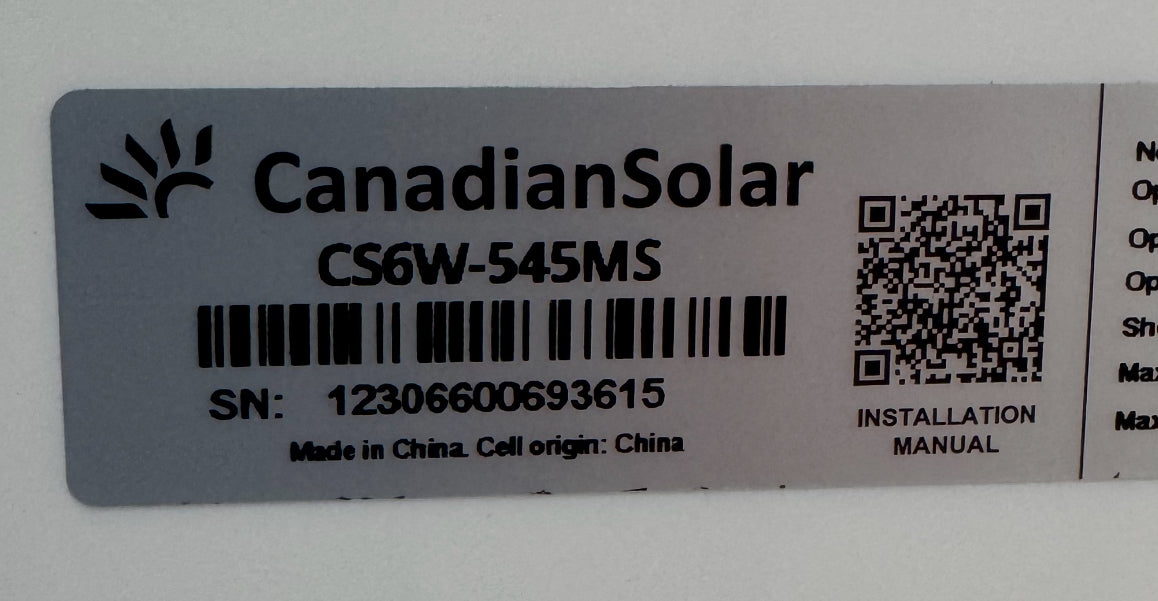

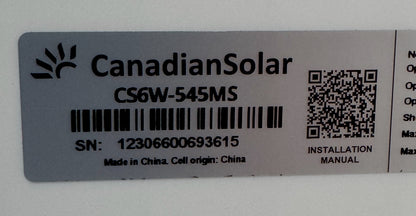

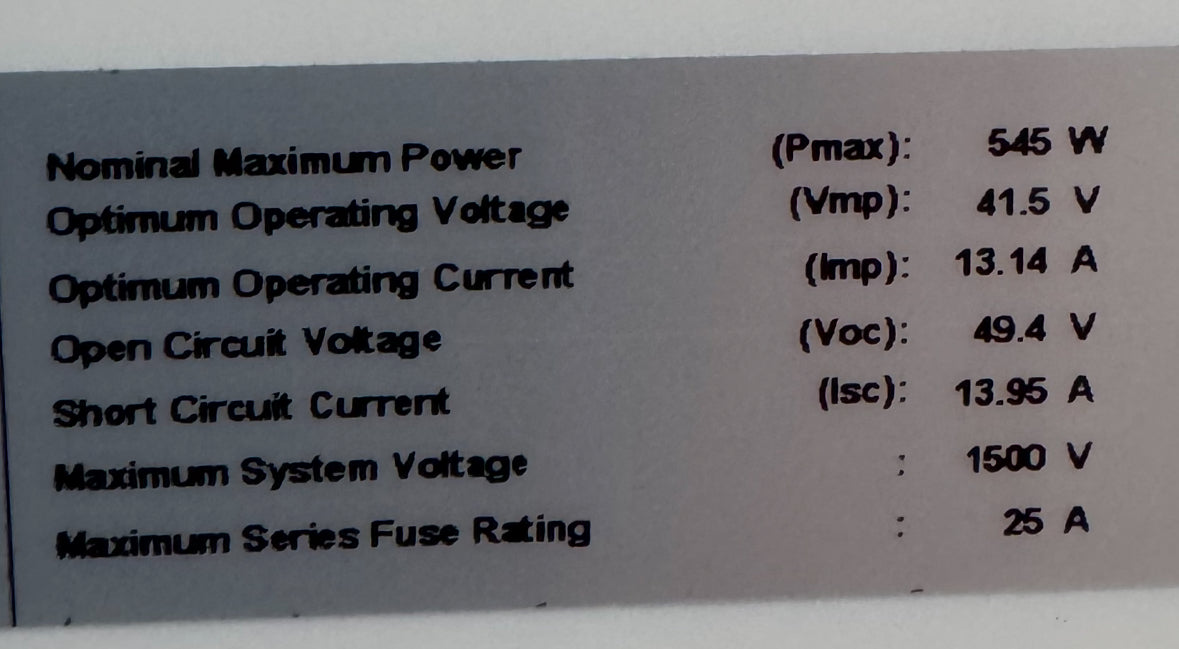

• 6x 545W Tier 1 Solar Panels – High-quality, reliable panels designed for strong performance and durability.

• 5.12kWh Dyness Lithium Battery (1C rated) – Powerful, fast-charging battery with enough storage for essential appliances during load shedding or at night.

-Perfect for running essentials like fridges, lights, TVs, Wi-Fi, and more
-Expandable for future growth
-Compatible with backup and off-grid setups

Description:

Engineered for precision and reliability, the Sunsynk 6kW Hybrid Inverter is a powerful solution for residential and small commercial solar applications. Featuring advanced MPPT technology and flexible battery support, it offers high-efficiency energy conversion and intelligent power management.

Battery Input Capabilities

• Compatible with lithium-ion and lead-acid battery systems

• Operates at 48V nominal battery voltage

• Wide input voltage range: 40V – 60V

• Programmable charge/discharge: Up to 100A charging and 130A discharging

• Recommended battery bank capacity: 100Ah – 2000Ah

• Seamless communication with lithium batteries via integrated BMS

Solar PV Input Features

• Dual MPPT input channels with 8000W total DC input

• High MPPT efficiency of 99.9% for maximum energy harvest

• Operational voltage range: 120V – 450V with 500V max input

• 15A max current per string (x2)

AC Output (Backup & Essential Load)

• Delivers 6000W continuous power with up to 12000VA surge

• Single-phase 220/230/240V output (configurable)

• High-quality waveform with <3% THD

• Fast switching with 10ms transfer time

• Max bypass current: 40A

AC Input (Grid Supply & Battery Charging)

• 6000W input and feed-to-load capability

• Auto-adjusts to local grid voltage and frequency

• Supports full passthrough to essential loads

• Bypass current rated up to 40A

Efficiency and Performance

• Peak inverter efficiency: 97.6%

• Battery-to-load efficiency: 94%

• European weighted efficiency: 97%

Included Accessories

• Main inverter unit

• Wall-mounting bracket and fasteners

• Sunsynk Wi-Fi data logger

• CT coil with 2-pin AERO connector

• AC connectors (load and grid)

• Battery connectors and MC4 solar connectors

Dimensions and Weight

• Size: 514mm x 420mm x 140mm

• Weight: 15.5 kg

DL5.0C 5.12kWh 51.2V LiFePO₄ Battery – Compact & Scalable Storage

1 C DYNESS LITHIUM BATTERY

Description:

Advanced Lithium Power for Modern Solar Systems
The DL5.0C LiFePO₄ battery delivers 5.12kWh of stable energy with high efficiency and robust cycle life. Engineered for residential and commercial solar storage, it supports both hybrid and off-grid applications. Its modular design enables scalable configurations for expanding energy needs.

Key Features:

High-Performance Energy Storage

-Nominal Energy Output: 5.12kWh

-Capacity: 100Ah

-Nominal Voltage: 51.2V

-Depth of Discharge (DOD): 90%

-Operating Voltage Range: 44.8V to 57.6V

-Cycle Life: ≥6000 cycles (0.5C at 80% DOD)

Efficient Charging & Discharging

-Recommended Charge/Discharge Current: 50A

-Max Charge Current: 75A

-Max Discharge Current: 100A

-Peak Current: 110A for 15 seconds

-C-Rate: 0.5C standard, 1C max discharge

Built for Versatility and Scale

-Supports hybrid and off-grid setups

-Expandable up to 50 units in parallel

-Compact and wall-mountable (Dimensions: 558×545×150 mm)

-Net Weight: 54kg

Smart Operation & Protection

-Communication Interfaces: CAN, RS485, RS232

-Protection Level: IP20

-Charging Temperature: 0–55°C (with heating function down to -20°C)

-Discharging Temperature: -20–55°C

Certified for Safety and Reliability

-Safety Standards: UN38.3, CE-EMC, IEC62619, CEI-021

Warranty & Installation Compliance

BATTERY & INVERTER - 10 YEAR WARRANTY

SOLAR PANELS - 15 YEAR PRODUCT WARRANTY

To qualify for warranty support, the SOLAR PANELS, SUNSYNK INVERTER AND DYNESS DL5.0C battery must be installed by a registered wireman or master electrician. Installation must comply with SANS 10142 regulations and include a valid Certificate of Compliance (COC). Warranty claims require proof of compliant installation and documentation.
