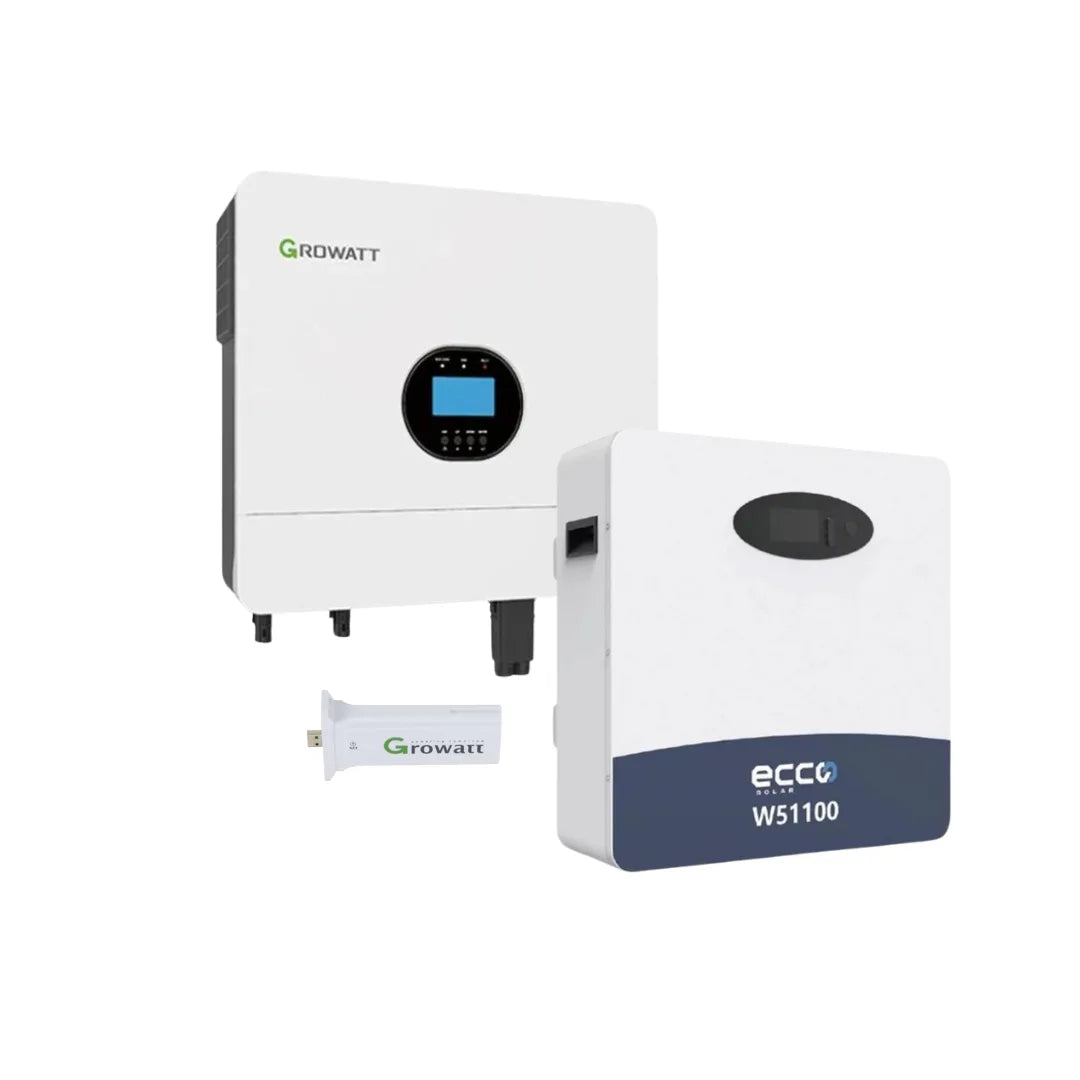

6KW Off-Grid Growatt Hybrid Inverter MPPT 100A + 5.12 48V Lithium Ecco Battery (Wall Mount)
6KW Off-Grid Growatt Hybrid Inverter MPPT 100A + 5.12 48V Lithium Ecco Battery (Wall Mount)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 10 left
Couldn't load pickup availability
Title:
Growatt 6kW Off-Grid Solar Inverter / 48V / WiFi & Generator Ready / 2-Year Warranty
Description:
Power Your Home with a Reliable & Easy-to-Use Solar Inverter!
Looking for an affordable and efficient solar solution? The Growatt SPF6000ES Plus 6kW Off-Grid Solar Inverter is designed for homeowners and DIY solar users, offering a seamless way to harness solar power and reduce reliance on the grid.
Why Choose This Inverter?
-Plug & Play Setup – Quick PV terminal connections make installation simple.
-Smart Energy Control – Manage timing-based charging and output settings.
-Battery or No Battery? – Use with or without batteries for flexible power options.
-Generator & Grid Ready – Supports both backup generators and utility grid.
-WiFi Monitoring (Included) – Stay in control with real-time tracking from your phone.
-Expandable System – Scale up to 6 units for more power as needed.
-Built for Any Environment – Dust-proof protection for long-term reliability.
Essential Specs:
- Battery Voltage: 48VDC (Lithium & Lead-Acid)
- Rated Power: 6000W | Surge Power: 12000VA
- MPPT Solar Input: 120VDC – 450VDC | Max PV Power: 8000W
- AC Input: 230VAC | Charging Current: 80A
- Waveform: Pure Sine Wave | Transfer Time: 10-20ms
Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)
Key Features:
-Wall-mounted design – easy to install and aesthetically pleasing
-Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
-Max 1C charge/discharge rate
-User-friendly interface
-Compatible with multiple inverter brands
-Supports up to 16 parallel groups
-Compliant with North American UL & EU TUV standards
Advantages:
- Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
- Lighter Weight: ~40% of the weight of comparable lead-acid batteries
- Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
- Wider Temperature Range: -20°C to 60°C
- Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits
What’s in the Box?
- Battery
- Battery Cables & Mounts
Battery Parameters:
- Battery Type: Set to “USE”
- Bulk Charge Voltage: 56.4-56.6V
- Float Charge Voltage: 54V
- Cut-off Voltage: 47V
Technical Specifications:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Total Power: 5.12kWh
- Best Operating Voltage Range: 43V - 54.5V
- Short Circuit Protection: Yes
- Power-on Reverse Connection Protection: Optional
- Max Charging Voltage: 57.6V
- Best Charging Voltage: 56.4V (Recommended)
- Max Continuous Output Power: 5500W
- Max Momentary Output Power: 7500W
- Local Parameter Configuration: Supported
- Max Installation Dimensions (mm): 480 × 170 × 500
- Package Size (mm): 590 × 290 × 615
- Weight: 49kg
- IP Class: IP54
- Communication: RS485, RS232, CAN
- Design Life: 15 years
-
Battery:
- Voltage: 48V
- Max Discharge Current: 220A
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 63VDC
- Charging Method: CC/CV
- 5-Year Warranty
- Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
- A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
- Installation must comply with SANS 10142 and all its parts.
- Warranty claims must include:
- Installation photos
- Valid COC
- Proof of installation by a qualified wireman or Master Electrician
- Failure to provide the above may void the warranty.
