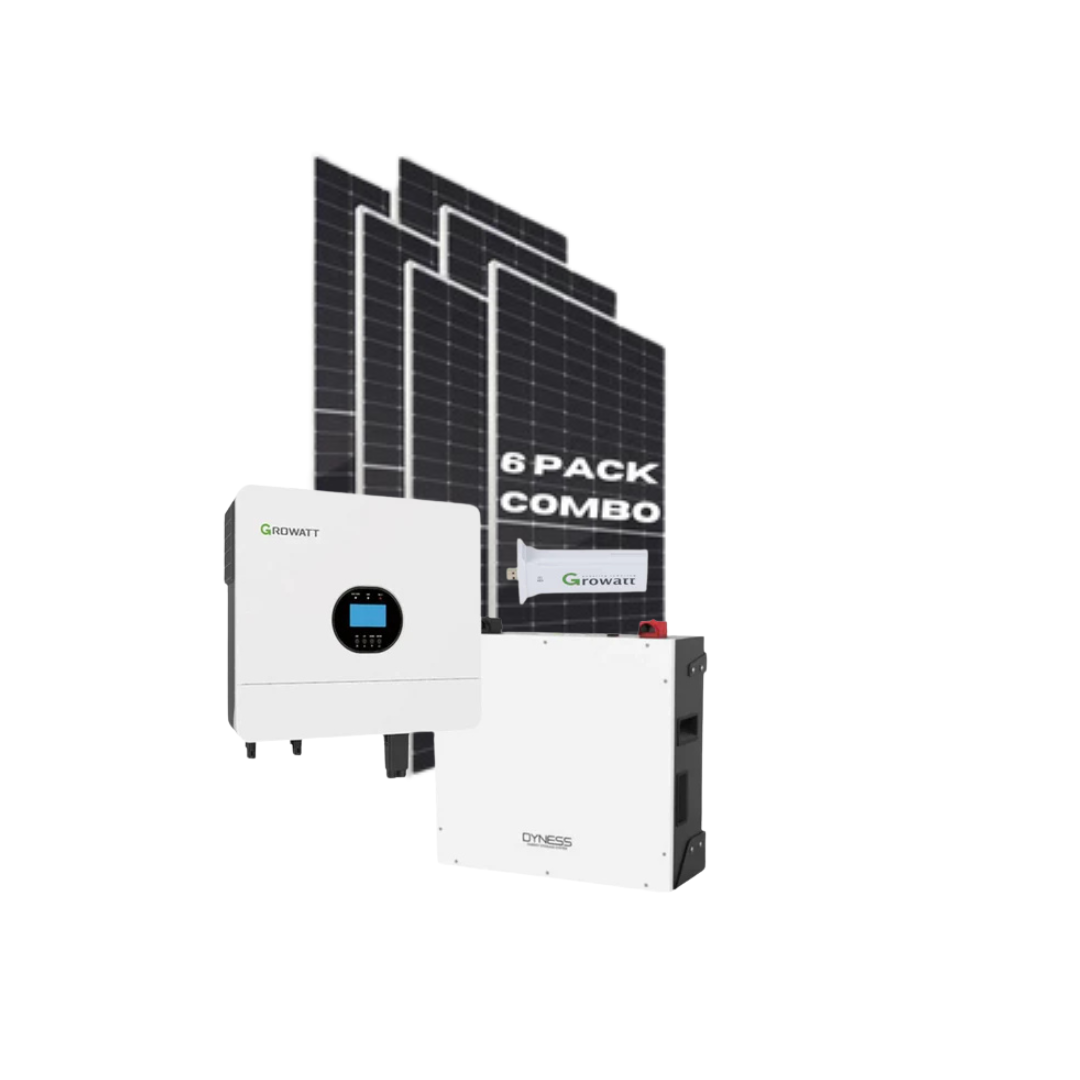

6KW MPPT 100A Growatt Hybrid Inverter + 5.12kWh Dyness Lithium Battery + 6x 545W Tier 1 Solar Combo Kit
6KW MPPT 100A Growatt Hybrid Inverter + 5.12kWh Dyness Lithium Battery + 6x 545W Tier 1 Solar Combo Kit
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 8 left
Couldn't load pickup availability
Share
Description:
This all-in-one hybrid solar power solution is tailored for high-demand residential, light commercial, and backup applications. At its core is the Growatt SPF 6000-ES-PLUS 6kVA Hybrid Inverter, known for its smart integration of solar, grid, and battery power. Combined with the Dyness DL51100 5.12kWh LiFePO₄ Battery and 6x 545W Haitai Tier 1 solar panels, this system delivers reliable off-grid or hybrid performance with room to scale.
Kit Components:
-1 x Growatt SPF 6000-ES-PLUS 6KVA Hybrid Inverter
-1 x Dyness DL51100 5.12kWh Lithium Iron Phosphate Battery
-6 x Haitai 545W Tier 1 Monocrystalline Solar Panels
-1 x Growatt WiFi Dongle
-Battery Cables & User Manual
System Highlights:
Hybrid Inverter Features
-6kVA / 6000W pure sine wave output — ideal for sensitive electronics
-8000W max PV input with wide MPPT range: 120V–450V DC
-Built-in 80A AC charger; 56.5V battery charge voltage
-Surge capacity of 12,000VA for startup loads
-Fast 10ms switchover for seamless backup power
-Operates with lithium, lead-acid, or gel battery systems
-Parallel support for up to 6 inverters for scalable solutions
-Smart communication via RS485 and CAN protocols
Battery Performance
-5.12kWh energy storage using safe, durable LiFePO₄ cells
-Expandable to 40 batteries in parallel
-Integrated BMS with thermal, overvoltage, and deep discharge protection
-Flexible mounting for rack or wall installation
-10-year manufacturer-backed battery warranty
Solar Panel Integration
-6x 545W Haitai Tier 1 monocrystalline modules (3.27kW total)
-Excellent efficiency and low-light performance
-Ideal for residential and small commercial installations
-Durable and weather-resistant, engineered for South African conditions
Technical Summary
-Rated Inverter Power: 6000W | Surge: 12000VA
-Max Solar Input: 8000W | Voltage Range: 120V–450V
-Battery Voltage: 48VDC | IP20 Enclosure
Warranty & Compliance
-10-Year Warranty on Dyness Battery
-2-Year Warranty on Growatt Inverter
-15-Year warranty product on Solar Panels
-System must be installed by a qualified electrician or registered wireman, with a Certificate of Compliance (COC) issued post-installation.
-Installation must fully comply with SANS 10142 standards. Non-compliance may void warranty.
