6KW Deye Hybrid Inverter Low Voltage (SUN-6K-SG04LP1-EU-SM2) + WIFI
6KW Deye Hybrid Inverter Low Voltage (SUN-6K-SG04LP1-EU-SM2) + WIFI
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 2 left
Couldn't load pickup availability
Title:

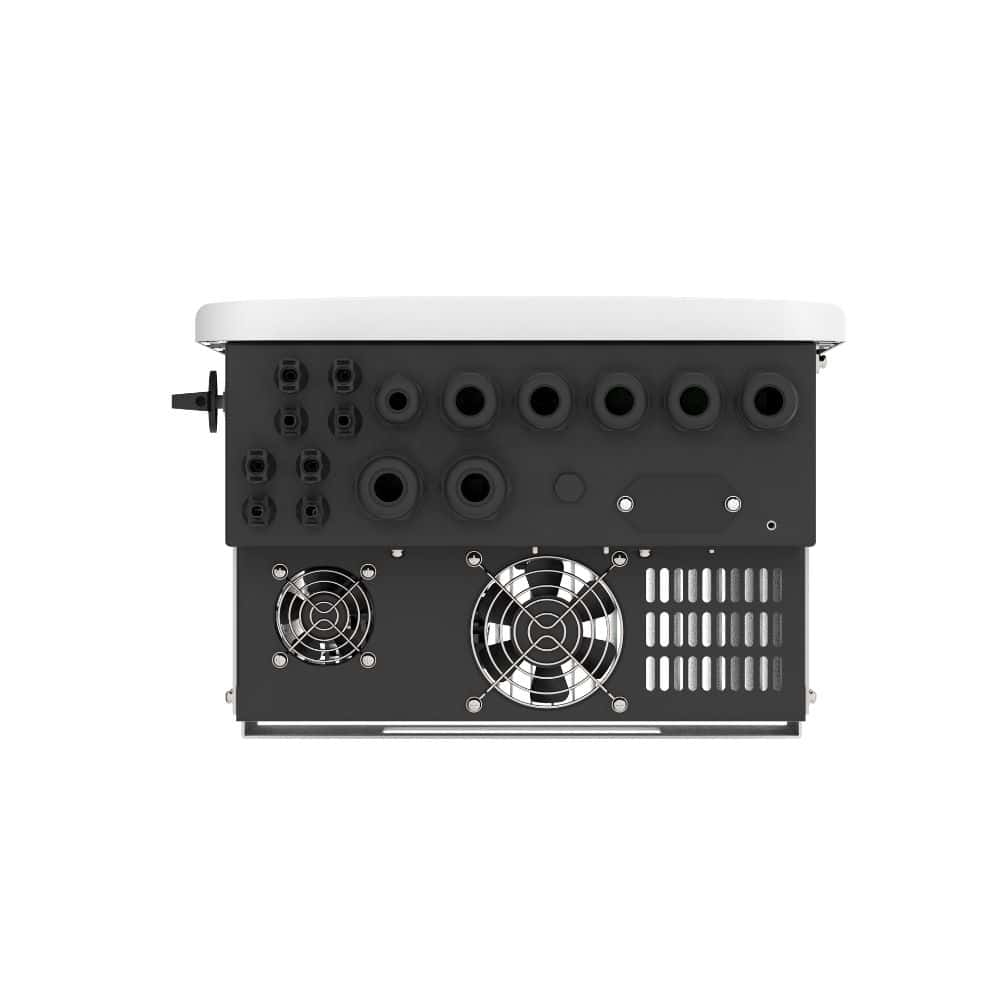

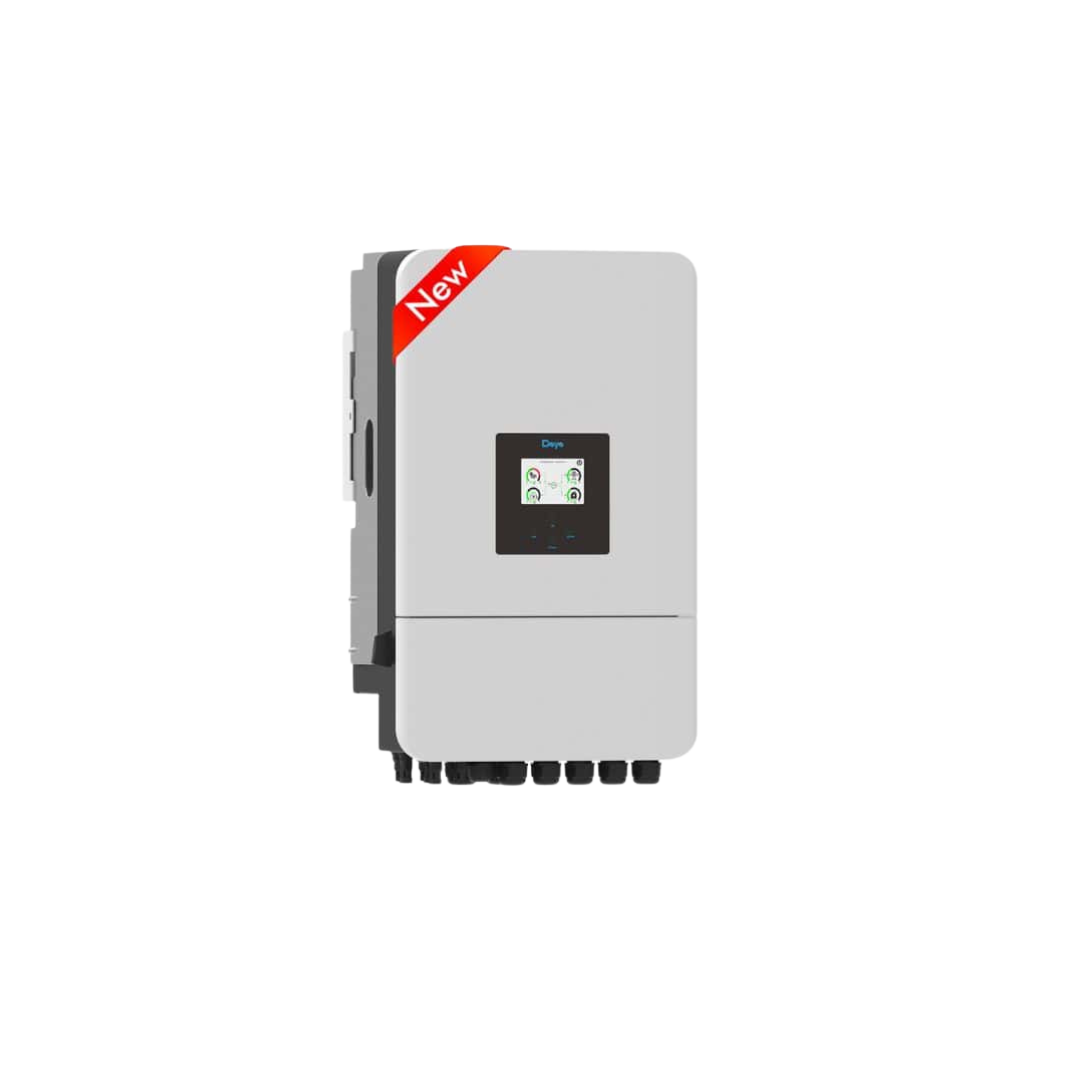

Deye 6kW Hybrid Inverter – High Current, Smart Control, Parallel Ready
Model: (SUN-6K-SG04LP1-EU-SM2)
Warehouse stock — confirm availability before collection.
Description
The Deye SUN-6K-SG05LP1-EU-SM2 hybrid inverter series delivers advanced energy conversion and storage functionality for both residential and commercial solar systems. With rapid charge/discharge capability, AC coupling support, and flexible battery integration, this inverter is a powerful core for scalable solar installations.
Key Functional Benefits
Fast Charge/Discharge Capability
-Handles up to 190A for both charging and discharging
-Enables rapid energy storage and retrieval to match peak demands
Diesel Generator Integration
-Supports energy input from diesel generators
-Provides reliable backup in areas with unstable or limited grid power
Modular Scalability
-Up to 16 units can be connected in parallel for both on-grid and off-grid setups
-Easily expand your system as your energy needs grow
Flexible Battery Compatibility
-Compatible with Lead-acid and Lithium-ion batteries (40–60V)
-Supports multiple batteries in parallel with a self-adaptive BMS-aligned charging strategy
AC Coupling for Retrofit Systems
-Enhances existing solar systems with additional storage and hybrid operation
Intuitive Interface & Durable Design
-4.3-inch color LCD touchscreen for easy monitoring and system control
-IP65 rating protects against dust and water ingress for versatile installation environments
AC Input/Output Data:
Rated AC Input/Output Active Power (W) 6000
Max. AC Input/Output Apparent Power (VA) 6600
Rated AC Input/Output Current (A) 27.3/26.1
Max. AC Input/Output Current (A) 30/28.7
Max. Continuous AC Passthrough (grid to load) (A) 40
Peak Power (off-grid) (W) 2 times of rated power, 10s
PV String Input Data:
Max. PV Access Power (W) 12000
Max. PV Input Power (W) 9600
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Rated PV Input Voltage (V) 370
Technical Highlights
Efficiency
-Maximum efficiency: 97.6%
-MPPT efficiency: >99%
-THDi: <3% of nominal power
-DC injection current: <0.5% In
Power Capacity
-Rated input/output range: 3600W to 8000W
-Supports 2× rated power for up to 10 seconds in off-grid mode
Protection Systems
-Built-in safeguards include:
-DC polarity reverse protection
-AC overcurrent and overvoltage protection
-Short-circuit protection
-Ground fault monitoring
-TYPE II surge protection (DC & AC)
-Thermal and over-temperature protection
Communications & Integration
-Communication options: GPRS, WiFi, Bluetooth, 4G, LAN
-Interfaces: RS485, RS232, CAN
-Allows remote system monitoring and firmware updates across platforms
Warranty & Installation
-Includes a 10-year limited warranty (T&Cs apply)
-Must be installed by a certified electrician
-A valid Certificate of Compliance (COC) is required
-Installation must conform to SANS 10142 standards
