The Solar Step

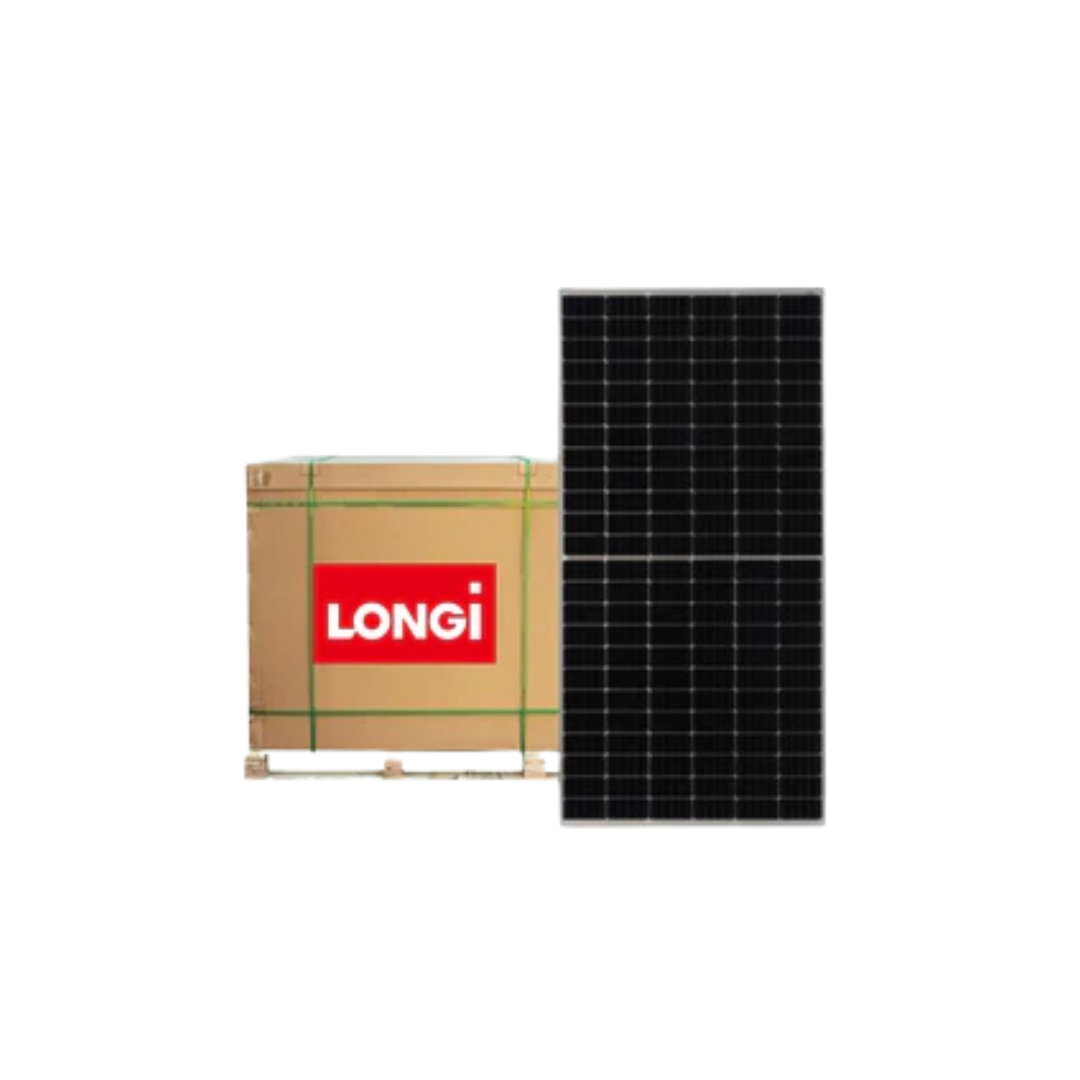

620W Longi Bi-Facial Tier 1 Hi-MO Solar Panel
620W Longi Bi-Facial Tier 1 Hi-MO Solar Panel
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
33 in stock
Couldn't load pickup availability
PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK !!
Description
Utility-Scale Solar Module for Maximum Energy Yield
The LONGi 620W Bi-facial Hi-MO 7 Solar Panel is a high-output photovoltaic module engineered for commercial rooftops, ground-mounted systems, and large-scale solar farms. As part of LONGi’s Hi-MO 7 series, this panel combines ultra-high wattage, bifacial energy capture, and advanced cell technology to deliver reliable long-term performance in demanding environments.
High Nominal Power Output
Delivers a rated output of 620W under STC conditions, reducing the number of panels required per installation
Ideal for projects targeting high power density and optimized balance-of-system costs
Bifacial Energy Generation
Bifacial cell design captures sunlight from both the front and rear surfaces
Rear-side energy gain benefits from reflected light off ground surfaces and structures
Under suitable installation conditions, total energy yield can increase by approximately 10–25% compared to monofacial modules
Advanced HPDC Half-Cell Technology
Utilises LONGi’s HPDC (High Performance Dual-Cell) architecture with half-cell construction
Reduces resistive losses and improves performance in low-light and partial shading conditions
Enhances long-term reliability and output stability for large solar investments
Thermal Stability and Environmental Resistance
Favourable temperature coefficient of –0.28% per °C, limiting performance losses in high-temperature climates
Designed to withstand 5400Pa front-side and 2400Pa rear-side static loads
Certified resistance to wind, heavy rain, and hail impact (25mm hailstones at 23m/s)
Durable Construction and Warranty Coverage
Dual-glass construction with semi-tempered glass for enhanced mechanical strength
Anodised aluminium frame with IP68 junction box and reinforced cabling
Backed by a 12-year product warranty and a 20-year linear power output warranty, ensuring predictable long-term degradation
Technical Specifications
Mechanical Parameters
| Specification | Details |
|---|---|
| Cell Orientation | 132 (6 × 22) |
| Junction Box | IP68, 3 diodes |
| Output Cable | 4mm², +400 / -200 mm (±1400 mm option) |
| Glass | Dual glass, 2.0 ± 2.0 mm semi-tempered |
| Frame | Anodised aluminium alloy |
Electrical Characteristics (STC)
| Specification | Value |
|---|---|
| Module Type | LR8-66HGD-620M |
| Maximum Power (Pmax) | 620 W |
| Open Circuit Voltage (Voc) | 48.78 V |
| Short Circuit Current (Isc) | 16.05 A |
| Voltage at Max Power (Vmp) | 40.91 V |
| Current at Max Power (Imp) | 15.16 A |
| Module Efficiency | 23.0% |
Operating Parameters
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Power Tolerance | 0 ~ +3% |
| Voc / Isc Tolerance | ±3% |
| Max System Voltage | DC 1500 V (IEC/UL) |
| Max Series Fuse Rating | 35 A |
| NOCT | 45 ± 2°C |
| Protection Class | Class II |
| Bifaciality | 80 ± 5% |
| Fire Rating | UL Type 29, IEC Class C |
Temperature Coefficients (STC)
| Parameter | Coefficient |
|---|---|
| Isc | +0.045% / °C |
| Voc | -0.230% / °C |
| Pmax | -0.28% / °C |
Installation and Warranty Notes
Installation must be carried out by qualified solar professionals and mounted according to manufacturer guidelines. Warranty coverage applies subject to correct handling, installation, and system design. Suitable for commercial, industrial, and utility-scale applications where long service life and high energy yield are critical.
