61.5kWh Hubble HV-615 High-Voltage LiFePO₄ Battery – Modular Rack ESS
61.5kWh Hubble HV-615 High-Voltage LiFePO₄ Battery – Modular Rack ESS
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 5 left
Couldn't load pickup availability
Title:
Hubble HV-615 61.5kWh High-Voltage LiFePO₄ Battery – Modular Rack ESS
Description
Commercial-Grade High-Voltage Energy Storage System
The Hubble HV-615 High-Voltage Battery is a 61.5kWh lithium iron phosphate (LiFePO₄) energy storage solution designed for commercial, industrial, and large residential solar installations. Built as a modular rack-mounted ESS, this system delivers high power density, long service life, and seamless integration with leading high-voltage inverters.
Online deal only. Unit can be ordered for in-store collection if required.
System Architecture and Performance
Nominal energy capacity of 61.5kWh using a high-voltage 615V architecture
1C charge and discharge rating for high-performance energy storage applications
Designed for continuous operation with 100A charging and discharging capability
Built around 12 battery packs, each containing 16 prismatic LiFePO₄ cells
Battery Chemistry and Longevity
Utilises new-generation prismatic LiFePO₄ cells for enhanced thermal stability and safety
Delivers over 6000 cycles at 80% Depth of Discharge
Approximately 4000 cycles at 100% DOD
Expected design life of ±15 years under normal operating conditions

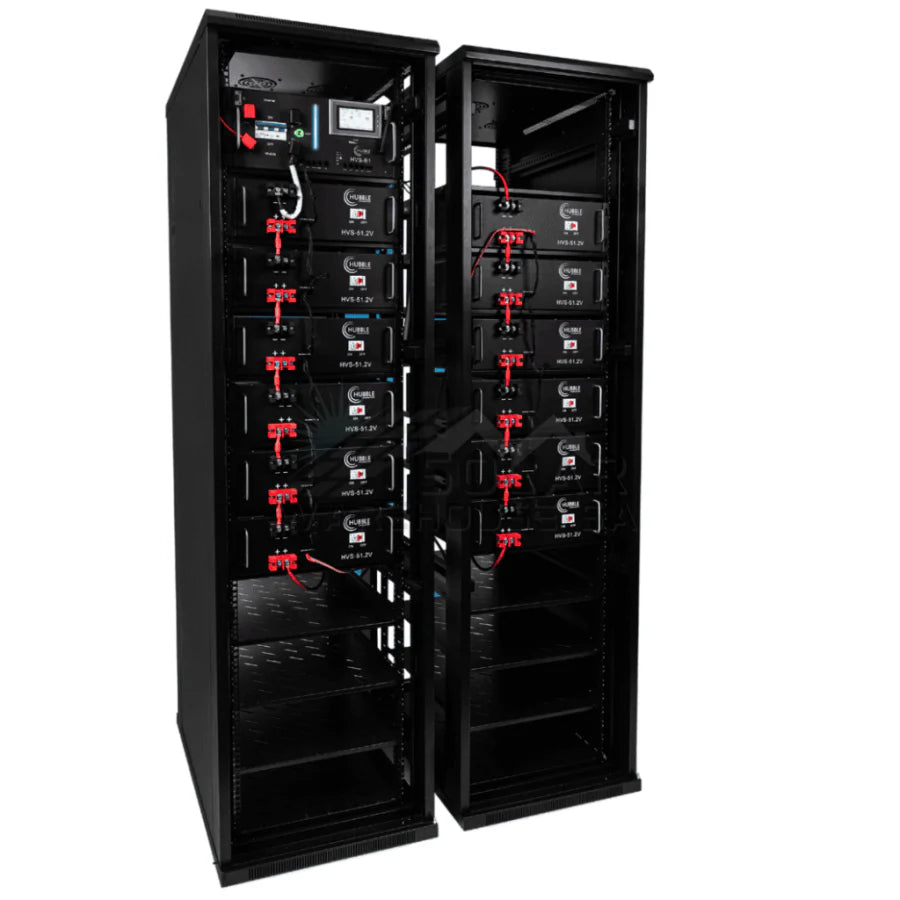

Modular Rack System and Scalability
Supplied as an easy rack-mount cabinet system, simplifying transport and installation
Supports parallel connection of up to 8 ESS systems per string with full communication support
Modular high-voltage design allows system expansion as energy demand grows
Monitoring, Control and Integration
Integrated intelligent touch screen for local system status and diagnostics
Cloudlink 24/7 Wi-Fi monitoring included for real-time performance tracking
Remote firmware updates supported over the internet
Full CAN-bus communication, ensuring compatibility with most leading high-voltage inverter brands
Protection and Safety Design
Individual circuit breaker per battery pack
Advanced BMS protection including over-voltage, under-voltage, and current limiting
Robust black baked lacquer steel enclosure for long-term durability
Certified to CE, UN38.3, and GBT safety standards

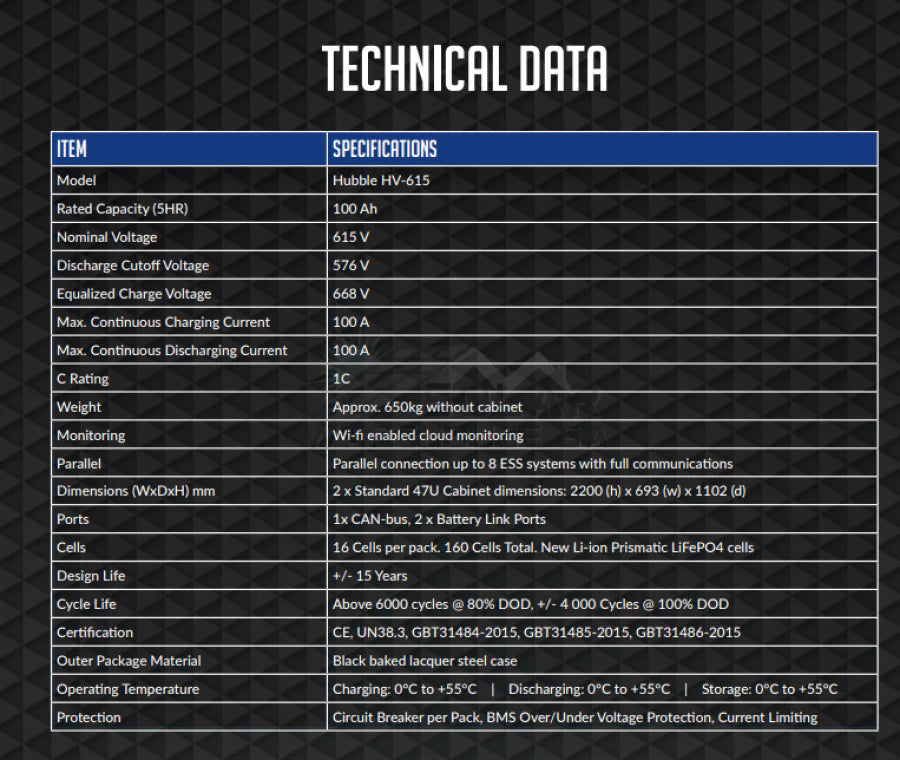

Technical Specifications
| Specification | Details |
|---|---|
| Model | HV-615 |
| Nominal Energy | 61.5 kWh |
| Rated Capacity (5HR) | 100 Ah |
| Nominal Voltage | 615 V |
| Discharge Cut-off Voltage | 576 V |
| Equalised Charge Voltage | 668 V |
| Max Continuous Charge Current | 100 A |
| Max Continuous Discharge Current | 100 A |
| C-Rating | 1C |
| Cell Type | Prismatic LiFePO₄ |
| Cell Configuration | 16 cells per pack / 160 cells total |
| Cycle Life | >6000 @ 80% DOD |
| Design Life | ±15 years |
| Parallel Capability | Up to 8 ESS systems |
| Monitoring | Wi-Fi enabled cloud monitoring |
| Communication Ports | 1× CAN-Bus, 2× Battery Link |
| Protection | Circuit breakers, BMS voltage & current protection |
| Operating Temperature | 0°C to +55°C (charge/discharge/storage) |
| Enclosure | Black baked lacquer steel |
| Weight | ±650 kg (excluding cabinet) |
| Cabinet Dimensions | 2 × 47U cabinets: 2200 × 693 × 1102 mm |
Installation and Warranty Conditions
Installation must be performed by a qualified electrician and integrated according to inverter manufacturer specifications and SANS 10142 requirements. Correct commissioning, system configuration, and documentation are required to validate warranty coverage.
