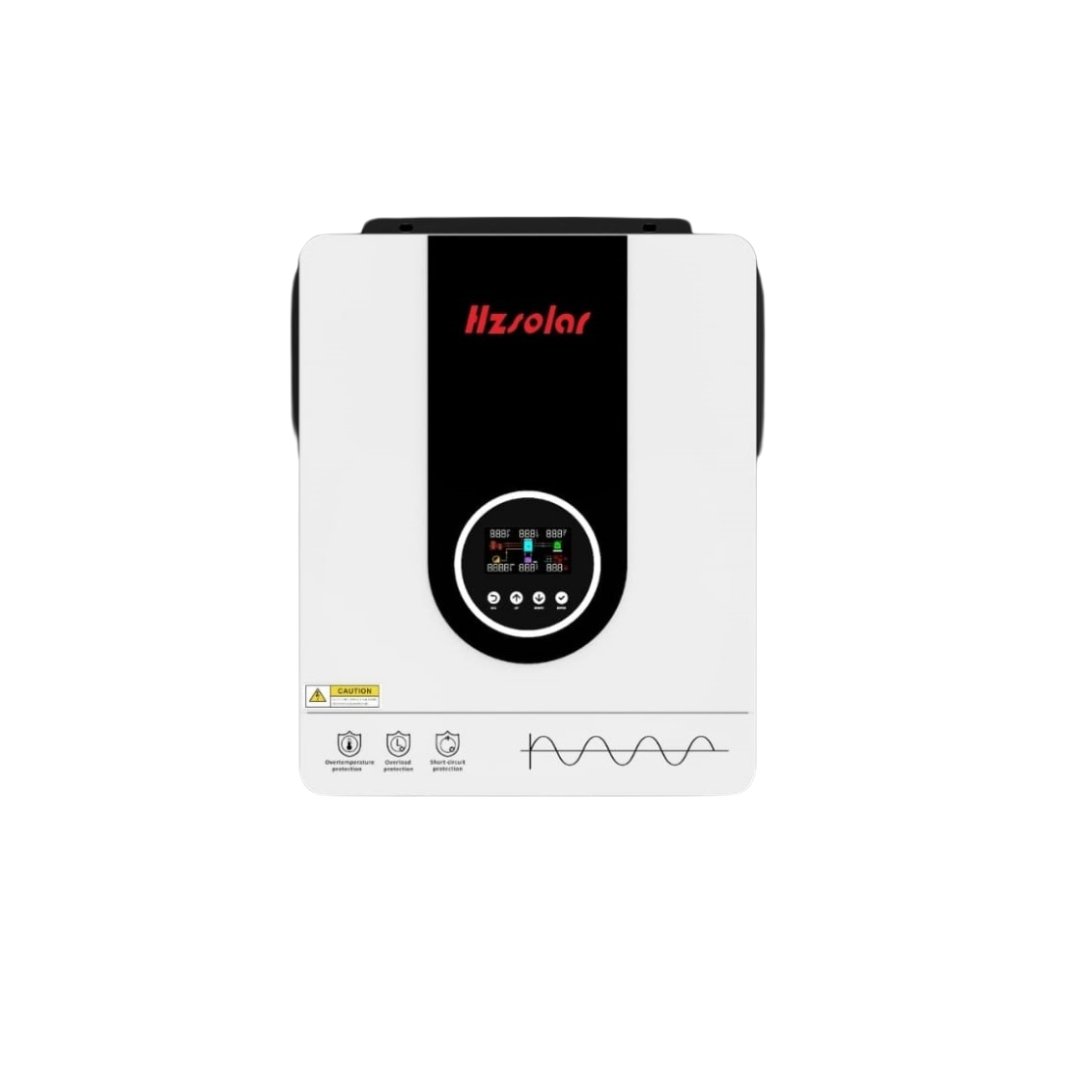

6.2KW HZ Solar MPPT Hybrid Pure Sine Wave Inverter

High-Performance Hybrid Inverter for Optimized Solar Energy Management

The HZ SOLAR 6.5kW Hybrid Inverter delivers powerful performance, supporting extensive PV input, dual load outputs, and efficient AC charging capabilities. Designed for demanding residential and commercial installations, this inverter offers flexible energy management with advanced safety features.

PV Input Specifications

• Nominal Operating Voltage: 240VDC

• Maximum PV Voltage (VMAX): 500VDC

• PV Input Voltage Range: 60-450VDC

• Maximum PV Input Current (IMAX): 22A

• Full Load MPPT Range: 240-450VDC

• Maximum PV Input Power: 6500W

• Maximum Solar Charger Current: 120A

Grid / AC Output Specifications

• Nominal Output Voltage: 220/230/240VAC

• Feed-In Grid Voltage Range: 195-253VAC

• Feed-In Grid Frequency Range: 49-51+1Hz

• Nominal Output Current: 27.0A

• Power Factor Range: >0.99

Dual Load Output Power

• Full Load Capacity: 6200W

• Maximum Main Load: 6200W

• Maximum Secondary Load: 2066W

• Main Load Cut Off Voltage: 52VDC

• Main Load Return Voltage: 54VDC

AC Input Specifications

• Nominal Operating Voltage: 230VAC

• Maximum Input Current: 40A

• Nominal Operating Frequency: 50/60Hz

• Surge Power: 12400VA

• Maximum AC Charging Current: 100A

Reliability & Safety

• Engineered for efficient power management with high surge capacity and dual load outputs.

• Optimized MPPT voltage range ensures maximum energy harvest from your solar panels.

Warranty & Installation Requirements

• All inverters must be installed by a qualified electrician or Master electrician registered with the Department of Labour.

• A valid Certificate of Compliance (COC) specific to the solar system installation must be issued upon completion.

• Installation must comply with SANS 10142 and all its parts.

• Warranty claims will be void if the installation was not conducted by a qualified installer, lacks valid COC, or does not include required installation photos.
