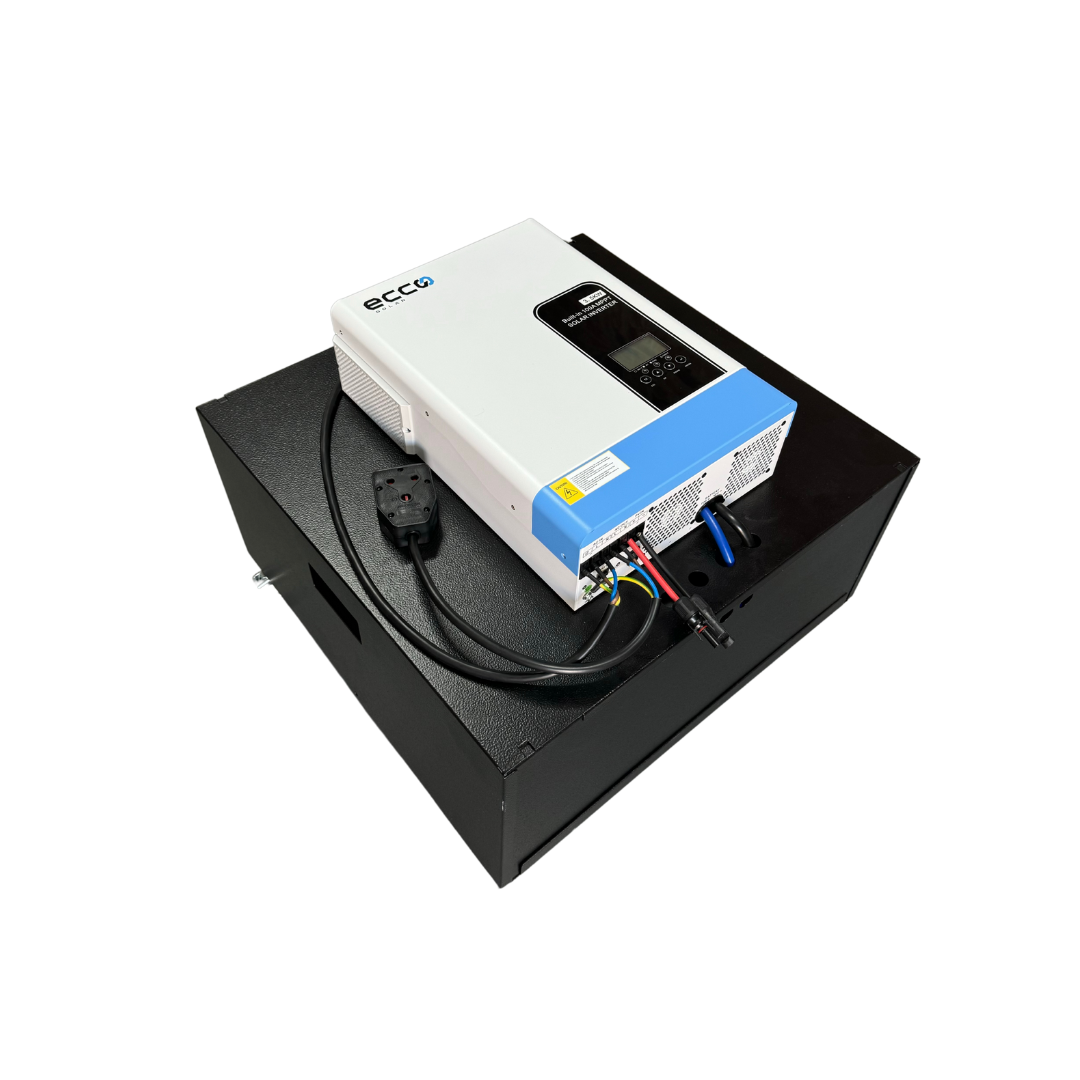

6.2KVA / 6200W Hybrid Portable Power System + 2x 5.12kWh (10.24kWh) Lithium Battery (SOLAR READY)
6.2KVA / 6200W Hybrid Portable Power System + 2x 5.12kWh (10.24kWh) Lithium Battery (SOLAR READY)
Please note that the stock quantities displayed are for our warehouse. Please confirm stock on hand directly with us before collecting your order.
Low stock: 3 left
Couldn't load pickup availability
6.2KVA / 6200W Hybrid Portable Power System + 2x 5.12kWh (10.24kWh) Lithium Battery (SOLAR READY)
Description:
The all-in-one portable plug & play inverter battery system provides long-lasting power backup for homes, businesses, and off-grid applications. Designed for load shedding and renewable energy solutions, this heavy-duty power solution is equipped with a 6.2kVA hybrid inverter and two Svolt 48V 106Ah lithium batteries for superior backup time and efficiency.
The solar-ready system allows for PV charging integration, ensuring maximum energy efficiency and reduced grid dependency. With lockable wheels and a portable design, it is easy to transport and set up anywhere.
Key Features:
Exceptional Backup Power & Efficiency
- Powers essential appliances (TV, Wi-Fi, lights, computers) for up to 85-90 hours (100% DOD) at 150W load
- Instant transfer to battery power during load shedding
- Auto-recharges when grid power returns
- Solar-ready: Add solar panels for off-grid energy independence
Ecco Hybrid Inverter (6.2kVA / 6200W)
- Pure sine wave output for stable and efficient power
- Output Power Factor 1.0 for optimal energy conversion
- MPPT solar charge controller for improved energy efficiency
- Supports solar charging & battery-less operation
- Overload & short circuit protection for system safety
- Cold start function for power restoration during outages
- Supports grid & solar charging priorities
Advanced MPPT Solar Charging Technology
- Maximum PV Array Power: 6,500W
- Max PV Open Circuit Voltage: 500VDC
- MPPT Operating Voltage Range: 60V – 500VDC
- Max Solar Charge Current: 120A
Battery & Charging System
- Battery Communication: RS485
- Battery Voltage: 48V DC
- Floating Charge Voltage: 54V DC
- Overcharge Protection: 63V DC
- Charging Method: Constant Current / Constant Voltage (CC/CV)
Ecco 48V 100Ah Lithium Battery (5.12kWh) – Wall-Mounted
- A-Grade LiFePO4 cells for high durability and reliability
- >6000 charge cycles at 80% depth of discharge (DOD)
- Built-in Battery Management System (BMS) for 7-layer protection
- Maintenance-free, lightweight, and eco-friendly
- Supports up to 16 parallel connections for increased capacity
- Wide operating temperature range (-20°C to 65°C discharge temperature)
- Optional LCD screen & Bluetooth monitoring
Technical Specifications:
Inverter Mode:
- Rated Power: 6200W
- Output Voltage: 230V, 50/60Hz
- Waveform: Pure Sine Wave
- Efficiency (Peak): 93%
- Transfer Time: 10ms (Computers) / 20ms (Appliances)
Solar Charging:
- Max PV Input Power: 6,500W
- MPPT Voltage Range: 60V – 500VDC
- Max PV Open Circuit Voltage: 500VDC
- Max Solar Input Current: 27A
- Max Solar Charge Current: 120A
Battery Storage:
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Nominal Capacity: 106Ah per battery (Total: 2x 5.43kWh)
- Max Continuous Discharge Current: 100A
- Max Charge Voltage: 57.6V
- Cycle Life: >6000 cycles at 80% DOD
Physical & Connectivity:
- Ingress Protection: IP20
- Inverter Dimensions: 438 × 312 × 122mm
- Battery Dimensions: 688 × 447 × 211mm (each)
- System Dimensions: 60cm x 60cm x 45cm
- System Weight: Approx. 110kg
- Communication Interface: RS485 (RJ45) / RS232 (DB9)
System Components:
- 1x Ecco 6.2kVA Hybrid Inverter (6200W) – Pure Sine Wave
- 2x Ecco 48V 100Ah Lithium Batteries (5.12kWh each)
- 1x Heavy-Duty Portable Steel Box (Lockable Wheels & Handles)
- 1x Surge Plug (1m, 2.5mm cabtyre)
- 1x Double-Sided Female Plug Socket
- 1x Fuse + Disconnector (Battery to Inverter)
Battery Care & Maintenance
- Keep the system plugged in to maintain battery charge
- Avoid deep discharges to extend battery lifespan
- Use solar charging to reduce grid dependence and maximize efficiency
Warranty & Installation Requirements
- 5-Year Warranty on Lithium Batteries & Inverter
- Installation must be performed by a qualified electrician
- A valid Certificate of Compliance (COC) must be issued after installation
- System must be installed in compliance with SANS 10142 regulations
