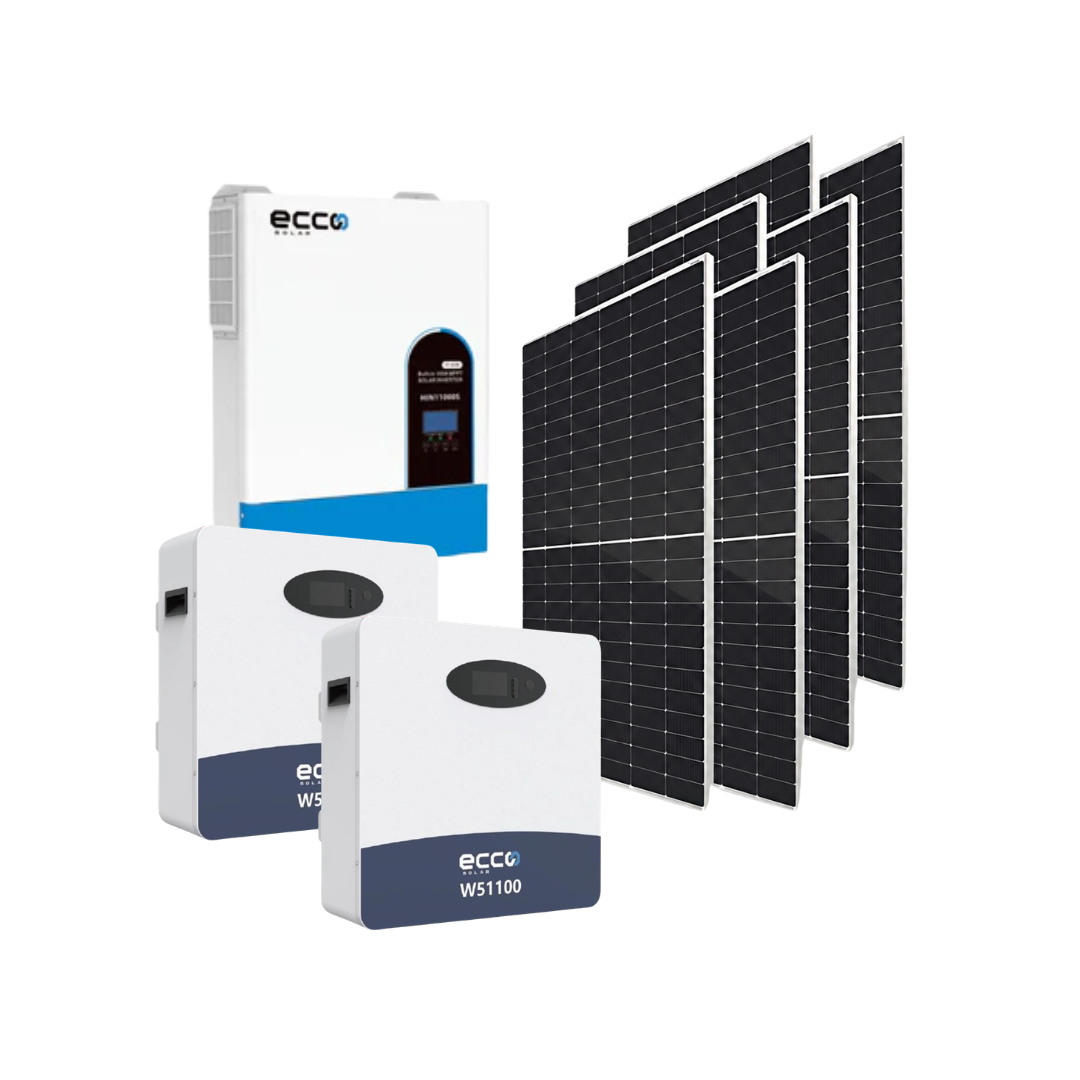

6.2KVA/6200W Ecco MPPT Hybrid inverter + 2 X 5.12 KWH 100AH Lithium Batteries + 6x 560W MEGATRON Tier 1 Solar Panel (HZS-560W)

6.2KVA/6200W Ecco MPPT Hybrid inverter + 2 X 5.12 KWH 100AH Lithium Batteries + 6x 560W Megatron Tier 1 Solar Panel (HZS-560W)

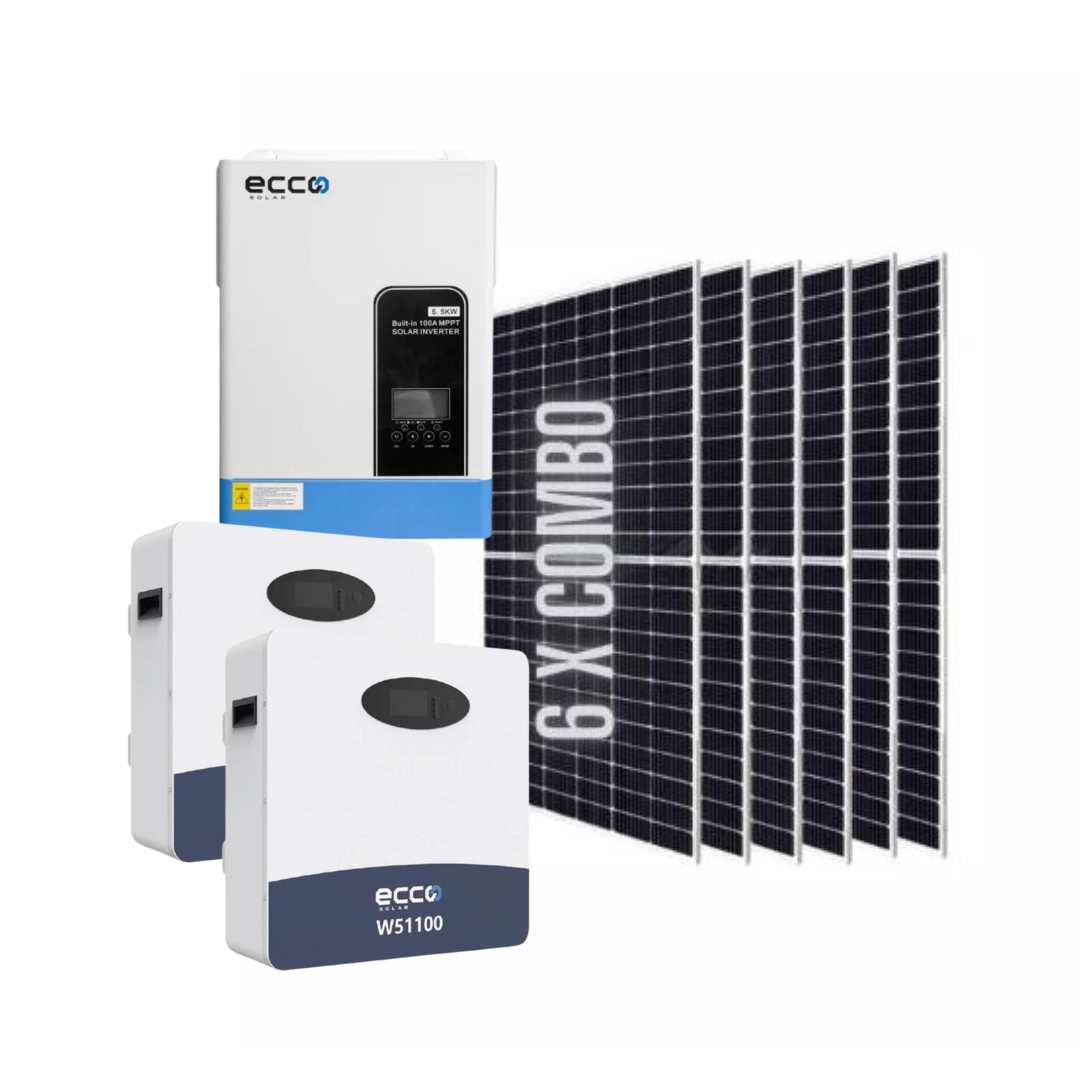

Introducing a powerful and efficient solar energy solution: the 6.2KVA/6200W Ecco MPPT Hybrid Inverter paired with 2 X 5.12 KWH 100AH Lithium Batteries and 6 X 560W Megatron Tier 1 Solar Panel (HZS-560W). This combo is designed to provide a robust and reliable energy system for your home or business.

-Ecco MPPT Hybrid Inverter (6.2KVA/6200W): This advanced inverter features Maximum Power Point Tracking (MPPT) technology for optimal energy harvesting from your solar panels. It seamlessly integrates with both solar and battery power sources, offering efficient energy conversion and storage.

-Lithium Batteries (2 x 5.12 KWH 100AH): These high-capacity lithium-ion batteries ensure long-lasting, dependable power storage with a total capacity of 10.24 KWH. Their compact design and high efficiency make them ideal for supporting your energy needs.

-Mono TIER 1 Solar Panels (6 x 560W Megatron Tier 1 Solar Panel (HZS-560W) : With high-performance 595W panels, this setup maximizes solar energy capture. Mono Solar Panels are known for their durability and efficiency, ensuring excellent performance even in less-than-ideal conditions.

Reliable 6.2kW ECCO Hybrid Inverter with Advanced Battery & Solar Integration

The HIN6200S Hybrid Inverter is a high-performance single-phase solar inverter designed for efficient energy conversion and battery management. With 6,500W maximum PV input power, this inverter ensures optimal solar energy harvesting for both residential and commercial applications. Featuring pure sine wave output, intelligent MPPT charging, and seamless lithium battery integration, it delivers reliable backup power and grid-tied functionality.

Key Features:

Powerful & Efficient Performance

• Maximum Power Output: 6,200W for continuous load supply.
• Surge Power: 12,400VA to handle high starting loads.
• Dual Output Design: Supports multiple load priorities.
• 94% Peak Efficiency: Maximizes energy savings and performance.

Smart Battery & Solar Charging

• Lithium Battery Activation: Enables seamless PV or utility charging.
• Battery Voltage: 48V DC with floating charge at 54V DC.
• Overcharge Protection: Automatically prevents battery damage at 63V DC.
• Flexible Charging Options: 120A max solar charge, 80A AC charge, and hybrid charging up to 120A.

Advanced MPPT Technology for Maximum Solar Harvesting

• Maximum PV Input: 6,500W to optimize solar efficiency.
• MPPT Voltage Range: 60V–500V DC for versatile solar compatibility.
• High Voltage Tolerance: 500V DC open circuit capacity.

Smart Grid & Backup Power Management

• Grid Voltage Range: 170-280V AC (Computers) / 90-280V AC (Appliances).
• Auto Frequency Detection: 50/60Hz sensing for global compatibility.
• Seamless Switchover: 10ms for computers, 20ms for appliances.

Built for Durability & Safety

• Operating Temperature: -10°C to 50°C for various environments.
• Humidity Resistance: 5%–95% non-condensing.
• Overload Protection: Handles up to 140% load with auto safety cut-off.

Technical Specifications:

General

• Model: HIN6200S
• Phase: Single-phase input/output
• Parallel Capability: No
• Battery Communication: Yes (RS485)

AC Input & Output

• Nominal Voltage: 230V AC
• Acceptable Voltage Range:
  • 170–280V AC (Computers)
  • 90–280V AC (Home Appliances)
• Frequency: 50/60Hz (Auto-Sensing)
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (Computers) / 20ms (Appliances)

Battery & Charging

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC
• Charging Method: CC/CV (Constant Current / Constant Voltage)

Solar & MPPT Charger

• MPPT Controller: Yes
• Maximum PV Array Power: 6,500W
• Max PV Open Circuit Voltage: 500V DC
• MPPT Voltage Range: 60V – 500V DC
• Max Solar Input Current: 27A
• Max Solar Charge Current: 120A
• Max AC Charge Current: 80A
• Max Total Charge Current: 120A

Physical & Connectivity

• Dimensions: 438 × 312 × 122 mm
• Package Size: 540 × 390 × 210 mm
• Weight: 11 kg
• Communication Interface: RS485 (RJ45) / RS232 (DB9)

Environmental Conditions

• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
  • 5-Year Warranty
  • Installation must be performed by a qualified electrical wireman or Master Electrician with valid registration with the Department of Labour.
  • A valid Electrical Certificate of Compliance (COC) must be issued after installation, specific to the backup or solar system.
  • Installation must comply with SANS 10142 and all its parts.
  • Warranty claims must include:
    • Installation photos
    • Valid COC
    • Proof of installation by a qualified wireman or Master Electrician
  • Failure to provide the above may void the warranty. Humidity: 5% – 95% (Non-Condensing)

    Lithium Battery (Ecco 51.2V 100Ah 5.12kWh W51100 – Wall-Mounted)

    Key Features:
    -Wall-mounted design – easy to install and aesthetically pleasing
    -Lithium Iron Phosphate (LiFePO4) cells – safe, long life cycle
    -Max 1C charge/discharge rate
    -User-friendly interface
    -Compatible with multiple inverter brands
    -Supports up to 16 parallel groups
    -Compliant with North American UL & EU TUV standards

    Advantages:

    • Longer Cycle Life: Up to 20× longer cycle life and 5× longer float/calendar life than lead-acid batteries
    • Lighter Weight: ~40% of the weight of comparable lead-acid batteries
    • Higher Power: 2× the power of lead-acid batteries while maintaining high energy capacity
    • Wider Temperature Range: -20°C to 60°C
    • Superior Safety: Eliminates risk of explosion or combustion from impact, overcharging, or short circuits

    What’s in the Box?

    • Battery
    • Battery Cables & Mounts

    Battery Parameters:

    • Battery Type: Set to “USE”
    • Bulk Charge Voltage: 56.4-56.6V
    • Float Charge Voltage: 54V
    • Cut-off Voltage: 47V

    Technical Specifications:

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Total Power: 5.12kWh
    • Best Operating Voltage Range: 43V - 54.5V
    • Short Circuit Protection: Yes
    • Power-on Reverse Connection Protection: Optional
    • Max Charging Voltage: 57.6V
    • Best Charging Voltage: 56.4V (Recommended)
    • Max Continuous Output Power: 5500W
    • Max Momentary Output Power: 7500W
    • Local Parameter Configuration: Supported
    • Max Installation Dimensions (mm): 480 × 170 × 500
    • Package Size (mm): 590 × 290 × 615
    • Weight: 49kg
    • IP Class: IP54
    • Communication: RS485, RS232, CAN
    • Design Life: 15 years

    • Battery:

      • Voltage: 48V
      • Max Discharge Current: 220A
      • Floating Charge Voltage: 54VDC
      • Overcharge Protection: 63VDC
      • Charging Method: CC/CV
      • Warranties & Installation Requirements

What’s included ?

1x 6.2KVA/6200W Ecco MPPT Hybrid Inverter + (5 YEAR WARRANTY)

2x 5.12k Ecco Wh 100AH Battery + (5 YEAR WARRANTY)

6x Megatron 560W Tier 1 Solar Panel (HZS-560W)(15 YEAR WARRANTY)

PLEASE NOTE THAT SOLAR PANELS ARE COURIERED AT OWN RISK

Warranty & Installation Requirements

Battery + Inverter - 5-year limited warranty

Solar panels -15 year product warranty

All lithium batteries and inverters must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour. A valid Certificate of Compliance (COC) specific to the solar or backup system must be issued after installation. The setup must comply with SANS 10142 regulations.
Warranty claims without a COC, installation photos, or proof of qualified installation may be rejected.
